April 12, 20242 yr On 10/19/2023 at 12:28 AM, Belcraig said: For anyone else running though this and struggling like i did, here are the Basic errors i made spelt out. in the hope it will help someone, or me if i ever need to go though this again in the future. After spending several hours going through this forum and some home assistant ones - i undid everyting and restarted from scrach and found a basic error/assumption i had made on unraid that solved my issue. I updated the conbee 2 firmware folling this - Conbee Firmware update (this is the only change i didn't roll back.) i plugged the conbee stick into a USB extension cable (2m) and moved it away from other elecrtical devices. UNRAID: in USB Manager - this is were my basic mistake happened... i mapped the device NOT the port by clicking on the monitor not the usb symbol. -previously i was mapping the port instead of the device. Made sure connect as serial only was selected, powered up the VM. USB manager showed "connected(Serial). in HA: Version 2023.10.3 latest at time of writing. HA Did not detect the conbee stick as being connected - attaching the via the port It was detecting it. - but failing Settings --> System --> Hardware -->all Harware. the stick now shows as dont exactly know why but hey ho.. going back to device and services and adding the integration Zigbee home automation, and follwoing the promts set a new network up for me without any problems. Hope this helps someone or future me... I think I have followed your instructions to the letter. This is the result in HA But when I try to reconfigure my antenna path: /dev/serial/by-id/usb-QEMU_QEMU_USB_SERIAL_1-0000:00:07.7-4-if00-port0 And this is the usb manger: Anything I could be missing? I would hate to have to reset the entire network. Errors when trying to setup: 2024-04-12 08:56:33.369 DEBUG (MainThread) [zigpy.application] Failed to probe with config {'path': '/dev/serial/by-id/usb-QEMU_QEMU_USB_SERIAL_1-0000:00:07.7-4-if00-port0', 'baudrate': 38400, 'flow_control': 'hardware'} Traceback (most recent call last): File "/usr/local/lib/python3.12/site-packages/zigpy_deconz/api.py", line 589, in _command return await fut ^^^^^^^^^ asyncio.exceptions.CancelledError The above exception was the direct cause of the following exception: Traceback (most recent call last): File "/usr/local/lib/python3.12/site-packages/zigpy/application.py", line 631, in probe await app.connect() File "/usr/local/lib/python3.12/site-packages/zigpy_deconz/zigbee/application.py", line 97, in connect await api.connect() File "/usr/local/lib/python3.12/site-packages/zigpy_deconz/api.py", line 466, in connect await self.version() File "/usr/local/lib/python3.12/site-packages/zigpy_deconz/api.py", line 813, in version self._protocol_version = await self.read_parameter( ^^^^^^^^^^^^^^^^^^^^^^^^^^ File "/usr/local/lib/python3.12/site-packages/zigpy_deconz/api.py", line 832, in read_parameter rsp = await self.send_command( ^^^^^^^^^^^^^^^^^^^^^^^^ File "/usr/local/lib/python3.12/site-packages/zigpy_deconz/api.py", line 508, in send_command return await self._command(cmd, **kwargs) ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^ File "/usr/local/lib/python3.12/site-packages/zigpy_deconz/api.py", line 588, in _command async with asyncio_timeout(COMMAND_TIMEOUT): File "/usr/local/lib/python3.12/asyncio/timeouts.py", line 115, in __aexit__ raise TimeoutError from exc_val TimeoutError Edited April 12, 20242 yr by Todilo

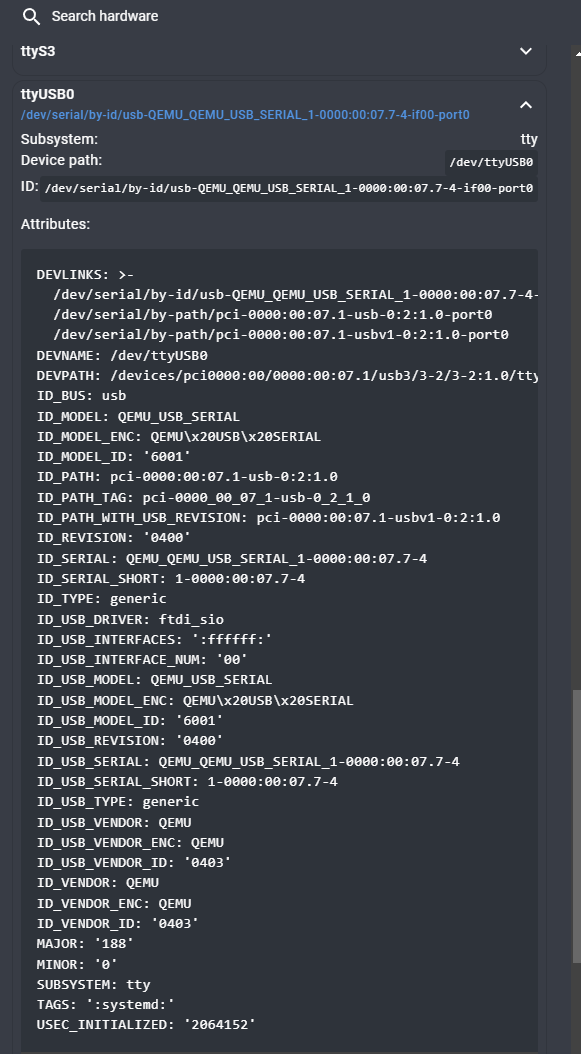

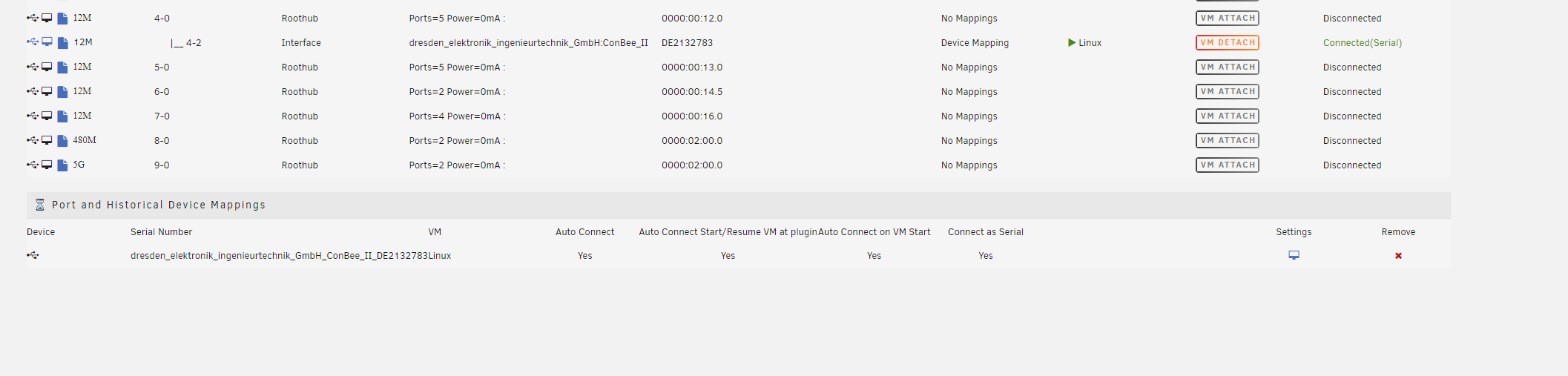

April 12, 20242 yr Community Expert 7 hours ago, Todilo said: I think I have followed your instructions to the letter. This is the result in HA But when I try to reconfigure my antenna path: /dev/serial/by-id/usb-QEMU_QEMU_USB_SERIAL_1-0000:00:07.7-4-if00-port0 And this is the usb manger: Anything I could be missing? I would hate to have to reset the entire network. Errors when trying to setup: 2024-04-12 08:56:33.369 DEBUG (MainThread) [zigpy.application] Failed to probe with config {'path': '/dev/serial/by-id/usb-QEMU_QEMU_USB_SERIAL_1-0000:00:07.7-4-if00-port0', 'baudrate': 38400, 'flow_control': 'hardware'} Traceback (most recent call last): File "/usr/local/lib/python3.12/site-packages/zigpy_deconz/api.py", line 589, in _command return await fut ^^^^^^^^^ asyncio.exceptions.CancelledError The above exception was the direct cause of the following exception: Traceback (most recent call last): File "/usr/local/lib/python3.12/site-packages/zigpy/application.py", line 631, in probe await app.connect() File "/usr/local/lib/python3.12/site-packages/zigpy_deconz/zigbee/application.py", line 97, in connect await api.connect() File "/usr/local/lib/python3.12/site-packages/zigpy_deconz/api.py", line 466, in connect await self.version() File "/usr/local/lib/python3.12/site-packages/zigpy_deconz/api.py", line 813, in version self._protocol_version = await self.read_parameter( ^^^^^^^^^^^^^^^^^^^^^^^^^^ File "/usr/local/lib/python3.12/site-packages/zigpy_deconz/api.py", line 832, in read_parameter rsp = await self.send_command( ^^^^^^^^^^^^^^^^^^^^^^^^ File "/usr/local/lib/python3.12/site-packages/zigpy_deconz/api.py", line 508, in send_command return await self._command(cmd, **kwargs) ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^ File "/usr/local/lib/python3.12/site-packages/zigpy_deconz/api.py", line 588, in _command async with asyncio_timeout(COMMAND_TIMEOUT): File "/usr/local/lib/python3.12/asyncio/timeouts.py", line 115, in __aexit__ raise TimeoutError from exc_val TimeoutError Looks to be ok to me. I would turn of start/resume VM as you will be unlikely to need it. Which USB model are you using in the VM
April 13, 20242 yr 16 hours ago, SimonF said: Looks to be ok to me. I would turn of start/resume VM as you will be unlikely to need it. Which USB model are you using in the VM USB model. The stick. It is a conbee II stick. I am beginning to wonder if the stick itself is non-functional.
April 13, 20242 yr Community Expert 6 minutes ago, Todilo said: USB model. The stick. It is a conbee II stick. I am beginning to wonder if the stick itself is non-functional. No the usb controller in the VM Template. I think it only works with USB2.
April 13, 20242 yr is it plugged directly into the computer? i know mine didnt work until i put it on a 2m extension cord some distance away.
April 15, 20242 yr 1 hour ago, Maki said: Any news on that one? having the exact same Situation as you @Todilo Unfortunately I gave up. I don't know if I accidently bricked it while trying to update firmware but I just could not get it to work. Instead I bought a new stick. A skyconnect and did similar procedure as above and it worked straight away! Don't know if it is the ZHA improvement during the last year or the new stick but including devices was faster and smoother than I had previously experienced.
