2 x Un-mountable Disks, 1 x of them is Disabled - PLEASE HELP!


mgladwin

Recommended Posts

Hi all,



I went to simply add an SSD into my server for Blue Iris just now and upon the GUI coming back up, I could see the SSD in Unassigned Devices but I also had two array disks unmountable and one of them had been disabled. I shutdown, unplugged the new SSD and started up again but both disks are still unmountable and one of them is still disabled (says its being emulated).



I have tried xfs_repair in maintenance mode on Disk 9 which is the one not disabled and the check seemingly doesn't find any issues. I tried first with -n and then without -n. Still same results.



Disk 5 is emulated so I figure I can just re-build it once I sort out Disk 9 but I don't really know how to sort out Disk 9.



Diagnostics attached but they are after a restart or two.



Cheers for any help as not sure what to do now.

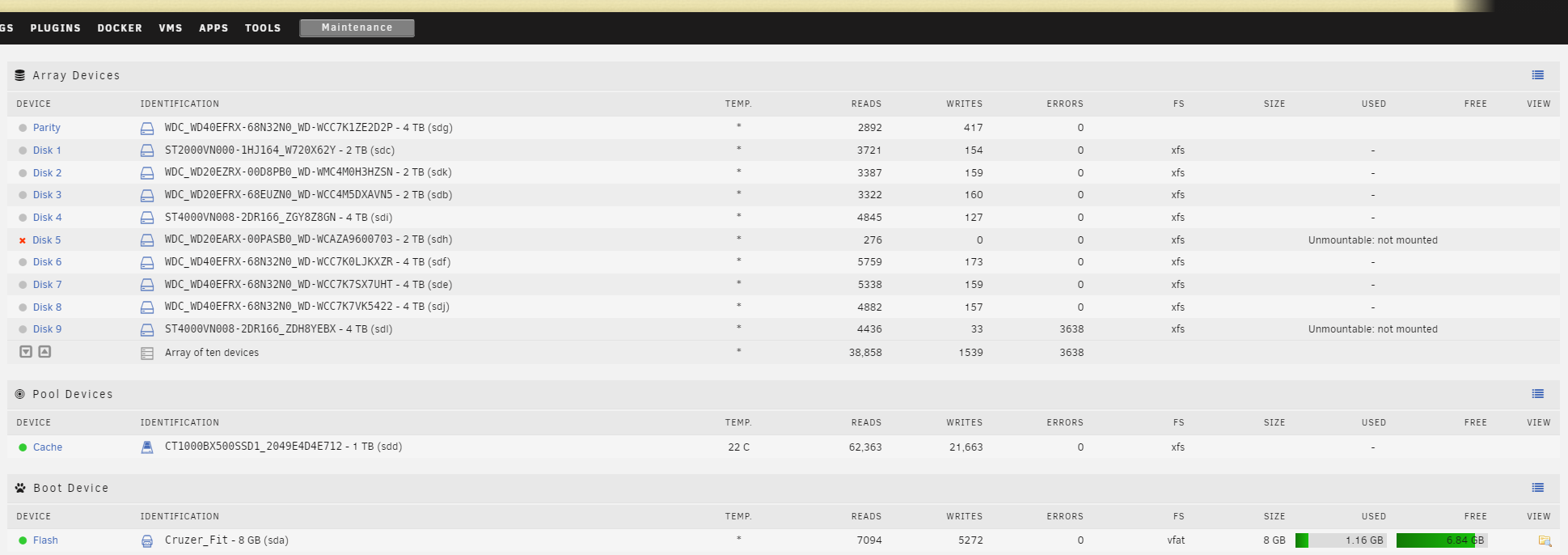

EDIT: Syslog seems to note that it cant read superblock on /dev/md9. Also added a screenshot of Main tab if it helps.



Sep 12 22:52:48 Tower kernel: md: disk9 read error, sector=7814037056
Sep 12 22:52:48 Tower kernel: XFS (md9): last sector read failed
Sep 12 22:52:48 Tower root: mount: /mnt/disk9: can't read superblock on /dev/md9.
Sep 12 22:52:48 Tower emhttpd: shcmd (814): exit status: 32
Sep 12 22:52:48 Tower emhttpd: /mnt/disk9 mount error: not mounted
Sep 12 22:52:48 Tower emhttpd: shcmd (815): umount /mnt/disk9
Sep 12 22:52:48 Tower root: umount: /mnt/disk9: not mounted.






tower-diagnostics-20210912-2312.zip

Edited by mgladwin
Added more info.
Link to comment
  • mgladwin changed the title to 2 x Un-mountable Disks, 1 x of them is Disabled - PLEASE HELP!
