March 30, 201115 yr From unRAID System Info: NIC info (from ethtool) Settings for eth0: Supported ports: [ TP MII ] Supported link modes: 10baseT/Half 10baseT/Full 100baseT/Half 100baseT/Full 1000baseT/Half 1000baseT/Full Supports auto-negotiation: Yes Advertised link modes: Not reported Advertised auto-negotiation: No Speed: 10Mb/s Duplex: Half Port: MII PHYAD: 0 Transceiver: internal Auto-negotiation: off Supports Wake-on: pumbg Wake-on: g Current message level: 0x00000033 (51) Link detected: yes NIC driver info (from ethtool -i) driver: r8169 version: 2.3LK-NAPI firmware-version: bus-info: 0000:04:00.0 Ethernet config info (from ifconfig) eth0 Link encap:Ethernet HWaddr bc:ae:c5:18:5f:7d inet addr:192.168.3.175 Bcast:192.168.3.255 Mask:255.255.255.0 UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1 RX packets:84558764 errors:0 dropped:0 overruns:0 frame:0 TX packets:100701446 errors:0 dropped:0 overruns:0 carrier:0 collisions:0 txqueuelen:1000 RX bytes:1026475488 (978.9 MiB) TX bytes:1543808708 (1.4 GiB) Interrupt:28 Base address:0xe000 Output of ifconfig: Tower login: root Linux 2.6.32.9-unRAID. root@Tower:~# ifconfig eth0 Link encap:Ethernet HWaddr bc:ae:c5:18:5f:7d inet addr:192.168.3.175 Bcast:192.168.3.255 Mask:255.255.255.0 UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1 RX packets:84566524 errors:0 dropped:0 overruns:0 frame:0 TX packets:100716625 errors:0 dropped:0 overruns:0 carrier:0 collisions:0 txqueuelen:1000 RX bytes:1026954788 (979.3 MiB) TX bytes:1566551788 (1.4 GiB) Interrupt:28 Base address:0xe000 lo Link encap:Local Loopback inet addr:127.0.0.1 Mask:255.0.0.0 UP LOOPBACK RUNNING MTU:16436 Metric:1 RX packets:10377 errors:0 dropped:0 overruns:0 frame:0 TX packets:10377 errors:0 dropped:0 overruns:0 carrier:0 collisions:0 txqueuelen:0 RX bytes:1313598 (1.2 MiB) TX bytes:1313598 (1.2 MiB) root@Tower:~# v4.7. syslog attached. I have the server and the host machine in the same room right now, connected to a switch I can see. The host machine shows 1000MB connection, while the server only shows a 100MB/s connection. I've swapped the ethernet cable and shut off the switch for 15 seconds, then powered it back up. Oh yeah, 27-30MB/s transfer speed between my machine and the wife's machine. What's next to try? 2011-03-29.syslog.txt

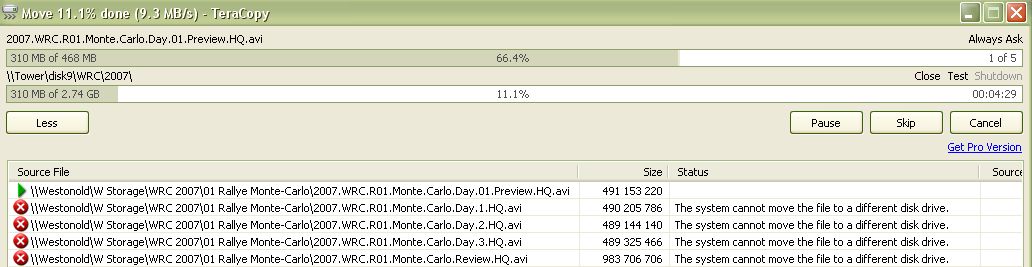

March 30, 201115 yr Author Here's a try writing directly to the same disk (#9) as the WRC share was writing to: Same result when writing from this machine to the server. The above test went through another gigabit switch, then through the switch on the desk next to me where the link light still displays 100MB/s. The error is odd, no? All five files transferred just fine, despite the errors in the image.
March 30, 201115 yr Advertised auto-negotiation: No Speed: 10Mb/s Duplex: Half Your only getting 10MBps. There is no auto negotiation. Which NIC chipset do you have? Which type of cable? You need CAT 5e or better. Try a different port on the switch.
March 30, 201115 yr Author NIC on the server is Realtek 8112L. Blargh. Rebooted and it's back to normal. It's like I'm trying to make things more complicated to resolve than they actually are. NIC info (from ethtool) Settings for eth0: Supported ports: [ TP MII ] Supported link modes: 10baseT/Half 10baseT/Full 100baseT/Half 100baseT/Full 1000baseT/Half 1000baseT/Full Supports auto-negotiation: Yes Advertised link modes: 10baseT/Half 10baseT/Full 100baseT/Half 100baseT/Full 1000baseT/Half 1000baseT/Full Advertised auto-negotiation: Yes Speed: 1000Mb/s Duplex: Full Port: MII PHYAD: 0 Transceiver: internal Auto-negotiation: on Supports Wake-on: pumbg Wake-on: g Current message level: 0x00000033 (51) Link detected: yes NIC driver info (from ethtool -i) driver: r8169 version: 2.3LK-NAPI firmware-version: bus-info: 0000:04:00.0 Ethernet config info (from ifconfig) eth0 Link encap:Ethernet HWaddr bc:ae:c5:18:5f:7d inet addr:192.168.3.175 Bcast:192.168.3.255 Mask:255.255.255.0 UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1 RX packets:75 errors:0 dropped:0 overruns:0 frame:0 TX packets:98 errors:0 dropped:0 overruns:0 carrier:0 collisions:0 txqueuelen:1000 RX bytes:9189 (8.9 KiB) TX bytes:27772 (27.1 KiB) Interrupt:28 Base address:0xe000
