Hey guys,



I am new to unraid and just started my first server in the past few years but i have had some help setting it up.

I recently re built my server with some hardware upgrades and such. I encountered the first hard drive having a problem a year ago but i just disabled it from the array. A few weeks ago another drive started to show sector 7 problem and errors on it. So i went bought 2x 4tb drives to replace both faulty ones. I installed 1x drive first pre cleared and put into the array and let it do a data rebuild. Then once that was done i wanted to remove the sector 7 drive , so i stopped the array, unassigned the drive shut down and boot up again with the new drive in place but it wouldnt let me start the array keeps saying missing disks, so i did the same thing again but this time plugged in the drive with sector 7 errors. It started to do its data re built but this time its going at like 500kbs-2mbs speed so it will take 20-40 days to complete.

Also it takes 5 mins or longer to do a restart and  stop/starting the array takes some time as well.



I am aware that i shouldnt of ignored the first drive failing for that long and that i should of replaced it sooner. But this is where i am at and i am not sure what to do at this point, i am considering do a clean format on all drives but how would i do that?



Please post the diagnostics.

7 hours ago, harisarslanovic said:

shouldnt of ignored the first drive

Probably other things you "shouldn't of". Do you still have the original drive? Maybe nothing wrong with any drives, but we can't tell without diagnostics.



7 hours ago, harisarslanovic said:

considering do a clean format on all drives

Why would you even consider that? What do you think it would accomplish?

I still have all of the drives ,  attached is the diagnostics but i am pretty lost on what to do here or what step to take next.

hari-nas-diagnostics-20211013-0943.zip

Parity sync was canceled so can't see the speed issues, also close any other stale browser windows open, and ideally reboot after that, disk2 was formatted so that one will be empty.

stale browser windows open?



How do i figure out whats open?

1 hour ago, harisarslanovic said:

stale browser windows open?



How do i figure out whats open?

Close all tabs on all browsers that are accessing your Unraid server, including any mobile apps.



Updated diagnostics with data rebuild going, its averaging 1-2mbs a second - 26 days left to complete.

hari-nas-diagnostics-20211013-1316.zip

Nothing obvious in diagnostics except

05:00.0 SATA controller [0106]: Marvell Technology Group Ltd. 88SE9172 SATA 6Gb/s Controller [1b4b:9172] (rev 11)
06:00.0 SATA controller [0106]: Marvell Technology Group Ltd. 88SE9172 SATA 6Gb/s Controller [1b4b:9172] (rev 11)
07:00.0 SATA controller [0106]: Marvell Technology Group Ltd. 88SE9172 SATA 6Gb/s Controller [1b4b:9172] (rev 11)

Marvell controllers are NOT recommended.



Are there Errors in the Errors column for any array disk on the Main page? Do any of your disks have SMART warnings on the Dashboard page?

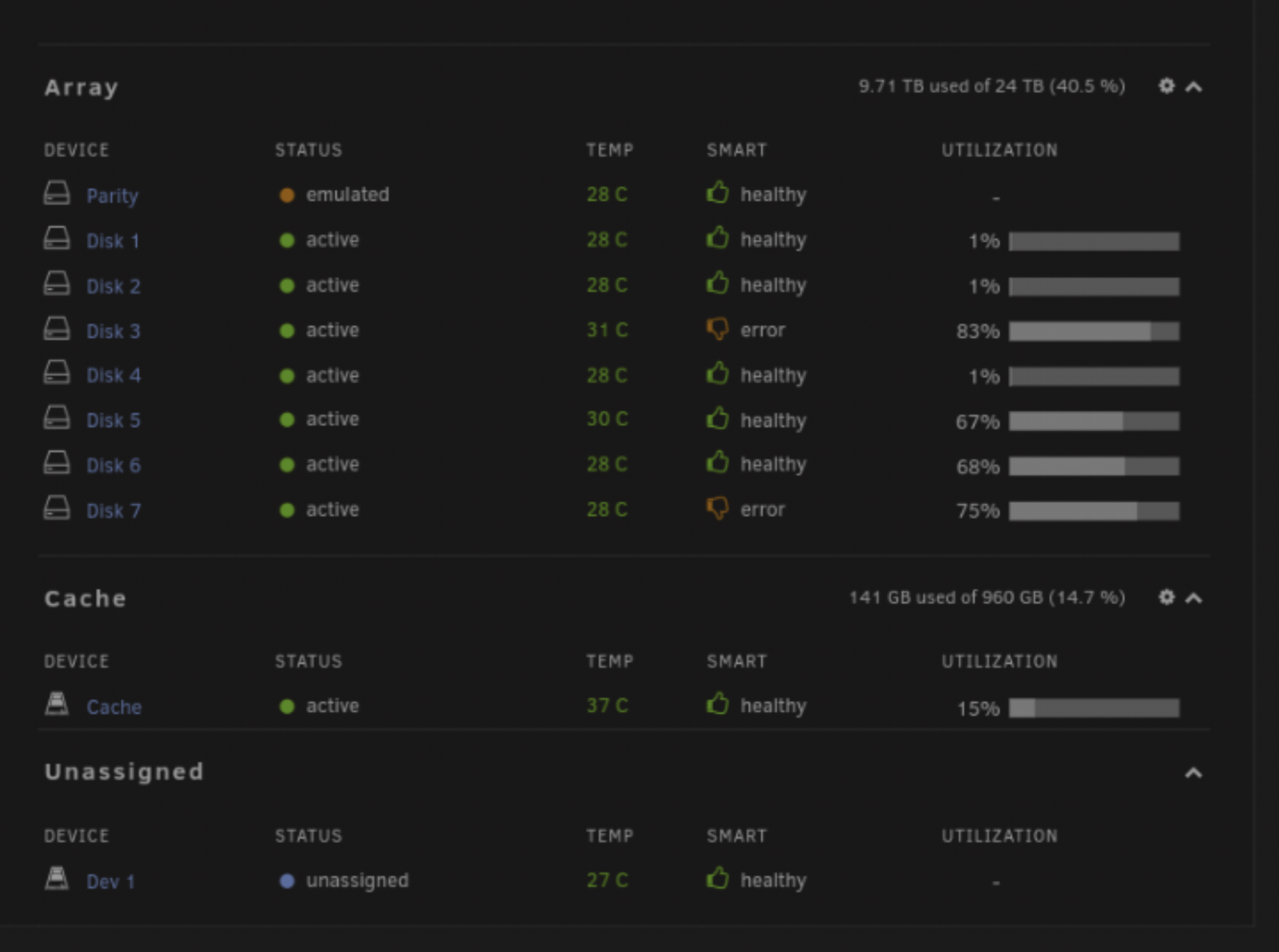

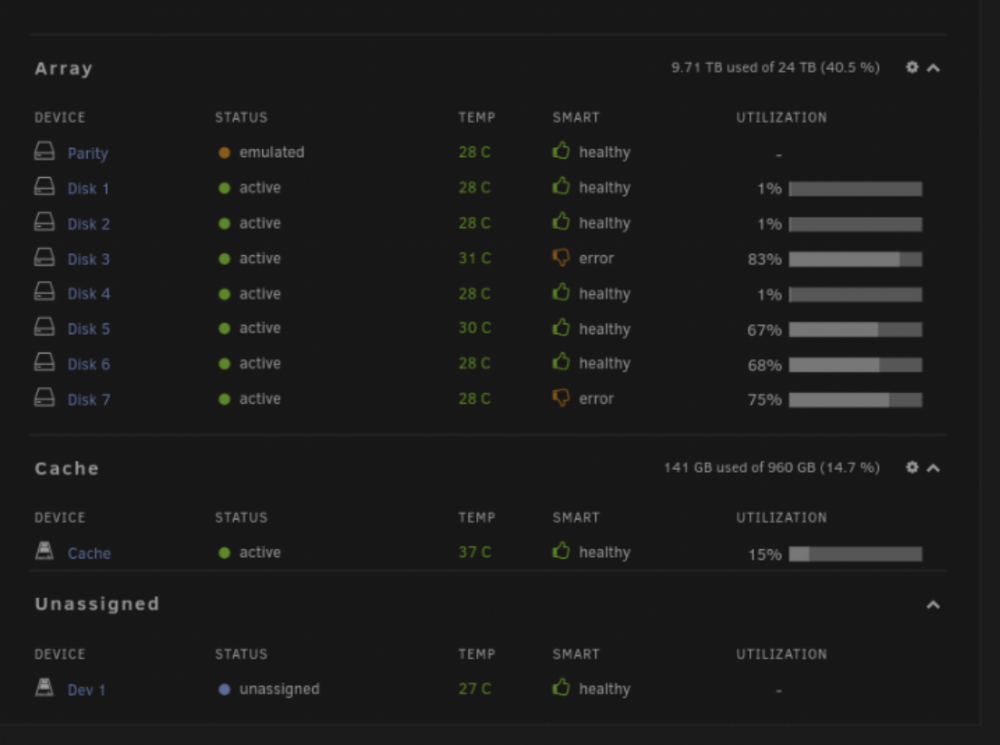

2 drives have errors on dashboard page

disk3 is just CRC, which indicates a connection issue sometime in the past.



disk7 doesn't look good. I would replace it, but unfortunately you don't have valid parity.



I was wondering what you meant by

16 hours ago, harisarslanovic said:

sector 7

Did you mean disk7?

When I went into the disk option it showed sector 7 error.



I would like to reformat the array fresh to be honest. I can go buy another drive to replace disk 7.







3 hours ago, harisarslanovic said:

reformat the array

You don't want any of the data on any disks?

3 hours ago, harisarslanovic said:

replace disk 7

You need to get rid of those Marvell controllers too.

at this point because the parity wants to be rebuilt and the slow speeds , i dont really care i have fibre 1.5gb its not like it will take long to re download,

How would i do full format on all drives and resetup everything as new. I will add a bigger 2nd parity drive if i go down this road that way i am setup for future upgrades.



You can also run a diskspeed docker test to see if all the disks are performing normally.

12 hours ago, harisarslanovic said:

at this point because the parity wants to be rebuilt and the slow speeds , i dont really care i have fibre 1.5gb its not like it will take long to re download,

How would i do full format on all drives and resetup everything as new. I will add a bigger 2nd parity drive if i go down this road that way i am setup for future upgrades.

Starting over won't fix the problems causing your slow speeds.

ok let me run some disk speed tests, will post when they are done

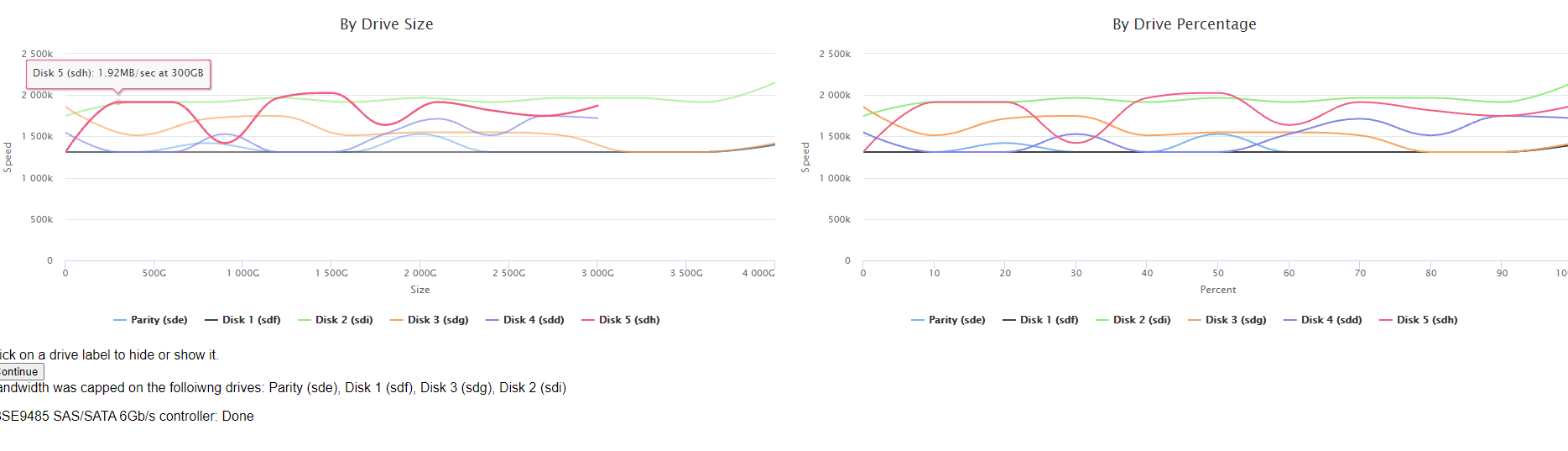

So i updated to unraid 6.9.2 i didnt think that would cause the issue, i am back to 6.8 now and the speeds are as in the above picture. so basically something in 6.9.2 is causing this slow disk issue

Those speed graphs show the problem, maybe a SAS2LP issue with v6.9? Strange that I don't remember seeing anyone else complaining, and despite those controllers not being recommended I suspect there are still a few in use, could also be other hardware issue with the newer kernel, not controller related.

for the time being i am staying on 6.8 until i setup my 2nd parity and re add few more drives.
