April 7, 201115 yr I am new to unraid and just purchased the PRO license. I run v4.7 I have the 3ware 9650se-24m8 and I have figured out in the console to get smartctl to show SMART status via: smartctl -d 3ware,0 -a /dev/twa0 Where 0 is the drive number. Now when I use UMENU or the normal //tower menu - I do not get to see the same SMART status, and I presume it is due to unraid standard setup not being the same as above. Q: How and where can I make settings so that my drives DO show up in webpages?
April 7, 201115 yr short answer is you can't. long answer is you can't. Send Limetech a message about getting smart reports and what you have found, and they might be able to get it added.
April 7, 201115 yr In myMain, you can go into a drive's attributes and set an attribute call "smartopt" to "-d 3ware,0". This should enable temperature and smart scene functionality in myMain. Post back if you have questions and I can help you get this configured properly. For anyone with a BR10i controller, setting smartopt to "-A" is needed for each affected drive.

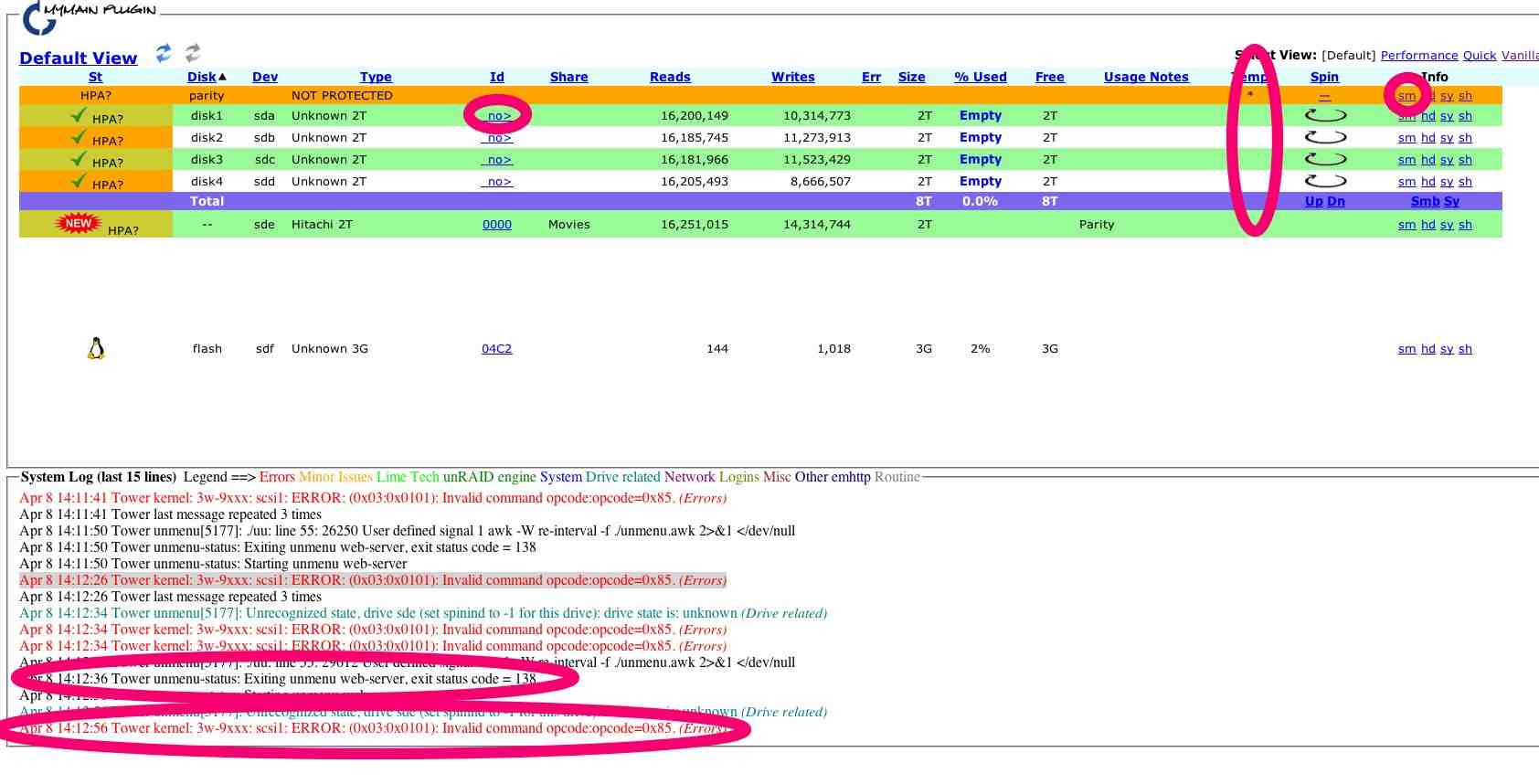

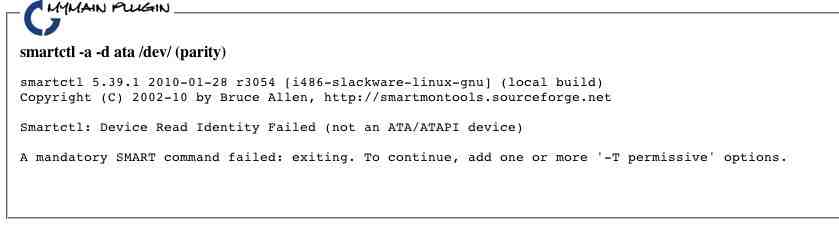

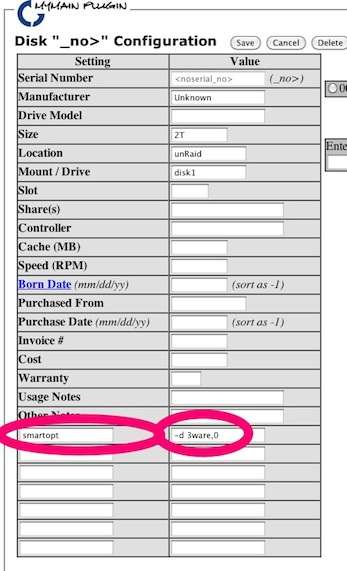

April 7, 201115 yr Author @bjp999 - Thanks for your offer to help! I must be doing something SIMPLE wrong? Below is what I did based on your post, but I don't see the result, not in the "MyMAIN" screen, nor when I press "SMART"?
April 7, 201115 yr Author This may be the issue: /dev/twa0 Can you get it to work with /dev/sdX? Well the console version I used above DOES work with "smartctl -d 3ware,0 -a /dev/twa0" but *not* with "smartctl -d 3ware,0 -a /dev/sdA" - besides, where would I change that in the WEB interface?
April 7, 201115 yr It would have to be, "smartctl -d 3ware,0 -a /dev/sda" What about, "smartctl -d 3ware,0 /dev/sda" This assumes 0 is sda.
April 7, 201115 yr Author @dgaschk I have put in a txtlog, remember though I am trying to get the "MyMAIN" working - NOT the console (as that works fine as you can see in the txtlog) 3ware_SMARTCTL_log.pdf
April 7, 201115 yr We have to know what works in the console before getting it to work in unMenu. EDIT: the fact that it works with /dev/sda should be helpful. Getting it to work using /dev/twa0 would make the job harder.
April 7, 201115 yr Author We have to know what works in the console before getting it to work in unMenu. Thanks for your help and patience! So what WORKS in the console is this: smartctl -d 3ware,0 -a /dev/twa0 where 0 is the drive (so change to 1 gives smartinfo for "sdb", 2 for "sdc" etc
April 7, 201115 yr Do either of these work in the console: "smartctl -d 3ware,0 -a /dev/sda" (I saw this in your attachment. Does it work or not?) Does this work: "smartctl -d 3ware,0 /dev/sda EDIT: nevermind. I see neither work.
April 7, 201115 yr unmenu is calling smartctl with the options you provided on /dev/sda. It needs to be changed to /dev/twa0 within unMenu.
April 7, 201115 yr What happens when you enter "smartctl -d 3ware,0 -a -T permissive /dev/sda" and "smartctl -d 3ware,0 -a -T verypermissive /dev/sda"
April 7, 201115 yr Author What happens when you enter "smartctl -d 3ware,0 -a -T permissive /dev/sda" and "smartctl -d 3ware,0 -a -T verypermissive /dev/sda" on "smartctl -d 3ware,0 -a -T permissive /dev/sda" root@Tower:/boot# smartctl -d 3ware,0 -a -T permissive /dev/sda smartctl 5.39.1 2010-01-28 r3054 [i486-slackware-linux-gnu] (local build) Copyright © 2002-10 by Bruce Allen, http://smartmontools.sourceforge.net Smartctl: Device Read Identity Failed (not an ATA/ATAPI device) === START OF INFORMATION SECTION === Device Model: [No Information Found] Serial Number: [No Information Found] Firmware Version: [No Information Found] Device is: Not in smartctl database [for details use: -P showall] ATA Version is: 1 ATA Standard is: Exact ATA specification draft version not indicated Local Time is: Thu Apr 7 14:46:22 2011 PDT SMART is only available in ATA Version 3 Revision 3 or greater. We will try to proceed in spite of this. SMART support is: Ambiguous - ATA IDENTIFY DEVICE words 82-83 don't show if SMART supported. A mandatory SMART command failed: exiting. To continue, add one or more '-T permissive' options. ------------------------------------ And on "smartctl -d 3ware,0 -a -T verypermissive /dev/sda" root@Tower:/boot# smartctl -d 3ware,0 -a -T verypermissive /dev/sda smartctl 5.39.1 2010-01-28 r3054 [i486-slackware-linux-gnu] (local build) Copyright © 2002-10 by Bruce Allen, http://smartmontools.sourceforge.net Smartctl: Device Read Identity Failed (not an ATA/ATAPI device) === START OF INFORMATION SECTION === Device Model: [No Information Found] Serial Number: [No Information Found] Firmware Version: [No Information Found] Device is: Not in smartctl database [for details use: -P showall] ATA Version is: 1 ATA Standard is: Exact ATA specification draft version not indicated Local Time is: Thu Apr 7 14:46:57 2011 PDT SMART is only available in ATA Version 3 Revision 3 or greater. We will try to proceed in spite of this. SMART support is: Ambiguous - ATA IDENTIFY DEVICE words 82-83 don't show if SMART supported. Checking for SMART support by trying SMART ENABLE command. Error SMART Enable failed: Input/output error SMART ENABLE failed - this establishes that this device lacks SMART functionality. SMART support is: Ambiguous - ATA IDENTIFY DEVICE words 85-87 don't show if SMART is enabled. Checking to be sure by trying SMART RETURN STATUS command. SMART support is: Unavailable SMART Disabled. Use option -s with argument 'on' to enable it
April 7, 201115 yr Try "smartctl -d 3ware,0 -a -s on -T verypermissive /dev/sda" twice. Fixed a typo.
April 7, 201115 yr Author Try "smartctl -d 3ware,0 -a -s on -T verypermissive /dev/sda" twice. Fixed a typo. This is the output I get: root@Tower:/boot# smartctl -d 3ware,0 -a -s on -T verypermissive /dev/sda smartctl 5.39.1 2010-01-28 r3054 [i486-slackware-linux-gnu] (local build) Copyright © 2002-10 by Bruce Allen, http://smartmontools.sourceforge.net Smartctl: Device Read Identity Failed (not an ATA/ATAPI device) === START OF INFORMATION SECTION === Device Model: [No Information Found] Serial Number: [No Information Found] Firmware Version: [No Information Found] Device is: Not in smartctl database [for details use: -P showall] ATA Version is: 1 ATA Standard is: Exact ATA specification draft version not indicated Local Time is: Thu Apr 7 15:12:10 2011 PDT SMART is only available in ATA Version 3 Revision 3 or greater. We will try to proceed in spite of this. SMART support is: Ambiguous - ATA IDENTIFY DEVICE words 82-83 don't show if SMART supported. Checking for SMART support by trying SMART ENABLE command. Error SMART Enable failed: Input/output error SMART ENABLE failed - this establishes that this device lacks SMART functionality. SMART support is: Ambiguous - ATA IDENTIFY DEVICE words 85-87 don't show if SMART is enabled. Checking to be sure by trying SMART RETURN STATUS command. SMART support is: Unavailable === START OF ENABLE/DISABLE COMMANDS SECTION === Error SMART Enable failed: Input/output error Smartctl: SMART Enable Failed. SMART Disabled. Use option -s with argument 'on' to enable it. root@Tower:/boot# smartctl -d 3ware,0 -a -s on -T verypermissive /dev/sda smartctl 5.39.1 2010-01-28 r3054 [i486-slackware-linux-gnu] (local build) Copyright © 2002-10 by Bruce Allen, http://smartmontools.sourceforge.net Smartctl: Device Read Identity Failed (not an ATA/ATAPI device) === START OF INFORMATION SECTION === Device Model: [No Information Found] Serial Number: [No Information Found] Firmware Version: [No Information Found] Device is: Not in smartctl database [for details use: -P showall] ATA Version is: 1 ATA Standard is: Exact ATA specification draft version not indicated Local Time is: Thu Apr 7 15:12:12 2011 PDT SMART is only available in ATA Version 3 Revision 3 or greater. We will try to proceed in spite of this. SMART support is: Ambiguous - ATA IDENTIFY DEVICE words 82-83 don't show if SMART supported. Checking for SMART support by trying SMART ENABLE command. Error SMART Enable failed: Input/output error SMART ENABLE failed - this establishes that this device lacks SMART functionality. SMART support is: Ambiguous - ATA IDENTIFY DEVICE words 85-87 don't show if SMART is enabled. Checking to be sure by trying SMART RETURN STATUS command. SMART support is: Unavailable === START OF ENABLE/DISABLE COMMANDS SECTION === Error SMART Enable failed: Input/output error Smartctl: SMART Enable Failed. SMART Disabled. Use option -s with argument 'on' to enable it.
April 7, 201115 yr This is not working. The author, I'm not sure who, would have to specify how to get unMenu to use /dev/twa0 rather than /dev/sda. You could try to upgrade to the latest 5.0beta and try these tests. See this post http://lime-technology.com/forum/index.php?topic=12224.0

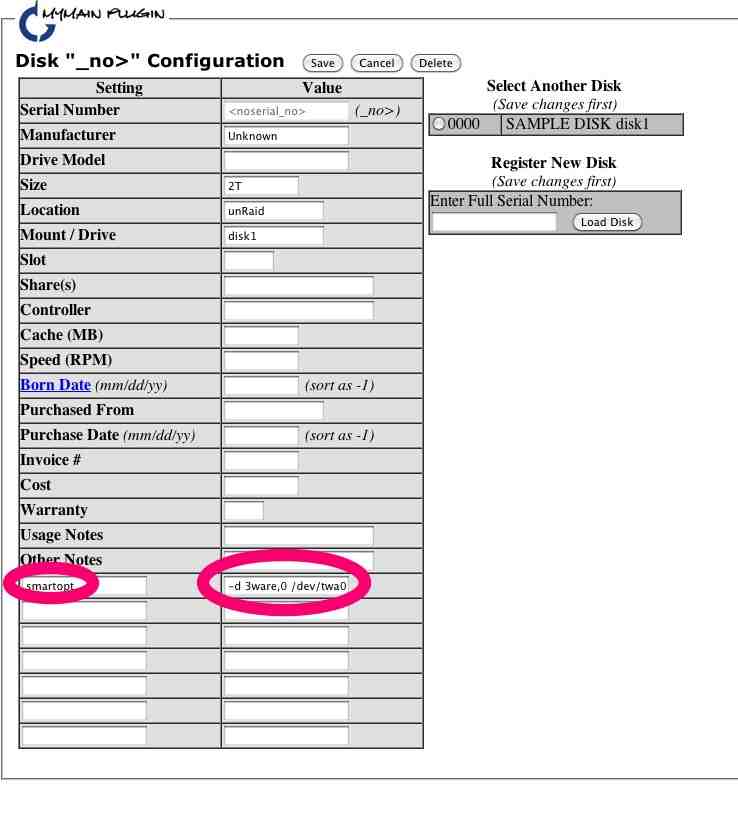

April 8, 201115 yr Hmmmm ... Who could the author be ... Obiwantje - Below is a link to a zip file containing updates to some of the myMain files. You need to unzip this into your unmenu directory. (You might want to create a backup of the entire unmenu directory first to be safe). You will need to add the "/dev/twa0" to your "smartopt" setting ... smartopt -d 3ware,0 /dev/twa0 Give that a shot and see if it works. Post your results. MYMAIN 4-7-11

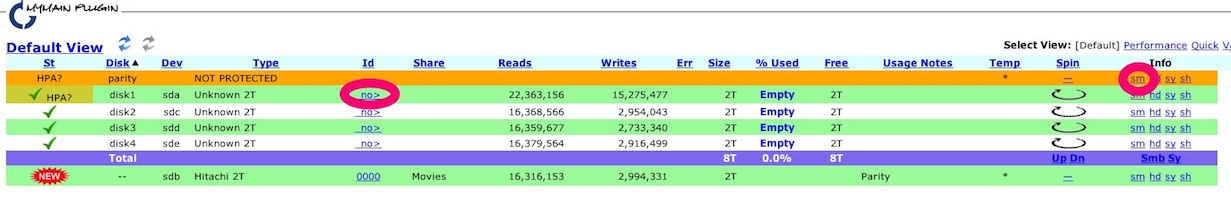

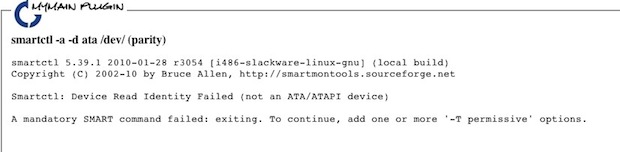

April 8, 201115 yr Author You will need to add the "/dev/twa0" to your "smartopt" setting ... smartopt -d 3ware,0 /dev/twa0 Give that a shot and see if it works. Post your results. MYMAIN 4-7-11 First off: THANKS for helping! I tried it, but it does not seem to work, unless I am doing something wrong. I first did a clean install of unmenu, then the updates, and lastly overwrote the files and restarted unmenu.
April 8, 201115 yr Were you getting a valid serial number before? The setting I changed won't help it you're not getting a valid serial number to identify the disk. UPDATE: I went back and looked at your old screen shots. (That's the problem with reading posts using the text model reader - you miss the screenshots!) Let's back up a step. Open a telnet prompt and run this command ... /root/mdcmd status|strings > /boot/mdstatus.txt Then post the mdstatus.txt file from your flash disk.
April 8, 201115 yr Author No I was not. This is what DOES work from the console: root@Tower:~# smartctl -d 3ware,0 -a /dev/twa0 smartctl 5.39.1 2010-01-28 r3054 [i486-slackware-linux-gnu] (local build) Copyright © 2002-10 by Bruce Allen, http://smartmontools.sourceforge.net === START OF INFORMATION SECTION === Device Model: ST32000542AS Serial Number: 5XW138R8 Firmware Version: CC34 User Capacity: 2,000,398,934,016 bytes Device is: Not in smartctl database [for details use: -P showall] ATA Version is: 8 ATA Standard is: ATA-8-ACS revision 4 Local Time is: Fri Apr 8 14:35:00 2011 PDT SMART support is: Available - device has SMART capability. SMART support is: Enabled === START OF READ SMART DATA SECTION === SMART overall-health self-assessment test result: PASSED General SMART Values: Offline data collection status: (0x00) Offline data collection activity was never started. Auto Offline Data Collection: Disabled. Self-test execution status: ( 0) The previous self-test routine completed without error or no self-test has ever been run. Total time to complete Offline data collection: ( 623) seconds. Offline data collection capabilities: (0x73) SMART execute Offline immediate. Auto Offline data collection on/off support. Suspend Offline collection upon new command. No Offline surface scan supported. Self-test supported. Conveyance Self-test supported. Selective Self-test supported. SMART capabilities: (0x0003) Saves SMART data before entering power-saving mode. Supports SMART auto save timer. Error logging capability: (0x01) Error logging supported. General Purpose Logging supported. Short self-test routine recommended polling time: ( 1) minutes. Extended self-test routine recommended polling time: ( 255) minutes. Conveyance self-test routine recommended polling time: ( 2) minutes. SCT capabilities: (0x103f) SCT Status supported. SCT Feature Control supported. SCT Data Table supported. SMART Attributes Data Structure revision number: 10 Vendor Specific SMART Attributes with Thresholds: ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE 1 Raw_Read_Error_Rate 0x000f 112 100 006 Pre-fail Always - 48951713 3 Spin_Up_Time 0x0003 100 100 000 Pre-fail Always - 0 4 Start_Stop_Count 0x0032 100 100 020 Old_age Always - 3 5 Reallocated_Sector_Ct 0x0033 100 100 036 Pre-fail Always - 0 7 Seek_Error_Rate 0x000f 100 253 030 Pre-fail Always - 412611 9 Power_On_Hours 0x0032 100 100 000 Old_age Always - 64 10 Spin_Retry_Count 0x0013 100 100 097 Pre-fail Always - 0 12 Power_Cycle_Count 0x0032 100 100 020 Old_age Always - 3 183 Runtime_Bad_Block 0x0032 100 100 000 Old_age Always - 0 184 End-to-End_Error 0x0032 100 100 099 Old_age Always - 0 187 Reported_Uncorrect 0x0032 100 100 000 Old_age Always - 0 188 Command_Timeout 0x0032 100 100 000 Old_age Always - 0 189 High_Fly_Writes 0x003a 092 092 000 Old_age Always - 8 190 Airflow_Temperature_Cel 0x0022 073 064 045 Old_age Always - 27 (Lifetime Min/Max 25/36) 194 Temperature_Celsius 0x0022 027 040 000 Old_age Always - 27 (0 25 0 0) 195 Hardware_ECC_Recovered 0x001a 054 052 000 Old_age Always - 48951713 197 Current_Pending_Sector 0x0012 100 100 000 Old_age Always - 0 198 Offline_Uncorrectable 0x0010 100 100 000 Old_age Offline - 0 199 UDMA_CRC_Error_Count 0x003e 200 200 000 Old_age Always - 0 240 Head_Flying_Hours 0x0000 100 253 000 Old_age Offline - 62723702390832 241 Total_LBAs_Written 0x0000 100 253 000 Old_age Offline - 916374968 242 Total_LBAs_Read 0x0000 100 253 000 Old_age Offline - 354696985 SMART Error Log Version: 1 No Errors Logged SMART Self-test log structure revision number 1 No self-tests have been logged. [To run self-tests, use: smartctl -t]
