Adding 2nd Cache Drive


Recommended Posts

I need assistance.  I am trying to add a 2nd cache drive(1TB NVME).


At present I have a 240gb ssd as my only cache.

I renamed my existing cache drive to cache_ssd.


I stopped the array added the nvme, formatted it as BTRFS and named it is cache_nvme.

Created a 2nd pool and added cache_nvme to this pool.


Started the array.  Modified cache settings on shares.  I set appdata, system and domains to use Prefer: cache_nvme


I set all other shares to use cache_ssd.


My existing appdata is ~ 45gb I back it up daily to another server.

When I open Krusader and look at \Cache it is only showing 46.1 MB.


Something is not right. All my dockers are still working fine(like Plex).

When I go into Krusader settings under the cache variable(Host Path) and browse /mnt/ I see folders for Cache, Cache_ssd,  and Cache_nvme


I reviewed SI-1's video on cache pools and how to create them. Clearly I missed a step here.  How do I move all references from /Cache as far as AppData goes?  This makes me extremely nervous....


My end goal is to have all appdata and system on cache_nvme and the rest of shares caching to cache_ssd.




Edited by a12vman
Link to comment

That suggests you have something configured to use /mnt/cache (typically a docker container).   Since you no longer have a SSD at that location then it will be in RAM (and thus non-persistent).   You might be able to work out what it is by looking at the contents.   It can also be worth rebooting to see if it comes back?

Link to comment

Never thought about a reboot even though I stopped/started the array- you were right on with that suggestion.


Cache disappeared and now I have cache_ssd and cache_nvme as the 2 cache pools.

I updated my Krusader config to add paths for cache_nvme and cache_ssd.


I updated appdata,domains,and system shares. First set cache to yes to move everything off cache into the array.

After mover finished I then update these 3 shares to prefer and set the pool to cache_nvme.


After the mover finished I set the cache for all remaining shares to cache_ssd.


I stopped Docker.  Copied docker.img to cache_nvme, updated docker config to point at cache_nvme for Docker.img.

I change the Docker appdata location from /mnt/user/appdata/ to /mnt/cache_nvme/appdata/. I restarted

Docker Engine, everything seems fine. Plex is a bit faster than it was before.


My issue is that I am seeing a split of appdata for all of my dockers. There is a small(in size) amount

of appdata remaining in the old appdata location on cache_ssd(734MB).  Appdata on cache_nvme is 43GB.

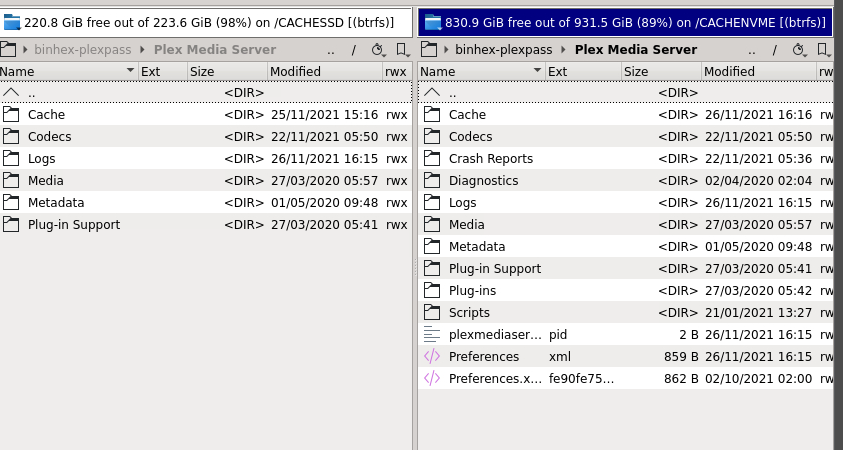

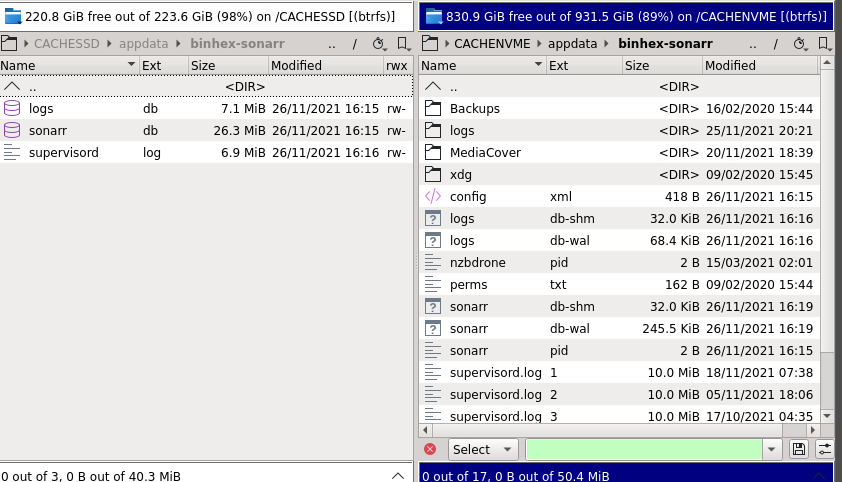

See my Screenshot below of Sonarr and Plex AppData. Why do I have split content and what can I do about it?  image.png.303423cecbd8c1ea2364b7e6352e7ea6.png





Edited by a12vman
Link to comment
