Good evening,



Diagnostics attached.



I've read quite a few posts on the UnRaid forums on this topic, most notably:

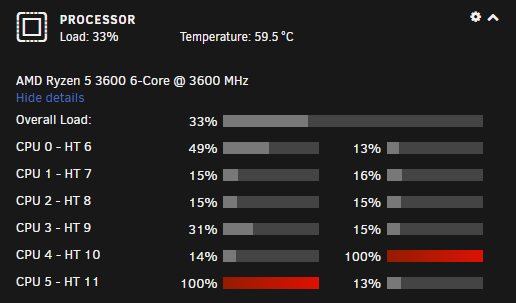

I also have two CPU cores stuck at 100%.





Caused by the following two USB-related processes:





Things I've done so far:

• Updated BIOS firmware (Gigabyte X570 Gaming X)
• Turned off IOMMU, XHCI, AMD-V (I'm running a Windows VM) and USB legacy in BIOS
• Turned off Docker & VM services, turned off array in UnRaid
• Tips and Tweaks - CPU scaling governor: On Demand
• 0 ACPI interruptions running.....   grep EN -r /sys/firmware/acpi/interrupts/



/sys/firmware/acpi/interrupts/ff_pwr_btn:       0  EN     enabled      unmasked
/sys/firmware/acpi/interrupts/ff_gbl_lock:       0  EN     enabled      unmasked



In each scenario, both cores remained stuck at 100%. The only USB device connected is the UnRaid flash boot drive to a USB 1.0 port.



I'm at a loss here. Thankfully there's no noticeable performance issues, but I'd like to keep this CPU/mobo setup for the long-term.

unraid-diagnostics-20211129-1834.zip

Well, despite the lack of assistance from the forums, I found that monitoring the threads while plugging and unplugging a USB mouse and keyboard did the trick. The threads have returned to normal levels.
