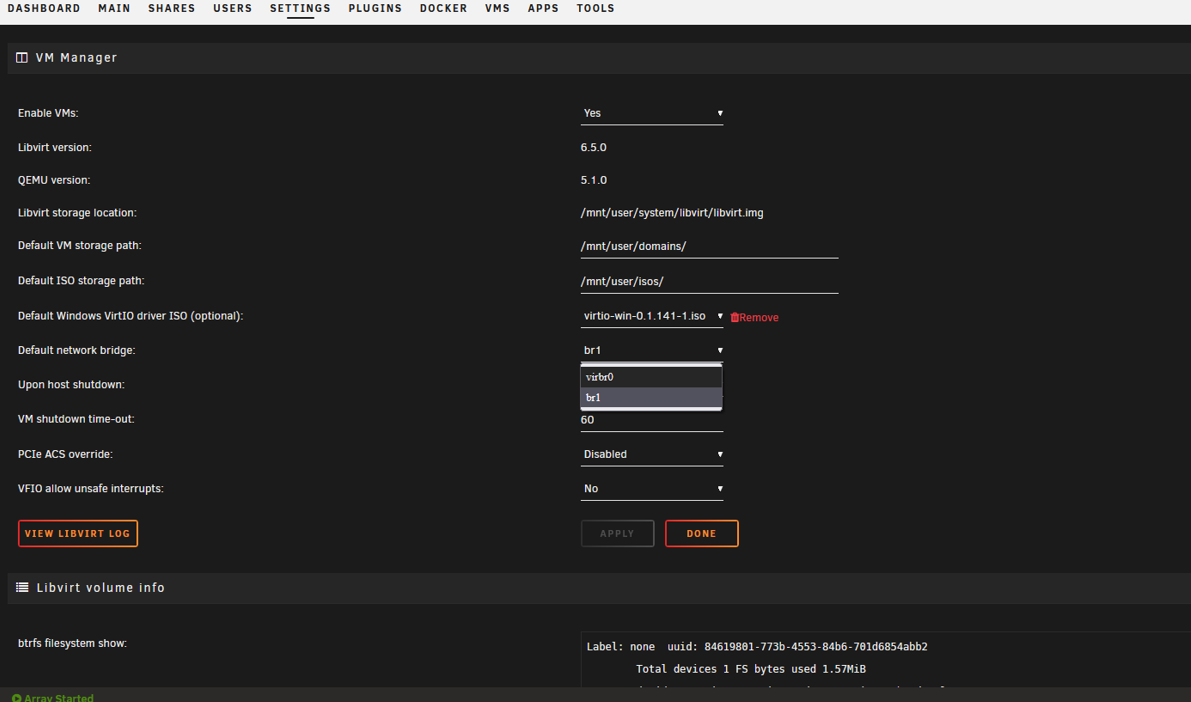

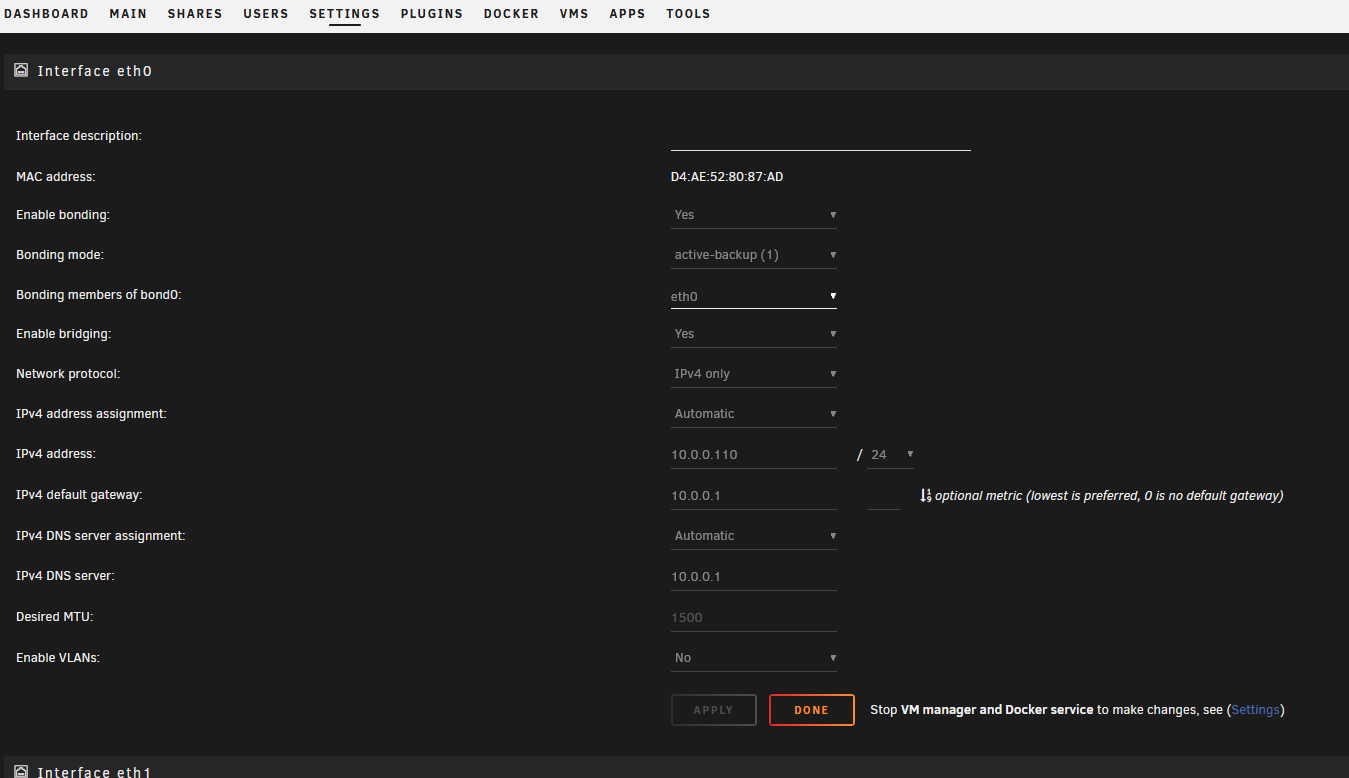

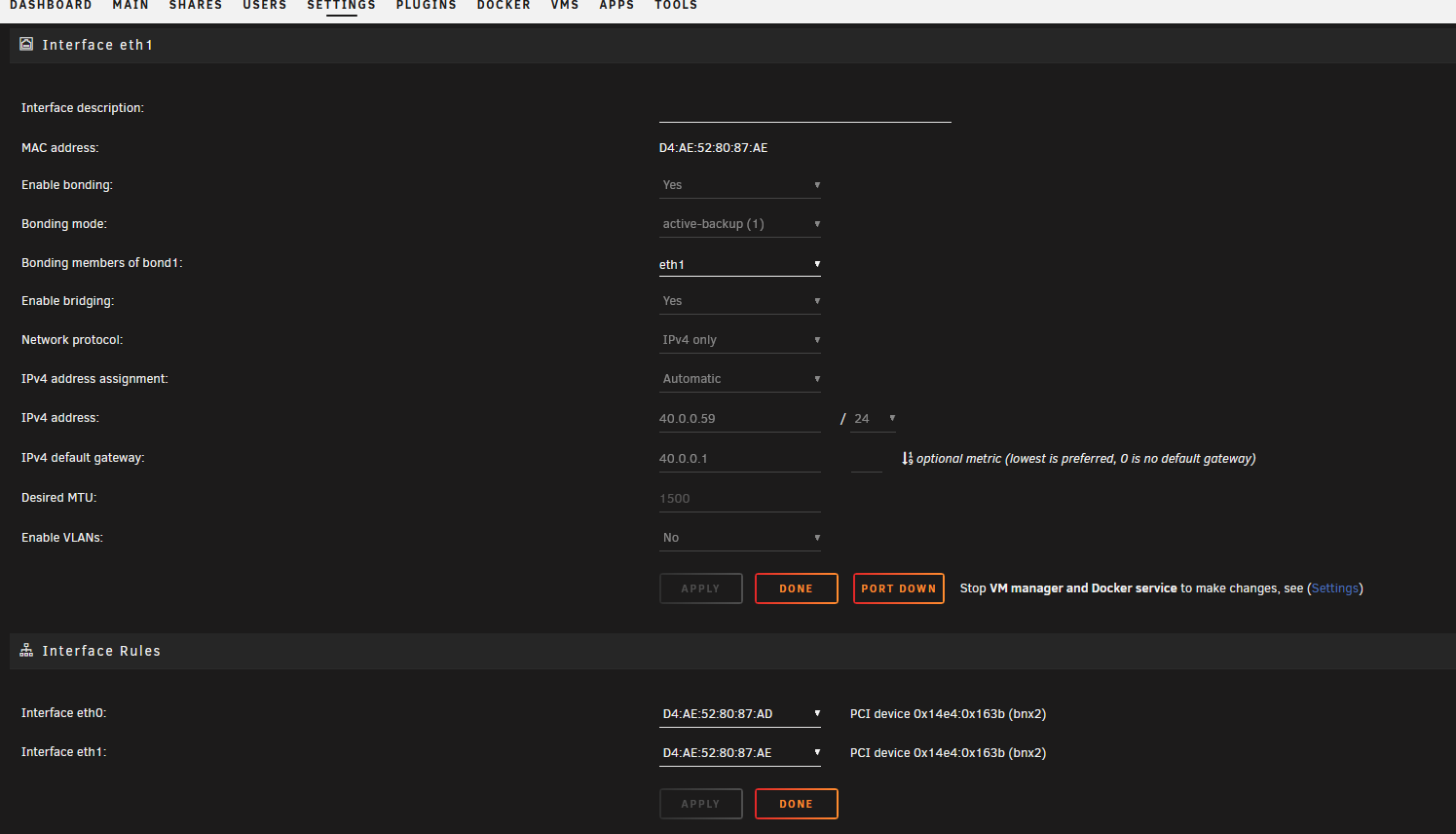

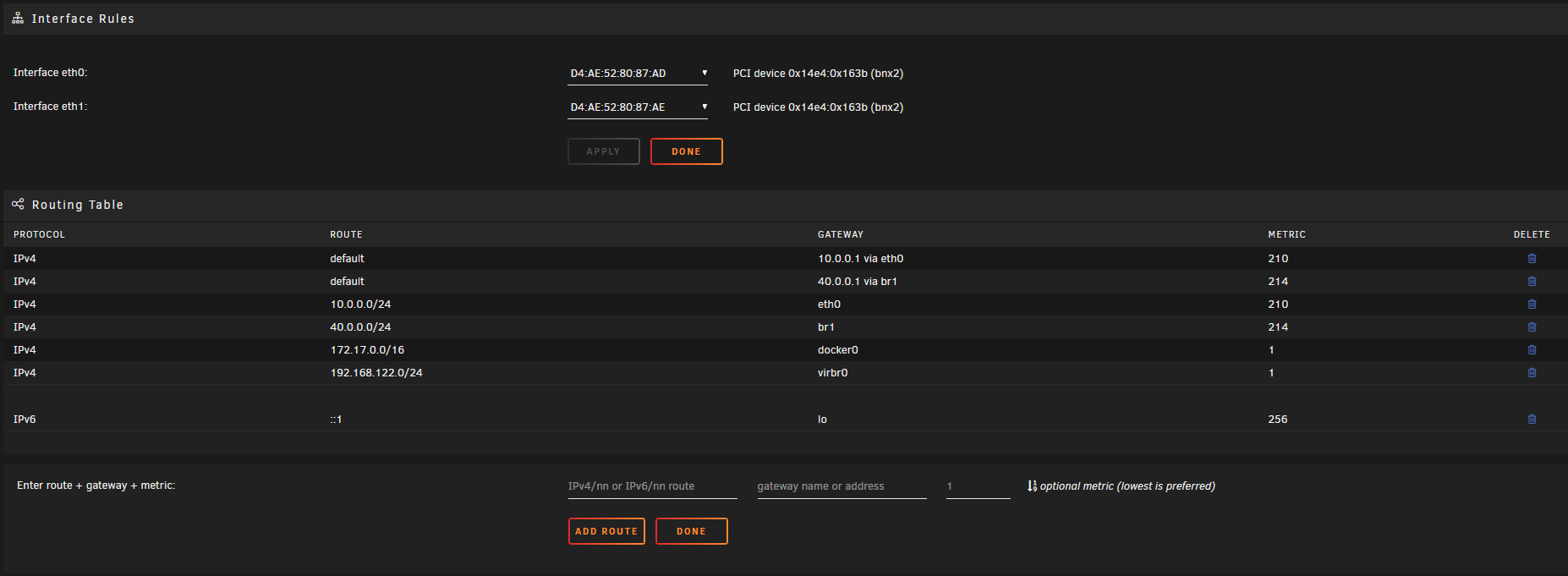

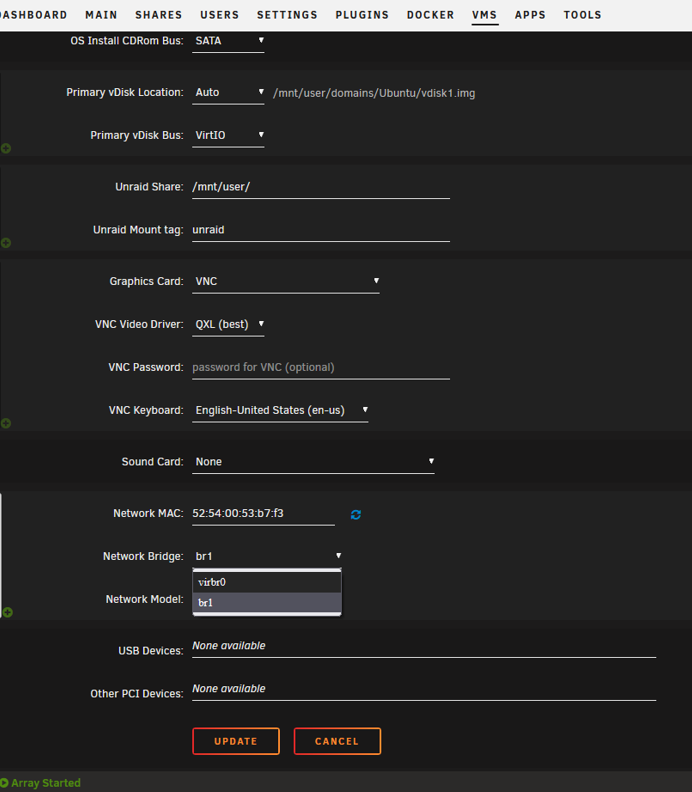

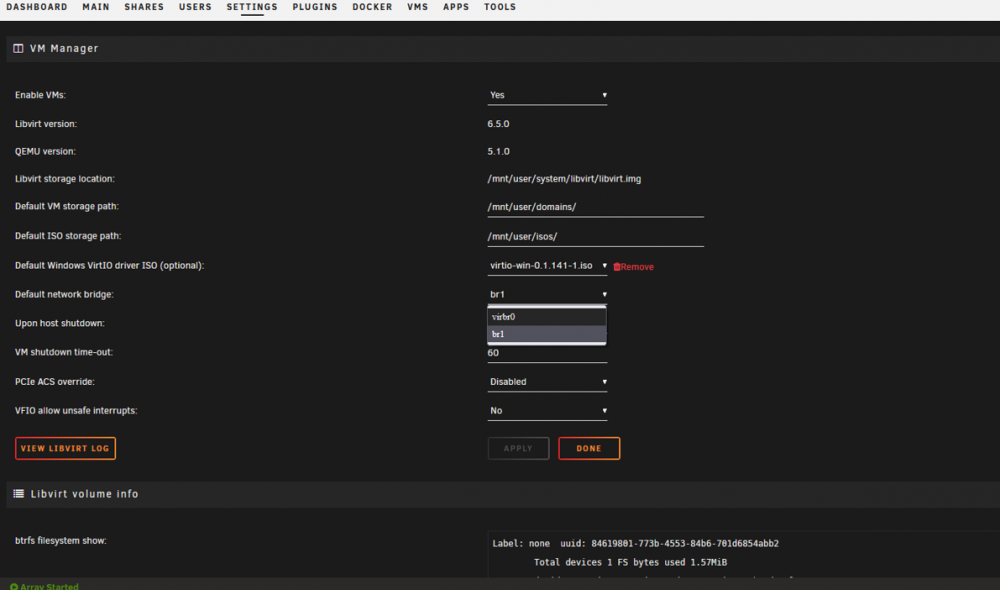

I'm probably missing something obvious but I'm not getting anywhere with this problem. I am running Unraid 6.9.2 on a Dell Poweredge t410 box with two built in ethernet ports. My issue is that the settings on my VMs don't show the eth0 interface, only vibr0 and br1. While the VM can only access br1 as an external interface, my docker instances can only connect through eth0 (problem for another day). I'm hoping someone has an idea of how I can make eth0 available to my VMs so I can use either network interface. Here's my current settings in the attached pics:



tia

tia







Try disable bonding in eth0 and eth1, in fact, you haven't multiple NIC to bond.
