I'm currently going through a data rebuilt, where I expect the contents to be emulated but unraid seems to be misbehaving.

root@beyonder-nas:/mnt# ls -l /mnt/
total 0
drwxrwxrwx 19 nobody users 291 Oct 28 01:12 apps/
drwxrwxrwx  7 nobody users  73 Dec 14 18:15 cache/
drwxrwxrwx  7 nobody users  89 Dec 14 18:15 disk1/
drwxrwxrwx 13 nobody users 188 Dec 14 18:15 disk12/
drwxrwxrwx  5 nobody users  58 Dec 14 18:15 disk13/
drwxrwxrwx 13 nobody users 188 Dec 14 18:15 disk14/
drwxrwxrwx  5 nobody users  58 Dec 14 18:15 disk15/
drwxrwxrwx  8 nobody users 105 Dec 14 18:15 disk16/
drwxrwxrwx  4 nobody users  42 Dec 14 18:15 disk2/
drwxrwxrwx 12 nobody users 170 Dec 14 18:15 disk3/
drwxrwxrwx 10 nobody users 138 Dec 14 18:15 disk4/
drwxrwxrwx  9 nobody users 121 Dec 14 18:15 disk5/
drwxrwxrwx 11 nobody users 154 Dec 14 18:15 disk6/
drwxrwxrwx 13 nobody users 188 Dec 14 18:15 disk7/
drwxrwxrwx  4 nobody users  42 Dec 14 18:15 disk8/
drwxrwxrwx  9 nobody users 126 Dec 14 18:15 disk9/
drwxrwxrwt  2 nobody users  40 Dec 14 18:05 disks/
drwxrwxrwx  5 nobody users  47 Dec 14 02:24 plex/
drwxrwxrwt  2 nobody users  40 Dec 14 18:05 remotes/
drwxrwxrwx  1 nobody users  89 Dec 14 18:15 user/
drwxrwxrwx  1 nobody users  89 Dec 14 18:15 user0/

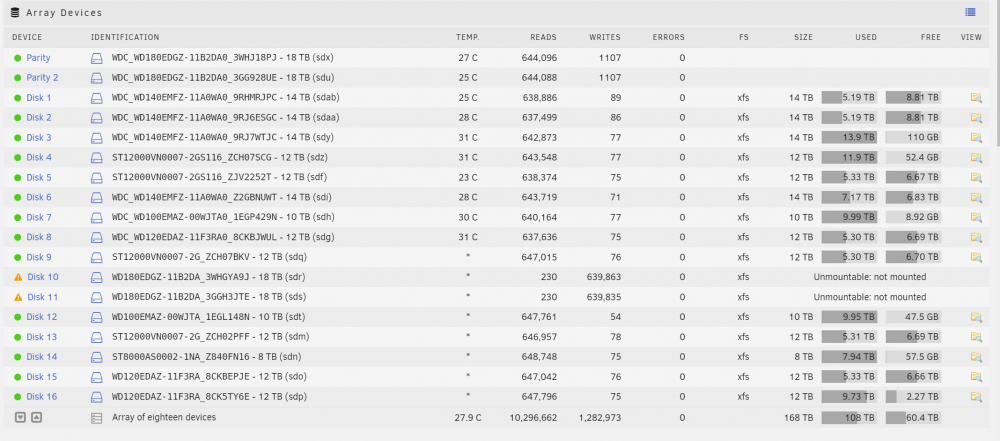

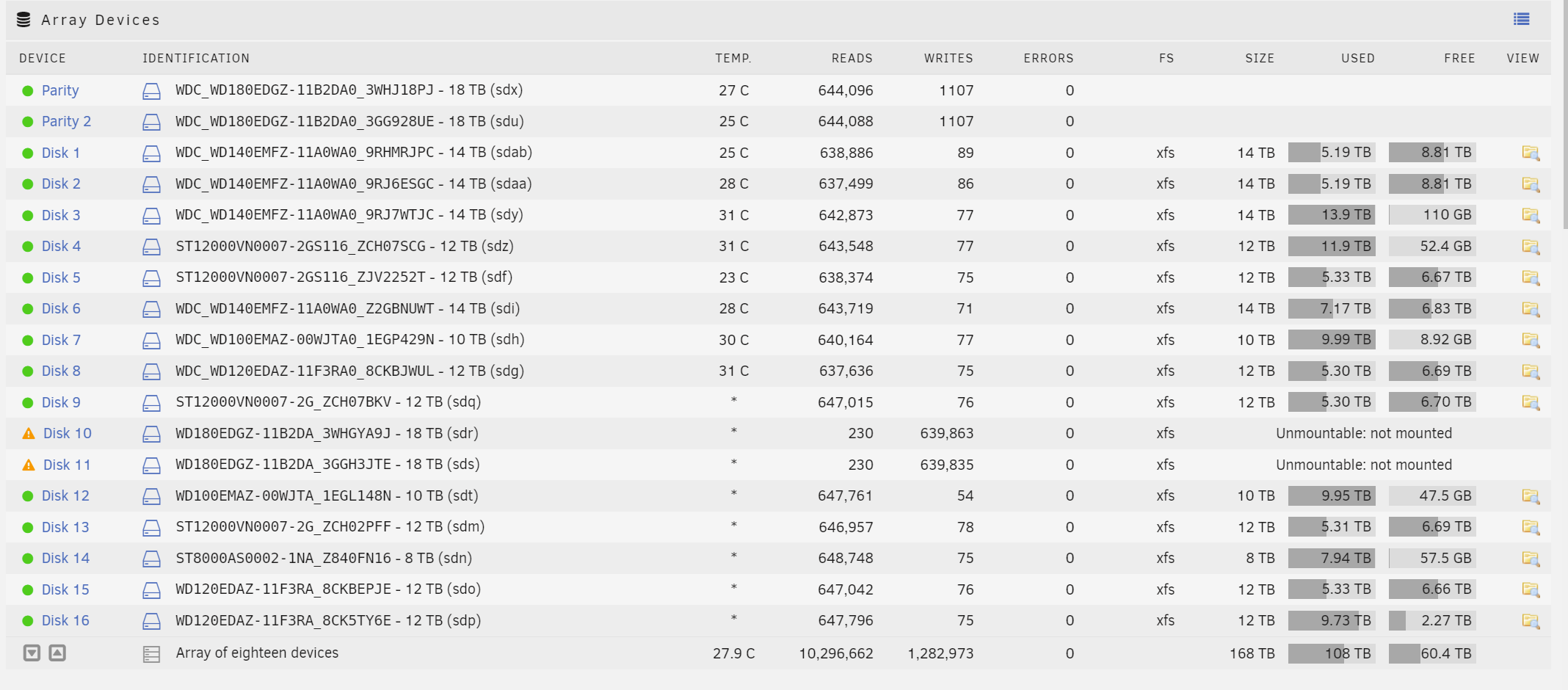

Disk 10 and Disk 11 are missing, I was expecting the emulated volumes to be mounted with my files from parity.



In syslog it looks like the emulated filesystem might be broken?

Dec 14 18:32:55 beyonder-nas emhttpd: shcmd (405): mkdir -p /mnt/disk10
Dec 14 18:32:55 beyonder-nas emhttpd: shcmd (406): mount -t xfs -o noatime /dev/md10 /mnt/disk10
Dec 14 18:32:55 beyonder-nas kernel: XFS (md10): Mounting V5 Filesystem
Dec 14 18:32:55 beyonder-nas kernel: XFS (md10): Starting recovery (logdev: internal)
Dec 14 18:32:55 beyonder-nas kernel: XFS (md10): Metadata CRC error detected at xfs_agf_read_verify+0x26/0x54 [xfs], xfs_agf block 0x1
Dec 14 18:32:55 beyonder-nas kernel: XFS (md10): Unmount and run xfs_repair
Dec 14 18:32:55 beyonder-nas kernel: XFS (md10): First 128 bytes of corrupted metadata buffer:
Dec 14 18:32:55 beyonder-nas kernel: 00000000: 58 41 47 46 00 00 00 01 00 00 00 00 0a ea 85 1b  XAGF............
Dec 14 18:32:55 beyonder-nas kernel: 00000010: 00 86 c4 83 00 86 99 f5 00 00 00 00 00 00 00 01  ................
Dec 14 18:32:55 beyonder-nas kernel: 00000020: 00 00 00 01 00 00 00 00 00 00 00 00 00 00 00 03  ................
Dec 14 18:32:55 beyonder-nas kernel: 00000030: 00 00 00 04 00 13 05 34 00 0d 6c 0c 00 00 00 00  .......4..l.....
Dec 14 18:32:55 beyonder-nas kernel: 00000040: f3 41 8d 35 53 e0 47 71 81 0b 39 b3 87 33 9c a9  .A.5S.Gq..9..3..
Dec 14 18:32:55 beyonder-nas kernel: 00000050: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................
Dec 14 18:32:55 beyonder-nas kernel: 00000060: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................
Dec 14 18:32:55 beyonder-nas kernel: 00000070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................
Dec 14 18:32:55 beyonder-nas kernel: XFS (md10): metadata I/O error in "xfs_read_agf+0x6d/0xa3 [xfs]" at daddr 0x1 len 1 error 74
Dec 14 18:32:55 beyonder-nas root: mount: /mnt/disk10: mount(2) system call failed: Structure needs cleaning.
Dec 14 18:32:55 beyonder-nas emhttpd: shcmd (406): exit status: 32
Dec 14 18:32:55 beyonder-nas emhttpd: /mnt/disk10 mount error: not mounted
Dec 14 18:32:55 beyonder-nas emhttpd: shcmd (407): umount /mnt/disk10
Dec 14 18:32:55 beyonder-nas root: umount: /mnt/disk10: not mounted.
Dec 14 18:32:55 beyonder-nas emhttpd: shcmd (407): exit status: 32
Dec 14 18:32:55 beyonder-nas emhttpd: shcmd (408): rmdir /mnt/disk10
Dec 14 18:32:55 beyonder-nas emhttpd: shcmd (409): mkdir -p /mnt/disk11
Dec 14 18:32:55 beyonder-nas emhttpd: shcmd (410): mount -t xfs -o noatime /dev/md11 /mnt/disk11
Dec 14 18:32:55 beyonder-nas kernel: XFS (md11): Metadata CRC error detected at xfs_sb_read_verify+0x10e/0x158 [xfs], xfs_sb block 0xffffffffffffffff
Dec 14 18:32:55 beyonder-nas kernel: XFS (md11): Unmount and run xfs_repair
Dec 14 18:32:55 beyonder-nas kernel: XFS (md11): First 128 bytes of corrupted metadata buffer:
Dec 14 18:32:55 beyonder-nas kernel: 00000000: 58 46 53 42 00 00 10 00 00 00 00 01 05 ef ff f3  XFSB............
Dec 14 18:32:55 beyonder-nas kernel: 00000010: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................
Dec 14 18:32:55 beyonder-nas kernel: 00000020: 9d cc 23 71 ff 3b 49 50 9d 7f ae fc d6 7b 75 81  ..#q.;IP.....{u.
Dec 14 18:32:55 beyonder-nas kernel: 00000030: 00 00 00 00 20 00 00 05 00 00 00 00 00 00 00 60  .... ..........`
Dec 14 18:32:55 beyonder-nas kernel: 00000040: 00 00 00 00 00 00 00 61 00 00 00 00 00 00 00 62  .......a.......b
Dec 14 18:32:55 beyonder-nas kernel: 00000050: 00 00 00 01 0e 8e 05 f3 00 00 00 12 00 00 00 00  ................
Dec 14 18:32:55 beyonder-nas kernel: 00000060: 00 07 47 02 b4 b5 02 00 02 00 00 08 00 00 00 00  ..G.............
Dec 14 18:32:55 beyonder-nas kernel: 00000070: 00 00 00 00 00 00 00 00 0c 09 09 03 1c 00 00 05  ................
Dec 14 18:32:55 beyonder-nas kernel: XFS (md11): SB validate failed with error -74.
Dec 14 18:32:55 beyonder-nas root: mount: /mnt/disk11: mount(2) system call failed: Structure needs cleaning.
Dec 14 18:32:55 beyonder-nas emhttpd: shcmd (410): exit status: 32
Dec 14 18:32:55 beyonder-nas emhttpd: /mnt/disk11 mount error: not mounted
Dec 14 18:32:55 beyonder-nas emhttpd: shcmd (411): umount /mnt/disk11
Dec 14 18:32:55 beyonder-nas root: umount: /mnt/disk11: not mounted.
Dec 14 18:32:55 beyonder-nas emhttpd: shcmd (411): exit status: 32
Dec 14 18:32:55 beyonder-nas emhttpd: shcmd (412): rmdir /mnt/disk11

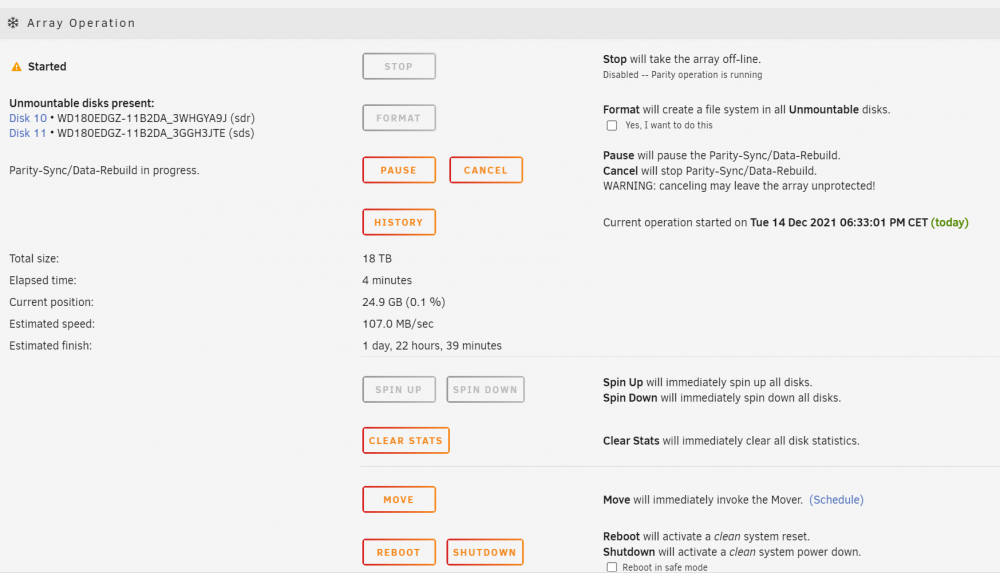

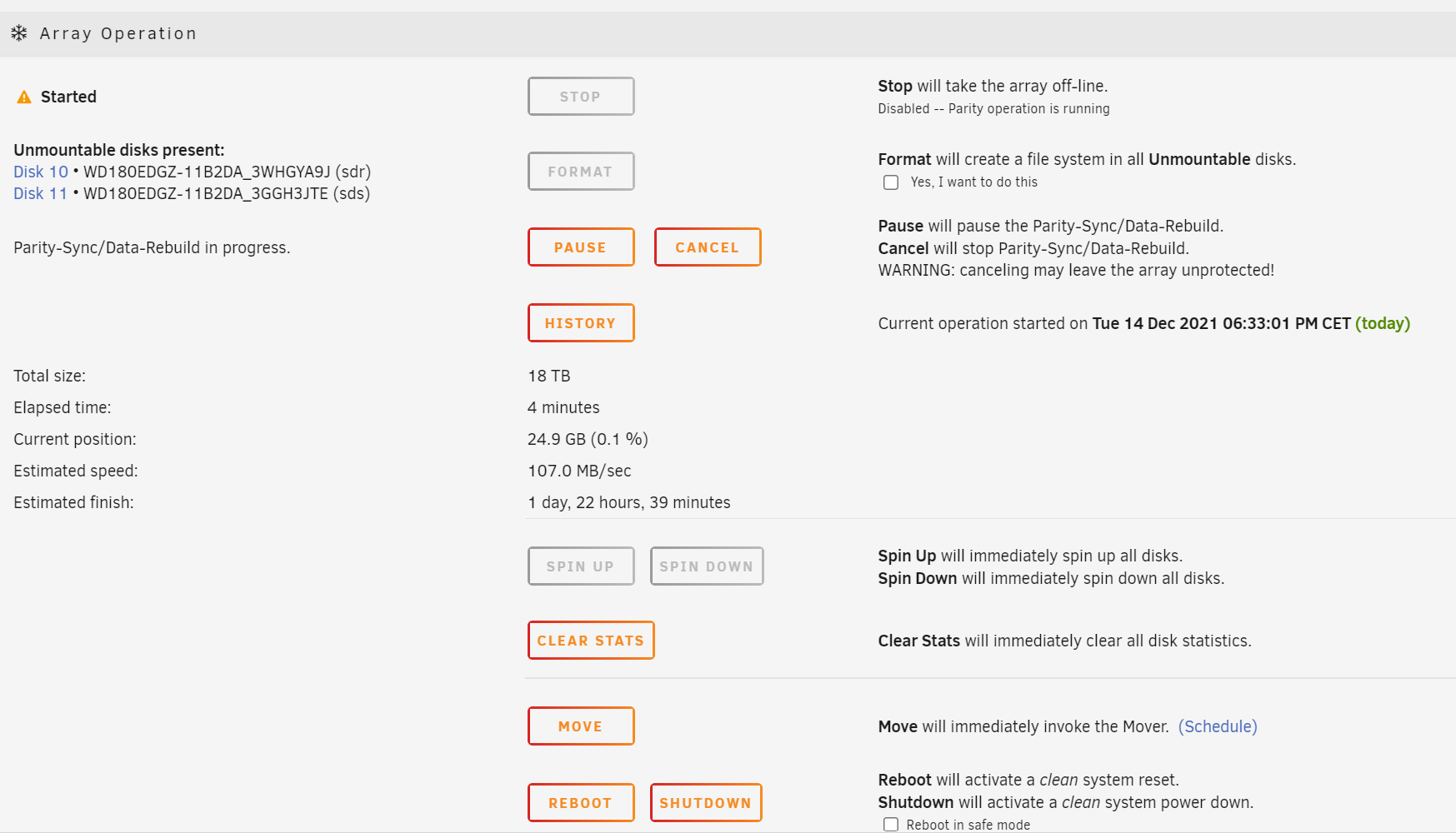

What happened was i had a loose cable so had to stop the rebuild and replug it in, when i rebooted the parity process started again from zero.





I have the original disks, but all the files from the emulated system seem to have gone.



Do i need to wait for a parity rebuild and then do some kind of repair?

Edited December 14, 20214 yr by spamalam

Since you still have the originals, it's OK to do the repair after the rebuild so might as well let the rebuild complete. Of course, DON'T FORMAT.

Okay thanks, will wait for it to finish and stop radarr and sonarr so they don't redownload

3 hours ago, spamalam said:

some kind of repair

https://wiki.unraid.net/Manual/Storage_Management#Checking_a_File_System
