December 22, 20214 yr Hi Guys Woke up with some warnings and disk9 has now been disabled, first warning was disk with read errors, followed by disk in error state. Dec 22 02:02:43 Server kernel: md: disk9 read error, sector=19536969840 Dec 22 02:02:43 Server kernel: md: disk9 read error, sector=19536969968 Dec 22 02:02:43 Server kernel: md: disk9 read error, sector=19536970088 Dec 22 02:02:43 Server kernel: md: disk9 read error, sector=19536970224 Dec 22 02:02:43 Server kernel: md: disk9 read error, sector=19536970344 Dec 22 02:02:44 Server emhttpd: read SMART /dev/sde Dec 22 02:02:44 Server emhttpd: read SMART /dev/sdn Dec 22 02:02:53 Server kernel: md: disk9 write error, sector=19536969840 Dec 22 02:02:53 Server kernel: md: disk9 write error, sector=19536969968 Dec 22 02:02:53 Server kernel: md: disk9 write error, sector=19536970088 Dec 22 02:02:53 Server kernel: md: disk9 write error, sector=19536970224 Dec 22 02:02:53 Server kernel: md: disk9 write error, sector=19536970344 Unable to run SMART but have attached diagnostics, before I do anything else, would appreciate some advice. I am hoping it's something like bad connection or something as its a 12TB drive! Thanks in advance! server-diagnostics-20211222-1039.zip
December 22, 20214 yr Author Shutdown, checked all drive bays and connections seem fine. However on starting back up I got the following message: Unraid array errors: 22-12-2021 11:44 Notice [] - array turned good Array has 0 disks with read errors Disk9 is still disabled so I am going to leave everything as is for now. Disabled docker and vms just in case too. Disk Log Information Dec 22 11:43:14 Server kernel: sd 5:0:5:0: [sdh] 23437770752 512-byte logical blocks: (12.0 TB/10.9 TiB) Dec 22 11:43:14 Server kernel: sd 5:0:5:0: [sdh] 4096-byte physical blocks Dec 22 11:43:14 Server kernel: sd 5:0:5:0: [sdh] Write Protect is off Dec 22 11:43:14 Server kernel: sd 5:0:5:0: [sdh] Mode Sense: 7f 00 10 08 Dec 22 11:43:14 Server kernel: sd 5:0:5:0: [sdh] Write cache: enabled, read cache: enabled, supports DPO and FUA Dec 22 11:43:14 Server kernel: sdh: sdh1 Dec 22 11:43:14 Server kernel: sd 5:0:5:0: [sdh] Attached SCSI disk Dec 22 11:44:41 Server emhttpd: WDC_WD120EFAX-68UNTN0_8CK9S75F (sdh) 512 23437770752 Dec 22 11:44:41 Server kernel: mdcmd (10): import 9 sdh 64 11718885324 0 WDC_WD120EFAX-68UNTN0_8CK9S75F Dec 22 11:44:41 Server kernel: md: import disk9: (sdh) WDC_WD120EFAX-68UNTN0_8CK9S75F size: 11718885324 Dec 22 11:44:41 Server emhttpd: read SMART /dev/sdh Dec 22 11:44:48 Server emhttpd: shcmd (51): /usr/local/sbin/set_ncq sdh 1 Dec 22 11:44:48 Server root: set_ncq: setting sdh queue_depth to 1 Dec 22 11:44:48 Server emhttpd: shcmd (52): echo 128 > /sys/block/sdh/queue/nr_requests Also now able to run SMART so will post that shortly. This is what Attributes showing Edited December 22, 20214 yr by bally12345

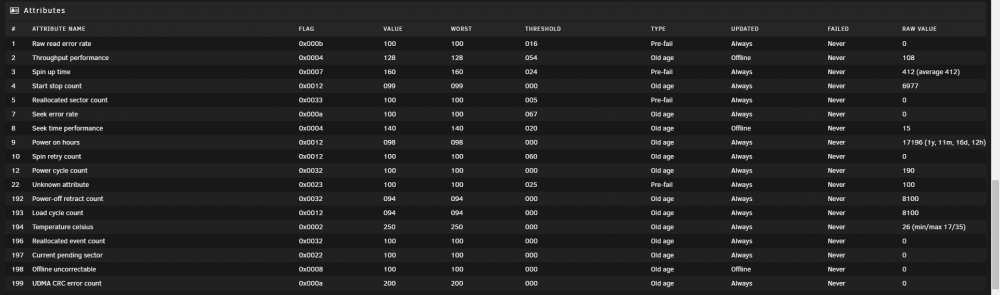

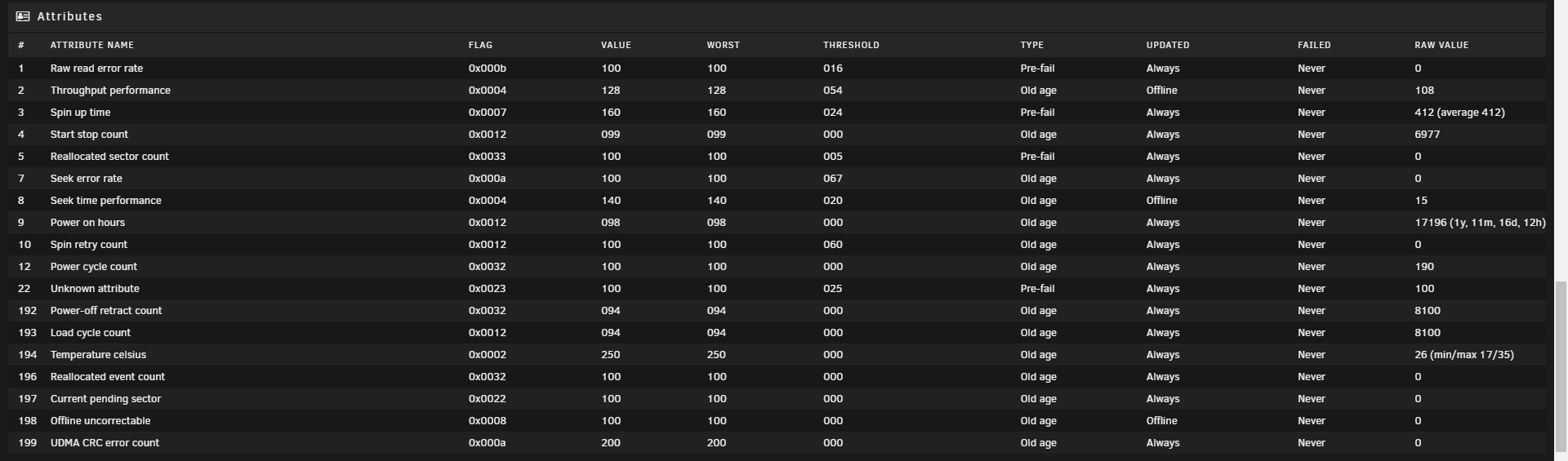

December 22, 20214 yr Community Expert Disk dropped offline, could be power/cable related, could also be spin down/up related, since it happened on spin up, SMART looks fine, if the emulated disk is mounting and contents look correct you can rebuild on top.
December 22, 20214 yr Author What's the correct steps to start it up?Sent from my SM-G991B using Tapatalk
December 22, 20214 yr Community Expert https://wiki.unraid.net/Manual/Storage_Management#Rebuilding_a_drive_onto_itself
December 22, 20214 yr Author https://wiki.unraid.net/Manual/Storage_Management#Rebuilding_a_drive_onto_itselfRebuild started! Thanks for quick response [emoji106]Sent from my SM-G991B using Tapatalk
