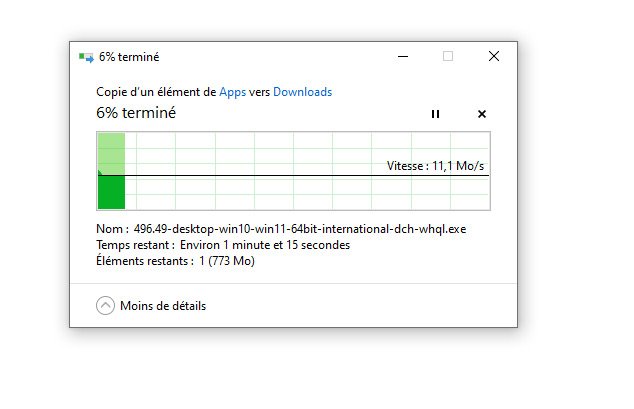

Solution ibasaw Posted December 29, 2021 Solution Share Posted December 29, 2021 (edited) hi, unraid Version: 6.9.2 cat cable 6 netgear gs108 I use eth0 on static ip eth0 1000 Mbps, full duplex, mtu 1500 I got very slow transfer speed between my unraid server and windows 10 When i want to copy a file from unrraid to my C ssd drive, i only got 10MO/S, but i only got 1gigabit card. Here my iperf logs: root@THE-BEAST:~# iperf3 -s ----------------------------------------------------------- Server listening on 5201 ----------------------------------------------------------- Accepted connection from 192.168.1.20, port 5086 [ 5] local 192.168.1.11 port 5201 connected to 192.168.1.20 port 5087 [ ID] Interval Transfer Bitrate [ 5] 0.00-1.00 sec 11.3 MBytes 94.6 Mbits/sec [ 5] 1.00-2.00 sec 11.3 MBytes 94.9 Mbits/sec [ 5] 2.00-3.00 sec 11.3 MBytes 94.8 Mbits/sec [ 5] 3.00-4.00 sec 11.2 MBytes 93.7 Mbits/sec [ 5] 4.00-5.00 sec 11.3 MBytes 94.9 Mbits/sec [ 5] 5.00-6.00 sec 11.3 MBytes 94.8 Mbits/sec [ 5] 6.00-7.00 sec 11.3 MBytes 94.9 Mbits/sec [ 5] 7.00-8.00 sec 11.3 MBytes 94.9 Mbits/sec [ 5] 8.00-9.00 sec 11.3 MBytes 94.9 Mbits/sec [ 5] 9.00-10.00 sec 11.3 MBytes 94.8 Mbits/sec [ 5] 10.00-10.03 sec 344 KBytes 94.9 Mbits/sec - - - - - - - - - - - - - - - - - - - - - - - - - [ ID] Interval Transfer Bitrate [ 5] 0.00-10.03 sec 113 MBytes 94.7 Mbits/sec receiver ----------------------------------------------------------- Server listening on 5201 why this is so slow ? ++ the-beast-diagnostics-20211229-1114.zip Edited December 29, 2021 by ibasaw Quote Link to comment
Squid Posted December 29, 2021 Share Posted December 29, 2021 Settings for eth1: Supported ports: [ TP ] Supported link modes: 10baseT/Half 10baseT/Full 100baseT/Half 100baseT/Full 1000baseT/Full Supported pause frame use: Symmetric Supports auto-negotiation: Yes Supported FEC modes: Not reported Advertised link modes: 10baseT/Half 10baseT/Full 100baseT/Half 100baseT/Full 1000baseT/Full Advertised pause frame use: Symmetric Advertised auto-negotiation: Yes Advertised FEC modes: Not reported Speed: 100Mb/s Duplex: Full Auto-negotiation: on Port: Twisted Pair PHYAD: 1 Transceiver: internal MDI-X: off (auto) Supports Wake-on: d Wake-on: d Current message level: 0x00000007 (7) drv probe link Link detected: yes Looks like the system is using eth1 which is connected @ 100Mb/s Disconnecting the cable will probably fix you right up. Quote Link to comment
ibasaw Posted December 29, 2021 Author Share Posted December 29, 2021 i try under linux and got 116 MO/S so i uninstall the driver, delete the network adaptateur and after fresh install of the network card with default configuration, i can transfer file to 116MO/s problem solved! ++ Quote Link to comment
