Hello I have an ASR-72405 card and it is not detected correctly in Unraid. It is displayed under Tools -> System devices but the hard drives are not displayed.

in the log it says something about: Jan 10 15:25:16 HOMESERVER01 kernel: aacraid: aac_fib_send: adapter blinkLED 0xff.

Actually everything works in the bios.

Hopefully someone can help me.

Greetings Yoshii





homeserver01-diagnostics-20220110-1528.zip

Edited January 11, 20224 yr by MrYoshii

Did you see the line below that one?



Jan 10 15:25:16 HOMESERVER01 kernel: aacraid: aac_fib_send: adapter blinkLED 0xff.
Jan 10 15:25:16 HOMESERVER01 kernel: Usually a result of a serious unrecoverable hardware problem



So likely some hardware issue.

6 minutes ago, JorgeB said:

Did you see the line below that one?



Jan 10 15:25:16 HOMESERVER01 kernel: aacraid: aac_fib_send: adapter blinkLED 0xff.
Jan 10 15:25:16 HOMESERVER01 kernel: Usually a result of a serious unrecoverable hardware problem



So likely some hardware issue.

Yes but it works in bios. All hard drives are recognized.

But it's failing to initialize by the driver, not much more we can do, you can maybe try an older and/or more recent Unraid release to see if there's any difference.

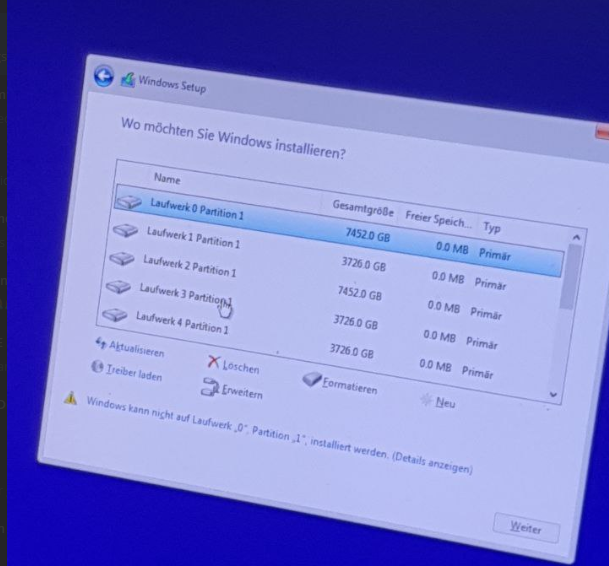

I have now done a BIOS update on the raid controller. It is still not recognized by unraid. Now no more error message in the log and under system devices he is also no longer inside. Have now made a windows 10 bootsick to test. All hard drives are displayed in the installation menu.

Does there possibly still have someone an idea?

Greetings Yoshii



6 minutes ago, MrYoshii said:

Now no more error message in the log

Post new diags.

4 minutes ago, JorgeB said:

Post new diags.

homeserver01-diagnostics-20220110-1734.zip

It's not being detected by Linux now, try a different PCIe slot if available.

it can be that simple. thanks for your input
