January 21, 20224 yr Linux 5.10.28-Unraid x86_64 I try and set it using spaceinvaderones guide and the monitor is trying to connect but ends up without signal ErrorWarningSystemArrayLogin -nodefaults \ -chardev socket,id=charmonitor,fd=31,server,nowait \ -mon chardev=charmonitor,id=monitor,mode=control \ -rtc base=localtime \ -no-hpet \ -no-shutdown \ -boot strict=on \ -device ich9-usb-ehci1,id=usb,bus=pci.0,addr=0x7.0x7 \ -device ich9-usb-uhci1,masterbus=usb.0,firstport=0,bus=pci.0,multifunction=on,addr=0x7 \ -device ich9-usb-uhci2,masterbus=usb.0,firstport=2,bus=pci.0,addr=0x7.0x1 \ -device ich9-usb-uhci3,masterbus=usb.0,firstport=4,bus=pci.0,addr=0x7.0x2 \ -device virtio-serial-pci,id=virtio-serial0,bus=pci.0,addr=0x3 \ -blockdev '{"driver":"file","filename":"/mnt/user/domains/Windows 10/vdisk1.img","node-name":"libvirt-3-storage","cache":{"direct":false,"no-flush":false},"auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-3-format","read-only":false,"cache":{"direct":false,"no-flush":false},"driver":"raw","file":"libvirt-3-storage"}' \ -device virtio-blk-pci,bus=pci.0,addr=0x4,drive=libvirt-3-format,id=virtio-disk2,bootindex=1,write-cache=on \ -blockdev '{"driver":"file","filename":"/mnt/user/isos/Windows.iso","node-name":"libvirt-2-storage","auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-2-format","read-only":true,"driver":"raw","file":"libvirt-2-storage"}' \ -device ide-cd,bus=ide.0,unit=0,drive=libvirt-2-format,id=ide0-0-0,bootindex=2 \ -blockdev '{"driver":"file","filename":"/mnt/user/isos/virtio-win-0.1.190-1.iso","node-name":"libvirt-1-storage","auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-1-format","read-only":true,"driver":"raw","file":"libvirt-1-storage"}' \ -device ide-cd,bus=ide.0,unit=1,drive=libvirt-1-format,id=ide0-0-1 \ -netdev tap,fd=33,id=hostnet0 \ -device virtio-net,netdev=hostnet0,id=net0,mac=52:54:00:a2:91:b5,bus=pci.0,addr=0x2 \ -chardev pty,id=charserial0 \ -device isa-serial,chardev=charserial0,id=serial0 \ -chardev socket,id=charchannel0,fd=34,server,nowait \ -device virtserialport,bus=virtio-serial0.0,nr=1,chardev=charchannel0,id=channel0,name=org.qemu.guest_agent.0 \ -device usb-tablet,id=input0,bus=usb.0,port=1 \ -device vfio-pci,host=0000:06:00.0,id=hostdev0,bus=pci.0,multifunction=on,addr=0x5,romfile=/mnt/disk3/VM-shared/System/nvidia.rom \ -device vfio-pci,host=0000:06:00.1,id=hostdev1,bus=pci.0,addr=0x5.0x1 \ -device vfio-pci,host=0000:08:00.4,id=hostdev2,bus=pci.0,addr=0x8 \ -sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny \ -msg timestamp=on 2022-01-21 07:17:55.342+0000: Domain id=3 is tainted: high-privileges 2022-01-21 07:17:55.342+0000: Domain id=3 is tainted: host-cpu char device redirected to /dev/pts/0 (label charserial0) 2022-01-21T07:17:57.472389Z qemu-system-x86_64: vfio: Cannot reset device 0000:08:00.4, depends on group 17 which is not owned. 2022-01-21T07:17:58.518687Z qemu-system-x86_64: vfio: Cannot reset device 0000:08:00.4, depends on group 17 which is not owned. 2022-01-21T07:18:06.894483Z qemu-system-x86_64: vfio: Cannot reset device 0000:08:00.4, depends on group 17 which is not owned. 2022-01-21T07:18:07.927438Z qemu-system-x86_64: vfio: Cannot reset device 0000:08:00.4, depends on group 17 which is not owned. in the log I only see this line that might be revelant Jan 20 22:33:59 Maincore kernel: vfio-pci 0000:06:00.0: vgaarb: changed VGA decodes: olddecodes=io+mem,decodes=io+mem:owns=io+mem
January 21, 20224 yr With my rtx 3070 i can passthrough Only if my unraid boot on legacy mode not uefi

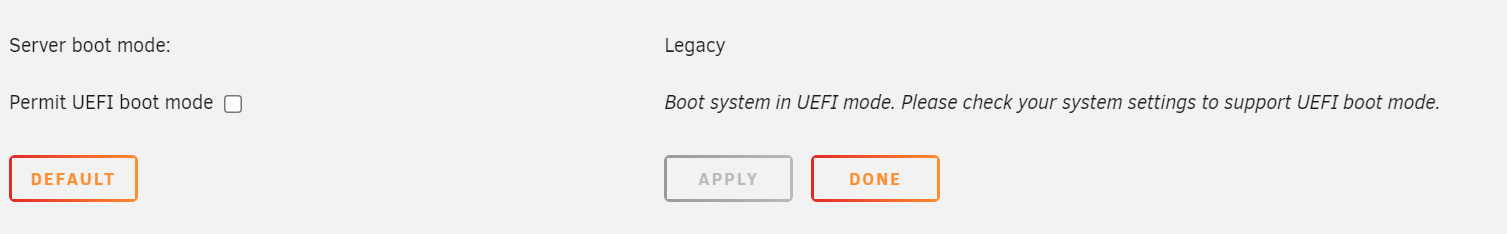

January 21, 20224 yr Author I am on legacy... changed it....I just unmark the "Force UEFI"... Thats enough right? Or I need to reinstall flash with legacy?
January 21, 20224 yr 2 hours ago, binaryhamster said: 2022-01-21T07:17:57.472389Z qemu-system-x86_64: vfio: Cannot reset device 0000:08:00.4, depends on group 17 which is not owned. You didn't setup correctly the passthrough. Why you didn't attach diagnostics? How one can know what it is that device? Anyway, 08:00.4 is in a iommu group together with other devices, that are not attached to vfio, so 08:00.4 can't be resetted.
January 21, 20224 yr Author 20 minutes ago, ghost82 said: You didn't setup correctly the passthrough. Why you didn't attach diagnostics? How one can know what it is that device? I am new to unraid. I will do that now. Anyway, 08:00.4 is in a iommu group together with other devices, that are not attached to vfio, so 08:00.4 can't be resetted. Thank you. How to resolve it? maincore-diagnostics-20220121-1206.zip
January 21, 20224 yr This: <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x06' slot='0x00' function='0x0'/> </source> <rom file='/mnt/disk3/VM-shared/System/rtx3700.rom'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0' multifunction='on'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x08' slot='0x00' function='0x4'/> </source> <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x1'/> </hostdev> is wrong. you are passing the video part of the gpu, putting it in a multifunction device at 00:05.0 and then you are passing the analogic built in audio and assign it to the multifunction device. 1. Replace this: <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x06' slot='0x00' function='0x0'/> </source> <rom file='/mnt/disk3/VM-shared/System/rtx3700.rom'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0' multifunction='on'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x08' slot='0x00' function='0x4'/> </source> <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x1'/> </hostdev> with this: <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x06' slot='0x00' function='0x0'/> </source> <rom file='/mnt/disk3/VM-shared/System/rtx3700.rom'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0' multifunction='on'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x06' slot='0x00' function='0x1'/> </source> <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x1'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x08' slot='0x00' function='0x4'/> </source> <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/> </hostdev> This will pass both digital and analogic audio. If you use displayport or hdmi audio only you can delete this part: <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x08' slot='0x00' function='0x4'/> </source> <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/> </hostdev> 2. You should attach to vfio at boot iommu groups 15 and 20: note: you won't have video output for unraid, the system will seem frozen, but it's not, connect to the unraid gui from an external device in the lan. 3. Ensure that rtx3700.rom is compatible with your gpu; if you are unsure, dump it from your card, if it's already dumped from your gpu you are ok. 4. reboot unraid and try. If it doesn't work attach new diagnostics with all these changes applied.
January 21, 20224 yr Author Same result... Its trying...But finding no signal. maincore-diagnostics-20220121-1307.zip
January 21, 20224 yr Try to remove this: <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x08' slot='0x00' function='0x4'/> </source> <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/> </hostdev>
January 21, 20224 yr Author Same result. Do I need to wait for the VM to fully boot before I try and take HDMI out and in?
January 21, 20224 yr No idea..nothing in the logs as far as I can see. I would try to switch to pc-q35 machine type instead of i440fx and reapply all the fixes. Maybe you can run it first with vnc/emulated graphics, once booted you can enable remote desktop, check that it works with an external device, switch to gpu passthrough; if the vm boots but has no video output you can connect to it with remote desktop and check if the gpu is detected in windows but throws errors or if it's not detected at all. If it's detected with errors, maybe you need to install drivers to have a display output.
January 21, 20224 yr Author I can connect to the vm while its in passthrough? How? The choise dissapears when I put it in passthrough
January 21, 20224 yr From an external device, with remote desktop because you will enable it inside the vm.
January 21, 20224 yr Author You are a bloddy genius... I installed Teamviewer because thats the only one I knew for windows. Then I just installed the nvidia drivers and boom...It appeared. Ive been obsessed about this issue for 3 days now. I bought the 2000$ setup just for this purpose and the thought of not being able because of bad choise of hardware would have been devastating. Thanx again man... Your awsome... Next step...passthrough keyboard and mouse.
January 25, 20224 yr On 1/21/2022 at 9:17 AM, binaryhamster said: You are a bloddy genius... I installed Teamviewer because thats the only one I knew for windows. Then I just installed the nvidia drivers and boom...It appeared. Ive been obsessed about this issue for 3 days now. I bought the 2000$ setup just for this purpose and the thought of not being able because of bad choise of hardware would have been devastating. Hi, im having the same problem that you experienced. Been trying all sorts of "fixes" but no luck. Did you changed the to q35 or left it as i440fx?
