February 1, 20224 yr Hello, I have ran in to a bit of a problem to say the least. I have a unraid server with just a boot ssd and a 2tb hdd for storage, its not protected or anything. I rarely use it and i put some backup stuff on there. After a month i scanned it and went to bed and woke up to 480 milion errors. Windows is not showing any files and krusader isn't showing any files in my storage folder. But unraid tells me in using 301GB of space on the drive? does this mean not everything is gone or am i too late If u can help me it would be greatly appricated. Friendly regarts, Ruski
February 1, 20224 yr You need to post your diagnostics. Also, the # of errors refers to the number of sectors, not any "used" space per se
February 1, 20224 yr Author Here is the diagnostics. I am pretty new to all of this so if u need anything els just tell me and ill try to get hands on the information imkonas-diagnostics-20220202-0041.zip
February 1, 20224 yr Community Expert 14 minutes ago, Ruski said: boot ssd Unraid doesn't boot from ssd.
February 1, 20224 yr The data drive dropped offline, then reconnected itself. Reseat the cabling both ends to it. How is it connected?
February 1, 20224 yr Community Expert Looks like disk1 disconnected and reconnected as a different device. How is that disk connected?
February 1, 20224 yr Community Expert 00:1f.2 RAID bus controller [0104]: Intel Corporation SATA Controller [RAID mode] [8086:2822] (rev 05) RAID controllers are not recommended
February 1, 20224 yr Author 3 minutes ago, trurl said: Unraid doesn't boot from ssd. My fault. USB as boot device and a Ssd as pool device 1 minute ago, Squid said: The data drive dropped offline, then reconnected itself. Reseat the cabling both ends to it. How is it connected? Its connected by a SATA DATA cable and SATA power. Do i reseat them both on the pc and the drive?
February 2, 20224 yr Author 1 minute ago, trurl said: 00:1f.2 RAID bus controller [0104]: Intel Corporation SATA Controller [RAID mode] [8086:2822] (rev 05) RAID controllers are not recommended How can i turn those off? i didnt even know it used them or that i even had them. This server is just a old computer i reused
February 2, 20224 yr Author 6 minutes ago, trurl said: Looks like disk1 disconnected and reconnected as a different device. How is that disk connected? SATA DATA cable and SATA power
February 3, 20224 yr Author Okey i tried reconnecting the cables. Now it shows more files in my explorer. But i cant open them becuase its says its damaged. I did a new diagnostics (Added) what can i try next? imkonas-diagnostics-20220203-2310.zip
February 4, 20224 yr Author I think i fixed it. (ill mark it as Solution when the check is ready but its taking a while) I stopped the array. Unassigned the drive. Reassigned the drive. Started the array. So far 50% no errors

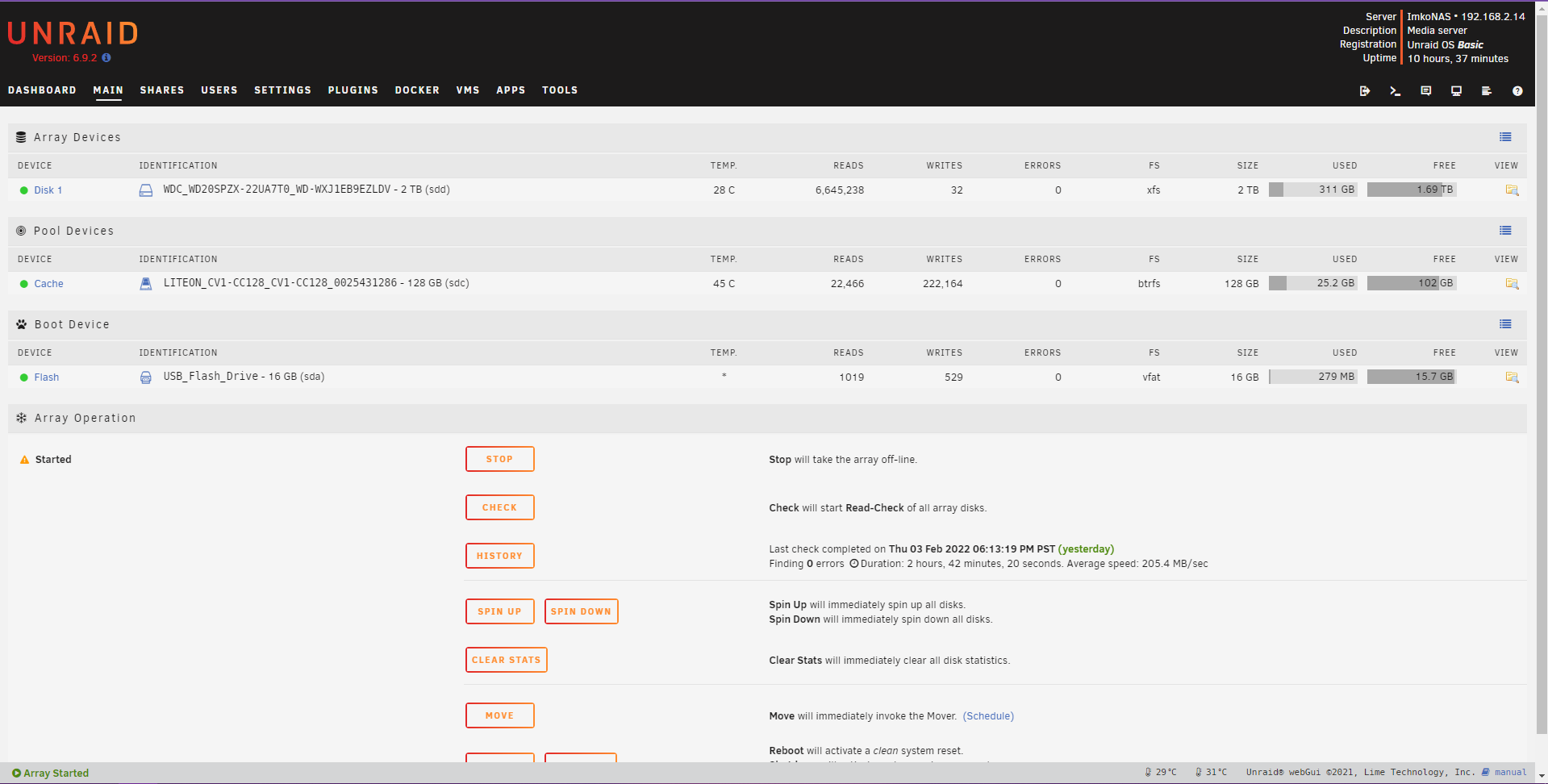

February 4, 20224 yr Community Expert 6 minutes ago, Ruski said: I think i fixed it. (ill mark it as Solution when the check is ready but its taking a while) I stopped the array. Unassigned the drive. Reassigned the drive. Started the array. So far 50% no errors Your diagnostics showed no parity assigned and no disk assigned to disk1. Your first post implied you didn't have parity, so there is no way you can rebuild anything, which is what those steps you posted are designed to do. Post new diagnostics and a screenshot of Main - Array Devices
February 4, 20224 yr Community Expert 22 minutes ago, trurl said: Your diagnostics showed still having connection issues.
February 4, 20224 yr Author Solution 7 hours ago, trurl said: Your diagnostics showed no parity assigned and no disk assigned to disk1. Your first post implied you didn't have parity, so there is no way you can rebuild anything, which is what those steps you posted are designed to do. Post new diagnostics and a screenshot of Main - Array Devices The scan is complete and it has 0 errors now. and all the files are back. What i did was shutdown the system, Reconnect the cables, Turn system back on. Then i ran a check it still had 488 milion errors. Then in main i stopped the array. The devices list popped up i deselected WDC 2TB and scrolled down it said i cant start it cuz missing drive (makes sense) then on disk 1 i just reselected WDC 2TB. Started the array and checked 0 errors and the files now work So i dont know how it fixed it but it did. diagnostics are in attachments imkonas-diagnostics-20220204-0920.zip
February 4, 20224 yr Author 3 hours ago, trurl said: Still having disk connection connection problems How could i fix that. Because it's working fine rn?
February 4, 20224 yr Author 1 minute ago, trurl said: Do you have any power splitters? I dont, it just straight from the power supply.
February 4, 20224 yr Author 3 minutes ago, trurl said: Is the RAID controller a separate card? No it isn't. The computer i build this from is an old HP z200 so its a workstation pc so it probably build in to the motherboard
February 5, 20224 yr Author Okey, i reconnected the 2TB drive because it was in a 2.5 to 3.5 cage so it mabye that was a problem. I looked in the BIOS i could turn off the raid but then it would have been switched to IDE mode. So i attached my diagnostics. Is this better? is the connection problem still there? the check came out with 0 errors imkonas-diagnostics-20220205-2316.zip
February 5, 20224 yr Community Expert 1 minute ago, Ruski said: switched to IDE mode You can't set it to ahci? 2 minutes ago, Ruski said: is the connection problem still there? the check came out with 0 errors Looks good.
February 5, 20224 yr Author 2 minutes ago, trurl said: You can't set it to ahci? Looks good. No the only option is Raid+AHCI or IDE. I think its just a z200 thing.
February 5, 20224 yr Community Expert 4 minutes ago, Ruski said: No the only option is Raid+AHCI or IDE. I think its just a z200 thing. First time I have heard of such a limitation. I would expect IDE mode to give performance issues
