HELP! - Disk 100% full (With High water settings)

[casperse]

Hi All



I have been searching this and I have not found any of the issues on my server?

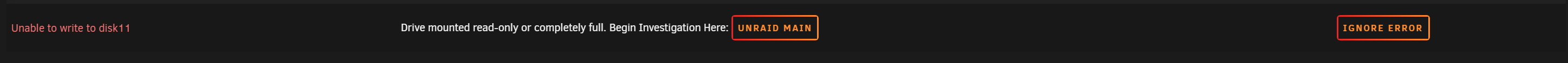

Drive 11:

And I can see more drives running full I have 80G set as minimum free space?



Its really strange I have no new shares? I created them a long time ago all like this



My Diagnostic file attached below



I really don't like seeing drives this full especially when other drives has lot of empty space?



I have Fixit running and I found one mounted drive in a docker that should have been mounted as Read/Write - Slave - I have corrected this but it look likes its still filling up my other drives to 100% so it must be somethings else?

I can see this looks like it started when the cache drive ran full but that shouldnt cause this should it?

I have the mover to run every night so normally this is not a problem, even now when I run a manual move it looks like it writes to drives with >500MB - I can see keeps trying to write to the these drives:



Feb 8 07:44:09 shfs: share cache full
Feb 8 07:44:10 shfs: cache disk full
Feb 8 07:44:15 shfs: cache disk full
Feb 8 07:44:21 shfs: share cache full
Feb 8 07:44:24 shfs: share cache full
Feb 8 07:44:25 shfs: cache disk full



I have now found 4 drives with less than 500MB free space?

Should I run unBalance?



As always your help is really appreciated & needed 🙂













diagnostics-20220208-0732.zip

Edited February 8, 2022 by casperse

[casperse]

Update: The mover just stopped it cant write to the drives? Even if there is plenty of space to the other drives?

Edited February 8, 2022 by casperse

[itimpi]

It is highly likely that the problem is your Split Level setting is too restrictive.  That setting takes precedence over all other share settings that might cause Unraid to select a different drive.



I notice that you have a share called 'movies' and within that a folder called 'Movies'.  Is this intentional?  If not then maybe sorting that out might work with your current Split Level settings?



You DO need to free up space on your cache as that being full can lead to other problems.



There are also a lot of .cfg files in the config/shares folder on the flash drive.  Do all of these correspond to share you actually have?  If not deleting the superfluous ones will help with troubleshooting and  interpreting diagnostics.



[casperse]

Thanks for helping @itimpi 🙂



My path movies\Movies is just before everyone starting to do data\Movies so yes that is intentional



I found 3.7TB in the recycle plugin that I have emptied and I did a MC commander in a terminal window and did a disc to disc move

After freeing up some space the mover started running and the cache drive is now back to normal



But looking in the log I can see that I still get the "No space left"

Feb 8 11:25:03 Server shfs: copy_file: /mnt/cache/tv shows/TV Shows/Magnum P.I. (2018) [tvdb-350068]/Season 04/Magnum P.I. (2018) - S04E12 - Angels Sometimes Kill [WEB-DL.720p][8bit][h264][AC3 5.1]-EGEN.mkv /mnt/disk2/tv shows/TV Shows/Magnum P.I. (2018) [tvdb-350068]/Season 04/Magnum P.I. (2018) - S04E12 - Angels Sometimes Kill [WEB-DL.720p][8bit][h264][AC3 5.1]-EGEN.mkv (28) No space left on device



I think I found a change in one folder that could impact the split level?



Some time ago I setup Lidarr to a subdir that might have broken the split level I use for music? (All the other split levels has ben working for years)



Looking at the path I have:

music\Albums new\Artist\album\files

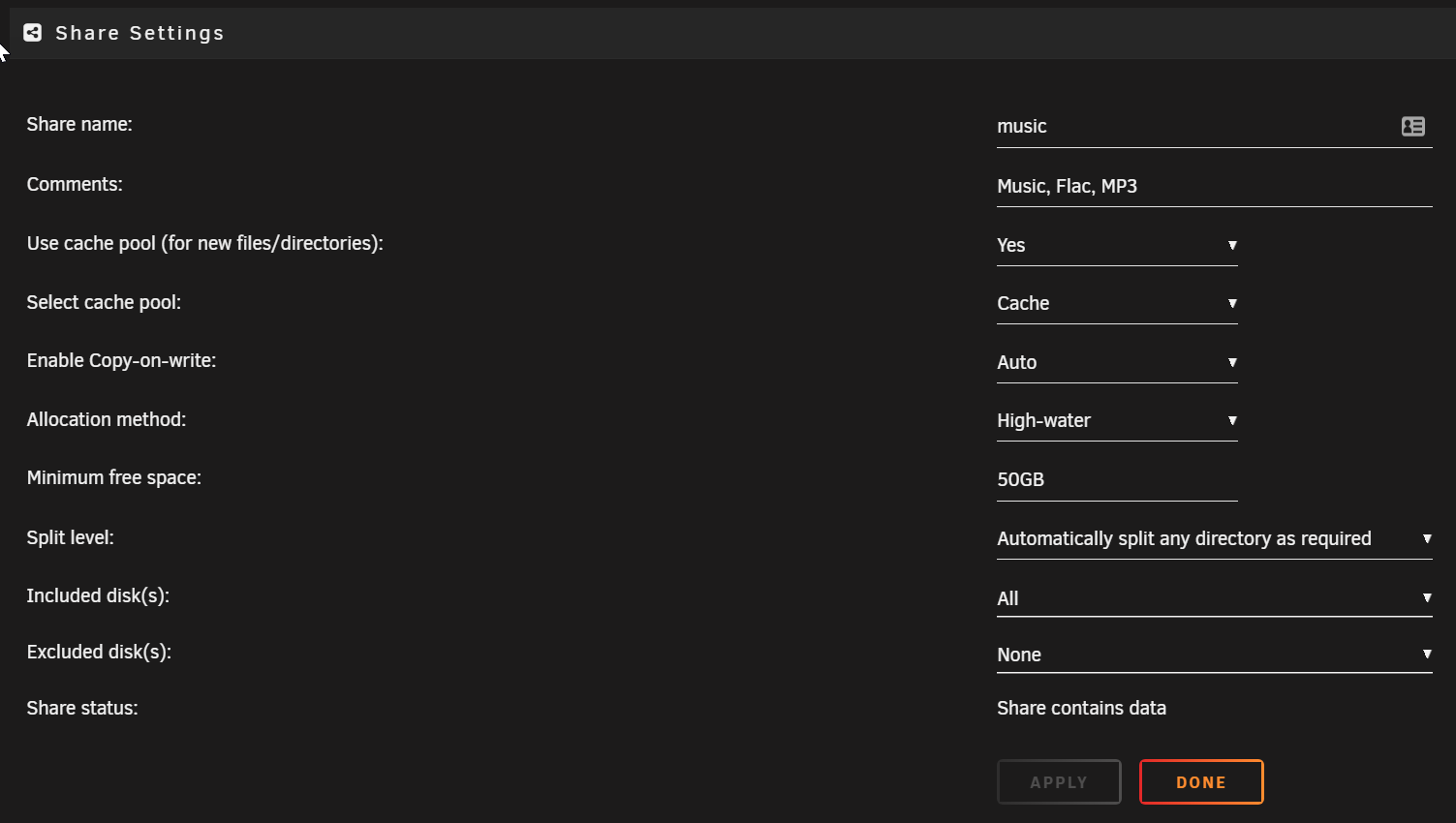

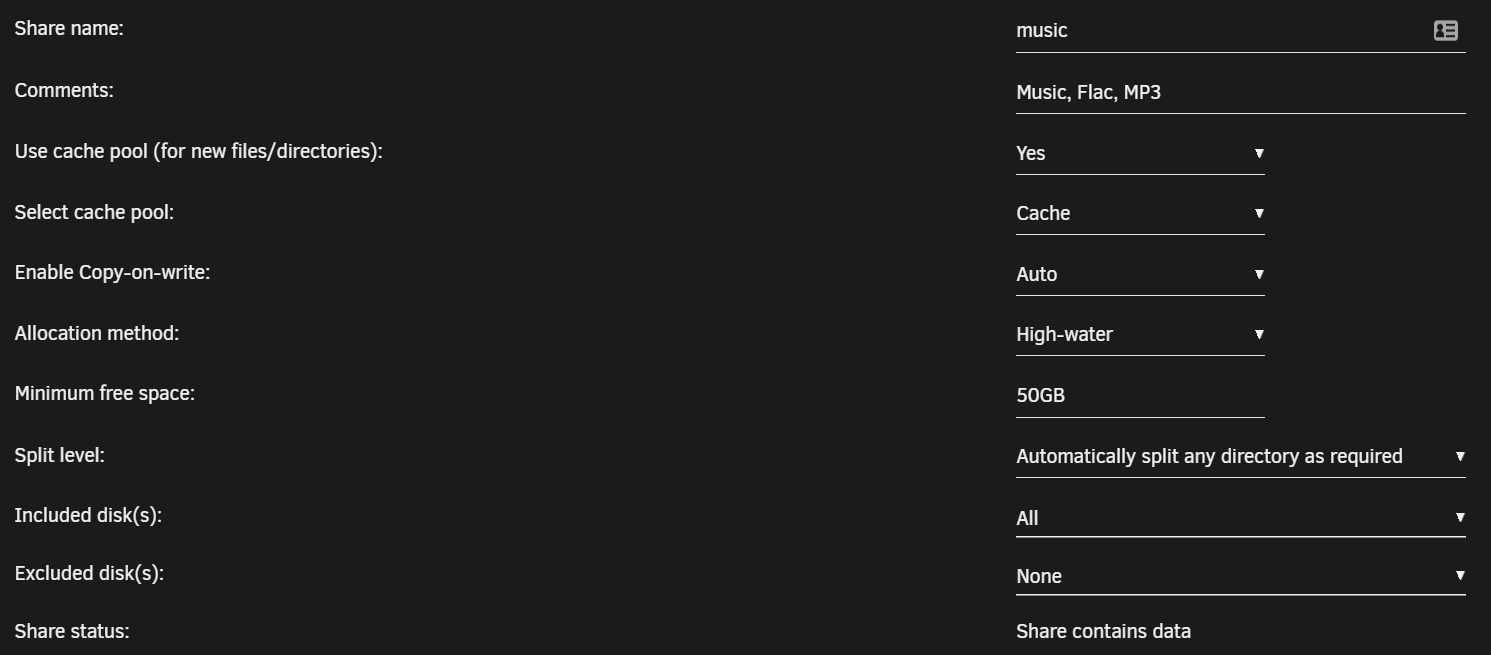

The share is set like this:



Looking at the cfg for shares I have cfg from when I imported data from my Synology NAS years ago

Is it ok to delete all cfg files that dosent correspond to a shared folder on my Unraid server?



Thanks again!







[itimpi]

4 minutes ago, casperse said:

Looking at the cfg for shares I have cfg from when I imported data from my Synology NAS years ago

Is it ok to delete all cfg files that dosent correspond to a shared folder on my Unraid server

Yes.



4 minutes ago, casperse said:



But looking in the log I can see that I still get the "No space left"

Feb 8 11:25:03 Server shfs: copy_file: /mnt/cache/tv shows/TV Shows/Magnum P.I. (2018) [tvdb-350068]/Season 04/Magnum P.I. (2018) - S04E12 - Angels Sometimes Kill [WEB-DL.720p][8bit][h264][AC3 5.1]-EGEN.mkv /mnt/disk2/tv shows/TV Shows/Magnum P.I. (2018) [tvdb-350068]/Season 04/Magnum P.I. (2018) - S04E12 - Angels Sometimes Kill [WEB-DL.720p][8bit][h264][AC3 5.1]-EGEN.mkv (28) No space left on device

With a Split Level of 2 then once the ‘Magnum P.I. (2018) [tvdb-350068]’ folder (which is at level 3) is created on any drive then all content for that folder is forced to that drive regardless of whether there is space for it.

[casperse]

So the split level for TV shows should be set at level 3?



I have looked at all the shares and they are the same split level as when I started running Unraid

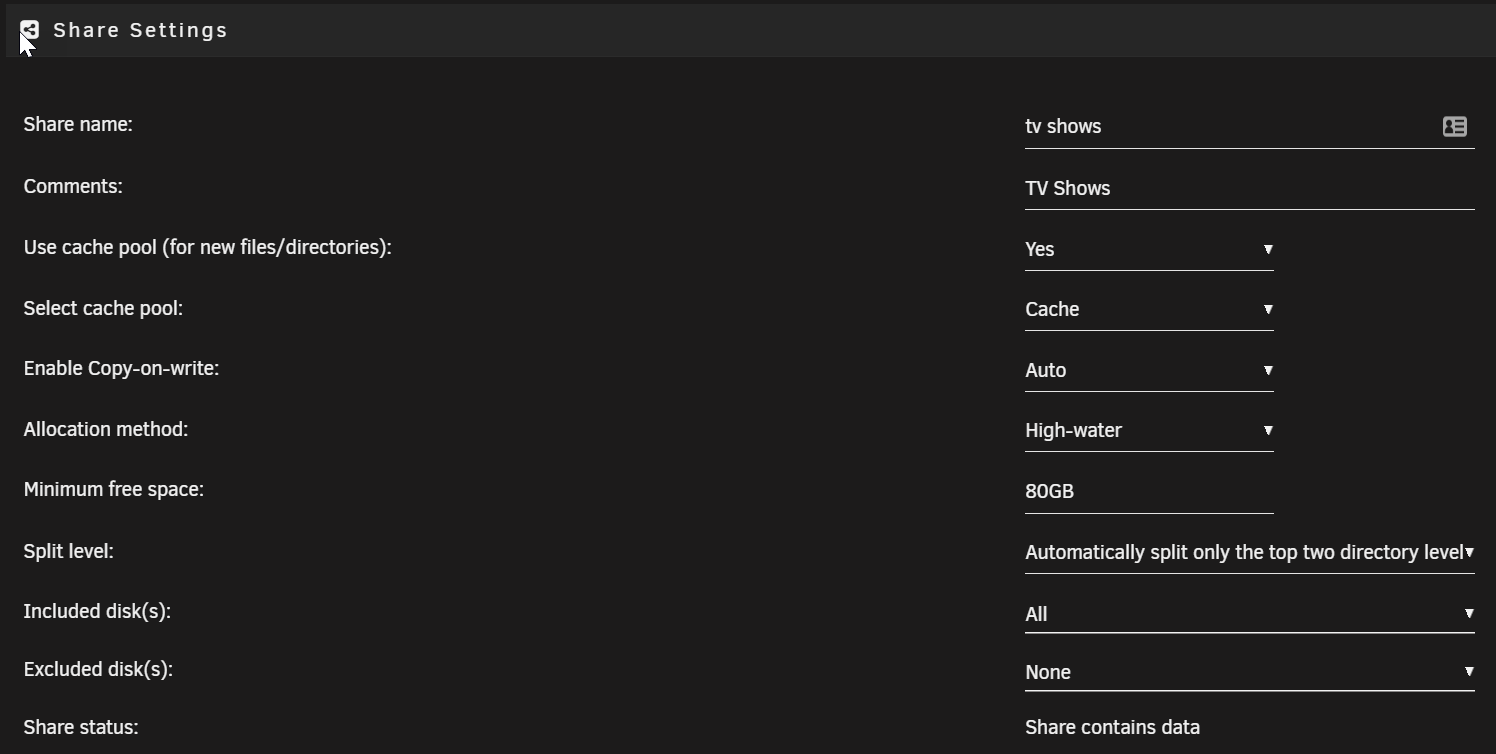

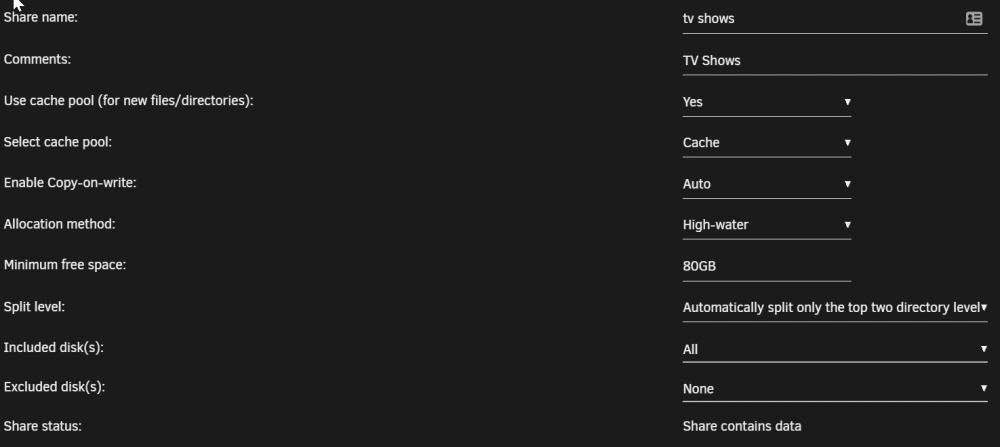

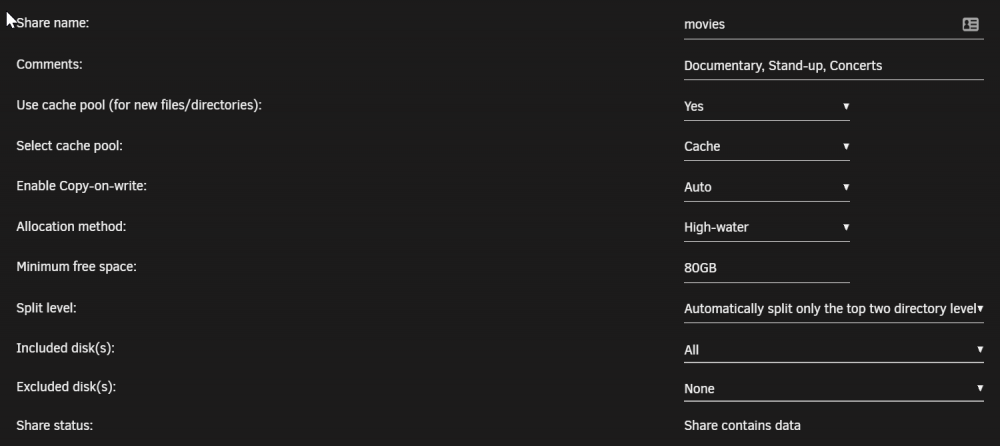

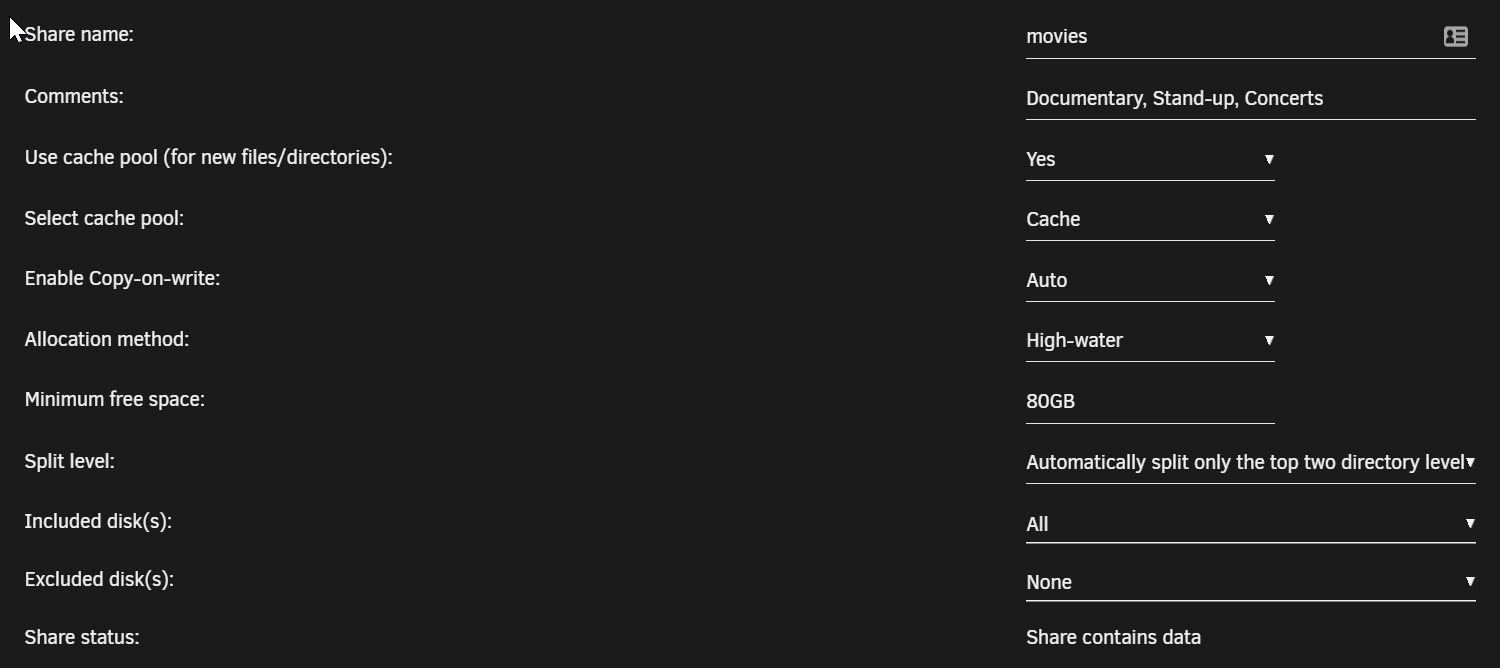

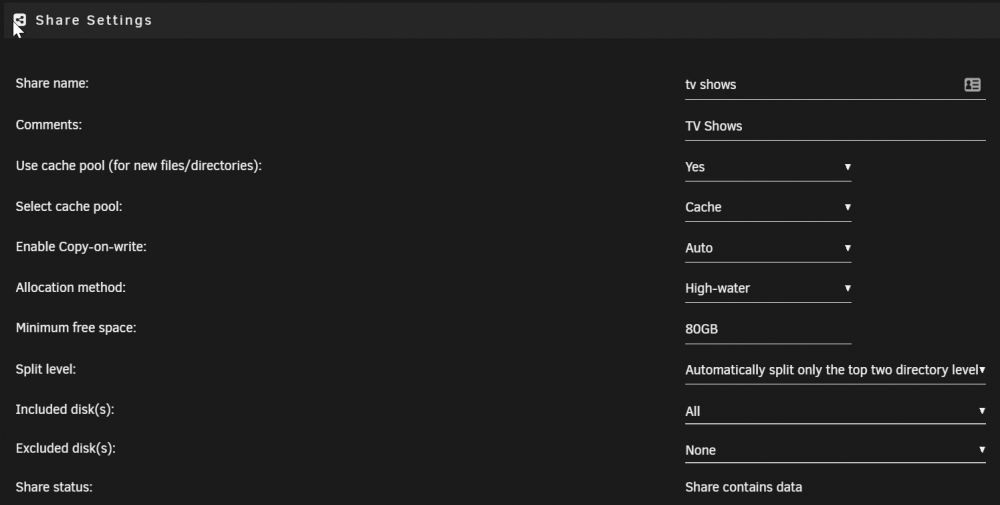

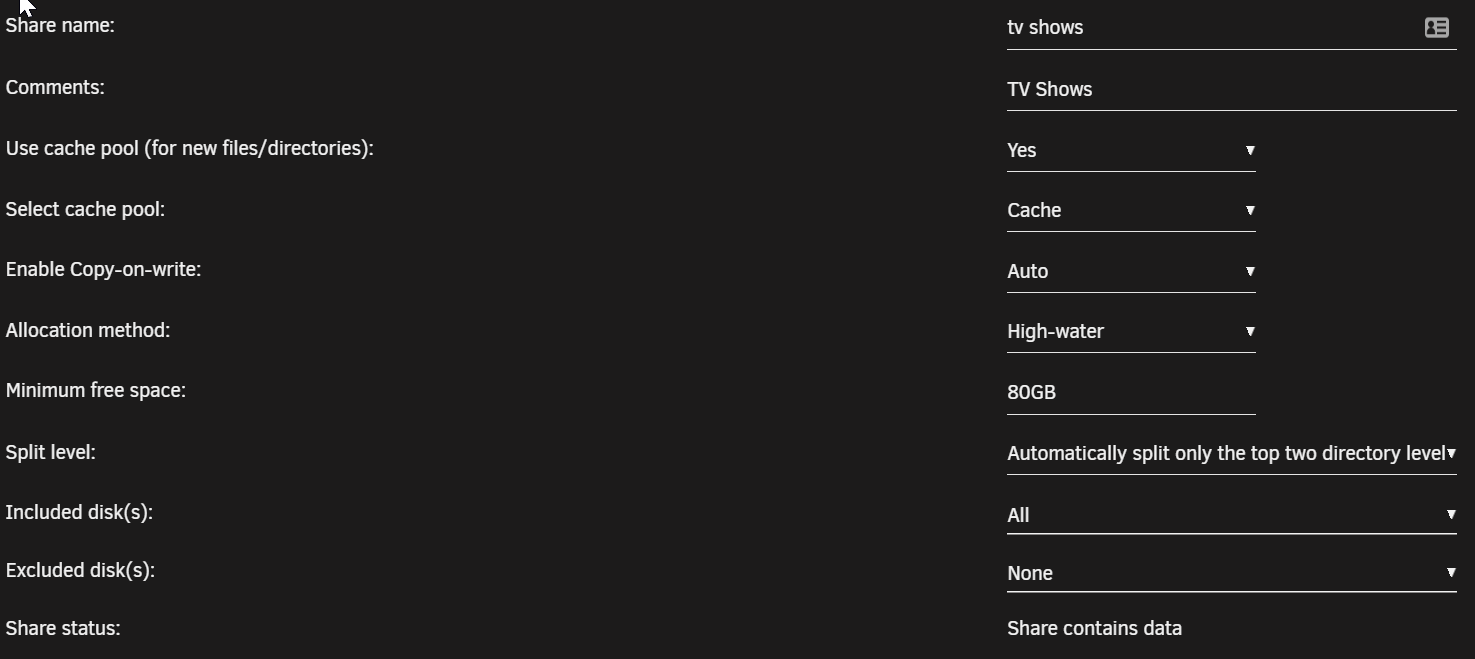

the 3 important shared folders and the one that the cache drive is trying to move folders from is these with paths



Just luck I havent seen this before I guess?

Any other of these that should have a different spli level?



\music\Albums new\Mudvayne\Album (2000)\CD1\files

\movies\Movies\title (2001)\Filenames

\tv shows\TV Shows\Title (2022)\Season 01\files







[itimpi]

There is no right-or-wrong answer as it can vary by user.   Work out how many folder levels (including the share name) you want to allow to exist on more than one drive and set the Split Level to be at least that value.
