Hallo zusammen,



habe für einen Freund einen neuen Server zusammengebaut. Eigentlich schicke Hardware aber das läuft überhaupt nicht rund.



Board: B560M-A PRO

CPU: Intel® Core™ i3-10105 CPU

GPU: RTX3070 für Kodi mit MadVR

virtio-win-0.1.215



Getestet habe ich Q35 6.1

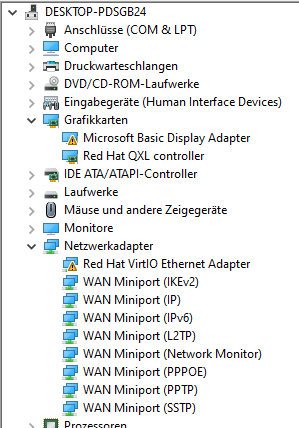

Probleme: Netzwerkkarte geht nicht, weder als E1000 noch VMXNET noch Virtio. Treiber kann ich nicht installieren, Windows sagt immer bester Treiber wird bereits genutzt.

GPU passthrough ist aktiviert, jedoch kommt kein Bild. Habe nun mal testweise die GPU als 2. GPU genommen damit ich mit VNC ein Bild habe, hier wird keine Nvidia GPU erkannt sondern ein Microsoft Basic Display Adapter.



Primäre GPU im Bios ist die Intel integrated.



Quote

-boot strict=on \
-device pcie-root-port,port=0x10,chassis=1,id=pci.1,bus=pcie.0,multifunction=on,addr=0x2 \
-device pcie-root-port,port=0x11,chassis=2,id=pci.2,bus=pcie.0,addr=0x2.0x1 \
-device pcie-root-port,port=0x12,chassis=3,id=pci.3,bus=pcie.0,addr=0x2.0x2 \
-device pcie-root-port,port=0x13,chassis=4,id=pci.4,bus=pcie.0,addr=0x2.0x3 \
-device pcie-root-port,port=0x14,chassis=5,id=pci.5,bus=pcie.0,addr=0x2.0x4 \
-device ich9-usb-ehci1,id=usb,bus=pcie.0,addr=0x7.0x7 \
-device ich9-usb-uhci1,masterbus=usb.0,firstport=0,bus=pcie.0,multifunction=on,addr=0x7 \
-device ich9-usb-uhci2,masterbus=usb.0,firstport=2,bus=pcie.0,multifunction=on,addr=0x7.0x1 \
-device ich9-usb-uhci3,masterbus=usb.0,firstport=4,bus=pcie.0,addr=0x7.0x2 \
-device virtio-serial-pci,id=virtio-serial0,bus=pci.2,addr=0x0 \
-blockdev '{"driver":"file","filename":"/mnt/user/domains/Windows 10 Q35/vdisk1.img","node-name":"libvirt-3-storage","cache":{"direct":false,"no-flush":false},"auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-3-format","read-only":false,"cache":{"direct":false,"no-flush":false},"driver":"raw","file":"libvirt-3-storage"}' \
-device virtio-blk-pci,bus=pci.3,addr=0x0,drive=libvirt-3-format,id=virtio-disk2,bootindex=1,write-cache=on \
-blockdev '{"driver":"file","filename":"/mnt/user/isos/Windows.iso","node-name":"libvirt-2-storage","auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-2-format","read-only":true,"driver":"raw","file":"libvirt-2-storage"}' \
-device ide-cd,bus=ide.0,drive=libvirt-2-format,id=sata0-0-0,bootindex=2 \
-blockdev '{"driver":"file","filename":"/mnt/user/isos/virtio-win-0.1.215.iso","node-name":"libvirt-1-storage","auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-1-format","read-only":true,"driver":"raw","file":"libvirt-1-storage"}' \
-device ide-cd,bus=ide.1,drive=libvirt-1-format,id=sata0-0-1 \
-netdev tap,fd=36,id=hostnet0 \
-device virtio-net,netdev=hostnet0,id=net0,mac=52:54:00:10:cb:fe,bus=pci.1,addr=0x0 \
-chardev pty,id=charserial0 \
-device isa-serial,chardev=charserial0,id=serial0 \
-chardev socket,id=charchannel0,fd=37,server=on,wait=off \
-device virtserialport,bus=virtio-serial0.0,nr=1,chardev=charchannel0,id=channel0,name=org.qemu.guest_agent.0 \
-device usb-tablet,id=input0,bus=usb.0,port=1 \
-audiodev id=audio1,driver=none \
-vnc 0.0.0.0:0,websocket=5700,audiodev=audio1 \
-k en-us \
-device qxl-vga,id=video0,ram_size=67108864,vram_size=67108864,vram64_size_mb=0,vgamem_mb=16,max_outputs=1,bus=pcie.0,addr=0x1 \
-device vfio-pci,host=0000:01:00.0,id=hostdev0,bus=pci.4,addr=0x0 \
-sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny \
-msg timestamp=on2022-03-01 13:46:43.936+0000: starting up libvirt version: 7.8.0, qemu version: 6.1.0, kernel: 5.14.15-Unraid, hostname: Tower
LC_ALL=C \
PATH=/bin:/sbin:/usr/bin:/usr/sbin \
HOME='/var/lib/libvirt/qemu/domain-11-Windows 10 Q35' \
XDG_DATA_HOME='/var/lib/libvirt/qemu/domain-11-Windows 10 Q35/.local/share' \
XDG_CACHE_HOME='/var/lib/libvirt/qemu/domain-11-Windows 10 Q35/.cache' \
XDG_CONFIG_HOME='/var/lib/libvirt/qemu/domain-11-Windows 10 Q35/.config' \
/usr/local/sbin/qemu \
-name 'guest=Windows 10 Q35,debug-threads=on' \
-S \
-object '{"qom-type":"secret","id":"masterKey0","format":"raw","file":"/var/lib/libvirt/qemu/domain-11-Windows 10 Q35/master-key.aes"}' \
-blockdev '{"driver":"file","filename":"/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd","node-name":"libvirt-pflash0-storage","auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-pflash0-format","read-only":true,"driver":"raw","file":"libvirt-pflash0-storage"}' \
-blockdev '{"driver":"file","filename":"/etc/libvirt/qemu/nvram/e6bb0210-81f3-90aa-3faa-03eac4a71150_VARS-pure-efi.fd","node-name":"libvirt-pflash1-storage","auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-pflash1-format","read-only":false,"driver":"raw","file":"libvirt-pflash1-storage"}' \
-machine pc-q35-6.1,accel=kvm,usb=off,dump-guest-core=off,mem-merge=off,pflash0=libvirt-pflash0-format,pflash1=libvirt-pflash1-format,memory-backend=pc.ram \
-cpu host,migratable=on,hv-time,hv-relaxed,hv-vapic,hv-spinlocks=0x1fff,hv-vendor-id=none,host-cache-info=on,l3-cache=off \
-m 4096 \
-object '{"qom-type":"memory-backend-ram","id":"pc.ram","size":4294967296}' \
-overcommit mem-lock=off \
-smp 4,sockets=1,dies=1,cores=2,threads=2 \
-uuid e6bb0210-81f3-90aa-3faa-03eac4a71150 \
-no-user-config \
-nodefaults \
-chardev socket,id=charmonitor,fd=34,server=on,wait=off \
-mon chardev=charmonitor,id=monitor,mode=control \
-rtc base=localtime \
-no-hpet \
-no-shutdown \
-boot strict=on \
-device pcie-root-port,port=0x13,chassis=4,id=pci.4,bus=pcie.0,addr=0x2.0x3 \
-device pcie-root-port,port=0x14,chassis=5,id=pci.5,bus=pcie.0,addr=0x2.0x4 \
-device pcie-root-port,port=0x10,chassis=1,id=pci.1,bus=pcie.0,multifunction=on,addr=0x2 \
-device pcie-root-port,port=0x11,chassis=2,id=pci.2,bus=pcie.0,addr=0x2.0x1 \
-device pcie-root-port,port=0x12,chassis=3,id=pci.3,bus=pcie.0,addr=0x2.0x2 \
-device ich9-usb-ehci1,id=usb,bus=pcie.0,addr=0x7.0x7 \
-device ich9-usb-uhci1,masterbus=usb.0,firstport=0,bus=pcie.0,multifunction=on,addr=0x7 \
-device ich9-usb-uhci2,masterbus=usb.0,firstport=2,bus=pcie.0,addr=0x7.0x1 \
-device ich9-usb-uhci3,masterbus=usb.0,firstport=4,bus=pcie.0,addr=0x7.0x2 \
-device virtio-serial-pci,id=virtio-serial0,bus=pci.2,addr=0x0 \
-blockdev '{"driver":"file","filename":"/mnt/user/domains/Windows 10 Q35/vdisk1.img","node-name":"libvirt-3-storage","cache":{"direct":false,"no-flush":false},"auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-3-format","read-only":false,"cache":{"direct":false,"no-flush":false},"driver":"raw","file":"libvirt-3-storage"}' \
-device virtio-blk-pci,bus=pci.3,addr=0x0,drive=libvirt-3-format,id=virtio-disk2,bootindex=1,write-cache=on \
-blockdev '{"driver":"file","filename":"/mnt/user/isos/Windows.iso","node-name":"libvirt-2-storage","auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-2-format","read-only":true,"driver":"raw","file":"libvirt-2-storage"}' \
-device ide-cd,bus=ide.0,drive=libvirt-2-format,id=sata0-0-0,bootindex=2 \
-blockdev '{"driver":"file","filename":"/mnt/user/isos/virtio-win-0.1.215.iso","node-name":"libvirt-1-storage","auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-1-format","read-only":true,"driver":"raw","file":"libvirt-1-storage"}' \
-device ide-cd,bus=ide.1,drive=libvirt-1-format,id=sata0-0-1 \
-netdev tap,fd=36,id=hostnet0 \
-device virtio-net,netdev=hostnet0,id=net0,mac=52:54:00:10:cb:fe,bus=pci.1,addr=0x0 \
-chardev pty,id=charserial0 \
-device isa-serial,chardev=charserial0,id=serial0 \
-chardev socket,id=charchannel0,fd=37,server=on,wait=off \
-device virtserialport,bus=virtio-serial0.0,nr=1,chardev=charchannel0,id=channel0,name=org.qemu.guest_agent.0 \
-device usb-tablet,id=input0,bus=usb.0,port=1 \
-audiodev id=audio1,driver=none \
-vnc 0.0.0.0:0,websocket=5700,audiodev=audio1 \
-k en-us \
-device qxl-vga,id=video0,ram_size=67108864,vram_size=67108864,vram64_size_mb=0,vgamem_mb=16,max_outputs=1,bus=pcie.0,addr=0x1 \
-device vfio-pci,host=0000:01:00.0,id=hostdev0,bus=pci.4,addr=0x0,romfile=/mnt/user/isos/Zotac.rom \
-sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny \
-msg timestamp=on
char device redirected to /dev/pts/1 (label charserial0)
qxl_send_events: spice-server bug: guest stopped, ignoring
2022-03-01T13:46:44.494551Z qemu-system-x86_64: -device vfio-pci,host=0000:01:00.0,id=hostdev0,bus=pci.4,addr=0x0,romfile=/mnt/disk1/isos/Zotac.rom: Failed to mmap 0000:01:00.0 BAR 1. Performance may be slow
char device redirected to /dev/pts/0 (label charserial0)
qxl_send_events: spice-server bug: guest stopped, ignoring
2022-03-01T13:43:59.166612Z qemu-system-x86_64: -device vfio-pci,host=0000:01:00.0,id=hostdev0,bus=pci.4,addr=0x0: Failed to mmap 0000:01:00.0 BAR 1. Performance may be slow
2022-03-01T13:44:00.324725Z qemu-system-x86_64: vfio-pci: Cannot read device rom at 0000:01:00.0
Device option ROM contents are probably invalid (check dmesg).
Skip option ROM probe with rombar=0, or load from file with romfile=





Mit Rom File sieht es so aus - das rom file hatte ich selber erstellt und hatte nun 1 Jahre in meinem eigenen Server funktioniert inkl. Windows und Cryptomining



Quote

2022-03-01 13:46:43.936+0000: starting up libvirt version: 7.8.0, qemu version: 6.1.0, kernel: 5.14.15-Unraid, hostname: Tower
LC_ALL=C \
PATH=/bin:/sbin:/usr/bin:/usr/sbin \
HOME='/var/lib/libvirt/qemu/domain-11-Windows 10 Q35' \
XDG_DATA_HOME='/var/lib/libvirt/qemu/domain-11-Windows 10 Q35/.local/share' \
XDG_CACHE_HOME='/var/lib/libvirt/qemu/domain-11-Windows 10 Q35/.cache' \
XDG_CONFIG_HOME='/var/lib/libvirt/qemu/domain-11-Windows 10 Q35/.config' \
/usr/local/sbin/qemu \
-name 'guest=Windows 10 Q35,debug-threads=on' \
-S \
-object '{"qom-type":"secret","id":"masterKey0","format":"raw","file":"/var/lib/libvirt/qemu/domain-11-Windows 10 Q35/master-key.aes"}' \
-blockdev '{"driver":"file","filename":"/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd","node-name":"libvirt-pflash0-storage","auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-pflash0-format","read-only":true,"driver":"raw","file":"libvirt-pflash0-storage"}' \
-blockdev '{"driver":"file","filename":"/etc/libvirt/qemu/nvram/e6bb0210-81f3-90aa-3faa-03eac4a71150_VARS-pure-efi.fd","node-name":"libvirt-pflash1-storage","auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-pflash1-format","read-only":false,"driver":"raw","file":"libvirt-pflash1-storage"}' \
-machine pc-q35-6.1,accel=kvm,usb=off,dump-guest-core=off,mem-merge=off,pflash0=libvirt-pflash0-format,pflash1=libvirt-pflash1-format,memory-backend=pc.ram \
-cpu host,migratable=on,hv-time,hv-relaxed,hv-vapic,hv-spinlocks=0x1fff,hv-vendor-id=none,host-cache-info=on,l3-cache=off \
-m 4096 \
-object '{"qom-type":"memory-backend-ram","id":"pc.ram","size":4294967296}' \
-overcommit mem-lock=off \
-smp 4,sockets=1,dies=1,cores=2,threads=2 \
-uuid e6bb0210-81f3-90aa-3faa-03eac4a71150 \
-no-user-config \
-nodefaults \
-chardev socket,id=charmonitor,fd=34,server=on,wait=off \
-mon chardev=charmonitor,id=monitor,mode=control \
-rtc base=localtime \
-no-hpet \
-no-shutdown \
-boot strict=on \
-device pcie-root-port,port=0x13,chassis=4,id=pci.4,bus=pcie.0,addr=0x2.0x3 \
-device pcie-root-port,port=0x14,chassis=5,id=pci.5,bus=pcie.0,addr=0x2.0x4 \
-device pcie-root-port,port=0x10,chassis=1,id=pci.1,bus=pcie.0,multifunction=on,addr=0x2 \
-device pcie-root-port,port=0x11,chassis=2,id=pci.2,bus=pcie.0,addr=0x2.0x1 \
-device pcie-root-port,port=0x12,chassis=3,id=pci.3,bus=pcie.0,addr=0x2.0x2 \
-device ich9-usb-ehci1,id=usb,bus=pcie.0,addr=0x7.0x7 \
-device ich9-usb-uhci1,masterbus=usb.0,firstport=0,bus=pcie.0,multifunction=on,addr=0x7 \
-device ich9-usb-uhci2,masterbus=usb.0,firstport=2,bus=pcie.0,addr=0x7.0x1 \
-device ich9-usb-uhci3,masterbus=usb.0,firstport=4,bus=pcie.0,addr=0x7.0x2 \
-device virtio-serial-pci,id=virtio-serial0,bus=pci.2,addr=0x0 \
-blockdev '{"driver":"file","filename":"/mnt/user/domains/Windows 10 Q35/vdisk1.img","node-name":"libvirt-3-storage","cache":{"direct":false,"no-flush":false},"auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-3-format","read-only":false,"cache":{"direct":false,"no-flush":false},"driver":"raw","file":"libvirt-3-storage"}' \
-device virtio-blk-pci,bus=pci.3,addr=0x0,drive=libvirt-3-format,id=virtio-disk2,bootindex=1,write-cache=on \
-blockdev '{"driver":"file","filename":"/mnt/user/isos/Windows.iso","node-name":"libvirt-2-storage","auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-2-format","read-only":true,"driver":"raw","file":"libvirt-2-storage"}' \
-device ide-cd,bus=ide.0,drive=libvirt-2-format,id=sata0-0-0,bootindex=2 \
-blockdev '{"driver":"file","filename":"/mnt/user/isos/virtio-win-0.1.215.iso","node-name":"libvirt-1-storage","auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-1-format","read-only":true,"driver":"raw","file":"libvirt-1-storage"}' \
-device ide-cd,bus=ide.1,drive=libvirt-1-format,id=sata0-0-1 \
-netdev tap,fd=36,id=hostnet0 \
-device virtio-net,netdev=hostnet0,id=net0,mac=52:54:00:10:cb:fe,bus=pci.1,addr=0x0 \
-chardev pty,id=charserial0 \
-device isa-serial,chardev=charserial0,id=serial0 \
-chardev socket,id=charchannel0,fd=37,server=on,wait=off \
-device virtserialport,bus=virtio-serial0.0,nr=1,chardev=charchannel0,id=channel0,name=org.qemu.guest_agent.0 \
-device usb-tablet,id=input0,bus=usb.0,port=1 \
-audiodev id=audio1,driver=none \
-vnc 0.0.0.0:0,websocket=5700,audiodev=audio1 \
-k en-us \
-device qxl-vga,id=video0,ram_size=67108864,vram_size=67108864,vram64_size_mb=0,vgamem_mb=16,max_outputs=1,bus=pcie.0,addr=0x1 \
-device vfio-pci,host=0000:01:00.0,id=hostdev0,bus=pci.4,addr=0x0,romfile=/mnt/user/isos/Zotac.rom \
-sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny \
-msg timestamp=on
char device redirected to /dev/pts/1 (label charserial0)
qxl_send_events: spice-server bug: guest stopped, ignoring
2022-03-01T13:46:44.494551Z qemu-system-x86_64: -device vfio-pci,host=0000:01:00.0,id=hostdev0,bus=pci.4,addr=0x0,romfile=/mnt/disk1/isos/Zotac.rom: Failed to mmap 0000:01:00.0 BAR 1. Performance may be slow



Ich hab auf meinem Server schon zig mal windows installationen gemacht und hatte nie ein Problem mit dem GPU Passthrough noch mit der Netzwerkkarte und stehe voll auf dem Schlauch.





Mit i440 fx 6.1 alles identisch

Edited March 1, 20224 yr by Grobalt

So, habe es auf meinem eigenen NAS auch mal nachgemacht mit 6.10.0-RC2 -> Netzwerkkarten gehen ebenfalls nicht

Nach einigen google Treffern im Proxmox Forum q35 6.0 getestet .. und direkt bei Installation geht das Netzwerk, die Nvidia GPU wird erkannt ... nun noch passthrough testen.

Wegen dem Display versuch einen hdmi dongel.



Ich muss den Ausgang nutzen, da brauch ich keinen Dongle

Also mit Q35 6.0 geht die Netzwerkkarte sofort. Die Nvidia Karte kann der Treiber installiert werden solange die primäre Karte noch VNC ist. Lasse ich diese danach weg bleibt das Bild schwarz.

Habe dann noch 5.1 und 5.2 getestet, da gehen die Netzwerkkarten nicht, GPU wird nicht gelistet im Gerätemanager.

i440fx habe ich die aktuelle und runter bis 5.0 getestet, da gehen nie die Netzwerkkarten.



Mache daher einen neuen Thread auf ... ich brauch eigentlich "nur" eine windowsbasierte Kiste für Kodi mit MadVR mit korrekt durchgereichter Grafikkarte.
