Unmountable: Not mounted or no file sysem


Go to solution Solved by SimonF,

Recommended Posts

Yes, "no file sysem". Maybe this misspelling should also be addressed.



My problem: I replaced a drive to my unRAID. Did parity check, formatted the drive and even moved files to it. Everything was working. Then I did shut down, added a usb drive - from witch I would have moved files from - powered on and this new drive said "Unmountabe: Not mounted or no file system". At the same time there was bulleting for a new version of unRAID (-rc4). I updated, booted and all of a sudden the server does not find it's way to network (??). I did ping google.com, but was a no go. I changed the network cable, but did not work eighter.



It does boot and shows the same ip as before for unRAID (in the console) , but it does not have network connection. What should I do?

Link to comment

Regarding the Ethernet issue, I see this happening in the log over and over again :

Mar 21 21:43:14 Tower kernel: ixgbe 0000:06:00.1 eth1: The link is down
Mar 21 21:43:14 Tower kernel: ixgbe 0000:06:00.1 eth1: NIC Link is Up 1 Gbps, Flow Control: RX/TX
Mar 21 21:43:14 Tower kernel: bond0: (slave eth1): link status definitely up, 1000 Mbps full duplex
Mar 21 21:43:14 Tower kernel: bond0: (slave eth1): making interface the new active one
Mar 21 21:43:14 Tower kernel: device eth1 entered promiscuous mode
Mar 21 21:43:14 Tower kernel: bond0: active interface up!
Mar 21 21:43:14 Tower kernel: br0: port 1(bond0) entered blocking state
Mar 21 21:43:14 Tower kernel: br0: port 1(bond0) entered forwarding state
Mar 21 21:43:14 Tower kernel: ixgbe 0000:06:00.1 eth1: NIC Link is Down
Mar 21 21:43:14 Tower kernel: bond0: (slave eth1): link status definitely down, disabling slave
Mar 21 21:43:14 Tower kernel: device eth1 left promiscuous mode
Mar 21 21:43:14 Tower kernel: bond0: now running without any active interface!
Mar 21 21:43:14 Tower kernel: br0: port 1(bond0) entered disabled state
Mar 21 21:43:17 Tower kernel: ixgbe 0000:06:00.1 eth1: The link is down



Can't make much from it myself, but this looks related, hopefully someone can ?

  • Thanks 1
Link to comment
3 hours ago, CaptainSpalding said:

Here's a newer diagnostics log. I connected the new drive again that showed xfs on the GUI but still the message "Not mounted or no file sysem".



I only have one NIC on the motherboard so that should not be a problem?

tower-diagnostics-20220321-2142.zip 99.68 kB · 2 downloads

Suspect out of tree driver has an issue on your system. If you revert to rc3 does it work?



rc4 added oot: added Intel ixgbe: version 5.14.6

  • Thanks 1
Link to comment
Posted (edited)

Now it has network!

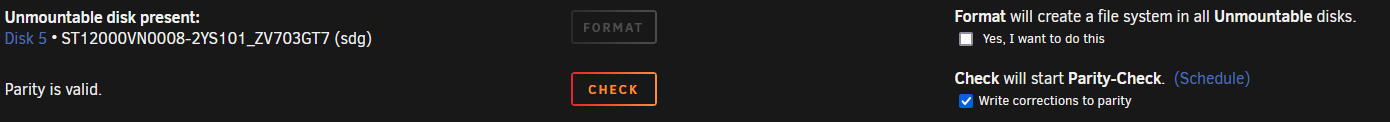

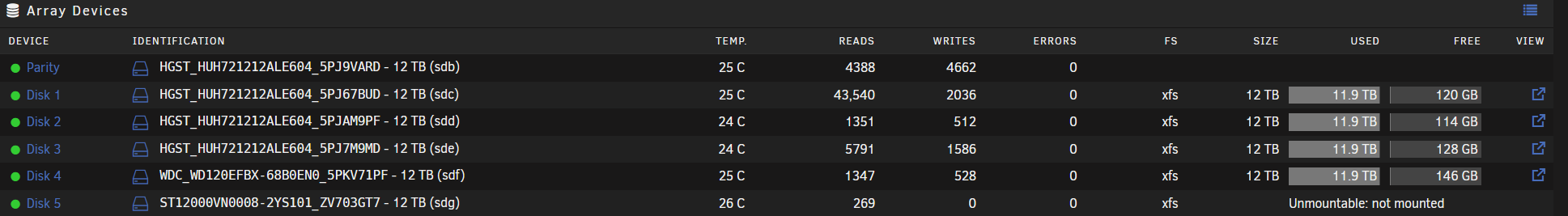

But what does this disk 5 is doing? It shows green but is not mounted?






I did format it and added it to array previously. And even moved files to it just couple of days ago.



Now unRAID offers me to format it again...






Diagnostics say:

root: mount: /mnt/disk5: wrong fs type, bad option, bad superblock on /dev/md5, missing codepage or helper program, or other error.

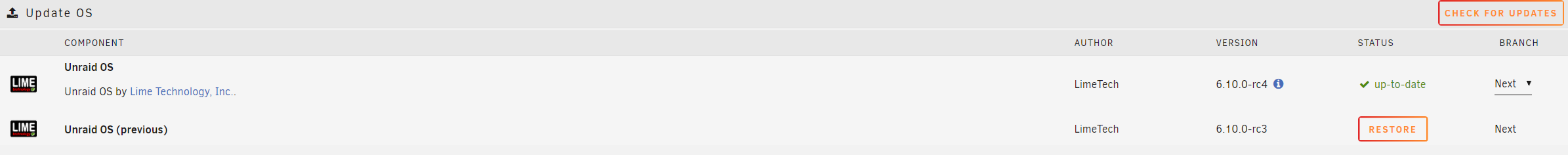

EDIT: After all that I updated to rc3 and now it says:










tower-diagnostics-20220322-1627.zip

Edited by CaptainSpalding
Link to comment

Looks good, right?





Check Filesystem Status

xfs_repair status:

    Phase 1 - find and verify superblock...
            - reporting progress in intervals of 15 minutes
            - block cache size set to 674568 entries
    Phase 2 - using internal log
            - zero log...
    zero_log: head block 54944 tail block 54944
            - 19:44:33: zeroing log - 476930 of 476930 blocks done
            - scan filesystem freespace and inode maps...
            - 19:44:34: scanning filesystem freespace - 96 of 96 allocation groups done
            - found root inode chunk
    Phase 3 - for each AG...
            - scan (but don't clear) agi unlinked lists...
            - 19:44:34: scanning agi unlinked lists - 96 of 96 allocation groups done
            - process known inodes and perform inode discovery...
            - agno = 45
            - agno = 15
            - agno = 46
            - agno = 75
            - agno = 90
            - agno = 30
            - agno = 60
            - agno = 0
            - agno = 91
            - agno = 47
            - agno = 76
            - agno = 61
            - agno = 31
            - agno = 48
            - agno = 92
            - agno = 62
            - agno = 77
            - agno = 49
            - agno = 32
            - agno = 63
            - agno = 93
            - agno = 50
            - agno = 78
            - agno = 64
            - agno = 33
            - agno = 94
            - agno = 51
            - agno = 79
            - agno = 34
            - agno = 65
            - agno = 95
            - agno = 66
            - agno = 52
            - agno = 35
            - agno = 80
            - agno = 67
            - agno = 53
            - agno = 36
            - agno = 81
            - agno = 68
            - agno = 54
            - agno = 69
            - agno = 37
            - agno = 82
            - agno = 55
            - agno = 83
            - agno = 70
            - agno = 56
            - agno = 38
            - agno = 71
            - agno = 57
            - agno = 39
            - agno = 84
            - agno = 72
            - agno = 58
            - agno = 85
            - agno = 40
            - agno = 73
            - agno = 59
            - agno = 41
            - agno = 74
            - agno = 86
            - agno = 42
            - agno = 87
            - agno = 43
            - agno = 88
            - agno = 44
            - agno = 89
            - agno = 16
            - agno = 1
            - agno = 2
            - agno = 17
            - agno = 3
            - agno = 18
            - agno = 4
            - agno = 19
            - agno = 5
            - agno = 20
            - agno = 21
            - agno = 6
            - agno = 7
            - agno = 22
            - agno = 8
            - agno = 23
            - agno = 9
            - agno = 24
            - agno = 25
            - agno = 10
            - agno = 26
            - agno = 11
            - agno = 12
            - agno = 27
            - agno = 13
            - agno = 28
            - agno = 14
            - agno = 29
            - 19:44:34: process known inodes and inode discovery - 2240 of 2240 inodes done
            - process newly discovered inodes...
            - 19:44:34: process newly discovered inodes - 96 of 96 allocation groups done
    Phase 4 - check for duplicate blocks...
            - setting up duplicate extent list...
            - 19:44:34: setting up duplicate extent list - 96 of 96 allocation groups done
            - check for inodes claiming duplicate blocks...
            - agno = 0
            - agno = 2
            - agno = 1
            - agno = 3
            - agno = 4
            - agno = 5
            - agno = 6
            - agno = 7
            - agno = 8
            - agno = 9
            - agno = 10
            - agno = 11
            - agno = 12
            - agno = 13
            - agno = 14
            - agno = 15
            - agno = 16
            - agno = 17
            - agno = 18
            - agno = 19
            - agno = 20
            - agno = 21
            - agno = 22
            - agno = 23
            - agno = 24
            - agno = 25
            - agno = 26
            - agno = 27
            - agno = 28
            - agno = 29
            - agno = 30
            - agno = 31
            - agno = 32
            - agno = 33
            - agno = 34
            - agno = 35
            - agno = 36
            - agno = 38
            - agno = 39
            - agno = 37
            - agno = 41
            - agno = 40
            - agno = 43
            - agno = 44
            - agno = 45
            - agno = 47
            - agno = 48
            - agno = 46
            - agno = 49
            - agno = 51
            - agno = 52
            - agno = 53
            - agno = 42
            - agno = 50
            - agno = 56
            - agno = 57
            - agno = 58
            - agno = 54
            - agno = 55
            - agno = 60
            - agno = 62
            - agno = 63
            - agno = 61
            - agno = 64
            - agno = 65
            - agno = 59
            - agno = 68
            - agno = 66
            - agno = 70
            - agno = 71
            - agno = 72
            - agno = 73
            - agno = 74
            - agno = 75
            - agno = 76
            - agno = 77
            - agno = 78
            - agno = 67
            - agno = 69
            - agno = 79
            - agno = 82
            - agno = 83
            - agno = 84
            - agno = 85
            - agno = 86
            - agno = 87
            - agno = 88
            - agno = 80
            - agno = 81
            - agno = 89
            - agno = 92
            - agno = 93
            - agno = 94
            - agno = 90
            - agno = 91
            - agno = 95
            - 19:44:34: check for inodes claiming duplicate blocks - 2240 of 2240 inodes done
    No modify flag set, skipping phase 5
    Phase 6 - check inode connectivity...
            - traversing filesystem ...
            - agno = 0
            - agno = 60
            - agno = 15
            - agno = 45
            - agno = 30
            - agno = 61
            - agno = 90
            - agno = 75
            - agno = 1
            - agno = 62
            - agno = 91
            - agno = 16
            - agno = 76
            - agno = 31
            - agno = 92
            - agno = 77
            - agno = 17
            - agno = 46
            - agno = 93
            - agno = 32
            - agno = 63
            - agno = 18
            - agno = 33
            - agno = 78
            - agno = 19
            - agno = 20
            - agno = 64
            - agno = 94
            - agno = 2
            - agno = 95
            - agno = 34
            - agno = 79
            - agno = 47
            - agno = 65
            - agno = 3
            - agno = 21
            - agno = 4
            - agno = 80
            - agno = 48
            - agno = 66
            - agno = 5
            - agno = 22
            - agno = 35
            - agno = 36
            - agno = 81
            - agno = 49
            - agno = 67
            - agno = 6
            - agno = 50
            - agno = 68
            - agno = 82
            - agno = 51
            - agno = 69
            - agno = 37
            - agno = 52
            - agno = 70
            - agno = 38
            - agno = 23
            - agno = 7
            - agno = 24
            - agno = 25
            - agno = 53
            - agno = 26
            - agno = 83
            - agno = 71
            - agno = 39
            - agno = 84
            - agno = 54
            - agno = 8
            - agno = 27
            - agno = 85
            - agno = 9
            - agno = 40
            - agno = 86
            - agno = 72
            - agno = 87
            - agno = 28
            - agno = 88
            - agno = 73
            - agno = 29
            - agno = 55
            - agno = 41
            - agno = 89
            - agno = 10
            - agno = 42
            - agno = 56
            - agno = 43
            - agno = 74
            - agno = 11
            - agno = 57
            - agno = 44
            - agno = 12
            - agno = 58
            - agno = 13
            - agno = 59
            - agno = 14
            - traversal finished ...
            - moving disconnected inodes to lost+found ...
    Phase 7 - verify link counts...
            - 19:44:34: verify and correct link counts - 96 of 96 allocation groups done
    No modify flag set, skipping filesystem flush and exiting.

            XFS_REPAIR Summary    Tue Mar 22 19:44:34 2022

    Phase        Start        End        Duration
    Phase 1:    03/22 19:44:32    03/22 19:44:33    1 second
    Phase 2:    03/22 19:44:33    03/22 19:44:34    1 second
    Phase 3:    03/22 19:44:34    03/22 19:44:34
    Phase 4:    03/22 19:44:34    03/22 19:44:34
    Phase 5:    Skipped
    Phase 6:    03/22 19:44:34    03/22 19:44:34
    Phase 7:    03/22 19:44:34    03/22 19:44:34

    Total run time: 2 seconds



Link to comment

I took the "-n" off and looks same?



Should the check be this fast (max 2 secs)?



Phase 1 - find and verify superblock...
        - reporting progress in intervals of 15 minutes
Phase 2 - using internal log
        - zero log...
        - 20:22:34: zeroing log - 476930 of 476930 blocks done
        - scan filesystem freespace and inode maps...
        - 20:22:34: scanning filesystem freespace - 96 of 96 allocation groups done
        - found root inode chunk
Phase 3 - for each AG...
        - scan and clear agi unlinked lists...
        - 20:22:34: scanning agi unlinked lists - 96 of 96 allocation groups done
        - process known inodes and perform inode discovery...
        - agno = 30
        - agno = 0
        - agno = 15
        - agno = 45
        - agno = 75
        - agno = 31
        - agno = 90
        - agno = 46
        - agno = 76
        - agno = 77
        - agno = 78
        - agno = 60
        - agno = 91
        - agno = 79
        - agno = 32
        - agno = 92
        - agno = 80
        - agno = 93
        - agno = 33
        - agno = 61
        - agno = 47
        - agno = 81
        - agno = 34
        - agno = 94
        - agno = 62
        - agno = 48
        - agno = 35
        - agno = 95
        - agno = 63
        - agno = 82
        - agno = 36
        - agno = 49
        - agno = 83
        - agno = 37
        - agno = 64
        - agno = 50
        - agno = 38
        - agno = 65
        - agno = 84
        - agno = 39
        - agno = 66
        - agno = 51
        - agno = 40
        - agno = 85
        - agno = 52
        - agno = 67
        - agno = 53
        - agno = 41
        - agno = 86
        - agno = 54
        - agno = 68
        - agno = 87
        - agno = 42
        - agno = 55
        - agno = 88
        - agno = 69
        - agno = 43
        - agno = 56
        - agno = 70
        - agno = 89
        - agno = 57
        - agno = 44
        - agno = 71
        - agno = 58
        - agno = 72
        - agno = 59
        - agno = 73
        - agno = 74
        - agno = 1
        - agno = 16
        - agno = 2
        - agno = 3
        - agno = 17
        - agno = 4
        - agno = 18
        - agno = 5
        - agno = 19
        - agno = 6
        - agno = 20
        - agno = 7
        - agno = 21
        - agno = 8
        - agno = 22
        - agno = 9
        - agno = 23
        - agno = 24
        - agno = 10
        - agno = 25
        - agno = 11
        - agno = 26
        - agno = 12
        - agno = 27
        - agno = 13
        - agno = 28
        - agno = 29
        - agno = 14
        - 20:22:35: process known inodes and inode discovery - 2240 of 2240 inodes done
        - process newly discovered inodes...
        - 20:22:35: process newly discovered inodes - 96 of 96 allocation groups done
Phase 4 - check for duplicate blocks...
        - setting up duplicate extent list...
        - 20:22:35: setting up duplicate extent list - 96 of 96 allocation groups done
        - check for inodes claiming duplicate blocks...
        - agno = 0
        - agno = 1
        - agno = 2
        - agno = 3
        - agno = 4
        - agno = 5
        - agno = 6
        - agno = 7
        - agno = 8
        - agno = 9
        - agno = 10
        - agno = 11
        - agno = 12
        - agno = 13
        - agno = 14
        - agno = 15
        - agno = 16
        - agno = 17
        - agno = 18
        - agno = 19
        - agno = 20
        - agno = 21
        - agno = 22
        - agno = 23
        - agno = 24
        - agno = 25
        - agno = 26
        - agno = 27
        - agno = 28
        - agno = 29
        - agno = 30
        - agno = 31
        - agno = 32
        - agno = 33
        - agno = 34
        - agno = 35
        - agno = 36
        - agno = 38
        - agno = 39
        - agno = 37
        - agno = 41
        - agno = 40
        - agno = 44
        - agno = 45
        - agno = 43
        - agno = 46
        - agno = 47
        - agno = 42
        - agno = 49
        - agno = 51
        - agno = 50
        - agno = 48
        - agno = 52
        - agno = 53
        - agno = 54
        - agno = 56
        - agno = 55
        - agno = 58
        - agno = 60
        - agno = 61
        - agno = 62
        - agno = 63
        - agno = 64
        - agno = 65
        - agno = 66
        - agno = 67
        - agno = 68
        - agno = 69
        - agno = 70
        - agno = 71
        - agno = 72
        - agno = 73
        - agno = 74
        - agno = 75
        - agno = 76
        - agno = 77
        - agno = 78
        - agno = 79
        - agno = 80
        - agno = 81
        - agno = 57
        - agno = 59
        - agno = 83
        - agno = 85
        - agno = 86
        - agno = 87
        - agno = 88
        - agno = 89
        - agno = 90
        - agno = 91
        - agno = 92
        - agno = 93
        - agno = 94
        - agno = 95
        - agno = 84
        - agno = 82
        - 20:22:35: check for inodes claiming duplicate blocks - 2240 of 2240 inodes done
Phase 5 - rebuild AG headers and trees...
        - 20:22:35: rebuild AG headers and trees - 96 of 96 allocation groups done
        - reset superblock...
Phase 6 - check inode connectivity...
        - resetting contents of realtime bitmap and summary inodes
        - traversing filesystem ...
        - traversal finished ...
        - moving disconnected inodes to lost+found ...
Phase 7 - verify and correct link counts...
        - 20:22:35: verify and correct link counts - 96 of 96 allocation groups done
done









Link to comment

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.
Note: Your post will require moderator approval before it will be visible.

Guest
Reply to this topic...

×   Pasted as rich text.   Restore formatting

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.
