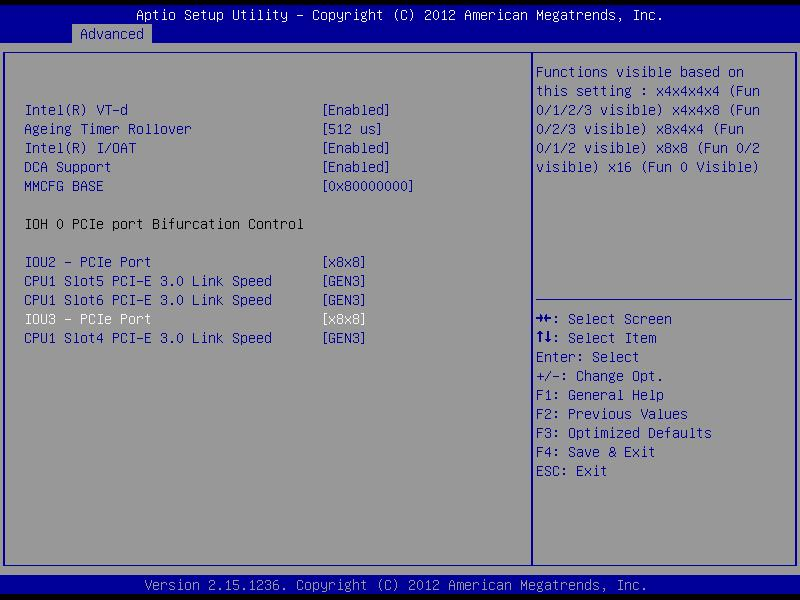

Fuggin Posted April 2, 2022 Share Posted April 2, 2022 (edited) Hello...please help. My brain is mush. Motherboard: Supermicro X9DRL-iF HBA: PCIe x8 LSI 9211-8i (IT mode) (inserted into Slot 6, closest to the CPU) In Unraid DiskSpeed Container, it shows the controller is set at 4x link speed: Here's my BIOS settings: Do I have my settings correct? Documentation on the HBA says it is a PCIe 2.0 x8 card...so why can't it connect at x8? Then the other odd thing is that my HBA is a SAS2 controller. Why is unraid loading SAS3 drivers? Please advise. Edited April 2, 2022 by Fuggin I'm dumb Quote Link to comment
SimonF Posted April 2, 2022 Share Posted April 2, 2022 6 minutes ago, Fuggin said: Then the other odd thing is that my HBA is a SAS2 controller. Why is unraid loading SAS3 drivers? This is the same as my system M/B: Supermicro X9DR3-F Version 0123456789 - BIOS: American Megatrends Inc. Version 3.3. Dated: 07/12/2018 CPU: Intel® Xeon® CPU E5-2697 v2 @ 2.70GHz I have onboard SAS and LSI 9207-8i with same drivers. Quote Link to comment
Fuggin Posted April 2, 2022 Author Share Posted April 2, 2022 1 minute ago, SimonF said: This is the same as my system M/B: Supermicro X9DR3-F Version 0123456789 - BIOS: American Megatrends Inc. Version 3.3. Dated: 07/12/2018 CPU: Intel® Xeon® CPU E5-2697 v2 @ 2.70GHz I have onboard SAS and LSI 9207-8i with same drivers. I just realized that my BIOS isn't as current as yours. Need to fix that. Quote Link to comment
SimonF Posted April 2, 2022 Share Posted April 2, 2022 (edited) Also what do you get for this replace 07:00.0 with 03:00.0 i.e. lspci -vvs 03:00.0 | grep Lnk root@unraid:/usr/local/emhttp/plugins/snapshots# lspci -vvs 07:00.0 | grep Lnk pcilib: sysfs_read_vpd: read failed: Input/output error LnkCap: Port #0, Speed 8GT/s, Width x8, ASPM L0s, Exit Latency L0s <64ns LnkCtl: ASPM Disabled; RCB 64 bytes, Disabled- CommClk+ LnkSta: Speed 8GT/s (ok), Width x8 (ok) LnkCap2: Supported Link Speeds: 2.5-8GT/s, Crosslink- Retimer- 2Retimers- DRS- LnkCtl2: Target Link Speed: 8GT/s, EnterCompliance- SpeedDis- LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete+ EqualizationPhase1+ LnkCtl3: LnkEquIntrruptEn- PerformEqu- just installed diskspeed to see what I get. SAS2308 PCI-Express Fusion-MPT SAS-2 Broadcom / LSI Serial Attached SCSI controller Type: Add-on Card in PCIe Slot _SLOT1 (x8 PCI Express) Current & Maximum Link Speed: 8GT/s width x8 (7.88 GB/s max throughput) Capabilities: storage pm pciexpress vpd msi msix bus_master cap_list rom Edited April 2, 2022 by SimonF Quote Link to comment
Fuggin Posted April 2, 2022 Author Share Posted April 2, 2022 1 minute ago, SimonF said: Also what do you get for this replace 07:00.0 with 03:00.0 i.e. lspci -vvs 03:00.0 | grep Lnk root@unraid:/usr/local/emhttp/plugins/snapshots# lspci -vvs 07:00.0 | grep Lnk pcilib: sysfs_read_vpd: read failed: Input/output error LnkCap: Port #0, Speed 8GT/s, Width x8, ASPM L0s, Exit Latency L0s <64ns LnkCtl: ASPM Disabled; RCB 64 bytes, Disabled- CommClk+ LnkSta: Speed 8GT/s (ok), Width x8 (ok) LnkCap2: Supported Link Speeds: 2.5-8GT/s, Crosslink- Retimer- 2Retimers- DRS- LnkCtl2: Target Link Speed: 8GT/s, EnterCompliance- SpeedDis- LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete+ EqualizationPhase1+ LnkCtl3: LnkEquIntrruptEn- PerformEqu- root@Golem:~# lspci -vvs 03:00.0 | grep Lnk pcilib: sysfs_read_vpd: read failed: Input/output error LnkCap: Port #0, Speed 5GT/s, Width x8, ASPM L0s, Exit Latency L0s <64ns LnkCtl: ASPM Disabled; RCB 64 bytes, Disabled- CommClk+ LnkSta: Speed 5GT/s (ok), Width x4 (downgraded) LnkCtl2: Target Link Speed: 5GT/s, EnterCompliance- SpeedDis- LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete- EqualizationPhase Quote Link to comment
