Brandonb1987 Posted April 6, 2022 Share Posted April 6, 2022 I've been pouring over everything I can find for the last several hours. I cannot seem to get my Home Assistant (fresh install) VM to pull a network address from my routers dhcp. Yes i have the network bridged and bonded. All my dockers work on br0, but if i set the VM's network to br0, i can't seem to get an IP or local access to the VM. If i set it to Virtbr0, that gives a network address but I use 10.1.10.x/24 on br0 and virtbr0 is 192.x.x.x/24. And I can't access that either through the network. Tried using hostnames, nada. What do I need to do to get this working. I use pfSense as my network dhcp/dns server. Quote Link to comment
Vr2Io Posted April 6, 2022 Share Posted April 6, 2022 Setting use br0 then click VNC Remote and confirm IP allocate or not Quote Link to comment

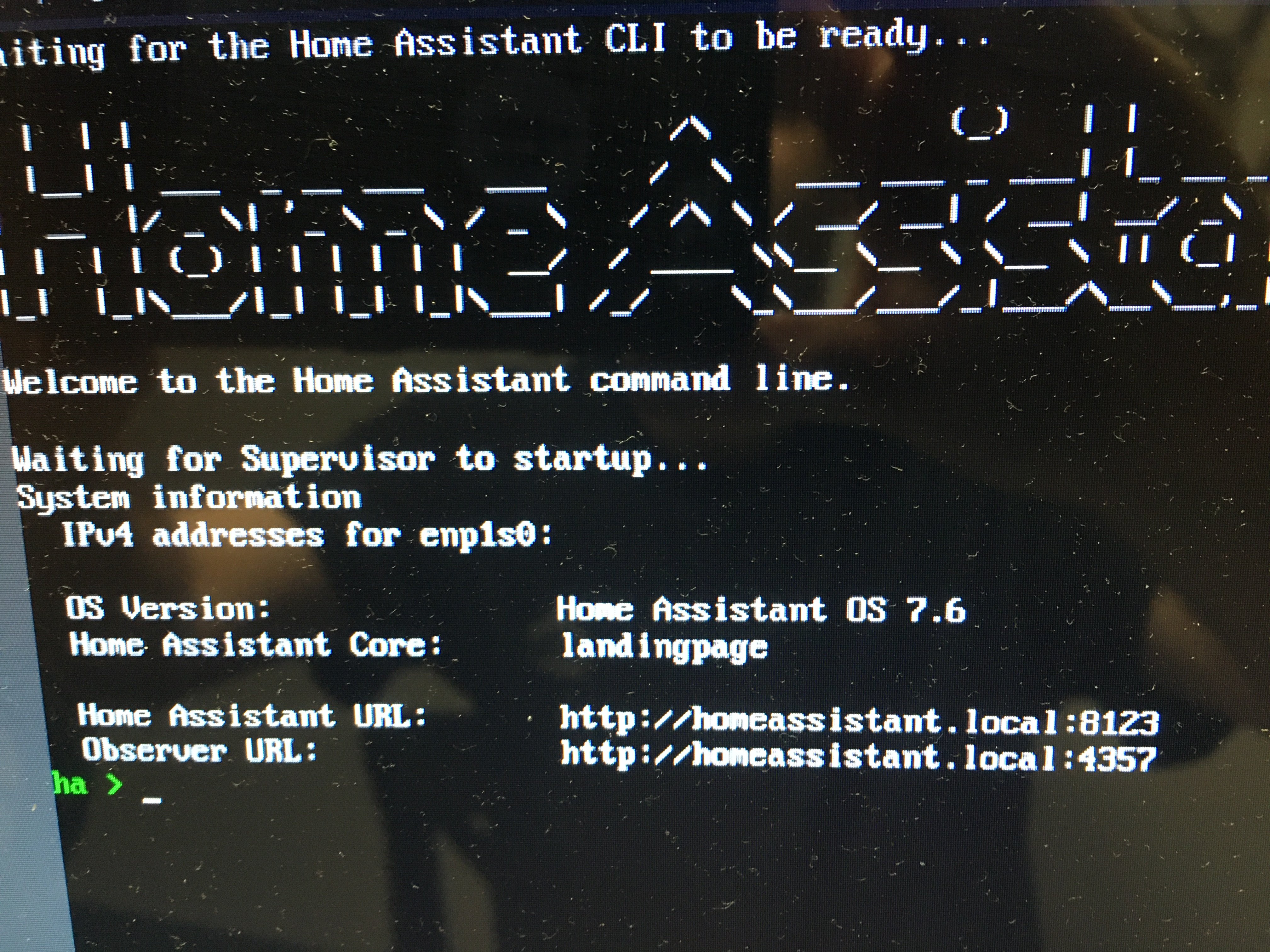

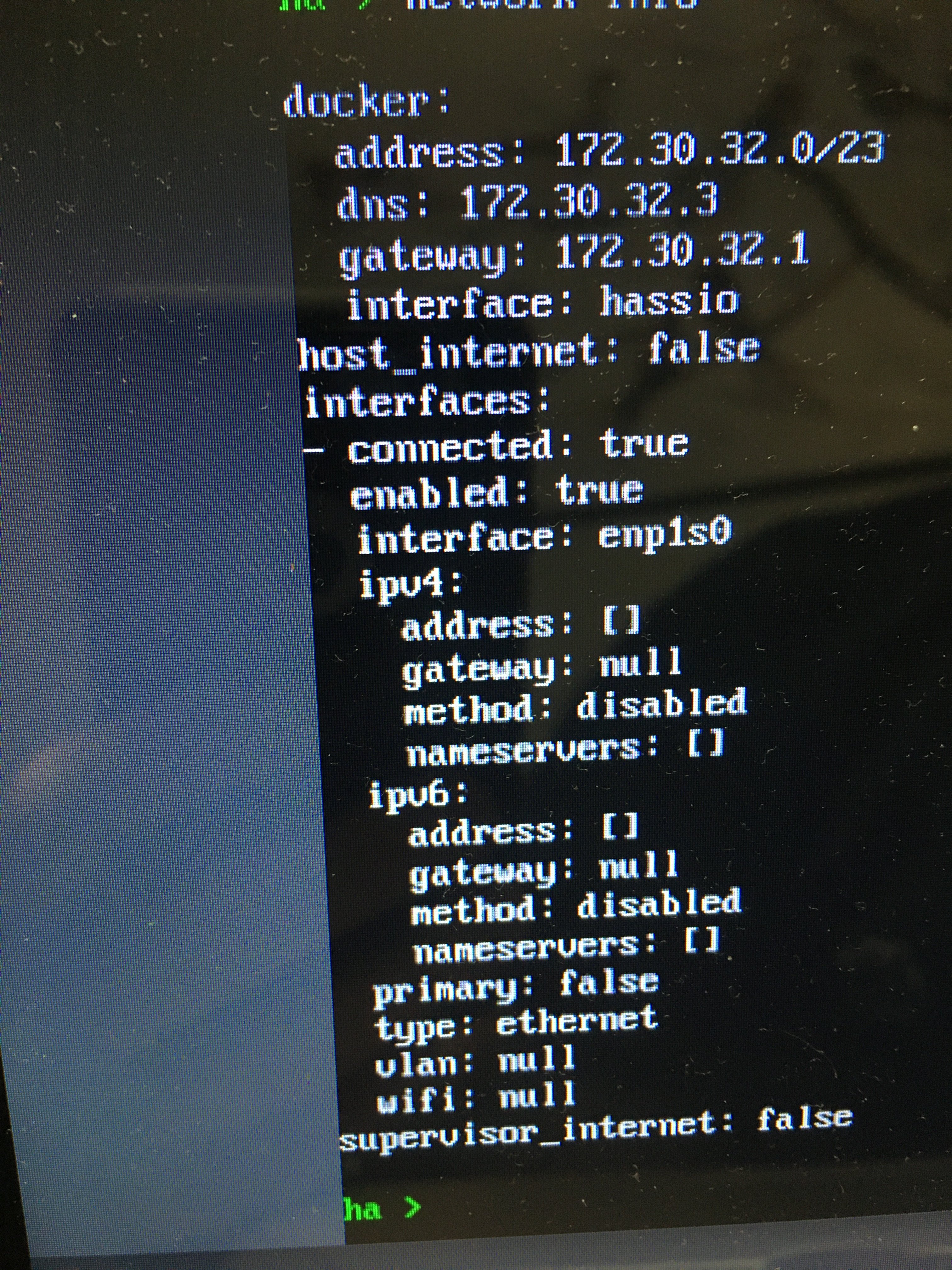

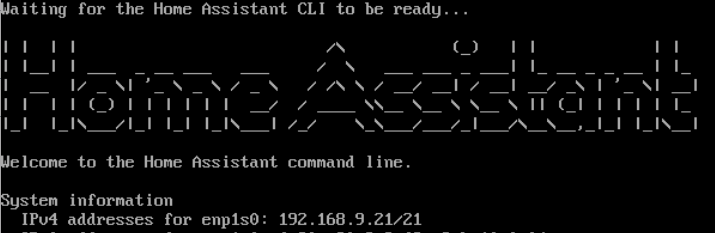

Brandonb1987 Posted April 6, 2022 Author Share Posted April 6, 2022 (edited) I do not get an IP at all. It’s just blank. that’s my issue. I do not get one assigned when I select br0 but I get a 192.x.x.x if I select virtbr0 Edited April 6, 2022 by Brandonb1987 Quote Link to comment

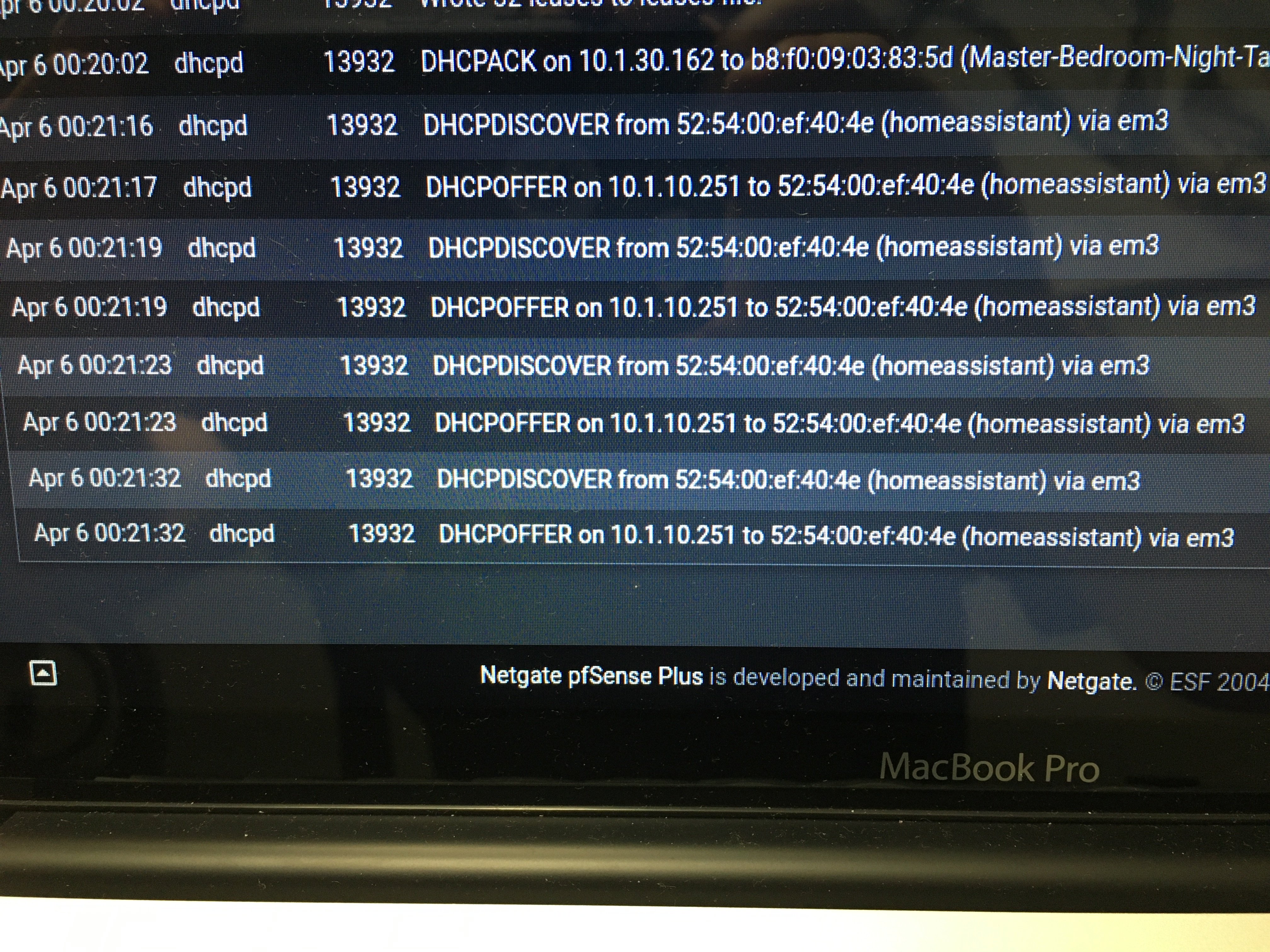

Brandonb1987 Posted April 6, 2022 Author Share Posted April 6, 2022 I can also confirm that with br0 the vm is being offered a dhcp address in pfsense. Quote Link to comment
Vr2Io Posted April 6, 2022 Share Posted April 6, 2022 You means pfsense assign 10.1.10.251 ( br0 ) to HA, but no IP show on HA VNC ? Quote Link to comment
Brandonb1987 Posted April 6, 2022 Author Share Posted April 6, 2022 (edited) Let me clarify. pfsense is trying to offer that option address. So it’s going though. It doesn’t show up as a leased IP address. The VM hasn’t accepted it. I cannot access home assistant vm through that address. Edited April 6, 2022 by Brandonb1987 Quote Link to comment
Vr2Io Posted April 6, 2022 Share Posted April 6, 2022 So weird ..... could you assign another IP for HA, does possible other device use 10.1.10.251 Quote Link to comment
Brandonb1987 Posted April 6, 2022 Author Share Posted April 6, 2022 6 minutes ago, Brandonb1987 said: Let me clarify. pfsense is trying to offer that option address. So it’s going though. It doesn’t show up as a leased IP address. The VM hasn’t accepted it. I cannot access home assistant vm through that address. Sorry I was going to edit the reply but you sent one first Quote Link to comment
Vr2Io Posted April 6, 2022 Share Posted April 6, 2022 (edited) No much idea, but HA not ack the DHCP OFFER from to Pfsense, for example, 10.1.30.162 have ACK Pfsense. BTW, it look like Pfsense can't transmit data to HA, but can receive HA's request, because Pfsense have receive 4 request from HA in short-time. It looklike Pfsense have one-way communication between HA. Edited April 6, 2022 by Vr2Io Quote Link to comment
Solution Brandonb1987 Posted April 6, 2022 Author Solution Share Posted April 6, 2022 I seem to have figured it out. I set the IP address to a static config within the dhcp range and it seems to have started working. Quote Link to comment
