April 12, 20224 yr All the drives connected to this HBA stopped showing up on unraid. When I connected these drives to the SATA ports on the motherboard they showed up. Can you confirm the HBA is not working, I will attach the diagnostics. LSI Logic SAS 9207-8i is the HBA in question tower-diagnostics-20220411-1803.ziptower-diagnostics-20220411-1803.ziptower-diagnostics-20220411-1803.zip tower-diagnostics-20220411-1803.zip Edited April 15, 20224 yr by Koshy
April 12, 20224 yr Community Expert No LSI HBA detected, make sure it's well seated or try a different PCIe slot if available.
April 14, 20224 yr Author I tried reseating the card and tried different PCIe slots as well but no luck. Where in the diagnostics does it indicate that the LSI HBA is detected?

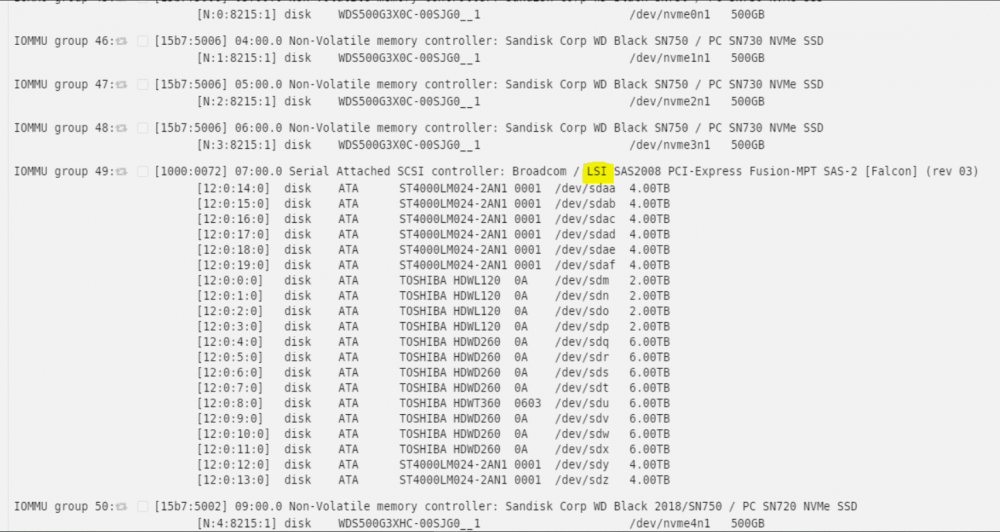

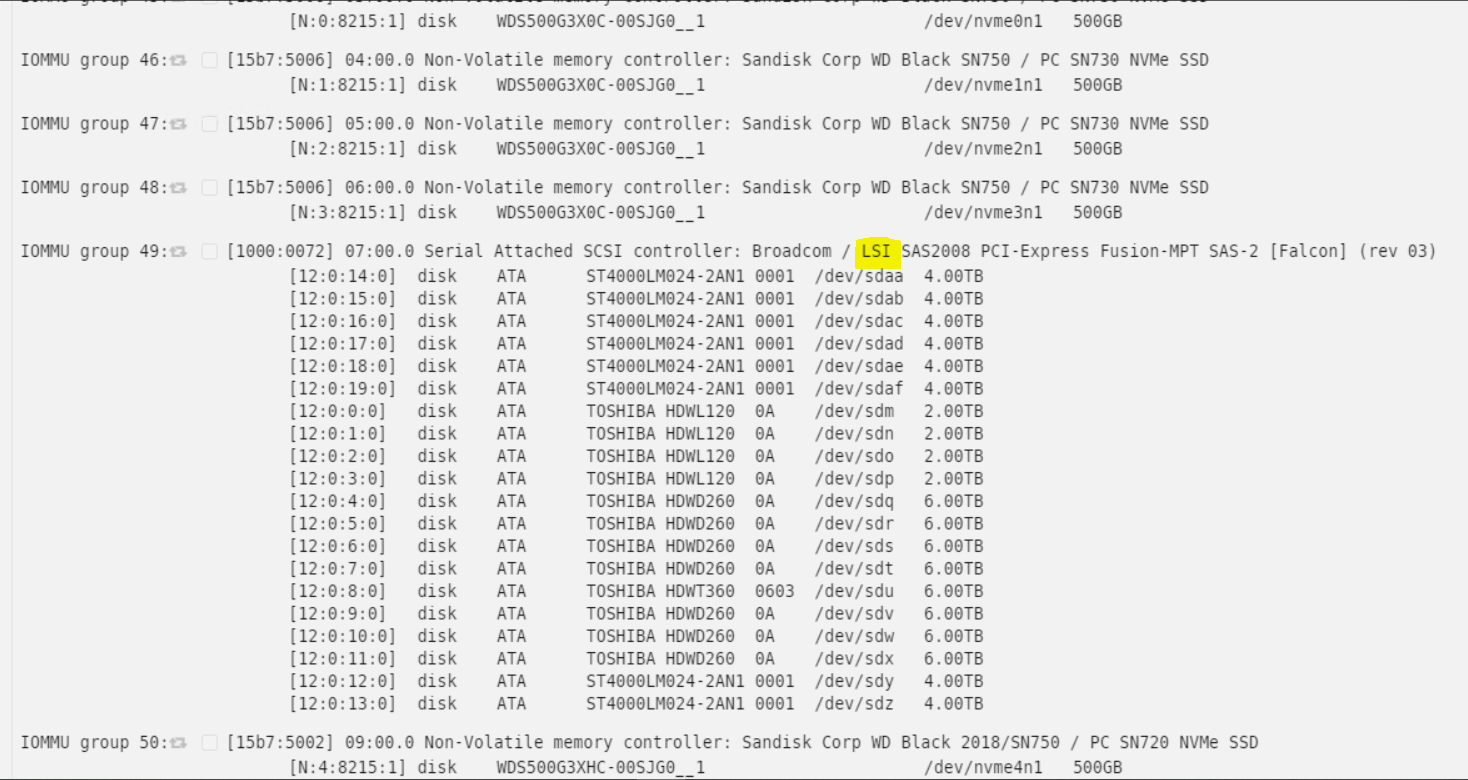

April 14, 20224 yr Community Expert You can just go to Tools -> System Devices and search for "LSI", e.g.:
April 15, 20224 yr Community Expert Then it's likely dead, you can try it in a different PC to confirm if you have one.
April 15, 20224 yr Author I do not have another PC to to plug it into. Can you tell me where in the diagnostics.zip the LSI is mentioned? Do you think LSI SAS 9210-8i is a good replacement for the card?
April 15, 20224 yr Community Expert 1 hour ago, Koshy said: Can you tell me where in the diagnostics.zip the LSI is mentioned? It's only mentioned if one is detected, in your case it isn't, if it was it would visible in the syslog and lspci.txt, also in the GUI like mentioned.
