Multiple disks unmountable after upgrade to 6.9.2

[shafiq786110]

HI

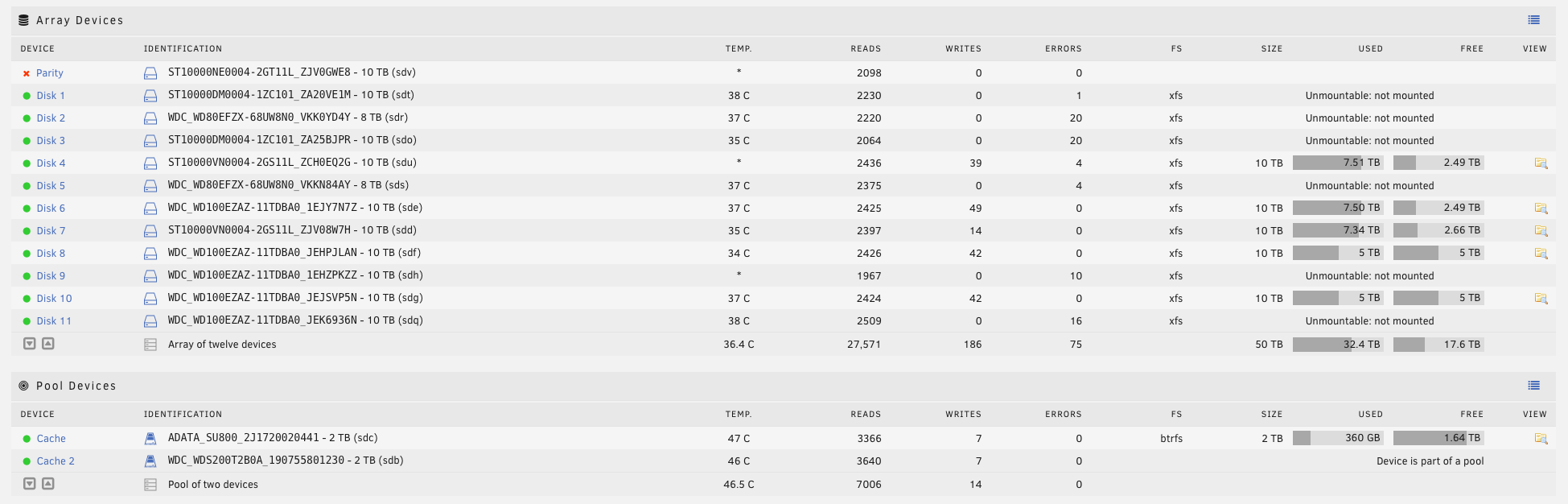

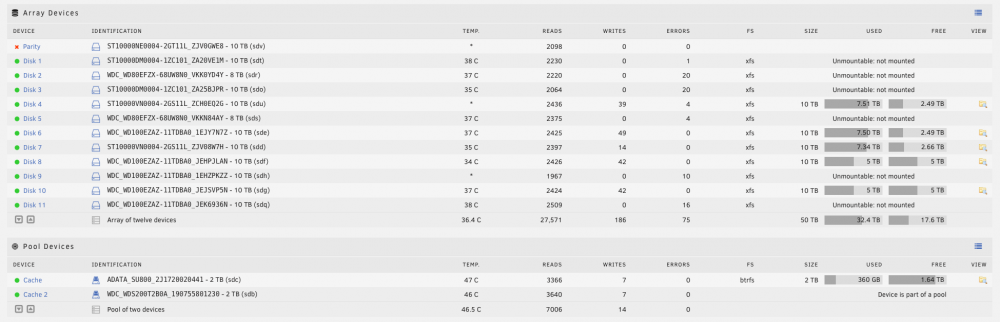

I upgraded to 6.9.2 yesterday but when I start my array 6 of the drives are now unmountable, but are detected, no other settings were changed, upgrade went fine, what is causing this and how do I fix it?

The parity drive is now also not working



Thanks!

tower-diagnostics-20220505-0706.zip

Edited May 5, 2022 by shafiq786110

[JorgeB]

Constant errors with the HBA, post new diags after rebooting since can't see the boot sequence on the previous logs.

[shafiq786110]

Thanks



Ive posted 3 diag files, one from after boot, one from after starting the array (when everything mounted properly) and then one from when the disks became unmountable





1.zip 2.zip 3.zip

[JorgeB]

I don't know why the logs aren't showing the boot process from the start, I can't even see the HBA firmware version, but they are still filled with HBA errors, see if it's using the latest firmware, if not upgrade.

[shafiq786110]

Thanks ill give this a go



Im still not 100% familiar with these bits, but I'm guessing my card would have had a custom firmware so it would work with Unraid, will upgrading the firmware cause a problem with that?



Thanks

[JorgeB]

It should be using a standard LSI IT firmware, in the link shows how to list current firmware, post the output here.

[shafiq786110]

On 5/6/2022 at 8:21 AM, JorgeB said:

It should be using a standard LSI IT firmware, in the link shows how to list current firmware, post the output here.

Sorry for the delay

Here is its output



LSI Corporation SAS2 Flash Utility
Version 20.00.00.00 (2014.09.18)
Copyright (c) 2008-2014 LSI Corporation. All rights reserved

        Adapter Selected is a LSI SAS: SAS2008(B2)

Num   Ctlr            FW Ver        NVDATA        x86-BIOS         PCI Addr
----------------------------------------------------------------------------

0  SAS2008(B2)     10.00.08.00    0a.02.00.21    07.19.00.00     00:05:00:00
1  SAS2008(B2)     10.00.08.00    0a.02.00.20    07.19.00.00     00:42:00:00

        Finished Processing Commands Successfully.
        Exiting SAS2Flash.



Thanks

[JorgeB]

Those are very old, see the link above to update to 20.00.07.00

[shafiq786110]

It worked! Thank You!
