Intel Card passthrough

simo241
in VM Engine (KVM)

Featured Replies

Hi every one ,



I need to pass through my intel card for a VM Pfsense installation but i am not able to see in the vm installation.

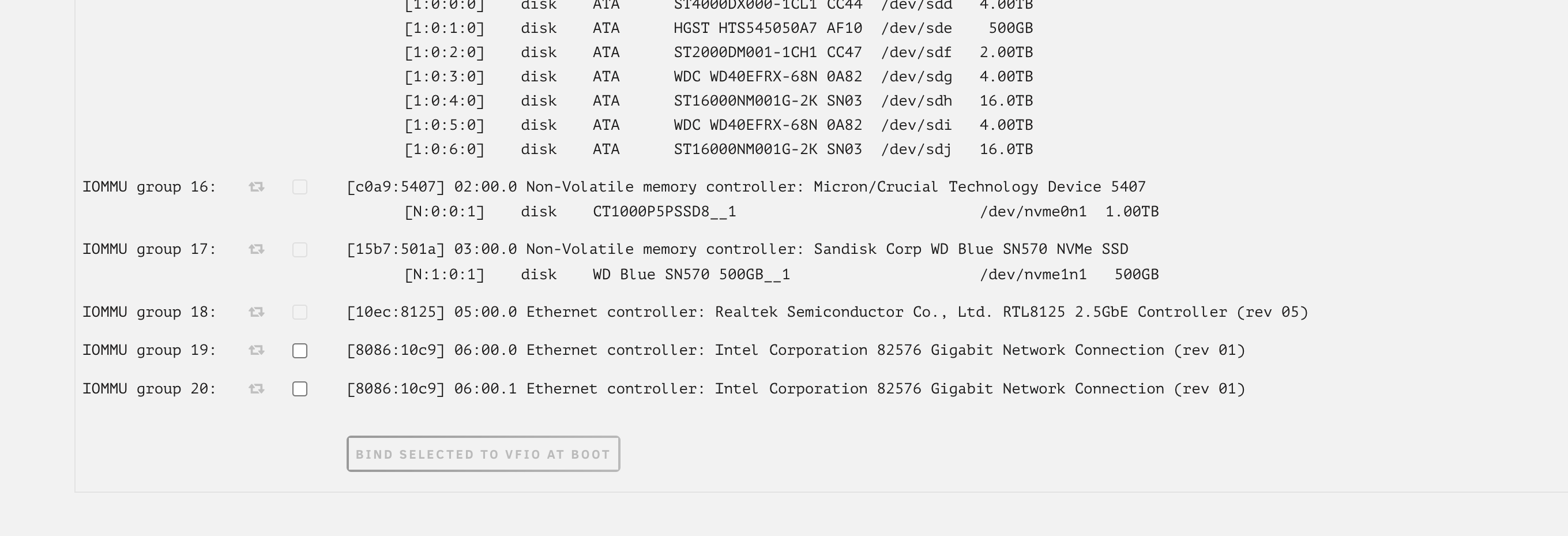

i insert the following but after restart nothing is happening , the intel card is visible in the System Devices



1233071668_Screenshot2022-05-06at14_48_20.thumb.png.e6216342865eb9e445ccf8237eb58a92.png

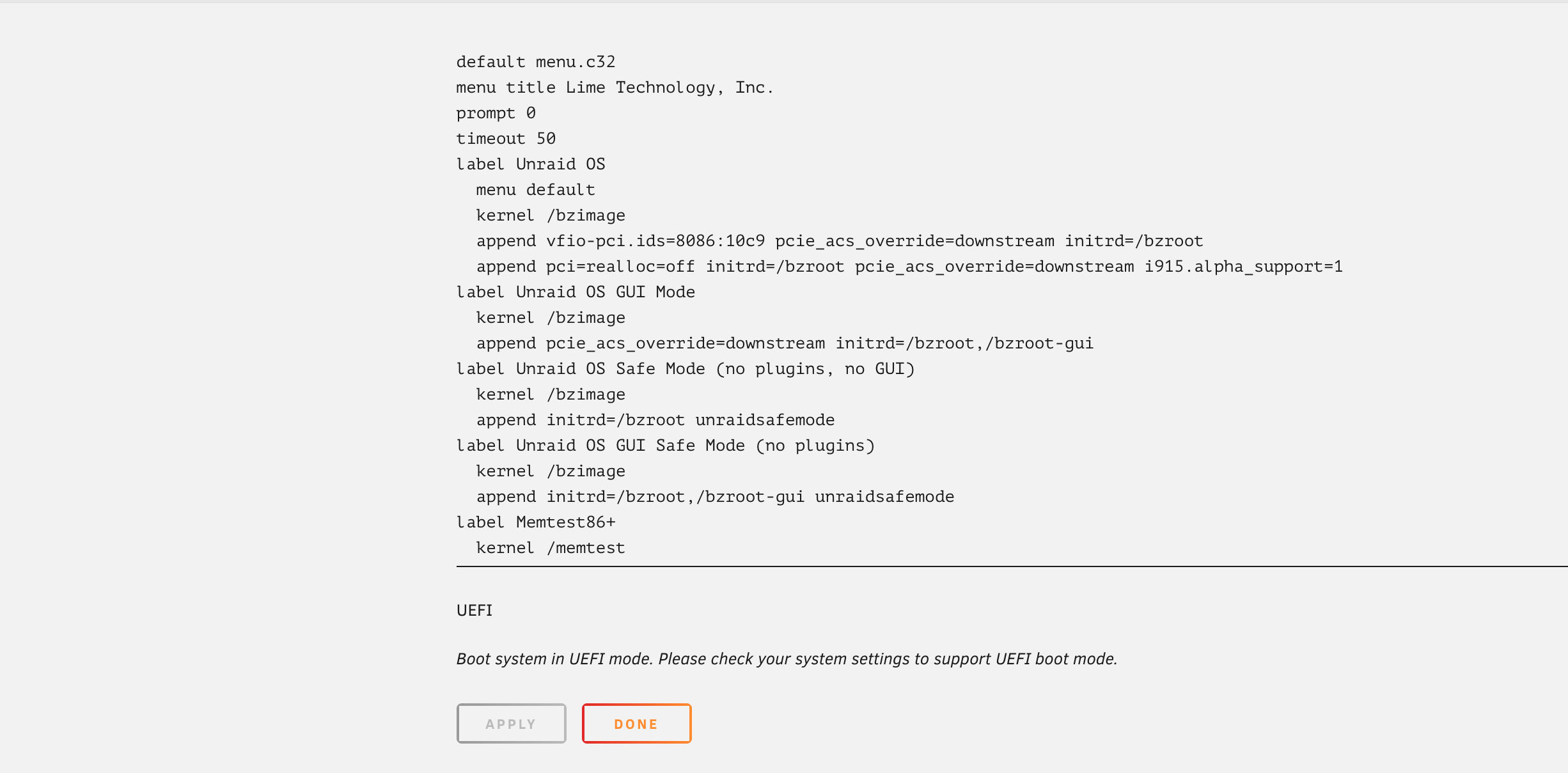

this is configuration for the flash drive were i added:      vfio-pci.ids=8086:10c9





479341392_Screenshot2022-05-06at14_49_33.thumb.png.0d70904a34a5a8ed5be0c0c70c7827d2.png

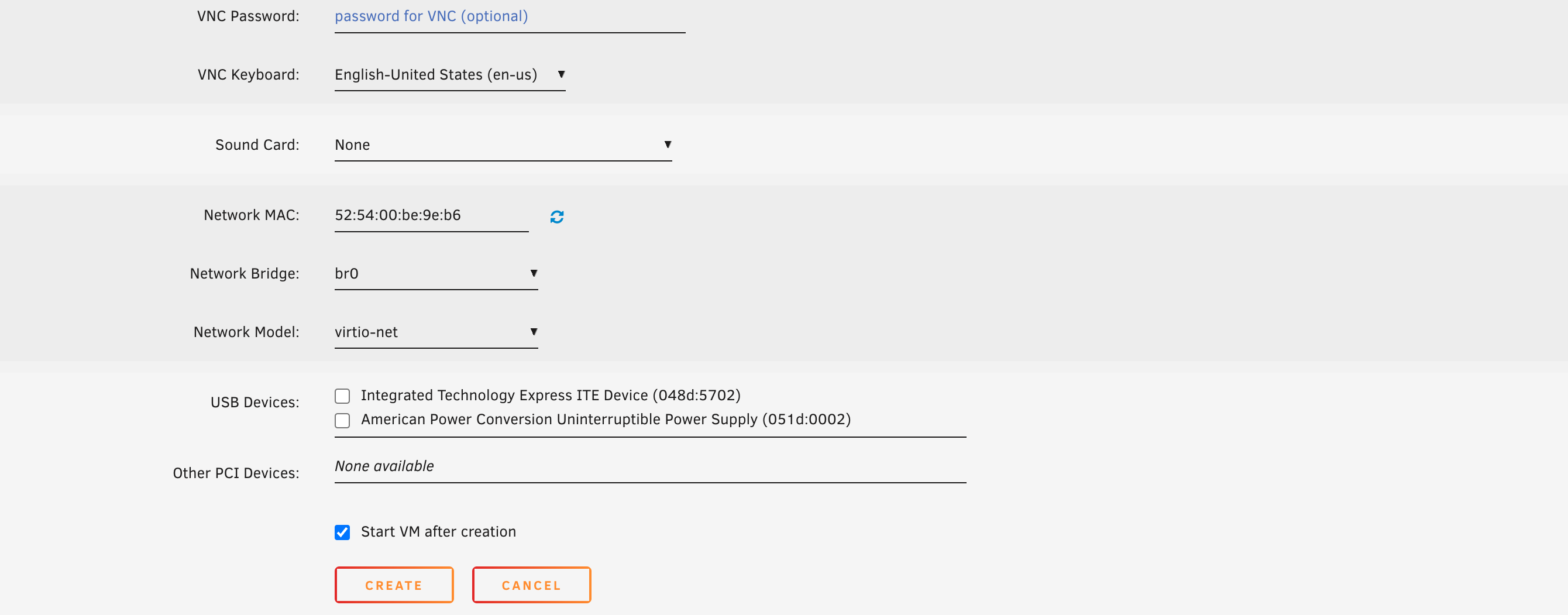

this is the VM after reboot



2071699210_Screenshot2022-05-06at14_51_19.thumb.png.9353b9fbb6a20ce056447343aa44dcbe.png









  • Quote
    • Community Expert
    47 minutes ago, simo241 said:

    the intel card is visible in the System Devices

    Have you tried clicking the checkbox to allocate to vfio rather than using the line in syslinx, I think Unraid has the adapters. do they show in network settings?

  • Quote

    Follow SimonF advices.

    Most probably your attempt is failing because you have 2 "append" lines. It must be only one with all arguments on one line.

  • Quote
    • Author

    Solved thank you , i use the function in system device

  • Quote
