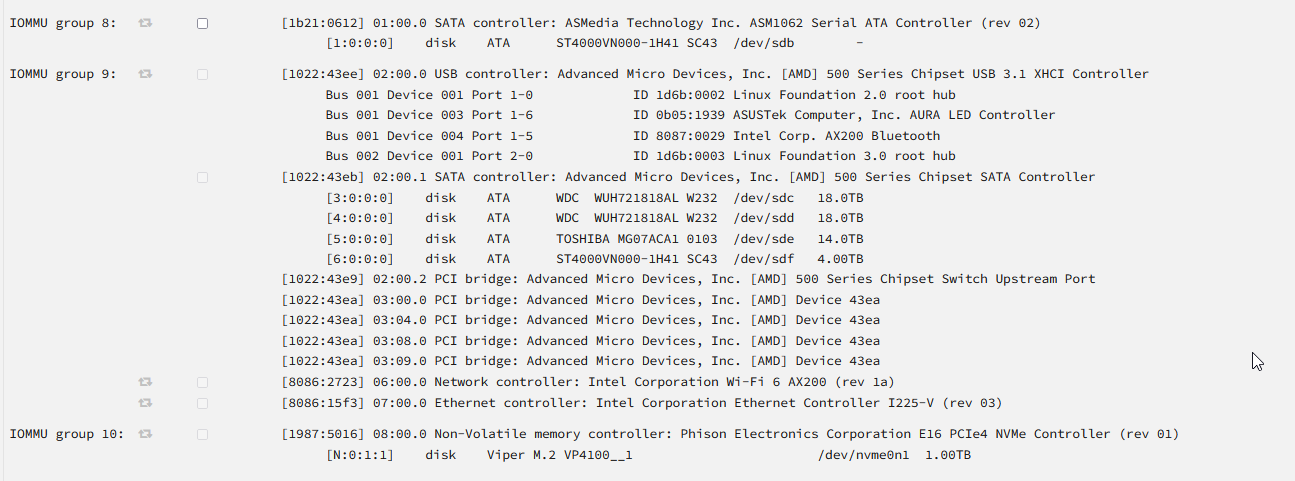

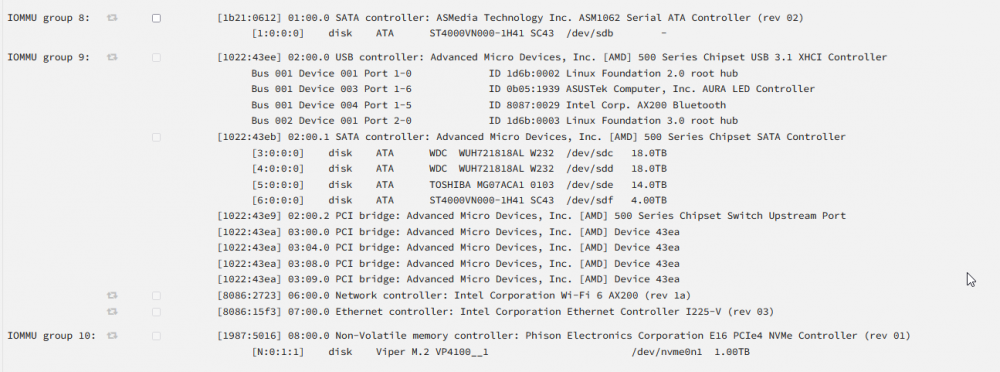

Kagutschi Posted May 11, 2022 Share Posted May 11, 2022 (edited) My Mainboard has only 4 Sata III ports, so i bought a generic ASMedia 1061 pci express to sata III controller with 2 ports to connect a single additional hard drive. The controller and the connected hard drive show up in system devices, but the new disk is not showing up under Main. I use Unraid 6.10.0-rc8 with a basic license. The new disk will be the 6th drive. How can I add the new hard drive to the array? tower-diagnostics-20220511-2250.zip Edited May 11, 2022 by Kagutschi asm 1061 not 1062 Quote Link to comment
itimpi Posted May 12, 2022 Share Posted May 12, 2022 The syslog is showing errors getting to the extra disk, and it is not showing up in the SMART reports. Was the drive previously used on another system as there is also a suggestion that the dtive may have multiple partitions on it? Quote Link to comment

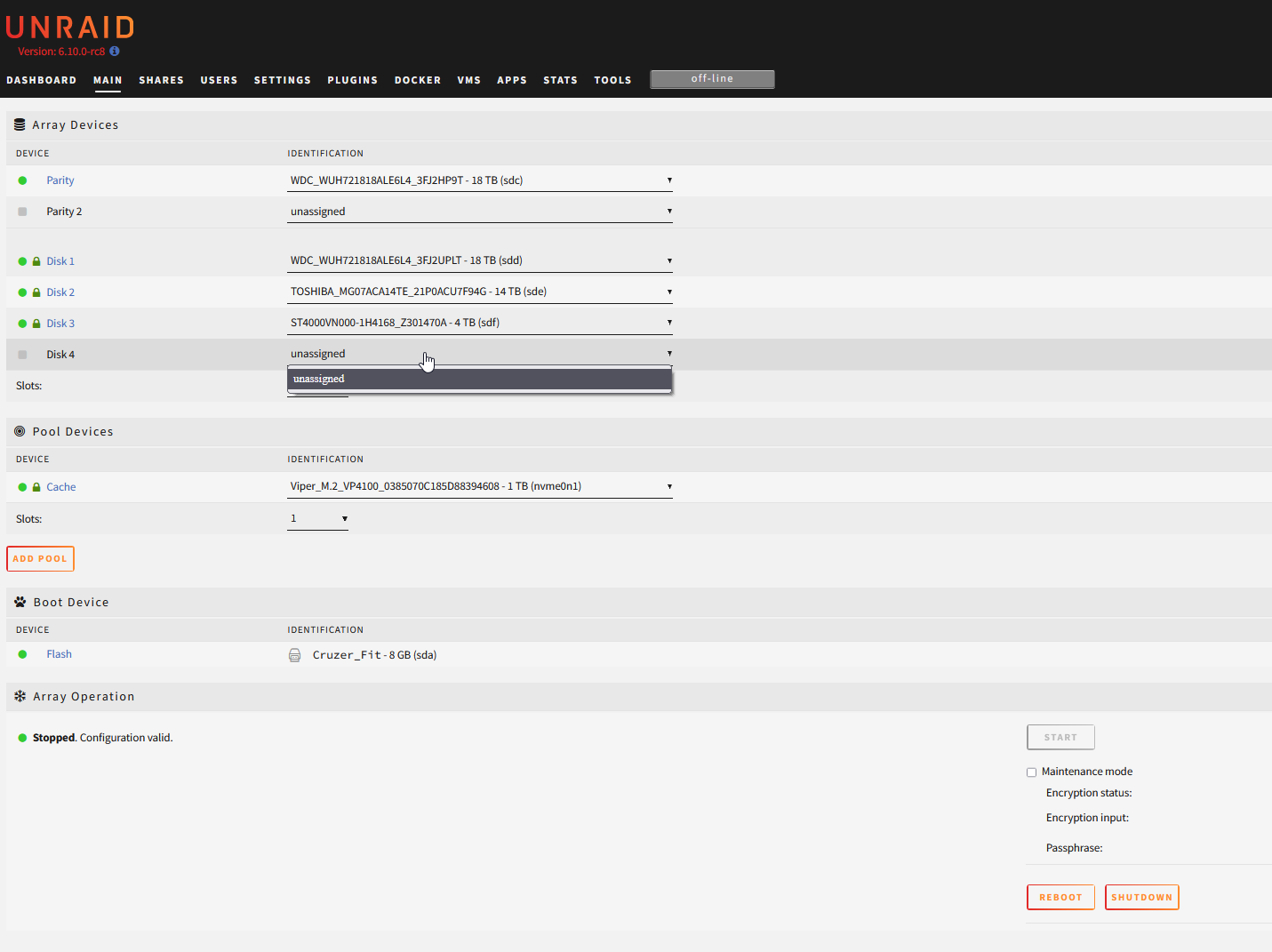

Kagutschi Posted May 12, 2022 Author Share Posted May 12, 2022 Yes. But I tried two different drives, which are both working just fine in an USB enclosure under windows 10. Both do not show up under "Main". Quote Link to comment
