SSD and M.2 not detected on Intel NUC

[H3is3nb3rg]

Hello all,

I'm new to Unraid and having a hell of a time. I have an Intel NUC Model NUC11PAHi5

I have an up-to-date BIOS and the BIOS can see the drives, however, UNRAID cannot.



SSD is a PNY 500gb

M.2 is a 500 gb



What am I missing, I have included my syslog and diagnostics



Thank you for any help you can give.

syslog-2012-10-05.txt

Edited June 6, 2022 by H3is3nb3rg

[JorgeB]

Please post the diagnostics.

[H3is3nb3rg]

6 hours ago, JorgeB said:

Please post the diagnostics.

Sorry, here it is

tower-diagnostics-20220606-0121.zip

[JorgeB]

You are virtualizing Unraid, that's not supported, though it might work, but if you really want to do that see if you can pass-through the SATA controller to Unraid instead of using the virtal VMware controller.

[H3is3nb3rg]

3 hours ago, JorgeB said:

You are virtualizing Unraid, that's not supported, though it might work, but if you really want to do that see if you can pass-through the SATA controller to Unraid instead of using the virtal VMware controller.

This is done through the BIOS correct? I believe I did notice there was a VMWare drive option there.

[JorgeB]

No, it's done in VMware.

[H3is3nb3rg]

10 hours ago, JorgeB said:

No, it's done in VMware.

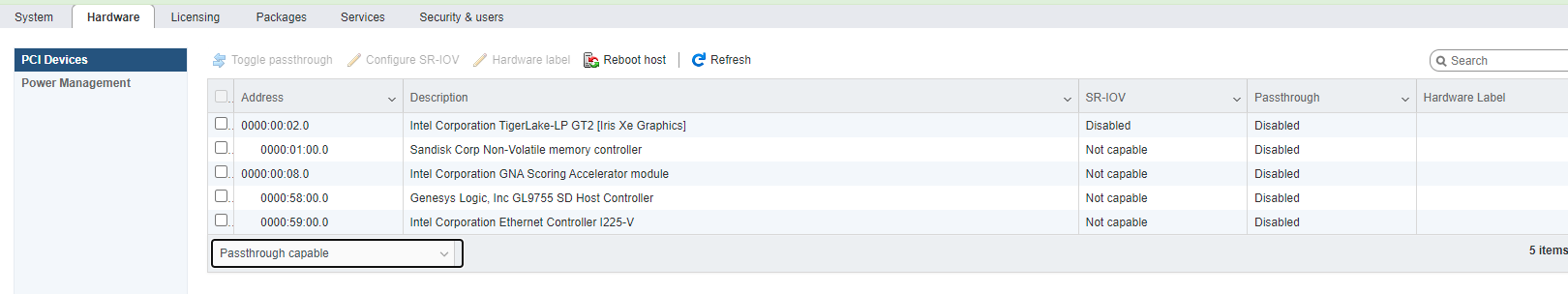

These are the only devices I'm able to passthrough in VMWare

Edited June 7, 2022 by H3is3nb3rg

[H3is3nb3rg]

10 hours ago, H3is3nb3rg said:

Am I out of luck on this option?



[JorgeB]

Looks like it, do you really need to virtualize Unraid?
