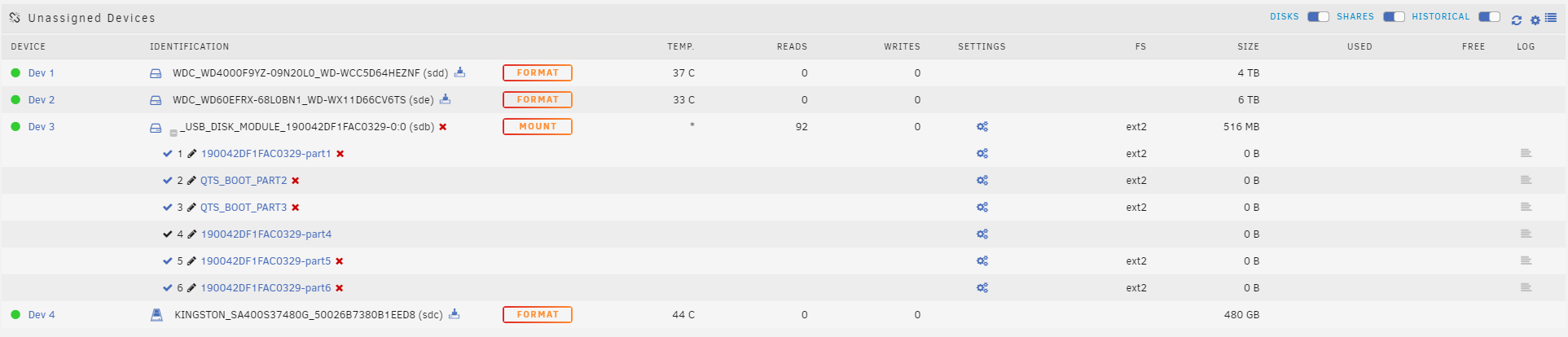

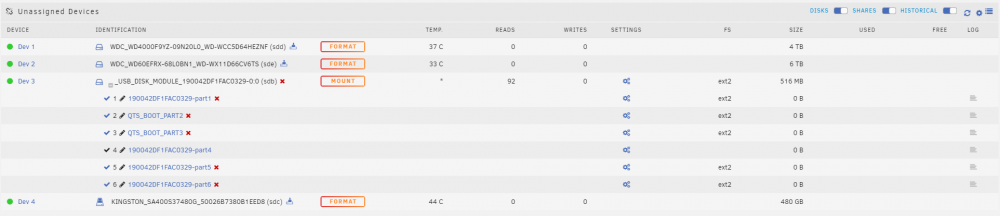

July 8, 20224 yr Hi there, i'm new to unraid, here is my configuration: QNAP TS-870 PRO Unraid 6.10.3 4xWD 6TB 2xWD 4TB 2xSSD 500GB and the DOM (QTS Boot, when all unraid config is operating as expercted i'm planning to remove this from NAS) all those disk are shown in BIOS, all HDD are set in AHCI mode all HDD are already wiped out with 1 Pass of zeros dban Problem: not all Disks are showned in main tab, i don't understand why only certaid disk are in "unassigned device". Any advice? Thank you, have i nice day, bye. nas00-diagnostics-20220708-2040.zip
July 9, 20224 yr Solution Look like problem on init two 9235 SATA controller. Pls try disable IOMMU or downgrade Unraid OS. Jul 8 20:22:41 NAS00 kernel: DMAR: [DMA Write NO_PASID] Request device [01:00.1] fault addr 0x104500000 [fault reason 0x02] Present bit in context entry is clear Jul 8 20:22:41 NAS00 kernel: DMAR: [DMA Write NO_PASID] Request device [07:00.1] fault addr 0x105440000 [fault reason 0x02] Present bit in context entry is clear 01:00.0 SATA controller [0106]: Marvell Technology Group Ltd. 88SE9235 PCIe 2.0 x2 4-port SATA 6 Gb/s Controller [1b4b:9235] (rev 10) Subsystem: Marvell Technology Group Ltd. 88SE9235 PCIe 2.0 x2 4-port SATA 6 Gb/s Controller [1b4b:9235] Kernel driver in use: ahci Kernel modules: ahci 07:00.0 SATA controller [0106]: Marvell Technology Group Ltd. 88SE9235 PCIe 2.0 x2 4-port SATA 6 Gb/s Controller [1b4b:9235] (rev 10) Subsystem: Marvell Technology Group Ltd. 88SE9235 PCIe 2.0 x2 4-port SATA 6 Gb/s Controller [1b4b:9235] Kernel driver in use: ahci Kernel modules: ahci Edited July 9, 20224 yr by Vr2Io

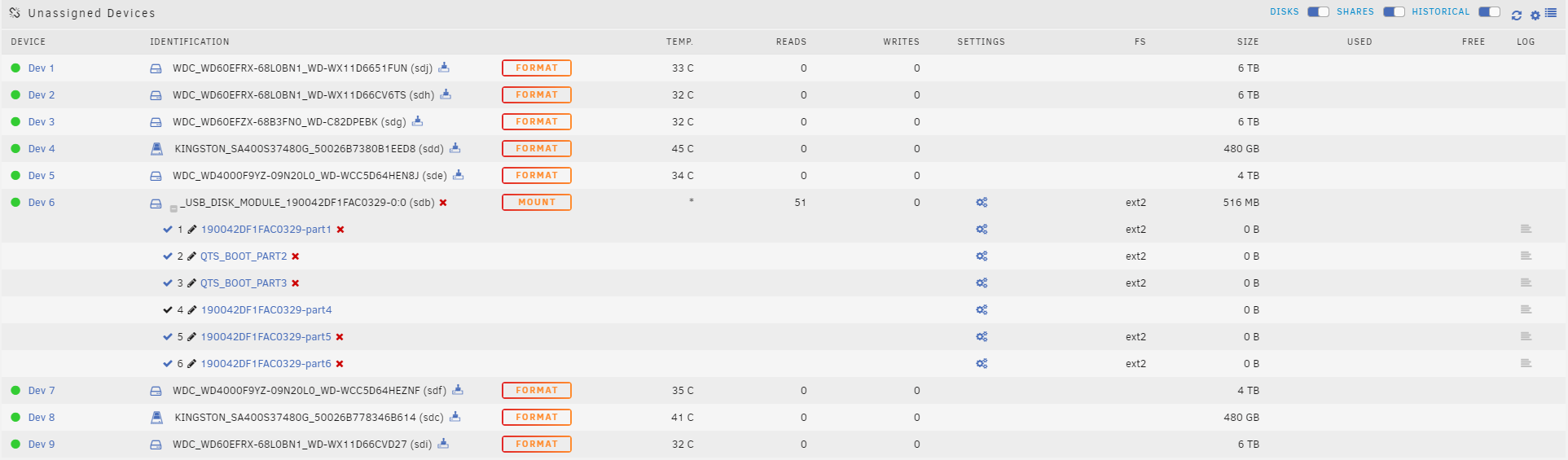

July 9, 20223 yr Author Now under BIOS i've disabled >Chipset> VT-d = Disabled and now show all Disks With this option disabled, which limitation unraid have with virtualization? Can't passtrough any hardware "Directly" right? I mean can i play with some VM or Docker without problems? Thank you for any advice, bye
July 9, 20223 yr 17 minutes ago, Guglielmo said: Can't passtrough any hardware "Directly" right? I mean can i play with some VM or Docker without problems? Both yes, someone may have other solution. Edited July 9, 20223 yr by Vr2Io
