catasphocis error when adding files

[Olymoly]

good evening,



filled my drives/share, and stop the array to add a hard drive that was excluded from the share. (which i realize after i didn't need to do) restarted the  array and now a cache drive is missing. i also have a parity drive missing but i am aware of that as my hard rives have an issue with my lsi controller.



my docker is no longer start and i can add any data because when attempt to i receive a catastrophic error.



also, i am looking to do a case/mb swap to resolve my parity issue, in the mean time i would like to know how to continue with out data loss given my current error.



thank you!

nastradamus-diagnostics-20220721-0428.zip

[JorgeB]

Parity was already disabled at array start, so before the 16th, btrfs balance is failing due to not enough space, reboot and post new diags before array start.

[Olymoly]

latest reboot

nastradamus-diagnostics-20220725-0657.zip

[JorgeB]

There appear to be two cables connected form the same HBA to two different expanders, Unraid doesn't support SAS multipath, connect just one cable, or both to the same expander if dual link is supported, then post new diags and the output of

btrfs fi show



[Olymoly]

ok wasn't expecting anything like that, i assumed i would be deleting data or changing values since it was full. i did my research to built this almost three years ago. it seems i have forgotten a lot of the basic things. however, if i am understanding you correctly, i need to remove one cable from my BPN-SAS2-836EL1 and/or add another HBA/LSI controller to the second cable.

[JorgeB]

2 minutes ago, Olymoly said:

i need to remove one cable from my BPN-SAS2-836EL1 and/or add another HBA/LSI controller to the second cable.

EL1 is a single expander backplane, took another look and you have two HBAs, so looks like you have both connected to the same expander, use just one, you can connect both cables form one HBA to the expander for increased bandwidth, but don't connect two HBAs to the same expander, that can be done for redundancy when supported by the OS, Unraid doesn't not support that.

[Olymoly]

ive shutdown,removed the extra third sas cable and rebooted. Second cache is showing, posting diagnostic without array start.



btrfs fi show



nastradamus-diagnostics-20220725-1742.zip

[JorgeB]

OK, logs is clean now, first lets cancel the btrfs balance, to do that:



mkdir /temp
mount -o skip_balance /dev/sdj1 /temp



If mount is successful type:

btrfs balance cancel /temp



then

umount /temp



Now unassign cache1, start array, stop array, re-assign both cache devices, start array and post new diags.

[Olymoly]

here you go , checked docker and it loaded!



nastradamus-diagnostics-20220726-0331.zip

[JorgeB]

Run a scrub on the pool to see if it can sync both devices, check output in end, check all errors were corrected, possibly some device issues with sdi, pool is also very full, should avoid that, try keeping it under 80% used, 90% tops.

[Olymoly]

thanks you, im going start to unbalnce the drives back to 80% as i was in the middle of including a new drive.



i tried to look up scrubbing etc as the terms you mentioned were over my head.



giv4n the current state would it be safe to do a mb swap before i do this, or after? i would like to also fic my parity situation while doing any other data integrity check.

[JorgeB]

3 minutes ago, Olymoly said:

i tried to look up scrubbing etc as the terms you mentioned were over my head.

Click on cache and there will be a scrub option, need to scroll down.



4 minutes ago, Olymoly said:

giv4n the current state would it be safe to do a mb swap before i do this, or after?

Should be safe before, but I would recommend after just in case there are some unexpected issues.

[Olymoly]

scrub and read check all passed with no errors, i added an 8tb drive and i've been moving data to allow for 10% free peace across all disks.

question, my vms tab says "libvirt" service failed to start. do you know or see anything in the diagnostics that would cause this?


Sent from my iPhone using Tapatalk

[JorgeB]

I do:



Jul 26 03:30:12 Nastradamus emhttpd: shcmd (36814): /usr/local/sbin/mount_image '/mnt/user/system/libvirt/libvirt.img' /etc/libvirt 1
Jul 26 03:30:13 Nastradamus kernel: sd 7:0:7:0: [sdi] tag#520 UNKNOWN(0x2003) Result: hostbyte=0x00 driverbyte=0x08
Jul 26 03:30:13 Nastradamus kernel: sd 7:0:7:0: [sdi] tag#520 Sense Key : 0x3 [current]
Jul 26 03:30:13 Nastradamus kernel: sd 7:0:7:0: [sdi] tag#520 ASC=0x11 ASCQ=0x0
Jul 26 03:30:13 Nastradamus kernel: sd 7:0:7:0: [sdi] tag#520 CDB: opcode=0x28 28 00 00 27 fe a0 00 00 20 00
Jul 26 03:30:13 Nastradamus kernel: print_req_error: critical medium error, dev sdi, sector 2621088
Jul 26 03:30:13 Nastradamus kernel: BTRFS: device fsid c5bc54e2-9593-41d2-b010-1527e11dbd61 devid 1 transid 162 /dev/loop3
Jul 26 03:30:13 Nastradamus kernel: BTRFS info (device loop3): disk space caching is enabled
Jul 26 03:30:13 Nastradamus kernel: BTRFS info (device loop3): has skinny extents
Jul 26 03:30:13 Nastradamus kernel: BTRFS error (device loop3): bad tree block start, want 30883840 have 0



It suggests a device problem, please post new diags after rebooting and starting the array to confirm it's the same issue.

[Olymoly]

reboot seems to have resolved it


Sent from my iPhone using Tapatalk

[Olymoly]

rebooted and added some drives to preclear, however docker is failing to start again, seems to be the same drive and now failed smart, old age.





i hardened to have already ordered larger ssd for replacement cache drives  that should arrive today to help either way. i just have to figure out the procedure to swap them.

nastradamus-diagnostics-20220730-0156.zip

[JorgeB]

Docker image is corrupt, you need to delete and re-create, before doing that run a scrub on the pool and make sure all errors are corrected, no signs of a device problem that I can see, at least in these diags.

[Olymoly]

oh no! does that mean i have lost all my docker app's data? how do i recreate/delete the docker image?



ive  scrubbed pool and didnt get any errors. hmm i will do it again and check error correction.



thanks again for your help.

[Olymoly]

i wanted to increase my cache drive size anyways would it better to go that route, regardless of erros kn the pool. im guessing this pool needs to be fix either way before i move on to the new drives.

[itimpi]

13 minutes ago, Olymoly said:

oh no! does that mean i have lost all my docker app's data? how do i recreate/delete the docker image?

No.   This section of the online documentations accessible via the ‘Manual’ link at the bottom of the GUI covers what you need to do.

[Olymoly]

10 minutes ago, itimpi said:

No.   This section of the online documentations accessible via the ‘Manual’ link at the bottom of the GUI covers what you need to do.

 ok cool thanks

[Olymoly]

12 hours ago, JorgeB said:

Docker image is corrupt, you need to delete and re-create, before doing that run a scrub on the pool and make sure all errors are corrected, no signs of a device problem that I can see, at least in these diags.

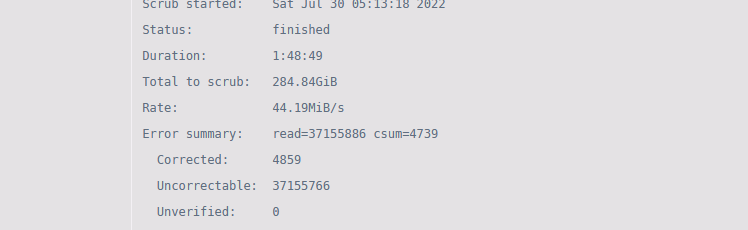

ran the scrub with correction, before i continue anything else i need to do to make sure all errors are corrected?





[JorgeB]

Lots of uncorrectable errors, run another one and post the diags after it's done.

[Olymoly]

nastradamus-diagnostics-20220731-0841.zip

[JorgeB]

Cache1 appears to be failing, run an extended SMART test.
