Hi

After many days of searching and testing now I reached a dead end regarding this

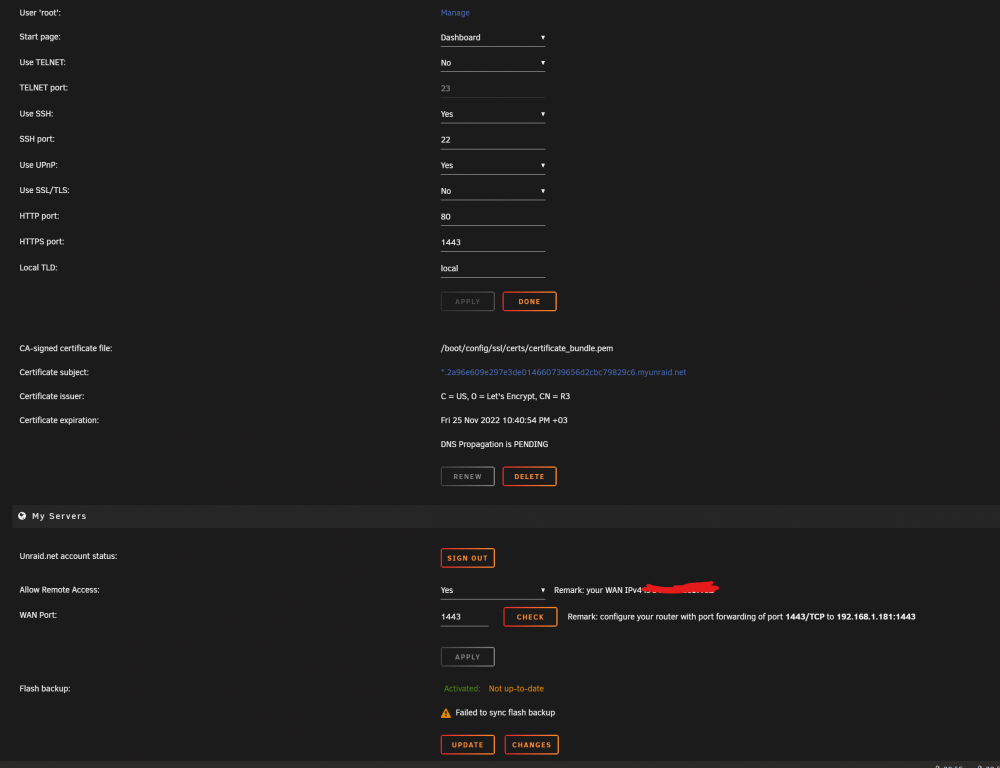

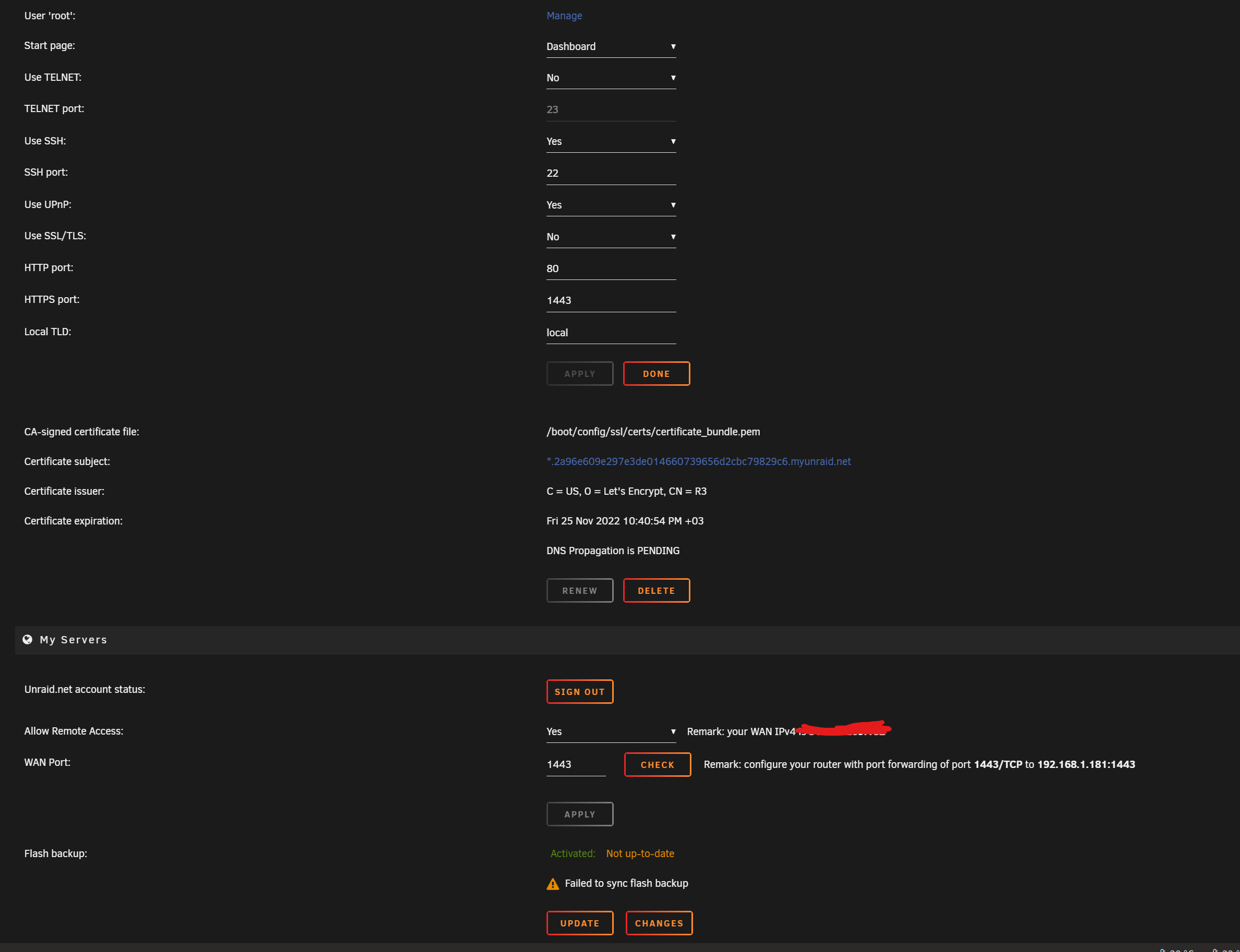

the server stuck at DNS Propagation is PENDING I can't access it remotely with https or via my-servers dashboard

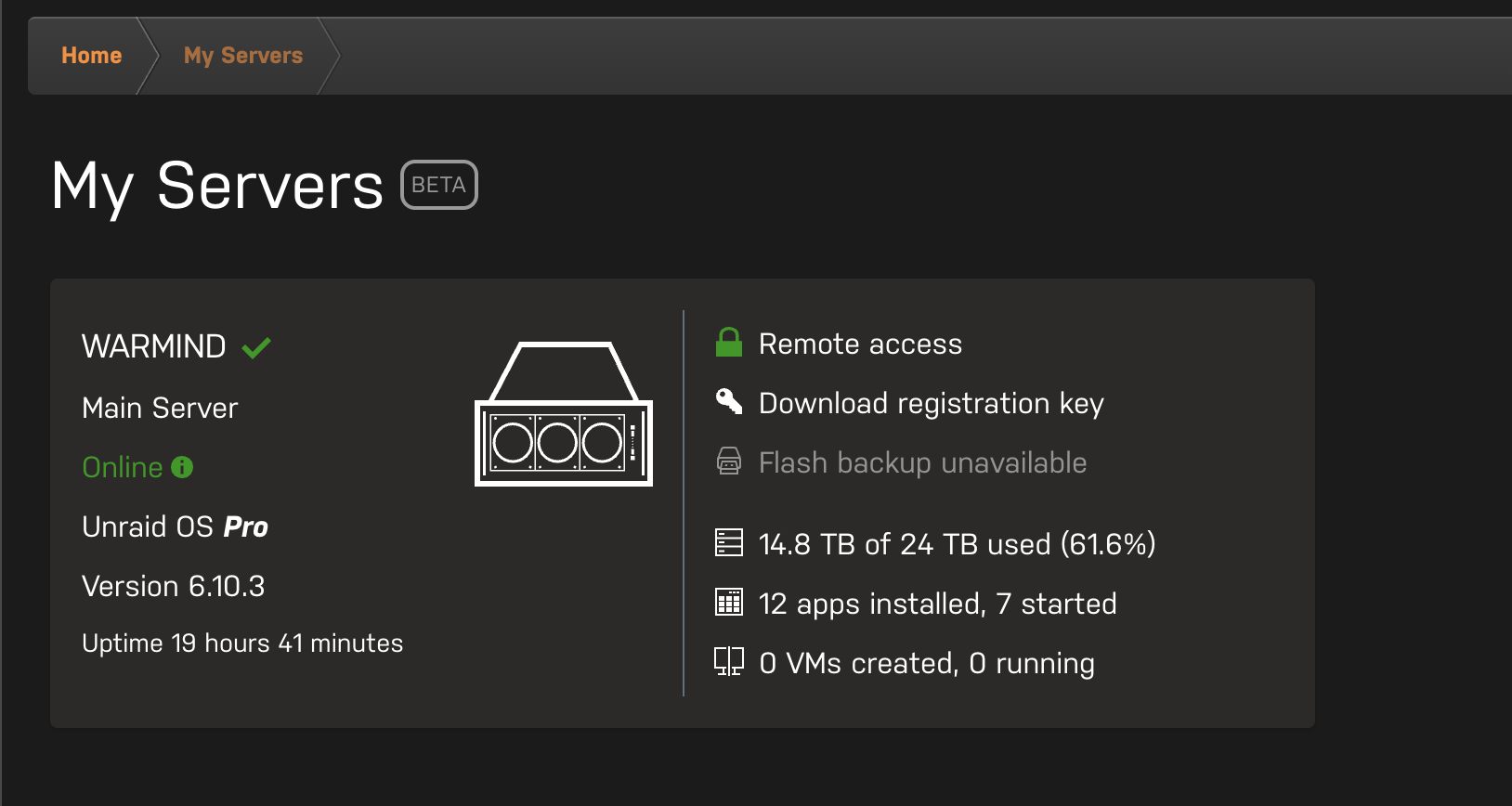

wired thing is the dashboard shows that remote access is green !!

tried to remove the certificate by delete button and the rm command also reloaded the server and also tried to reload nginx with command



I can only access the server with http with port 80 also when I type just the public ip in the browser I get to the login page just fine

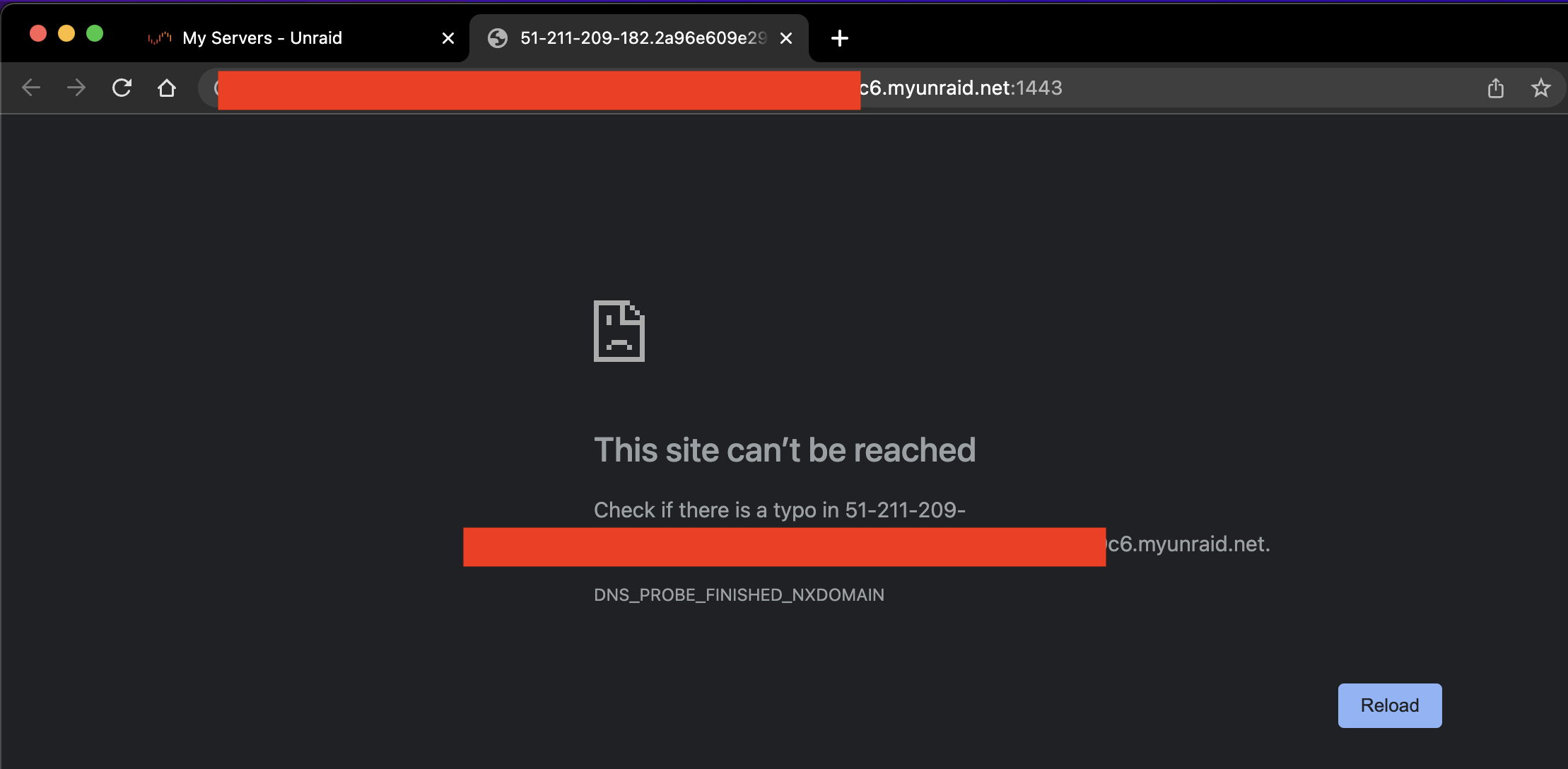

but via https is not possible



I also tried chrome & safari on the remote computer

tried to change the https ip and both 443 & 1443 gave me the same results

those ports are open in the router and tested it that via canyouseeme.org

I also can access the server locally via warmind.local

I don't have pihole, pfsense , reverse proxy or any similar stuff on my network

Plex remotely working fine.



I also tired to DNS solution in the network page the 0.0.0.0 - 8.8.8.8 also didn't work

my router dns setting now at 8.8.8.8 - 8.8.4.4



My network now

Server > router > WAN Modem



php /usr/local/emhttp/plugins/dynamix/include/UpdateDNS.php -v
(Output is anonymized, use '-vv' to see full details)
Unraid OS 6.10.3 with My Servers plugin version 2022.09.01.2208
✅  Signed in to Unraid.net as Thamer Alfuraiji
Use SSL is no
✅  Rebind protection is disabled for myunraid.net
Local Access url: http://WARMIND.local
⚠️  192-168-1-181.hash.myunraid.net does not resolve to an IP address, it should resolve to 192.168.1.181
Remote Access url: https://[redacted].hash.myunraid.net:[redacted]
⚠️  [redacted].hash.myunraid.net does not resolve to an IP address

Request:
{
    "keyfile": "[redacted]",
    "plgversion": "2022.09.01.2208",
    "internalhostname": "WARMIND.local",
    "internalport": "80",
    "internalprotocol": "http",
    "remoteaccess": "yes",
    "servercomment": "Main Server",
    "servername": "WARMIND",
    "internalip": "192.168.1.181",
    "externalhostname": "*.hash.myunraid.net",
    "externalport": "[redacted]",
    "externalprotocol": "https",
    "unraidreport": "{\"os\":{\"serverName\":\"WARMIND\",\"version\":\"6.10.3\"},\"api\":{\"version\":\"2.50.0\",\"status\":\"running\",\"environment\":\"production\"},\"apiKey\":\"valid\",\"myServers\":{\"status\":\"authenticated\",\"myServersUsername\":\"Thamer Alfuraiji\"},\"relay\":{\"status\":\"connected\"},\"minigraph\":{\"status\":\"connected\"},\"cloud\":{\"status\":\"ok\",\"ip\":\"52.40.54.163\"}}"
}
Response (HTTP 200):
[]
success

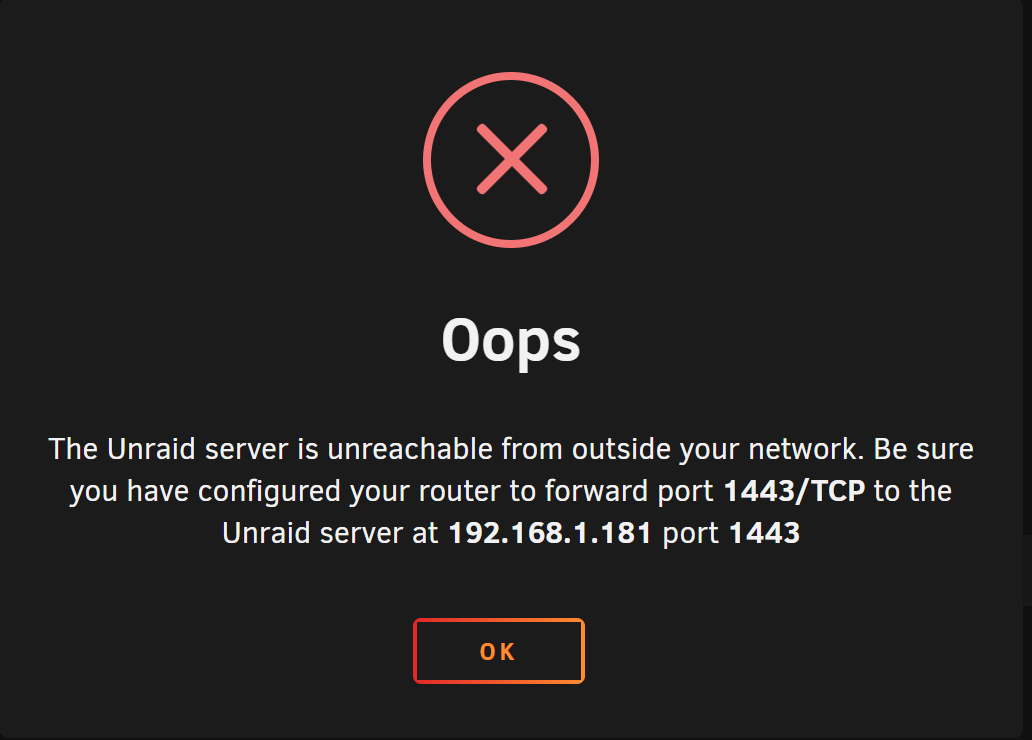

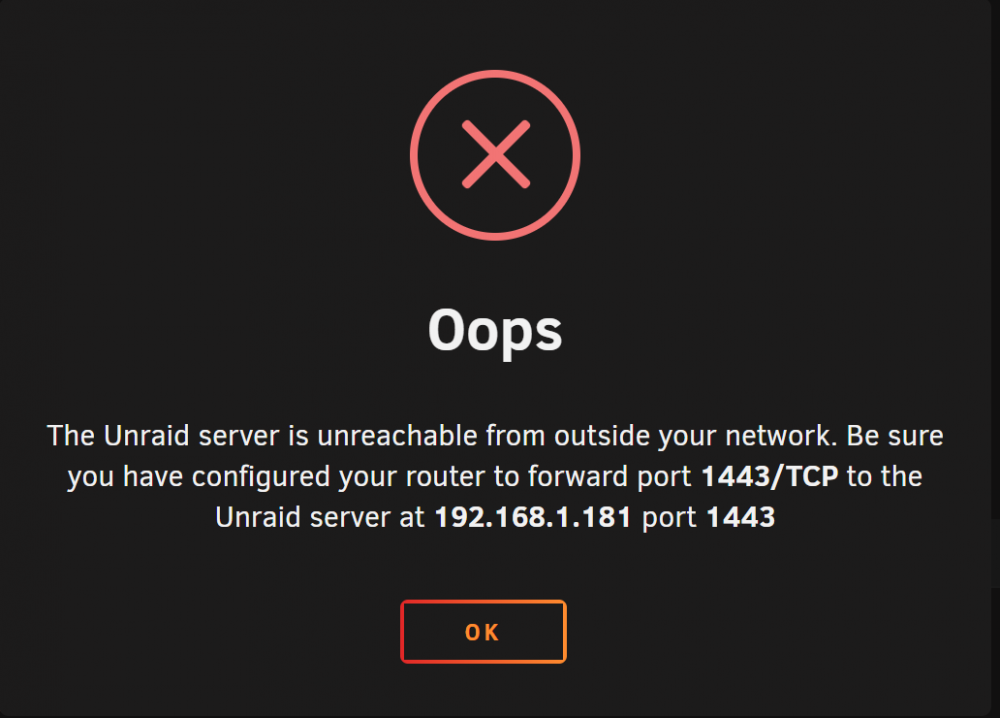

attached screenshots And diagnostics

warmind-diagnostics-20220904-0148.zip

Edited September 3, 20223 yr by Thamer Alfuraiji
more screenshots

On 9/3/2022 at 4:01 PM, Thamer Alfuraiji said:

I also tired to DNS solution in the network page the 0.0.0.0 - 8.8.8.8  also didn't work. my router dns setting now at 8.8.8.8 - 8.8.4.4



You are having DNS problems, so let's remove your router from the equation. I'm not sure what you meant by 0.0.0.0, but please go to Settings -> Network Settings and change your IPv4 DNS server to 8.8.8.8, wait a few minutes, and then provide updated diagnostics.

Oh, you are using jumbo frames. That causes no end of trouble, I highly recommend you go to Settings -> Network Settings and change the "Desired MTU" for each interface back to the default of 1500.

I did the 8.8.8.8 and switched back to 1500 MTU also created new certificate. and still on stuck Pending ...



warmind-diagnostics-20220909-0914.zip

Please completely remove your router from the list of DNS servers:

DNS_SERVER1="192.168.1.1"
DNS_SERVER2="8.8.8.8"
DNS_SERVER3="8.8.4.4"

Same issue

warmind-diagnostics-20220909-1917.zip

OK for a sanity check, let's confirm the DDNS was setup properly. Please run this:

php /usr/local/emhttp/plugins/dynamix/include/UpdateDNS.php -vv

and send it to me in a DM. This is not anonymized so don't post it here.

2 minutes ago, ljm42 said:

OK for a sanity check, let's confirm the DDNS was setup properly. Please run this:

php /usr/local/emhttp/plugins/dynamix/include/UpdateDNS.php -vv

and send it to me in a DM. This is not anonymized so don't post it here.



Sent

To catch everyone else up... we had a DDNS issue on our end which is now resolved, and remote access is now working as expected, woot!
