dboris Posted July 31 Share Posted July 31 Some guys on the Proxmox forum were able to fix the A770M issue I encounter. Any idea how to translate it on Unraid ? Thanks, Quote Link to comment
SimonF Posted August 1 Share Posted August 1 7 hours ago, dboris said: Some guys on the Proxmox forum were able to fix the A770M issue I encounter. Any idea how to translate it on Unraid ? Thanks, There are hooks in /etc/libvirt/hooks I would need to work out which status the proxmox one relates to. Suspect will be prepare https://libvirt.org/hooks.html#etc-libvirt-hooks-qemu # Clear the reset methods before each start of the VM, to prevent the PVE host locking up # flr and bus methods dont work and re-appear after reboots. # bus method may still be attempted in subseqent VM starts, even if reset_method already cleared. echo "VM=$vmId - $runPhase : Clearing Intel dGPU and audio device reset_methods." echo > /sys/bus/pci/devices/0000:03:00.0/reset_method echo > /sys/bus/pci/devices/0000:04:00.0/reset_method # will appear as the following in journalctl: # kernel: vfio-pci 0000:03:00.0: All device reset methods disabled by user # kernel: vfio-pci 0000:04:00.0: All device reset methods disabled by user Quote Link to comment
dboris Posted August 1 Share Posted August 1 (edited) As far as I understand, the ARC gpu won't crash if I clearing (both devices) by making sure that this file is empty using : nano /sys/bus/pci/devices/0000:03:00.0/reset_method same for the audio device : 0000:04:00.0 So, the first thing I will do is make sure this manual fix works, restart the VM, clear, etc. I'll report my findings here tonight ! On the other hand, I don't understand yet where I should put the script / the uuid part. I'll check the content of /etc/libvirt/hooks to get some clues tonight too. Don't hesitate if you have any ideas of the directions to take, even if it involves testing. My arrays cries in bad blocks already. I already spent countless (worthless?) hours trying to get that NUC's GPU working as it's a perfect candidate for my use case. Wish I had found that post last month. Edited August 1 by dboris Quote Link to comment
SimonF Posted August 1 Share Posted August 1 4 hours ago, dboris said: As far as I understand, the ARC gpu won't crash if I clearing (both devices) by making sure that this file is empty using : nano /sys/bus/pci/devices/0000:03:00.0/reset_method same for the audio device : 0000:04:00.0 So, the first thing I will do is make sure this manual fix works, restart the VM, clear, etc. I'll report my findings here tonight ! On the other hand, I don't understand yet where I should put the script / the uuid part. I'll check the content of /etc/libvirt/hooks to get some clues tonight too. Don't hesitate if you have any ideas of the directions to take, even if it involves testing. My arrays cries in bad blocks already. I already spent countless (worthless?) hours trying to get that NUC's GPU working as it's a perfect candidate for my use case. Wish I had found that post last month. Create file in /etc/libvirt/hooks/qemu.d/ if dir does not exist create. mkdir /etc/libvirt/hooks/qemu.d/ nano /etc/libvirt/hooks/qemu.d/"Window11_2-Arc_reset" with the lines below and chmod +x /etc/libvirt/hooks/qemu.d/"Window11_2-Arc_reset" You can removing the logging if required. Example hooks file. You can do something in bash if you want. #!/usr/bin/env php <?php function log_to_log($m, $type = "NOTICE") { if ($type == "DEBUG" ) return NULL; $m = print_r($m,true); $m = str_replace("\n", " ", $m); $m = str_replace('"', "'", $m); $cmd = "/usr/bin/logger ".'"'.$m.'"' ; exec($cmd); } #Reset # echo > /sys/bus/pci/devices/0000:03:00.0/reset_method # echo > /sys/bus/pci/devices/0000:04:00.0/reset_method # # Note if this fails then the VM will not start. # $vmname = "Windows 11_2" ; log_to_log("Hooks Arc Clear" .$argv[2]." VM:".$argv[1]) ; if ($argv[2] == 'prepare' && $argv[1] == "$vmname"){ log_to_log( "Clear /sys/bus/pci/devices/0000:03:00.0/reset_method") ; file_put_contents("/sys/bus/pci/devices/0000:03:00.0/reset_method", " ") ; log_to_log( "Clear /sys/bus/pci/devices/0000:04:00.0/reset_method") ; file_put_contents("/sys/bus/pci/devices/0000:04:00.0/reset_method", " ") ; } ?> Aug 1 computenode root: Hooks Arc Clear prepare VM:Windows 11_2 Aug 1 computenode root: Clear /sys/bus/pci/devices/0000:03:00.0/reset_method Aug 1 computenode root: Clear /sys/bus/pci/devices/0000:04:00.0/reset_method 1 Quote Link to comment
dboris Posted August 2 Share Posted August 2 Sooo it worked ! On the other hand I still randomly get the same error on : [8086:460d] 00:01.0 PCI bridge: Intel Corporation 12th Gen Core Processor PCI Express x16 Controller #1 (rev 02) I modified the script you gave me accordingly but I still get the bug. The UI of the server is unresponsive, but I was able to go check in the related reset_method file : it's empty. However, after crashes, I noticed it's usually not empty ("bus"). GNU nano 7.2 /etc/libvirt/hooks/qemu.d/Window11-Arc_reset #!/usr/bin/env php <?php function log_to_log($m, $type = "NOTICE") { if ($type == "DEBUG" ) return NULL; $m = print_r($m,true); $m = str_replace("\n", " ", $m); $m = str_replace('"', "'", $m); $cmd = "/usr/bin/logger ".'"'.$m.'"' ; exec($cmd); } #Reset # echo > /sys/bus/pci/devices/0000:03:00.0/reset_method # echo > /sys/bus/pci/devices/0000:04:00.0/reset_method # # Note if this fails then the VM will not start. # $vmname = "Windows 11" ; log_to_log("Hooks Arc Clear" .$argv[2]." VM:".$argv[1]) ; if ($argv[2] == 'prepare' && $argv[1] == "$vmname"){ log_to_log( "Clear /sys/bus/pci/devices/0000:03:00.0/reset_method") ; file_put_contents("/sys/bus/pci/devices/0000:03:00.0/reset_method", " ") ; log_to_log( "Clear /sys/bus/pci/devices/0000:04:00.0/reset_method") ; file_put_contents("/sys/bus/pci/devices/0000:04:00.0/reset_method", " ") ; log_to_log( "Clear /sys/bus/pci/devices/0000:01:00.0/reset_method") ; file_put_contents("/sys/bus/pci/devices/0000:01:00.0/reset_method", " ") ; } ?> Quote Link to comment
SimonF Posted August 3 Share Posted August 3 8 hours ago, dboris said: Sooo it worked ! On the other hand I still randomly get the same error on : [8086:460d] 00:01.0 PCI bridge: Intel Corporation 12th Gen Core Processor PCI Express x16 Controller #1 (rev 02) I modified the script you gave me accordingly but I still get the bug. The UI of the server is unresponsive, but I was able to go check in the related reset_method file : it's empty. However, after crashes, I noticed it's usually not empty ("bus"). GNU nano 7.2 /etc/libvirt/hooks/qemu.d/Window11-Arc_reset #!/usr/bin/env php <?php function log_to_log($m, $type = "NOTICE") { if ($type == "DEBUG" ) return NULL; $m = print_r($m,true); $m = str_replace("\n", " ", $m); $m = str_replace('"', "'", $m); $cmd = "/usr/bin/logger ".'"'.$m.'"' ; exec($cmd); } #Reset # echo > /sys/bus/pci/devices/0000:03:00.0/reset_method # echo > /sys/bus/pci/devices/0000:04:00.0/reset_method # # Note if this fails then the VM will not start. # $vmname = "Windows 11" ; log_to_log("Hooks Arc Clear" .$argv[2]." VM:".$argv[1]) ; if ($argv[2] == 'prepare' && $argv[1] == "$vmname"){ log_to_log( "Clear /sys/bus/pci/devices/0000:03:00.0/reset_method") ; file_put_contents("/sys/bus/pci/devices/0000:03:00.0/reset_method", " ") ; log_to_log( "Clear /sys/bus/pci/devices/0000:04:00.0/reset_method") ; file_put_contents("/sys/bus/pci/devices/0000:04:00.0/reset_method", " ") ; log_to_log( "Clear /sys/bus/pci/devices/0000:01:00.0/reset_method") ; file_put_contents("/sys/bus/pci/devices/0000:01:00.0/reset_method", " ") ; } ?> I cannot remember why I have it in on my test system, maybe was related to my ARC770 but maybe worth trying this, You will need to reboot for it to take effect. May also increase your power draw. root@computenode:~# cat /boot/config/modprobe.d/vfio.conf options vfio-pci disable_idle_d3=0 root@computenode:~# Quote Link to comment
dboris Posted August 5 Share Posted August 5 On 8/3/2023 at 8:41 AM, SimonF said: I cannot remember why I have it in on my test system, maybe was related to my ARC770 but maybe worth trying this, You will need to reboot for it to take effect. May also increase your power draw. root@computenode:~# cat /boot/config/modprobe.d/vfio.conf options vfio-pci disable_idle_d3=0 root@computenode:~# Update : I was able to benchmark the GPU in a VM. The results were so underwhelming, probably because of the ReBAR requirements that I just stopped trying to improve the situations. Quote Link to comment
kaares Posted August 8 Share Posted August 8 I just noticed that thor updated his kernel with (untested) ZFS support. Some of you might be waiting for that. Quote Link to comment
bubbadrk Posted August 18 Share Posted August 18 I have not had a chance to read through all the pages on this thread but was considering grabbing an Arc. Does it still take some tinkering to get it working properly on a docker container through Unraid? I have a working system now so I dont want to tinker with something stable for little benefit but if it is close to being supported I might just grab one now. 1 Quote Link to comment

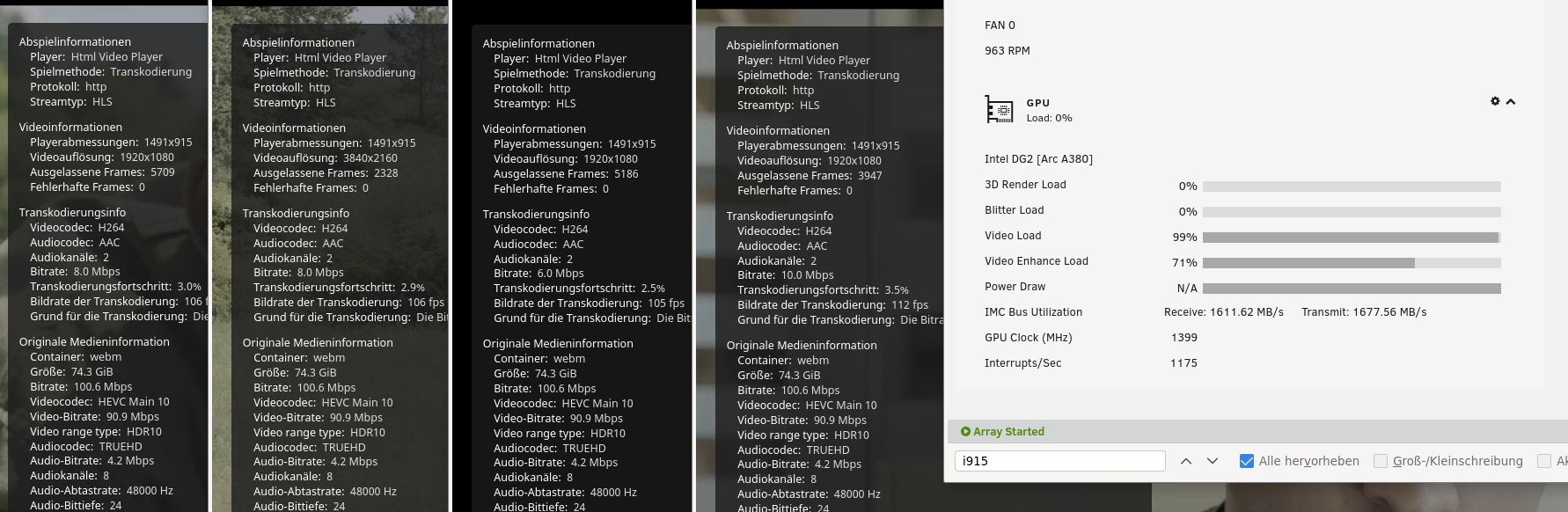

kaares Posted August 18 Share Posted August 18 It runs as intended in a docker if you use the kernel by thor. This is how I use it. I get AV1 support in Plex so that is pretty cool. I'm not sure if it is as performant as the nvidia tesla t4. I get some buffering when transcoding a 4k hdr to lower resolution sdr with buring in subtitles. If I skip the subtitles it is smooth. I seem to remember the nvidia not buffering in this scenario. I'm currently having too much fun testing av1 to switch back to test. If you use the official unraid release it will not support hardware video encode/decode. (You need the kernel to be 6.2 or later, the official Unraid is only 6.1.x.) Installing the kernel is as easy as copying four files to the boot folder. It will technically work as a video output in 6.1 but without hardware encode/decode. If you have two gfx cards and want to combine the thor kernel with a nvidia gfx-card it will not work. The nvidia driver will refuse to load. If you want to use nvidia stuff stay on the official release. ZFS is untested with the thor kernel. It's included, but none has mentioned testing it yet. Quote Link to comment
Beaniiman Posted August 22 Share Posted August 22 On 8/18/2023 at 12:14 PM, kaares said: It runs as intended in a docker if you use the kernel by thor. This is how I use it. I get AV1 support in Plex so that is pretty cool. I'm not sure if it is as performant as the nvidia tesla t4. I get some buffering when transcoding a 4k hdr to lower resolution sdr with buring in subtitles. If I skip the subtitles it is smooth. I seem to remember the nvidia not buffering in this scenario. I'm currently having too much fun testing av1 to switch back to test. If you use the official unraid release it will not support hardware video encode/decode. (You need the kernel to be 6.2 or later, the official Unraid is only 6.1.x.) Installing the kernel is as easy as copying four files to the boot folder. It will technically work as a video output in 6.1 but without hardware encode/decode. If you have two gfx cards and want to combine the thor kernel with a nvidia gfx-card it will not work. The nvidia driver will refuse to load. If you want to use nvidia stuff stay on the official release. ZFS is untested with the thor kernel. It's included, but none has mentioned testing it yet. Any luck with HW Tone Mapping, I had to disable tone mapping on HDR to get it to HW Transcode. Other than that everything works great now. Quote Link to comment

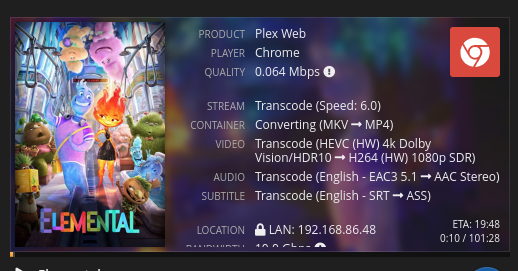

kaares Posted August 22 Share Posted August 22 1 hour ago, Beaniiman said: Any luck with HW Tone Mapping, I had to disable tone mapping on HDR to get it to HW Transcode. Other than that everything works great now. Yeah, no issues. Quote Link to comment
requiRe Posted August 23 Share Posted August 23 (edited) Has someone tested ZFS with the Thor kernel yet? Edited August 23 by requiRe Quote Link to comment
requiRe Posted August 25 Share Posted August 25 On 8/23/2023 at 9:40 AM, requiRe said: Has someone tested ZFS with the Thor kernel yet? Decided to test it out myself, and thus far it works without problems. 1 1 Quote Link to comment
Riverfrome Posted September 4 Share Posted September 4 Look I understand it’s still in its infancy and I really respect and admire all the testing and work around people are doing…. Especially because in practice this/these cards show big promise to us… but looking at the data given I still see it’s far from a viable option. I run the Quadro P2000…. It idles at 6w and about 18++w when transcoding… I’ll max have 4-6 users transcoding Plex at a time… I run it along side a i7-7700. I of course want quality and I care about power… that’s also why I didn’t upgrade to 13th gen and just use the iGPU ad if that’s running it’ll use even more power than the p2000… and at the end of the day the p2000 just works…. whats your experience for the others that run/ran the quadro? Have you switched to IGPU or the ARC gpu? Results? Feelings? Quote Link to comment
ich777 Posted September 7 Share Posted September 7 On 9/4/2023 at 6:53 AM, Riverfrome said: I of course want quality and I care about power… But then you should use something more efficient like a Nvidia T1000 and even consider switching to the iGPU from your 7700 since it is really, really more efficient (a few μW in Idel and depending on your iGPU up to around 12W max). I don't want to start a war in terms of quality but some say that the Intel iGPUs are far superior than Pascal and older NVENC. Sure the Nvidia cards are faster in terms of FPS but do you need that for HW transcoding...? Most applications like Emby and Plex throttle the transcoding anyways. So to speak you even can transcode with a Intel iGPU 4-6 simultaneous streams. Sure I'm the maintainer from the Nvidia Driver plugin and for people who have no iGPU or are in need of 10+ simultaneous streams I completely get the point but for people with only a few streams a Intel iGPU does the job good enough (of course if someone wants to do something else too ). On 9/4/2023 at 6:53 AM, Riverfrome said: at the end of the day the p2000 just works…. When 6.13 is released ARC will be natively supported and it will also just work, even easier than a Nvidia GPU because you don't have to install a driver that is about 200MB, add three additional parameters to the Docker template (okay, you also have to add one entry) and you don't have to restart the Docker service/entire Server, so I don't see this as a valid argument. On 9/4/2023 at 6:53 AM, Riverfrome said: Have you switched to IGPU or the ARC gpu? Results? I've now run a few test with my Intel ARC A380 on a custom built Unraid version and these cards are fast, really fast (keep in mind that the official 6.12.x release doesn't support ARC) : I haven't tested the power draw yet because this was not my main goal, it was just to investigate what's needed to get them running on Unraid back then. I saw that there where reports about high power draw in Idle but there is already a fix out there (I think). Please keep also in mind that this is more or less a feature request thread and where people can communicate about their Intel ARC experience and custom Kernels, they are not really interested in Nvidia cards because they most certainly already have a ARC GPU on hand and don't want to buy a new one. Hope you get my point and answered most (or hopefully all) of your questions. 1 1 1 Quote Link to comment
FlyingTexan Posted September 9 Author Share Posted September 9 If anyone is looking for an ARC card I'll cut you a deal. I have mine sitting in a drawer, got an RTX 4060 instead, Never once used probably still has the plastic on it. Bought it off newegg can give you a copy of the receipt for any warranty. I think I've had it since october. Quote Link to comment
domrockt Posted September 19 Share Posted September 19 (edited) Hey 👋 i got mine today and did a quick passtrough to an Win11 VM. Did a few VM reboots and forced shutdowns and have no reseat bug. *edit* when a Monitor is connected, i cant force close the VM* reseat Bug? iam not at Home right now but iam on 6.12.4 and habe the Intel Arc a770 16GB Limited Edition i read the whole thread right now to be up to Date Edited September 19 by domrockt Quote Link to comment

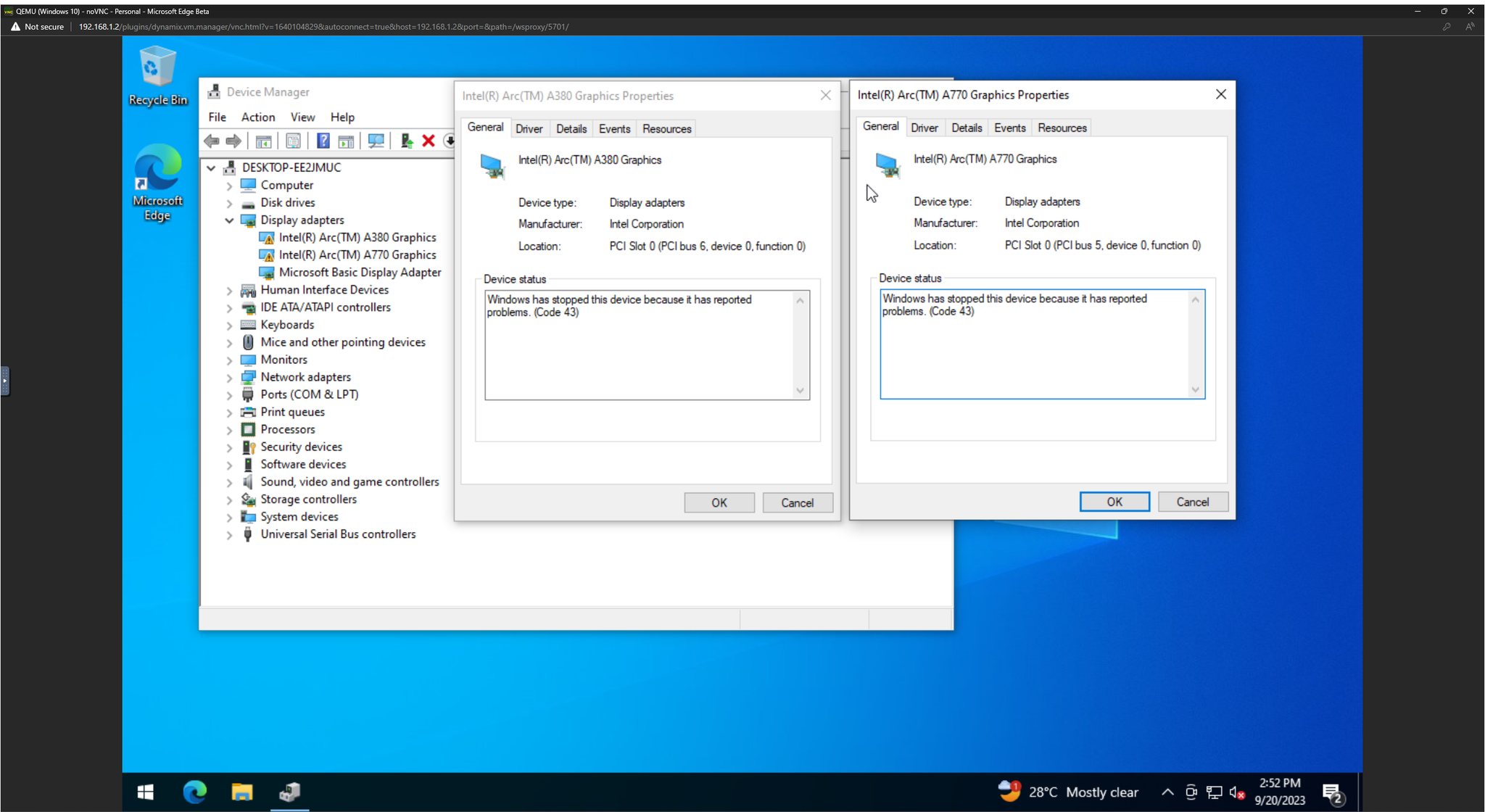

adamgwaps Posted Thursday at 05:19 AM Share Posted Thursday at 05:19 AM Anyone can help me? it used to work on Ryzen now i migrated to Epyc maybe due to no Resizeable Bar in bios,the freaking Error 43 already tried every custom config on VM, Tried both machine types, tried vbios, i mean everything, i hope someone can help me how to make it work ill be willing to buy you a coffee if ever my problem gets resolved thanks! Quote Link to comment
