nyanmisaka Posted March 24, 2023 Share Posted March 24, 2023 2 hours ago, Beaniiman said: OK, now trying jellyfin for the first time and can not seem to get transcoding to work at all. I just get an error during playback. Anyone used jellyfin with an ARC GPU that could help out a newbie. Please share the ffmpeg transcode log file. Quote Link to comment
Beaniiman Posted March 24, 2023 Share Posted March 24, 2023 Where do I find that, I can try and transcode something and get the log if you can tell me where the log is. Quote Link to comment
Beaniiman Posted March 24, 2023 Share Posted March 24, 2023 Is this what you need? See Attached. Log[1] Quote Link to comment
nyanmisaka Posted March 24, 2023 Share Posted March 24, 2023 (edited) 1 hour ago, Beaniiman said: Is this what you need? See Attached. Log[1] 5.91 kB · 2 downloads You didn't set the correct permissions to allow Jellyfin to access /dev/dri/renderD128. We have detailed instructions on setting up hardware acceleration. On host: sudo usermod -aG render jellyfin sudo usermod -aG video jellyfin Docker: https://jellyfin.org/docs/general/administration/hardware-acceleration/intel/#configure-with-linux-virtualization Also, use QSV instead of VA-API. Edited March 24, 2023 by nyanmisaka 1 Quote Link to comment
goodolwheatie Posted March 24, 2023 Share Posted March 24, 2023 Do you need a Linux 6.2 custom kernel for this to work? I tried running Docker Jellyfin with just unRaid 6.12 RC2 and it is detecting the video card after I did the probe stuff. I'm just getting these errors. It works fine if I use my IGPU Intel 13500. [h264_qsv @ 0x56080e203e80] Error during QSV decoding.: device failed (-17) Error while decoding stream #0:0: Input/output error [h264_qsv @ 0x56080e203e80] Err or during QSV decoding.: device failed (-17) Error while decoding stream #0:0: Input/output error Log_QSV_ARC.txt Quote Link to comment
nyanmisaka Posted March 24, 2023 Share Posted March 24, 2023 30 minutes ago, goodolwheatie said: Do you need a Linux 6.2 custom kernel for this to work? I tried running Docker Jellyfin with just unRaid 6.12 RC2 and it is detecting the video card after I did the probe stuff. I'm just getting these errors. It works fine if I use my IGPU Intel 13500. [h264_qsv @ 0x56080e203e80] Error during QSV decoding.: device failed (-17) Error while decoding stream #0:0: Input/output error [h264_qsv @ 0x56080e203e80] Err or during QSV decoding.: device failed (-17) Error while decoding stream #0:0: Input/output error Log_QSV_ARC.txt 704.17 kB · 0 downloads Correct. Linux 6.2 is the first version that has full ARC support at kernel level. -17 device failed error means your current kernel driver doesn't support QSV yet. You have to wait Unraid to update its kernel. Quote Jellyfin server 10.8.9+ and the latest jellyfin-ffmpeg5 support Intel ARC discrete GPU on both Windows and Linux 6.2+. Quote Link to comment
technicavivunt Posted March 24, 2023 Share Posted March 24, 2023 Can confirm @DeadDevil6210 method works for me as well with the ASRock A380 on 6.12 RC2 for emby. Still struggling to get handbrake going. For emby Arc Cards aren't supported just yet except in the :beta branch. Once I did that the GPU popped up along side my nvidia gpu. Anyone got it working in handbrake yet? Quote Link to comment
goodolwheatie Posted March 24, 2023 Share Posted March 24, 2023 1 hour ago, nyanmisaka said: Correct. Linux 6.2 is the first version that has full ARC support at kernel level. -17 device failed error means your current kernel driver doesn't support QSV yet. You have to wait Unraid to update its kernel. Makes sense! 😸Thanks for the response cat! Quote Link to comment
Beaniiman Posted March 24, 2023 Share Posted March 24, 2023 5 hours ago, nyanmisaka said: You didn't set the correct permissions to allow Jellyfin to access /dev/dri/renderD128. We have detailed instructions on setting up hardware acceleration. On host: sudo usermod -aG render jellyfin sudo usermod -aG video jellyfin Docker: https://jellyfin.org/docs/general/administration/hardware-acceleration/intel/#configure-with-linux-virtualization Also, use QSV instead of VA-API. OK I tried that as well as "input" and got 2 different error messages. I never saw anything about creating a user anywhere, what do I do now? Thanks for the help btw, learning slowly. # sudo usermod -aG render jellyfin sudo usermod -aG video jellyfin sudo usermod -aG input jellyfin usermod: group 'render' does not exist usermod: user 'jellyfin' does not exist usermod: user 'jellyfin' does not exist Quote Link to comment
nyanmisaka Posted March 25, 2023 Share Posted March 25, 2023 (edited) 8 hours ago, Beaniiman said: OK I tried that as well as "input" and got 2 different error messages. I never saw anything about creating a user anywhere, what do I do now? Thanks for the help btw, learning slowly. # sudo usermod -aG render jellyfin sudo usermod -aG video jellyfin sudo usermod -aG input jellyfin usermod: group 'render' does not exist usermod: user 'jellyfin' does not exist usermod: user 'jellyfin' does not exist You didn't use the deb installation package, right? jellyfin user comes with the jellyfin-server*.deb package. If you use portable jellyfin build, you need to add the current user to the render group. usermod -aG render $USER usermod -aG video $USER Edited March 25, 2023 by nyanmisaka Quote Link to comment
Beaniiman Posted March 26, 2023 Share Posted March 26, 2023 hmm, I did that and it appears the same issue is still there. Looking at the logs its the same problem. I used the jellyfin/jellyfin docker from the store, the official one. Are there more things I need to change in that config? Quote Link to comment
nyanmisaka Posted March 26, 2023 Share Posted March 26, 2023 10 hours ago, Beaniiman said: hmm, I did that and it appears the same issue is still there. Looking at the logs its the same problem. I used the jellyfin/jellyfin docker from the store, the official one. Are there more things I need to change in that config? https://jellyfin.org/docs/general/administration/hardware-acceleration/intel/#official-docker Read the step 1 and 2. Set the correct "group-add" value. Quote Link to comment
Anadoliev Posted March 26, 2023 Share Posted March 26, 2023 On 3/25/2023 at 7:17 AM, nyanmisaka said: I think I have the same problem with the groups as Beanliman has! I don't understand what to do with this groups. Is that the standard way to make QSV work or it so hard because Intel arc is still not fully supported? Anyway it seems that my A380 is recognized and the driver is loaded but for some reason I can't get Tdarr and Jellyfin use it. I spent the last night troubleshooting but maybe it better to wait for the official support! FFmpeg.Transcode-2023-03-26_18-01-18_13932a79fd3043d9690bc4e830695695_df787dc8.log Quote Link to comment
Beaniiman Posted March 29, 2023 Share Posted March 29, 2023 On 3/26/2023 at 10:14 AM, Anadoliev said: I think I have the same problem with the groups as Beanliman has! I don't understand what to do with this groups. Is that the standard way to make QSV work or it so hard because Intel arc is still not fully supported? Anyway it seems that my A380 is recognized and the driver is loaded but for some reason I can't get Tdarr and Jellyfin use it. I spent the last night troubleshooting but maybe it better to wait for the official support! FFmpeg.Transcode-2023-03-26_18-01-18_13932a79fd3043d9690bc4e830695695_df787dc8.log 13.84 kB · 3 downloads Yeah, I gave up. I sure its something silly but I am too new to this level of customization I think. Quote Link to comment
FlyingTexan Posted April 4, 2023 Author Share Posted April 4, 2023 Is 6.12 to include the latest Linux kernel with full support? After six months of talking about it I’m kinda wondering why updating the kernel is so difficult for unraid to do. Is there a lot to be done on the OS side? Quote Link to comment
JorgeB Posted April 4, 2023 Share Posted April 4, 2023 7 minutes ago, FlyingTexan said: After six months of talking about it I’m kinda wondering why updating the kernel is so difficult for unraid to do. Current open-zfs does not support kernel 6.2, only up to 6.1, since Unraid now uses zfs it must wait for a compatible release before updating. Quote Link to comment
IllMethods Posted April 23, 2023 Share Posted April 23, 2023 I have a 16gb A770. If I upgrade to the RC, will it work out of the box? It is currently sitting in my unraid on the latest stable build but it isn't picking it up. I'd upgrade to the rc if it will make it work though. Quote Link to comment
SimonF Posted April 23, 2023 Share Posted April 23, 2023 1 hour ago, IllMethods said: I have a 16gb A770. If I upgrade to the RC, will it work out of the box? It is currently sitting in my unraid on the latest stable build but it isn't picking it up. I'd upgrade to the rc if it will make it work though. You may have to do the modprobe switch to enable pre 6.12, I cannot remember if it was seen in 6.11 series. Does it show in lspci? 03:00.0 VGA compatible controller: Intel Corporation DG2 [Arc A770] (rev 08) 04:00.0 Audio device: Intel Corporation DG2 Audio Controller root@computenode:~# cat /boot/config/modprobe.d/i915.conf options i915 force_probe=56a0 I have a 770 in my test server which is currently on 6.12 the value should show in root@computenode:~# dmesg | grep i915 Quote Link to comment
IllMethods Posted April 23, 2023 Share Posted April 23, 2023 (edited) 2 hours ago, SimonF said: You may have to do the modprobe switch to enable pre 6.12, I cannot remember if it was seen in 6.11 series. Does it show in lspci? 03:00.0 VGA compatible controller: Intel Corporation DG2 [Arc A770] (rev 08) 04:00.0 Audio device: Intel Corporation DG2 Audio Controller root@computenode:~# cat /boot/config/modprobe.d/i915.conf options i915 force_probe=56a0 I have a 770 in my test server which is currently on 6.12 the value should show in root@computenode:~# dmesg | grep i915 I upgraded to 6.12.0-rc3 2023-04-14 It now shows under system devices [8086:56a0]03:00.0 VGA compatible controller: Intel Corporation DG2 [Arc A770] (rev 08) [8086:4f90]04:00.0 Audio device: Intel Corporation DG2 Audio Controller I still can not see it using intel_gpu_top though. It also doesn't show if I type cd /dev/dri in the terminal. I can only see my igpu. I do have the drivers (I think), just not quite sure where I need to put them. dmesg | grep i915 [ 30.877393] i915 0000:00:02.0: vgaarb: deactivate vga console [ 30.877433] i915 0000:00:02.0: [drm] Using Transparent Hugepages [ 30.877996] i915 0000:00:02.0: vgaarb: changed VGA decodes: olddecodes=io+mem,decodes=none:owns=io+mem [ 30.878366] mei_hdcp 0000:00:16.0-b638ab7e-94e2-4ea2-a552-d1c54b627f04: bound 0000:00:02.0 (ops i915_hdcp_component_ops [i915]) [ 30.880444] i915 0000:00:02.0: [drm] Finished loading DMC firmware i915/adls_dmc_ver2_01.bin (v2.1) [ 30.897672] i915 0000:00:02.0: [drm] GuC firmware i915/tgl_guc_70.bin version 70.5.1 [ 30.897676] i915 0000:00:02.0: [drm] HuC firmware i915/tgl_huc.bin version 7.9.3 [ 30.910846] i915 0000:00:02.0: [drm] HuC authenticated [ 30.910855] i915 0000:00:02.0: [drm] GuC submission disabled [ 30.910861] i915 0000:00:02.0: [drm] GuC SLPC disabled [ 30.911678] mei_pxp 0000:00:16.0-fbf6fcf1-96cf-4e2e-a6a6-1bab8cbe36b1: bound 0000:00:02.0 (ops i915_pxp_tee_component_ops [i915]) [ 30.911766] i915 0000:00:02.0: [drm] Protected Xe Path (PXP) protected content support initialized [ 30.935475] [drm] Initialized i915 1.6.0 20201103 for 0000:00:02.0 on minor 0 [ 30.938966] i915 0000:03:00.0: Your graphics device 56a0 is not properly supported by the driver in this kernel version. To force driver probe anyway, use i915.force_probe=56a0 [ 31.617122] fbcon: i915drmfb (fb0) is primary device [ 31.652671] i915 0000:00:02.0: [drm] fb0: i915drmfb frame buffer device Edited April 23, 2023 by IllMethods Quote Link to comment
SimonF Posted April 23, 2023 Share Posted April 23, 2023 13 minutes ago, IllMethods said: I upgraded to 6.12.0-rc3 2023-04-14 It now shows under system devices [8086:56a0]03:00.0 VGA compatible controller: Intel Corporation DG2 [Arc A770] (rev 08) [8086:4f90]04:00.0 Audio device: Intel Corporation DG2 Audio Controller I still can not see it using intel_gpu_top though. It also doesn't show if I type cd /dev/dri in the terminal. I can only see my igpu. I do have the drivers (I think), just not quite sure where I need to put them. dmesg | grep i915 [ 30.877393] i915 0000:00:02.0: vgaarb: deactivate vga console [ 30.877433] i915 0000:00:02.0: [drm] Using Transparent Hugepages [ 30.877996] i915 0000:00:02.0: vgaarb: changed VGA decodes: olddecodes=io+mem,decodes=none:owns=io+mem [ 30.878366] mei_hdcp 0000:00:16.0-b638ab7e-94e2-4ea2-a552-d1c54b627f04: bound 0000:00:02.0 (ops i915_hdcp_component_ops [i915]) [ 30.880444] i915 0000:00:02.0: [drm] Finished loading DMC firmware i915/adls_dmc_ver2_01.bin (v2.1) [ 30.897672] i915 0000:00:02.0: [drm] GuC firmware i915/tgl_guc_70.bin version 70.5.1 [ 30.897676] i915 0000:00:02.0: [drm] HuC firmware i915/tgl_huc.bin version 7.9.3 [ 30.910846] i915 0000:00:02.0: [drm] HuC authenticated [ 30.910855] i915 0000:00:02.0: [drm] GuC submission disabled [ 30.910861] i915 0000:00:02.0: [drm] GuC SLPC disabled [ 30.911678] mei_pxp 0000:00:16.0-fbf6fcf1-96cf-4e2e-a6a6-1bab8cbe36b1: bound 0000:00:02.0 (ops i915_pxp_tee_component_ops [i915]) [ 30.911766] i915 0000:00:02.0: [drm] Protected Xe Path (PXP) protected content support initialized [ 30.935475] [drm] Initialized i915 1.6.0 20201103 for 0000:00:02.0 on minor 0 [ 30.938966] i915 0000:03:00.0: Your graphics device 56a0 is not properly supported by the driver in this kernel version. To force driver probe anyway, use i915.force_probe=56a0 [ 31.617122] fbcon: i915drmfb (fb0) is primary device [ 31.652671] i915 0000:00:02.0: [drm] fb0: i915drmfb frame buffer device You need to create this file and reboot. root@computenode:~# cat /boot/config/modprobe.d/i915.conf options i915 force_probe=56a0 as you can see here the driver is not loaded for the ARC. [ 30.938966] i915 0000:03:00.0: Your graphics device 56a0 is not properly supported by the driver in this kernel version. To force driver probe anyway, use i915.force_probe=56a0 This will show the loaded modules. I suspect currently you will not see anything for modules. root@computenode:~# lspci -ks 03:00.0 03:00.0 VGA compatible controller: Intel Corporation DG2 [Arc A770] (rev 08) Subsystem: Intel Corporation Device 1020 Kernel driver in use: vfio-pci Kernel modules: i915 intel_gpu_top -L will show devices if you have multiple you may need to specify the card. My arc is in a VM at present. root@computenode:~# intel_gpu_top -d pci:slot=0000:03:00.0 Requested device pci:slot=0000:03:00.0 not found! root@computenode:~# Quote Link to comment
IllMethods Posted April 23, 2023 Share Posted April 23, 2023 I will create the file and reboot lspci -ks 03:00.0 03:00.0 VGA compatible controller: Intel Corporation DG2 [Arc A770] (rev 08) Subsystem: Intel Corporation Device 1020 Kernel modules: i915 This is what I'm getting before doing so Quote Link to comment
IllMethods Posted April 23, 2023 Share Posted April 23, 2023 16 minutes ago, SimonF said: root@computenode:~# cat /boot/config/modprobe.d/i915.conf options i915 force_probe=56a0 dmesg | grep i915 [ 32.955884] i915 0000:00:02.0: vgaarb: deactivate vga console [ 32.955915] i915 0000:00:02.0: [drm] Using Transparent Hugepages [ 32.956484] i915 0000:00:02.0: vgaarb: changed VGA decodes: olddecodes=io+mem,decodes=none:owns=io+mem [ 32.956854] mei_hdcp 0000:00:16.0-b638ab7e-94e2-4ea2-a552-d1c54b627f04: bound 0000:00:02.0 (ops i915_hdcp_component_ops [i915]) [ 32.958660] i915 0000:00:02.0: [drm] Finished loading DMC firmware i915/adls_dmc_ver2_01.bin (v2.1) [ 32.975842] i915 0000:00:02.0: [drm] GuC firmware i915/tgl_guc_70.bin version 70.5.1 [ 32.975846] i915 0000:00:02.0: [drm] HuC firmware i915/tgl_huc.bin version 7.9.3 [ 32.989623] i915 0000:00:02.0: [drm] HuC authenticated [ 32.989633] i915 0000:00:02.0: [drm] GuC submission disabled [ 32.989639] i915 0000:00:02.0: [drm] GuC SLPC disabled [ 32.990448] mei_pxp 0000:00:16.0-fbf6fcf1-96cf-4e2e-a6a6-1bab8cbe36b1: bound 0000:00:02.0 (ops i915_pxp_tee_component_ops [i915]) [ 32.990540] i915 0000:00:02.0: [drm] Protected Xe Path (PXP) protected content support initialized [ 33.012630] [drm] Initialized i915 1.6.0 20201103 for 0000:00:02.0 on minor 0 [ 33.015885] i915 0000:03:00.0: enabling device (0000 -> 0002) [ 33.015925] i915 0000:03:00.0: [drm] Incompatible option enable_guc=3 - HuC is not supported! [ 33.616625] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 33.616690] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 33.693781] fbcon: i915drmfb (fb0) is primary device [ 33.727223] i915 0000:00:02.0: [drm] fb0: i915drmfb frame buffer device [ 34.217386] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 34.217434] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 34.818104] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 34.818148] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 35.418812] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 35.418854] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 36.019520] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 36.019568] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 36.019663] i915 0000:03:00.0: [drm] mslice mask all zero! [ 36.620249] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 36.620291] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 37.220955] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 37.220996] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 37.821683] [drm:fw_domain_wait_ack_set [i915]] *ERROR* render: timed out waiting for forcewake ack request. [ 37.822130] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 38.423202] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 38.423652] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 39.024722] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 39.025165] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 39.626248] [drm:fw_domain_wait_ack_set [i915]] *ERROR* render: timed out waiting for forcewake ack request. [ 39.626690] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 40.227770] [drm:fw_domain_wait_ack_set [i915]] *ERROR* render: timed out waiting for forcewake ack request. [ 40.228218] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 40.829305] [drm:fw_domain_wait_ack_set [i915]] *ERROR* render: timed out waiting for forcewake ack request. [ 40.829752] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 41.430835] [drm:fw_domain_wait_ack_set [i915]] *ERROR* render: timed out waiting for forcewake ack request. [ 41.431916] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 42.033674] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 42.034084] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 42.635110] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 42.635520] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 43.236562] [drm:fw_domain_wait_ack_set [i915]] *ERROR* render: timed out waiting for forcewake ack request. [ 43.236976] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 43.838003] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 43.838351] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 43.839440] i915 0000:03:00.0: [drm] *ERROR* rcs'0 reset request timed out: {request: 00000001, RESET_CTL: 00000000} [ 43.840460] i915 0000:03:00.0: [drm] *ERROR* rcs'0 reset request timed out: {request: 00000001, RESET_CTL: 00000000} [ 43.841473] i915 0000:03:00.0: [drm] *ERROR* bcs'0 reset request timed out: {request: 00000001, RESET_CTL: 00000000} [ 44.442481] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 44.442840] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 45.043820] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 45.044168] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 45.645130] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 45.645472] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 46.246433] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 46.246775] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 46.847739] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 46.848086] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 47.449051] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 47.449399] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 48.050359] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 48.050707] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 48.651679] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 48.652037] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 49.253045] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 49.253573] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 49.854754] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 49.855318] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 50.456532] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 50.456921] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 50.457357] i915 0000:03:00.0: [drm] *ERROR* CCS_BASE_ADDR register did not have expected value [ 50.457683] i915 0000:03:00.0: BAR 0: releasing [mem 0x41000000-0x41ffffff 64bit] [ 50.457997] i915 0000:03:00.0: BAR 2: releasing [mem 0x6000000000-0x63ffffffff 64bit pref] [ 50.458391] i915 0000:03:00.0: [drm] Failed to resize BAR2 to 1M (-EINVAL) [ 50.458838] i915 0000:03:00.0: BAR 2: assigned [mem 0x6000000000-0x63ffffffff 64bit pref] [ 50.459530] i915 0000:03:00.0: BAR 0: assigned [mem 0x41000000-0x41ffffff 64bit] [ 50.460041] i915 0000:03:00.0: [drm] *ERROR* Failed to setup region(-5) type=1 [ 50.494242] i915 0000:03:00.0: Device initialization failed (-5) [ 50.494585] i915: probe of 0000:03:00.0 failed with error -5 Quote Link to comment
SimonF Posted April 23, 2023 Share Posted April 23, 2023 5 minutes ago, IllMethods said: dmesg | grep i915 [ 32.955884] i915 0000:00:02.0: vgaarb: deactivate vga console [ 32.955915] i915 0000:00:02.0: [drm] Using Transparent Hugepages [ 32.956484] i915 0000:00:02.0: vgaarb: changed VGA decodes: olddecodes=io+mem,decodes=none:owns=io+mem [ 32.956854] mei_hdcp 0000:00:16.0-b638ab7e-94e2-4ea2-a552-d1c54b627f04: bound 0000:00:02.0 (ops i915_hdcp_component_ops [i915]) [ 32.958660] i915 0000:00:02.0: [drm] Finished loading DMC firmware i915/adls_dmc_ver2_01.bin (v2.1) [ 32.975842] i915 0000:00:02.0: [drm] GuC firmware i915/tgl_guc_70.bin version 70.5.1 [ 32.975846] i915 0000:00:02.0: [drm] HuC firmware i915/tgl_huc.bin version 7.9.3 [ 32.989623] i915 0000:00:02.0: [drm] HuC authenticated [ 32.989633] i915 0000:00:02.0: [drm] GuC submission disabled [ 32.989639] i915 0000:00:02.0: [drm] GuC SLPC disabled [ 32.990448] mei_pxp 0000:00:16.0-fbf6fcf1-96cf-4e2e-a6a6-1bab8cbe36b1: bound 0000:00:02.0 (ops i915_pxp_tee_component_ops [i915]) [ 32.990540] i915 0000:00:02.0: [drm] Protected Xe Path (PXP) protected content support initialized [ 33.012630] [drm] Initialized i915 1.6.0 20201103 for 0000:00:02.0 on minor 0 [ 33.015885] i915 0000:03:00.0: enabling device (0000 -> 0002) [ 33.015925] i915 0000:03:00.0: [drm] Incompatible option enable_guc=3 - HuC is not supported! [ 33.616625] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 33.616690] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 33.693781] fbcon: i915drmfb (fb0) is primary device [ 33.727223] i915 0000:00:02.0: [drm] fb0: i915drmfb frame buffer device [ 34.217386] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 34.217434] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 34.818104] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 34.818148] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 35.418812] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 35.418854] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 36.019520] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 36.019568] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 36.019663] i915 0000:03:00.0: [drm] mslice mask all zero! [ 36.620249] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 36.620291] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 37.220955] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 37.220996] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 37.821683] [drm:fw_domain_wait_ack_set [i915]] *ERROR* render: timed out waiting for forcewake ack request. [ 37.822130] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 38.423202] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 38.423652] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 39.024722] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 39.025165] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 39.626248] [drm:fw_domain_wait_ack_set [i915]] *ERROR* render: timed out waiting for forcewake ack request. [ 39.626690] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 40.227770] [drm:fw_domain_wait_ack_set [i915]] *ERROR* render: timed out waiting for forcewake ack request. [ 40.228218] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 40.829305] [drm:fw_domain_wait_ack_set [i915]] *ERROR* render: timed out waiting for forcewake ack request. [ 40.829752] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 41.430835] [drm:fw_domain_wait_ack_set [i915]] *ERROR* render: timed out waiting for forcewake ack request. [ 41.431916] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 42.033674] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 42.034084] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 42.635110] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 42.635520] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 43.236562] [drm:fw_domain_wait_ack_set [i915]] *ERROR* render: timed out waiting for forcewake ack request. [ 43.236976] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 43.838003] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 43.838351] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 43.839440] i915 0000:03:00.0: [drm] *ERROR* rcs'0 reset request timed out: {request: 00000001, RESET_CTL: 00000000} [ 43.840460] i915 0000:03:00.0: [drm] *ERROR* rcs'0 reset request timed out: {request: 00000001, RESET_CTL: 00000000} [ 43.841473] i915 0000:03:00.0: [drm] *ERROR* bcs'0 reset request timed out: {request: 00000001, RESET_CTL: 00000000} [ 44.442481] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 44.442840] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 45.043820] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 45.044168] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 45.645130] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 45.645472] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 46.246433] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 46.246775] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 46.847739] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 46.848086] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 47.449051] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 47.449399] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 48.050359] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 48.050707] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 48.651679] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 48.652037] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 49.253045] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 49.253573] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 49.854754] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 49.855318] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 50.456532] [drm:fw_domain_wait_ack_set [i915]] *ERROR* gt: timed out waiting for forcewake ack request. [ 50.456921] i915 0000:03:00.0: [drm:add_taint_for_CI [i915]] CI tainted:0x9 by fw_domains_get_with_fallback+0xd7/0xec [i915] [ 50.457357] i915 0000:03:00.0: [drm] *ERROR* CCS_BASE_ADDR register did not have expected value [ 50.457683] i915 0000:03:00.0: BAR 0: releasing [mem 0x41000000-0x41ffffff 64bit] [ 50.457997] i915 0000:03:00.0: BAR 2: releasing [mem 0x6000000000-0x63ffffffff 64bit pref] [ 50.458391] i915 0000:03:00.0: [drm] Failed to resize BAR2 to 1M (-EINVAL) [ 50.458838] i915 0000:03:00.0: BAR 2: assigned [mem 0x6000000000-0x63ffffffff 64bit pref] [ 50.459530] i915 0000:03:00.0: BAR 0: assigned [mem 0x41000000-0x41ffffff 64bit] [ 50.460041] i915 0000:03:00.0: [drm] *ERROR* Failed to setup region(-5) type=1 [ 50.494242] i915 0000:03:00.0: Device initialization failed (-5) [ 50.494585] i915: probe of 0000:03:00.0 failed with error -5 Do you have resizable Bar and above 4G nemory enabled in the bios? Quote Link to comment

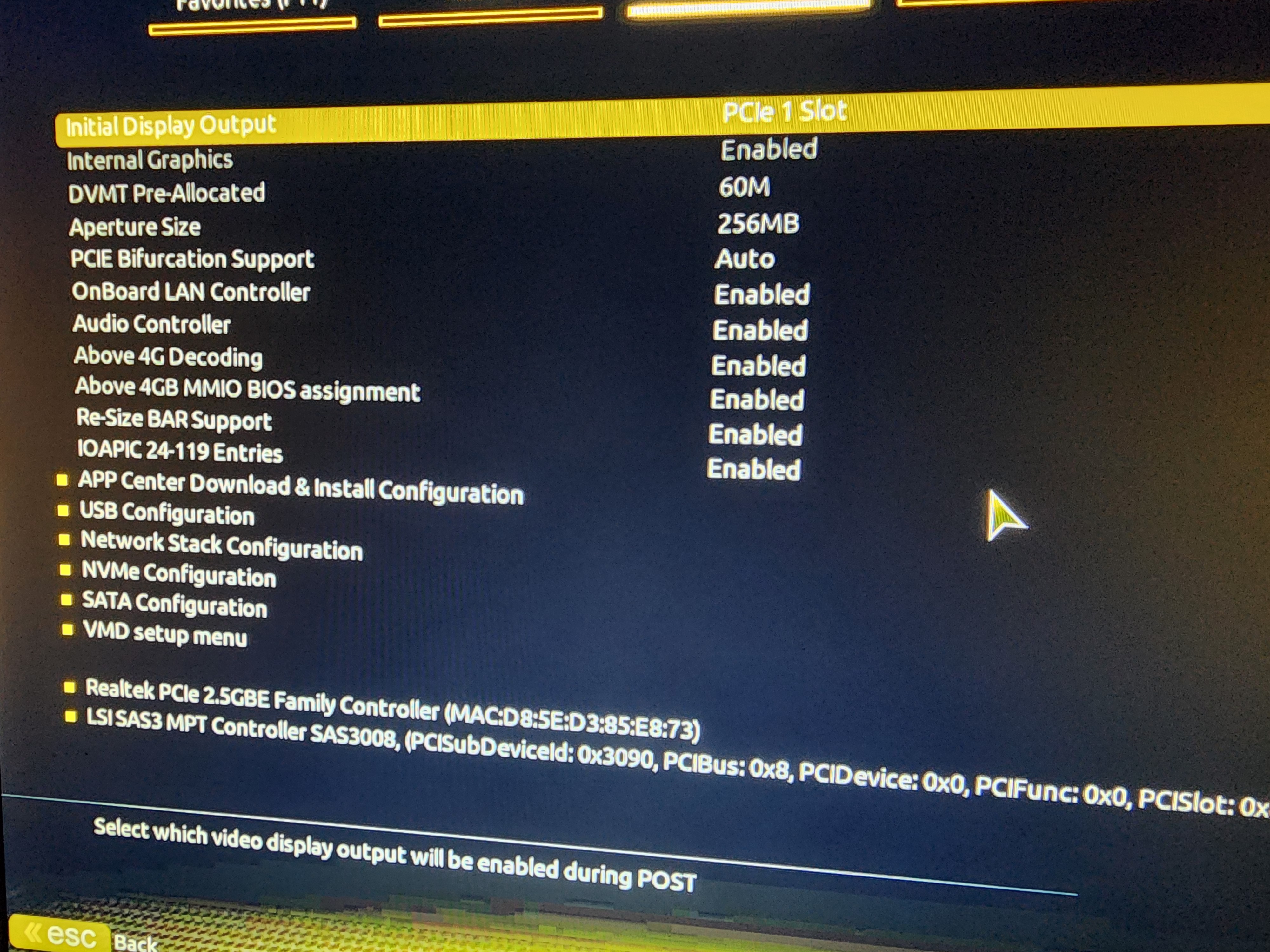

IllMethods Posted April 23, 2023 Share Posted April 23, 2023 (edited) Yes they're both enabled I had a 3060 installed but I swapped it out for this card I just double checked to be sure Edited April 23, 2023 by IllMethods Quote Link to comment
IllMethods Posted April 23, 2023 Share Posted April 23, 2023 (edited) Strange, it works now. It took a couple reboots though. So now in my apps, do I need to map to /dev/dri/card0 now instead of /dev/dri/? Changing to /dev/dri/renderD128 seems to work for the iGPU, /renderD129 doesn't seem to do anything to get the a770 to work. I guess there is still a bit more waiting to do. Edited April 24, 2023 by IllMethods Quote Link to comment
