win10 VM stopped working

KeyBoardDabbler
in VM Engine (KVM)

Featured Replies

HI guys,



My Win 10 VM has been working flawlessly for the best part of a year. I recently just tried to get around the Easy Anti Cheat "unable to play on virtual machine" message. I followed the steps listed here and now the VM wont load after a restart, I have tried reverting my changes back but the connected monitors just stay in standby after starting the VM.



Any idea as to what I have done?



EDIT:

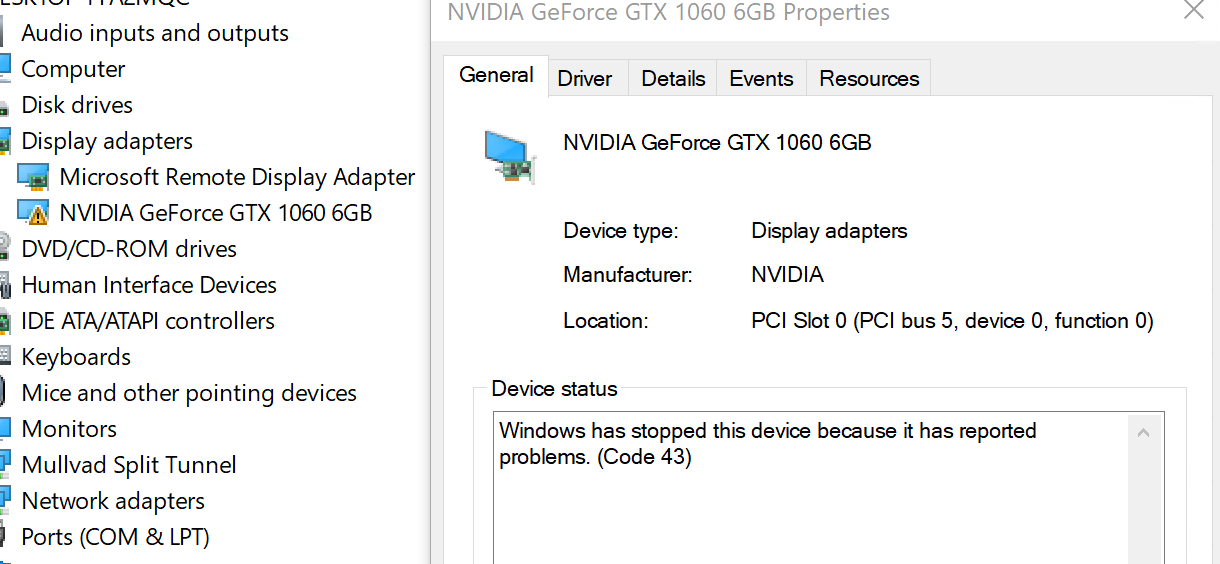

So i removed my GPU from the config and selected VNC. The vm started and I can connect through VNC or RD. Still unsure why this has happened and i can not use my gpu?

Side note, the game i was trying to play now runs without the EAC error but have no working gpu :(.



<?xml version='1.0' encoding='UTF-8'?>
<domain type='kvm' id='4'>
  <name>My PC</name>
  <uuid>e47f50e7-ffbf-19c0-cccb-e2cdb28dc500</uuid>
  <metadata>
    <vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/>
  </metadata>
  <memory unit='KiB'>16777216</memory>
  <currentMemory unit='KiB'>16777216</currentMemory>
  <memoryBacking>
    <nosharepages/>
  </memoryBacking>
  <vcpu placement='static'>16</vcpu>
  <cputune>
    <vcpupin vcpu='0' cpuset='2'/>
    <vcpupin vcpu='1' cpuset='12'/>
    <vcpupin vcpu='2' cpuset='3'/>
    <vcpupin vcpu='3' cpuset='13'/>
    <vcpupin vcpu='4' cpuset='4'/>
    <vcpupin vcpu='5' cpuset='14'/>
    <vcpupin vcpu='6' cpuset='5'/>
    <vcpupin vcpu='7' cpuset='15'/>
    <vcpupin vcpu='8' cpuset='6'/>
    <vcpupin vcpu='9' cpuset='16'/>
    <vcpupin vcpu='10' cpuset='7'/>
    <vcpupin vcpu='11' cpuset='17'/>
    <vcpupin vcpu='12' cpuset='8'/>
    <vcpupin vcpu='13' cpuset='18'/>
    <vcpupin vcpu='14' cpuset='9'/>
    <vcpupin vcpu='15' cpuset='19'/>
  </cputune>
  <resource>
    <partition>/machine</partition>
  </resource>
  <os>
    <type arch='x86_64' machine='pc-q35-6.2'>hvm</type>
    <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader>
    <nvram>/etc/libvirt/qemu/nvram/e47f50e7-ffbf-19c0-cccb-e2cdb28dc500_VARS-pure-efi.fd</nvram>
    <smbios mode='host'/>
  </os>
  <features>
    <acpi/>
    <apic/>
    <kvm>
      <hidden state='on'/>
    </kvm>
  </features>
  <cpu mode='host-passthrough' check='none' migratable='on'>
    <topology sockets='1' dies='1' cores='8' threads='2'/>
    <cache mode='passthrough'/>
    <feature policy='disable' name='hypervisor'/>
  </cpu>
  <clock offset='localtime'>
    <timer name='rtc' tickpolicy='catchup'/>
    <timer name='pit' tickpolicy='delay'/>
    <timer name='hpet' present='no'/>
  </clock>
  <on_poweroff>destroy</on_poweroff>
  <on_reboot>restart</on_reboot>
  <on_crash>restart</on_crash>
  <devices>
    <emulator>/usr/local/sbin/qemu</emulator>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/user/domains/My PC/vdisk1.img' index='4'/>
      <backingStore/>
      <target dev='hdc' bus='virtio'/>
      <boot order='1'/>
      <alias name='virtio-disk2'/>
      <address type='pci' domain='0x0000' bus='0x03' slot='0x00' function='0x0'/>
    </disk>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/disks/S6P7NJ0T307369R/My PC/vdisk2.img' index='3'/>
      <backingStore/>
      <target dev='hdd' bus='virtio'/>
      <alias name='virtio-disk3'/>
      <address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/user/isos/Windows/Windows 10.iso' index='2'/>
      <backingStore/>
      <target dev='hda' bus='sata'/>
      <readonly/>
      <boot order='2'/>
      <alias name='sata0-0-0'/>
      <address type='drive' controller='0' bus='0' target='0' unit='0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/user/isos/virtio-win-0.1.217-2.iso' index='1'/>
      <backingStore/>
      <target dev='hdb' bus='sata'/>
      <readonly/>
      <alias name='sata0-0-1'/>
      <address type='drive' controller='0' bus='0' target='0' unit='1'/>
    </disk>
    <controller type='usb' index='0' model='qemu-xhci' ports='15'>
      <alias name='usb'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0'/>
    </controller>
    <controller type='pci' index='0' model='pcie-root'>
      <alias name='pcie.0'/>
    </controller>
    <controller type='pci' index='1' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='1' port='0x10'/>
      <alias name='pci.1'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0' multifunction='on'/>
    </controller>
    <controller type='pci' index='2' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='2' port='0x11'/>
      <alias name='pci.2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x1'/>
    </controller>
    <controller type='pci' index='3' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='3' port='0x12'/>
      <alias name='pci.3'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x2'/>
    </controller>
    <controller type='pci' index='4' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='4' port='0x13'/>
      <alias name='pci.4'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x3'/>
    </controller>
    <controller type='pci' index='5' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='5' port='0x14'/>
      <alias name='pci.5'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x4'/>
    </controller>
    <controller type='pci' index='6' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='6' port='0x15'/>
      <alias name='pci.6'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x5'/>
    </controller>
    <controller type='virtio-serial' index='0'>
      <alias name='virtio-serial0'/>
      <address type='pci' domain='0x0000' bus='0x02' slot='0x00' function='0x0'/>
    </controller>
    <controller type='sata' index='0'>
      <alias name='ide'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/>
    </controller>
    <interface type='bridge'>
      <mac address='52:54:00:b4:62:3c'/>
      <source bridge='br0'/>
      <target dev='vnet3'/>
      <model type='virtio-net'/>
      <alias name='net0'/>
      <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x0'/>
    </interface>
    <serial type='pty'>
      <source path='/dev/pts/0'/>
      <target type='isa-serial' port='0'>
        <model name='isa-serial'/>
      </target>
      <alias name='serial0'/>
    </serial>
    <console type='pty' tty='/dev/pts/0'>
      <source path='/dev/pts/0'/>
      <target type='serial' port='0'/>
      <alias name='serial0'/>
    </console>
    <channel type='unix'>
      <source mode='bind' path='/var/lib/libvirt/qemu/channel/target/domain-4-My PC/org.qemu.guest_agent.0'/>
      <target type='virtio' name='org.qemu.guest_agent.0' state='disconnected'/>
      <alias name='channel0'/>
      <address type='virtio-serial' controller='0' bus='0' port='1'/>
    </channel>
    <input type='tablet' bus='usb'>
      <alias name='input0'/>
      <address type='usb' bus='0' port='1'/>
    </input>
    <input type='mouse' bus='ps2'>
      <alias name='input1'/>
    </input>
    <input type='keyboard' bus='ps2'>
      <alias name='input2'/>
    </input>
    <audio id='1' type='none'/>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x01' slot='0x00' function='0x0'/>
      </source>
      <alias name='hostdev0'/>
      <rom file='/mnt/user/isos/vbios/gtx1060-6gb.rom'/>
      <address type='pci' domain='0x0000' bus='0x05' slot='0x00' function='0x0' multifunction='on'/>
    </hostdev>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x01' slot='0x00' function='0x1'/>
      </source>
      <alias name='hostdev1'/>
      <address type='pci' domain='0x0000' bus='0x05' slot='0x00' function='0x1'/>
    </hostdev>
    <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x1532'/>
        <product id='0x0046'/>
        <address bus='1' device='6'/>
      </source>
      <alias name='hostdev2'/>
      <address type='usb' bus='0' port='2'/>
    </hostdev>
    <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x1532'/>
        <product id='0x0221'/>
        <address bus='1' device='12'/>
      </source>
      <alias name='hostdev3'/>
      <address type='usb' bus='0' port='3'/>
    </hostdev>
    <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x1532'/>
        <product id='0x0529'/>
        <address bus='1' device='11'/>
      </source>
      <alias name='hostdev4'/>
      <address type='usb' bus='0' port='4'/>
    </hostdev>
    <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x1532'/>
        <product id='0x0c00'/>
        <address bus='1' device='8'/>
      </source>
      <alias name='hostdev5'/>
      <address type='usb' bus='0' port='5'/>
    </hostdev>
    <memballoon model='none'/>
  </devices>
  <seclabel type='dynamic' model='dac' relabel='yes'>
    <label>+0:+100</label>
    <imagelabel>+0:+100</imagelabel>
  </seclabel>
</domain>
-chardev socket,id=charchannel0,fd=35,server=on,wait=off \
-device virtserialport,bus=virtio-serial0.0,nr=1,chardev=charchannel0,id=channel0,name=org.qemu.guest_agent.0 \
-device usb-tablet,id=input0,bus=usb.0,port=1 \
-audiodev '{"id":"audio1","driver":"none"}' \
-device vfio-pci,host=0000:01:00.0,id=hostdev0,bus=pci.5,multifunction=on,addr=0x0,romfile=/mnt/user/isos/vbios/gtx1060-6gb.rom \
-device vfio-pci,host=0000:01:00.1,id=hostdev1,bus=pci.5,addr=0x0.0x1 \
-device usb-host,hostdevice=/dev/bus/usb/001/006,id=hostdev2,bus=usb.0,port=2 \
-device usb-host,hostdevice=/dev/bus/usb/001/012,id=hostdev3,bus=usb.0,port=3 \
-device usb-host,hostdevice=/dev/bus/usb/001/011,id=hostdev4,bus=usb.0,port=4 \
-device usb-host,hostdevice=/dev/bus/usb/001/008,id=hostdev5,bus=usb.0,port=5 \
-sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny \
-msg timestamp=on
char device redirected to /dev/pts/0 (label charserial0)
2022-10-04T07:02:44.747336Z qemu-system-x86_64: terminating on signal 15 from pid 14489 (/usr/sbin/libvirtd)
2022-10-04 07:02:47.548+0000: shutting down, reason=destroyed
2022-10-04 07:04:04.637+0000: starting up libvirt version: 8.2.0, qemu version: 6.2.0, kernel: 5.15.46-Unraid, hostname: Tower
LC_ALL=C \
PATH=/bin:/sbin:/usr/bin:/usr/sbin \
HOME='/var/lib/libvirt/qemu/domain-1-My PC' \
XDG_DATA_HOME='/var/lib/libvirt/qemu/domain-1-My PC/.local/share' \
XDG_CACHE_HOME='/var/lib/libvirt/qemu/domain-1-My PC/.cache' \
XDG_CONFIG_HOME='/var/lib/libvirt/qemu/domain-1-My PC/.config' \
/usr/local/sbin/qemu \
-name 'guest=My PC,debug-threads=on' \
-S \
-object '{"qom-type":"secret","id":"masterKey0","format":"raw","file":"/var/lib/libvirt/qemu/domain-1-My PC/master-key.aes"}' \
-blockdev '{"driver":"file","filename":"/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd","node-name":"libvirt-pflash0-storage","auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-pflash0-format","read-only":true,"driver":"raw","file":"libvirt-pflash0-storage"}' \
-blockdev '{"driver":"file","filename":"/etc/libvirt/qemu/nvram/e47f50e7-ffbf-19c0-cccb-e2cdb28dc500_VARS-pure-efi.fd","node-name":"libvirt-pflash1-storage","auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-pflash1-format","read-only":false,"driver":"raw","file":"libvirt-pflash1-storage"}' \
-machine pc-q35-6.2,usb=off,dump-guest-core=off,mem-merge=off,pflash0=libvirt-pflash0-format,pflash1=libvirt-pflash1-format,memory-backend=pc.ram \
-accel kvm \
-cpu host,migratable=on,hypervisor=off,kvm=off,host-cache-info=on,l3-cache=off \
-m 16384 \
-object '{"qom-type":"memory-backend-ram","id":"pc.ram","size":17179869184}' \
-overcommit mem-lock=off \
-smp 16,sockets=1,dies=1,cores=8,threads=2 \
-uuid e47f50e7-ffbf-19c0-cccb-e2cdb28dc500 \
-smbios 'type=0,vendor=American Megatrends International,, LLC.,version=F8a,date=01/24/2022,release=5.19' \
-smbios 'type=1,manufacturer=Gigabyte Technology Co.,, Ltd.,product=Z590 AORUS MASTER,version=-CF,serial=Default string,sku=Default string,family=Z590 MB' \
-smbios 'type=2,manufacturer=Gigabyte Technology Co.,, Ltd.,product=Z590 AORUS MASTER,version=Default string,serial=Default string,asset=Default string,location=Default string' \
-smbios 'type=3,manufacturer=Default string,version=Default string,serial=Default string,asset=Default string,sku=Default string' \
-smbios 'type=11,value=Default string' \
-display none \
-no-user-config \
-nodefaults \
-chardev socket,id=charmonitor,fd=36,server=on,wait=off \
-mon chardev=charmonitor,id=monitor,mode=control \
-rtc base=localtime,driftfix=slew \
-global kvm-pit.lost_tick_policy=delay \
-no-hpet \
-no-shutdown \
-boot strict=on \
-device pcie-root-port,port=16,chassis=1,id=pci.1,bus=pcie.0,multifunction=on,addr=0x2 \
-device pcie-root-port,port=17,chassis=2,id=pci.2,bus=pcie.0,addr=0x2.0x1 \
-device pcie-root-port,port=18,chassis=3,id=pci.3,bus=pcie.0,addr=0x2.0x2 \
-device pcie-root-port,port=19,chassis=4,id=pci.4,bus=pcie.0,addr=0x2.0x3 \
-device pcie-root-port,port=20,chassis=5,id=pci.5,bus=pcie.0,addr=0x2.0x4 \
-device pcie-root-port,port=21,chassis=6,id=pci.6,bus=pcie.0,addr=0x2.0x5 \
-device qemu-xhci,p2=15,p3=15,id=usb,bus=pcie.0,addr=0x7 \
-device virtio-serial-pci,id=virtio-serial0,bus=pci.2,addr=0x0 \
-blockdev '{"driver":"file","filename":"/mnt/user/domains/My PC/vdisk1.img","node-name":"libvirt-4-storage","cache":{"direct":false,"no-flush":false},"auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-4-format","read-only":false,"cache":{"direct":false,"no-flush":false},"driver":"raw","file":"libvirt-4-storage"}' \
-device virtio-blk-pci,bus=pci.3,addr=0x0,drive=libvirt-4-format,id=virtio-disk2,bootindex=1,write-cache=on \
-blockdev '{"driver":"file","filename":"/mnt/disks/S6P7NJ0T307369R/My PC/vdisk2.img","node-name":"libvirt-3-storage","cache":{"direct":false,"no-flush":false},"auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-3-format","read-only":false,"cache":{"direct":false,"no-flush":false},"driver":"raw","file":"libvirt-3-storage"}' \
-device virtio-blk-pci,bus=pci.4,addr=0x0,drive=libvirt-3-format,id=virtio-disk3,write-cache=on \
-blockdev '{"driver":"file","filename":"/mnt/user/isos/Windows/Windows 10.iso","node-name":"libvirt-2-storage","auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-2-format","read-only":true,"driver":"raw","file":"libvirt-2-storage"}' \
-device ide-cd,bus=ide.0,drive=libvirt-2-format,id=sata0-0-0,bootindex=2 \
-blockdev '{"driver":"file","filename":"/mnt/user/isos/virtio-win-0.1.217-2.iso","node-name":"libvirt-1-storage","auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-1-format","read-only":true,"driver":"raw","file":"libvirt-1-storage"}' \
-device ide-cd,bus=ide.1,drive=libvirt-1-format,id=sata0-0-1 \
-netdev tap,fd=37,id=hostnet0 \
-device virtio-net,netdev=hostnet0,id=net0,mac=52:54:00:b4:62:3c,bus=pci.1,addr=0x0 \
-chardev pty,id=charserial0 \
-device isa-serial,chardev=charserial0,id=serial0,index=0 \
-chardev socket,id=charchannel0,fd=35,server=on,wait=off \
-device virtserialport,bus=virtio-serial0.0,nr=1,chardev=charchannel0,id=channel0,name=org.qemu.guest_agent.0 \
-device usb-tablet,id=input0,bus=usb.0,port=1 \
-audiodev '{"id":"audio1","driver":"none"}' \
-device vfio-pci,host=0000:01:00.0,id=hostdev0,bus=pci.5,multifunction=on,addr=0x0,romfile=/mnt/user/isos/vbios/gtx1060-6gb.rom \
-device vfio-pci,host=0000:01:00.1,id=hostdev1,bus=pci.5,addr=0x0.0x1 \
-device usb-host,hostdevice=/dev/bus/usb/001/006,id=hostdev2,bus=usb.0,port=2 \
-device usb-host,hostdevice=/dev/bus/usb/001/012,id=hostdev3,bus=usb.0,port=3 \
-device usb-host,hostdevice=/dev/bus/usb/001/011,id=hostdev4,bus=usb.0,port=4 \
-device usb-host,hostdevice=/dev/bus/usb/001/008,id=hostdev5,bus=usb.0,port=5 \
-sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny \
-msg timestamp=on
char device redirected to /dev/pts/10 (label charserial0)









Edited by KeyBoardDabbler

  • Quote
    • Author

    I created a new VM pointing to the existing disks.

    Made the changes to add the GPU but the same problem persists.

    I connected via Remote desktop and noticed in device manager the GPU has been disabled because of error 43. As you can see i have added the soundcard and made the appropriate changes. Again it was working prior to me adding the above changes.

    I have attached latest diagnostics.





    <?xml version='1.0' encoding='UTF-8'?>
<domain type='kvm' id='3'>
  <name>Windows 10</name>
  <uuid>fc7761e9-0522-d29b-f2b5-5ab5feb145de</uuid>
  <description>Graeme PC</description>
  <metadata>
    <vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/>
  </metadata>
  <memory unit='KiB'>16777216</memory>
  <currentMemory unit='KiB'>16777216</currentMemory>
  <memoryBacking>
    <nosharepages/>
  </memoryBacking>
  <vcpu placement='static'>16</vcpu>
  <cputune>
    <vcpupin vcpu='0' cpuset='2'/>
    <vcpupin vcpu='1' cpuset='12'/>
    <vcpupin vcpu='2' cpuset='3'/>
    <vcpupin vcpu='3' cpuset='13'/>
    <vcpupin vcpu='4' cpuset='4'/>
    <vcpupin vcpu='5' cpuset='14'/>
    <vcpupin vcpu='6' cpuset='5'/>
    <vcpupin vcpu='7' cpuset='15'/>
    <vcpupin vcpu='8' cpuset='6'/>
    <vcpupin vcpu='9' cpuset='16'/>
    <vcpupin vcpu='10' cpuset='7'/>
    <vcpupin vcpu='11' cpuset='17'/>
    <vcpupin vcpu='12' cpuset='8'/>
    <vcpupin vcpu='13' cpuset='18'/>
    <vcpupin vcpu='14' cpuset='9'/>
    <vcpupin vcpu='15' cpuset='19'/>
  </cputune>
  <resource>
    <partition>/machine</partition>
  </resource>
  <os>
    <type arch='x86_64' machine='pc-q35-6.2'>hvm</type>
    <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader>
    <nvram>/etc/libvirt/qemu/nvram/fc7761e9-0522-d29b-f2b5-5ab5feb145de_VARS-pure-efi.fd</nvram>
    <smbios mode='host'/>
  </os>
  <features>
    <acpi/>
    <apic/>
    <kvm>
      <hidden state='on'/>
    </kvm>
  </features>
  <cpu mode='host-passthrough' check='none' migratable='on'>
    <topology sockets='1' dies='1' cores='8' threads='2'/>
    <cache mode='passthrough'/>
    <feature policy='disable' name='hypervisor'/>
  </cpu>
  <clock offset='localtime'>
    <timer name='rtc' tickpolicy='catchup'/>
    <timer name='pit' tickpolicy='delay'/>
    <timer name='hpet' present='no'/>
  </clock>
  <on_poweroff>destroy</on_poweroff>
  <on_reboot>restart</on_reboot>
  <on_crash>restart</on_crash>
  <devices>
    <emulator>/usr/local/sbin/qemu</emulator>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/user/domains/My PC/vdisk1.img' index='4'/>
      <backingStore/>
      <target dev='hdc' bus='virtio'/>
      <boot order='1'/>
      <alias name='virtio-disk2'/>
      <address type='pci' domain='0x0000' bus='0x03' slot='0x00' function='0x0'/>
    </disk>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/disks/S6P7NJ0T307369R/My PC/vdisk2.img' index='3'/>
      <backingStore/>
      <target dev='hdd' bus='virtio'/>
      <alias name='virtio-disk3'/>
      <address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/user/isos/Windows/Windows 10.iso' index='2'/>
      <backingStore/>
      <target dev='hda' bus='sata'/>
      <readonly/>
      <boot order='2'/>
      <alias name='sata0-0-0'/>
      <address type='drive' controller='0' bus='0' target='0' unit='0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/user/isos/virtio-win-0.1.221-1.iso' index='1'/>
      <backingStore/>
      <target dev='hdb' bus='sata'/>
      <readonly/>
      <alias name='sata0-0-1'/>
      <address type='drive' controller='0' bus='0' target='0' unit='1'/>
    </disk>
    <controller type='pci' index='0' model='pcie-root'>
      <alias name='pcie.0'/>
    </controller>
    <controller type='pci' index='1' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='1' port='0x10'/>
      <alias name='pci.1'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0' multifunction='on'/>
    </controller>
    <controller type='pci' index='2' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='2' port='0x11'/>
      <alias name='pci.2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x1'/>
    </controller>
    <controller type='pci' index='3' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='3' port='0x12'/>
      <alias name='pci.3'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x2'/>
    </controller>
    <controller type='pci' index='4' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='4' port='0x13'/>
      <alias name='pci.4'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x3'/>
    </controller>
    <controller type='pci' index='5' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='5' port='0x14'/>
      <alias name='pci.5'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x4'/>
    </controller>
    <controller type='pci' index='6' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='6' port='0x15'/>
      <alias name='pci.6'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x5'/>
    </controller>
    <controller type='virtio-serial' index='0'>
      <alias name='virtio-serial0'/>
      <address type='pci' domain='0x0000' bus='0x02' slot='0x00' function='0x0'/>
    </controller>
    <controller type='sata' index='0'>
      <alias name='ide'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/>
    </controller>
    <controller type='usb' index='0' model='qemu-xhci' ports='15'>
      <alias name='usb'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0'/>
    </controller>
    <interface type='bridge'>
      <mac address='52:54:00:df:3c:d1'/>
      <source bridge='br0'/>
      <target dev='vnet2'/>
      <model type='virtio-net'/>
      <alias name='net0'/>
      <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x0'/>
    </interface>
    <serial type='pty'>
      <source path='/dev/pts/1'/>
      <target type='isa-serial' port='0'>
        <model name='isa-serial'/>
      </target>
      <alias name='serial0'/>
    </serial>
    <console type='pty' tty='/dev/pts/1'>
      <source path='/dev/pts/1'/>
      <target type='serial' port='0'/>
      <alias name='serial0'/>
    </console>
    <channel type='unix'>
      <source mode='bind' path='/var/lib/libvirt/qemu/channel/target/domain-3-Windows 10/org.qemu.guest_agent.0'/>
      <target type='virtio' name='org.qemu.guest_agent.0' state='disconnected'/>
      <alias name='channel0'/>
      <address type='virtio-serial' controller='0' bus='0' port='1'/>
    </channel>
    <input type='tablet' bus='usb'>
      <alias name='input0'/>
      <address type='usb' bus='0' port='1'/>
    </input>
    <input type='mouse' bus='ps2'>
      <alias name='input1'/>
    </input>
    <input type='keyboard' bus='ps2'>
      <alias name='input2'/>
    </input>
    <audio id='1' type='none'/>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x01' slot='0x00' function='0x0'/>
      </source>
      <alias name='hostdev0'/>
      <rom file='/mnt/user/isos/vbios/gtx1060-6gb.rom'/>
      <address type='pci' domain='0x0000' bus='0x05' slot='0x00' function='0x0' multifunction='on'/>
    </hostdev>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x01' slot='0x00' function='0x1'/>
      </source>
      <alias name='hostdev1'/>
      <address type='pci' domain='0x0000' bus='0x05' slot='0x00' function='0x1'/>
    </hostdev>
    <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x1532'/>
        <product id='0x0046'/>
        <address bus='1' device='6'/>
      </source>
      <alias name='hostdev2'/>
      <address type='usb' bus='0' port='2'/>
    </hostdev>
    <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x1532'/>
        <product id='0x0221'/>
        <address bus='1' device='10'/>
      </source>
      <alias name='hostdev3'/>
      <address type='usb' bus='0' port='3'/>
    </hostdev>
    <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x1532'/>
        <product id='0x0529'/>
        <address bus='1' device='11'/>
      </source>
      <alias name='hostdev4'/>
      <address type='usb' bus='0' port='4'/>
    </hostdev>
    <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x1532'/>
        <product id='0x0c00'/>
        <address bus='1' device='8'/>
      </source>
      <alias name='hostdev5'/>
      <address type='usb' bus='0' port='5'/>
    </hostdev>
    <memballoon model='none'/>
  </devices>
  <seclabel type='dynamic' model='dac' relabel='yes'>
    <label>+0:+100</label>
    <imagelabel>+0:+100</imagelabel>
  </seclabel>
</domain>








    tower-diagnostics-20221005-1345.zip

  • Quote

    • Join the conversation

    You can post now and register later. If you have an account, sign in now to post with your account.
    Note: Your post will require moderator approval before it will be visible.

    Guest
    Reply to this topic...
    Go to topic listing

    Account

    Navigation

    Search

    Search

    Configure browser push notifications
    Chrome (Android)
    1. Tap the lock icon next to the address bar.
    2. Tap Permissions → Notifications.
    3. Adjust your preference.
    Chrome (Desktop)
    1. Click the padlock icon in the address bar.
    2. Select Site settings.
    3. Find Notifications and adjust your preference.
