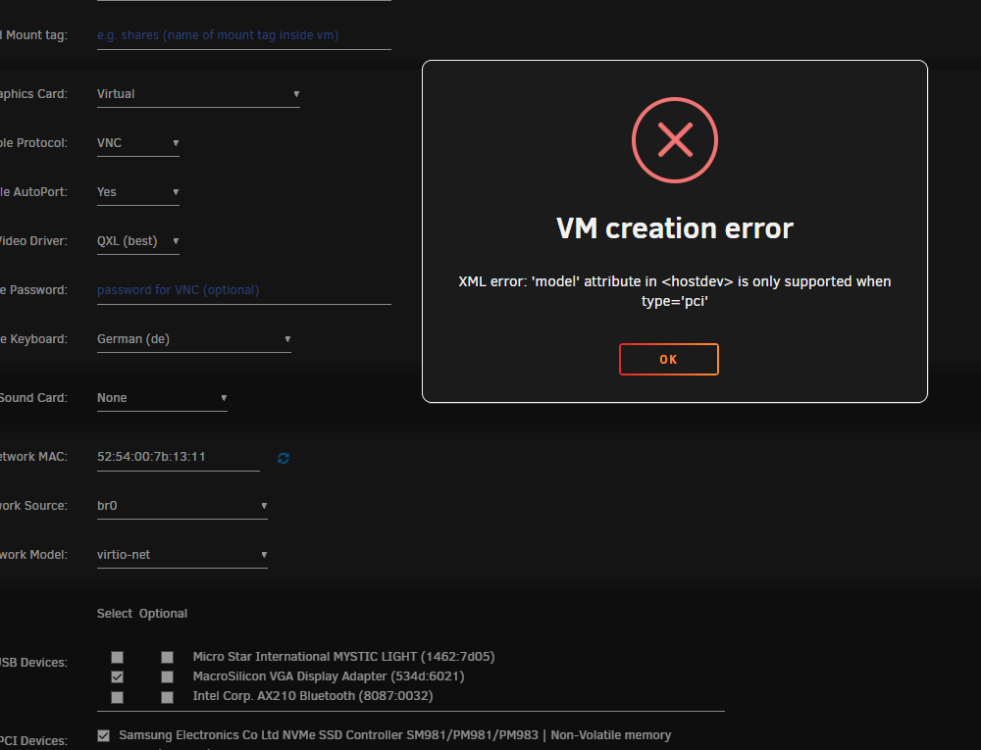

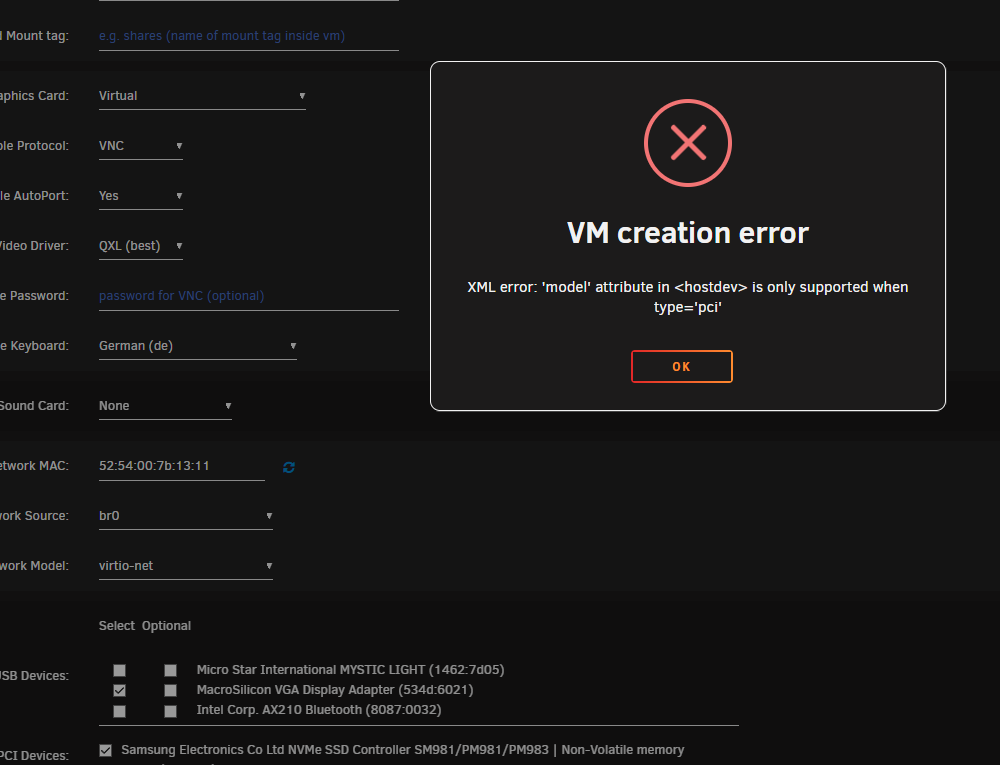

Dtrain Posted October 18, 2022 Share Posted October 18, 2022 Moin, ich versuche verzweifelt meine VM auf einen Monitor darzustellen, dazu habe ich mir die in diesen Forum empfohlene USB VGA Karte gekauft. Die Karte bekomme ich nicht in die VM intrigiert, was bewirkt hier select oder optional ? wird eines von beiden aktiviert kann ich die VM nicht fertigstellen "VM Creation Error" Was mache ich hier falsch ? Quote Link to comment
SimonF Posted October 18, 2022 Share Posted October 18, 2022 2 minutes ago, Dtrain said: Moin, I'm trying desperately to display my VM on a monitor, so I bought the USB VGA card recommended in this forum. I can't get the card integrated into the VM, what does select or optional do here? if one of them is activated I cannot finish the VM "VM Creation Error" What am I doing wrong here ? Select is to connect to vm optional allows vm to start if usb not connected Quote Link to comment
Dtrain Posted October 18, 2022 Author Share Posted October 18, 2022 thanks, so first q. is answered. let me add now the diagnostics. maybe there can be seen why i can not add the cardtower-diagnostics-20221018-1925.zip Quote Link to comment

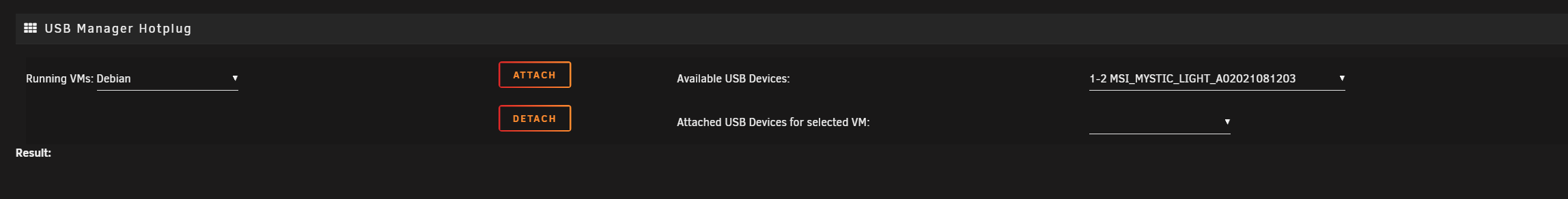

SimonF Posted October 18, 2022 Share Posted October 18, 2022 (edited) 26 minutes ago, Dtrain said: "VM Creation Error" Did the pop up have any more info? You seem to be using my plugin can you screen print usb manager. Edited October 18, 2022 by SimonF Quote Link to comment
SimonF Posted October 18, 2022 Share Posted October 18, 2022 9 minutes ago, Dtrain said: Remove selection and start VM, can you attach via hotplug on VM Page. Quote Link to comment
Dtrain Posted October 18, 2022 Author Share Posted October 18, 2022 yes with this route it is attached to vm but does not throw a vga output signal Quote Link to comment
SimonF Posted October 18, 2022 Share Posted October 18, 2022 1 minute ago, Dtrain said: yes with this route it is attached to vm but does not throw a vga output signal You normally need to install application to use usb video in Windows Quote Link to comment
Dtrain Posted October 18, 2022 Author Share Posted October 18, 2022 Simon many thanks for trying, i think i need to be more preciese to describe the problem as all answer you have given i tried already, sorry for wasting your time. I did of course install the app (witch is by they way on a internal Memory chip inside the USB Device hsoted) but no luck still no output, Windows Screen arangement shows i have 2 screens but the second one has no output whatever i tried so far ... Quote Link to comment
SimonF Posted October 18, 2022 Share Posted October 18, 2022 11 minutes ago, Dtrain said: Simon many thanks for trying, i think i need to be more preciese to describe the problem as all answer you have given i tried already, sorry for wasting your time. I did of course install the app (witch is by they way on a internal Memory chip inside the USB Device hsoted) but no luck still no output, Windows Screen arangement shows i have 2 screens but the second one has no output whatever i tried so far ... Sorry I couldn't help. Quote Link to comment
alturismo Posted October 18, 2022 Share Posted October 18, 2022 2 hours ago, Dtrain said: Windows Screen arangement shows i have 2 screens but the second one has no output whatever i tried so far ... mal vorne angefangen, funktioniert gvt-g ? sprich, wenn du auf der VM bist, siehst du die UHD Karte ? und welche CPU nutzt du ... und dann das Thema USB Mirror Link Devices ... das sollte nach Möglichkeit auch an einem durchgereichten PCIe USB Controller hängen und nicht unbedingt per USB ... innerhalb unraid weitergeleitet werden, das geht zwar auch bei dem ein oder anderen, aber grundsätzlich ist es nicht der Beste Weg hierfür ... Wenn die UHD Karte im Geräte Manager sauber läuft, nächster Test, Stream App wie Parsec drauf ... da muss die vgpu mit encoder laufen, am Besten auch den VNC Adapter entfernen oder zumindest zu deaktivieren ... und dann würde ich anfangen mit Mirror Link zu spielen Quote Link to comment
Dtrain Posted October 18, 2022 Author Share Posted October 18, 2022 (edited) So jetzt geht in deutsch weiter... mal vorne angefangen, funktioniert gvt-g ? sprich, wenn du auf der VM bist, siehst du die UHD Karte ? ja GVT funktioniert Einwand frei, der Test mit einem Youtube Video zeigt an das die IGPU aktiv ist und welche CPU nutzt du ... Intel I9 10900 und dann das Thema USB Mirror Link Devices ... das sollte nach Möglichkeit auch an einem durchgereichten PCIe USB Controller hängen und nicht unbedingt per USB ... innerhalb unraid weitergeleitet werden, das geht zwar auch bei dem ein oder anderen, aber grundsätzlich ist es nicht der Beste Weg hierfür ... Hier fangen die Probleme an. ich habe extra den Weg über USB gewählt da ich kein Slot mehr frei habe ... Es ist ein Mini ITX Board MSI Z590 Unify DIE USB Karte wird im Gerätemanager sauber angezeigt wie wird VNC entfernt im VM Mennü wenn keine andere Karte vorhanden ist ? Edited October 18, 2022 by Dtrain Quote Link to comment
