I just completed a fresh install of unraid 5b7.  I've been trying to get time machine to work but no luck.  Here's what I've done and the outcome.



I created a disk share and disk1 with AFP export via timemachine and secure security.  I login using a created user and password



I mount the disk, open time machine preferences and can select it.  After the backup starts, its get stuck on "making backup disk available".



After a while I get the message: "The backup disk image "/Volumes/disk1-1/[computer name].sparsebundle could not be created (error1)."



stuck on this now and was hoping for help.  I've also tried with a user share and on my 2nd mac and no luck.  any suggestions?

syslog.zip

might be worth mentioning that a sparsebundle shows up on the disk, but its fairly small - anywhere between 0-300mb

Can anyone confirm that they've managed to you tm out of the box without manually creating a sparsebunle

I have. 3 macs to the same share.

thanks - I've seen a couple other posts that suggest this may be a bug.  a little disappointing because i put together a fresh build for this.  Well I've posted by log in post so maybe someone can take a loot.  I'm jus stumped at this point



Is there a wiki i refer to for setting up TM under Unraid 5.  I haven't been able to find one



Jun 29 05:17:20 Tower afpd[1818]: server_child[1] 1872 exited 1
Jun 29 05:17:20 Tower afpd[1873]: ASIP session:548(5) from 192.168.0.101:52442(
Jun 29 05:17:20 Tower afpd[1818]: server_child[1] 1873 done
Jun 29 05:17:20 Tower afpd[1874]: ASIP session:548(5) from 192.168.0.101:52443(
Jun 29 05:17:20 Tower afpd[1874]: login noauth
Jun 29 05:17:20 Tower afpd[1874]: login nobody (uid 99, gid 100) AFP3.1
Jun 29 05:17:20 Tower cnid_dbd[1875]: Setting uid/gid to 99/100
Jun 29 05:17:20 Tower cnid_dbd[1875]: Startup, DB dir /mnt/disk1/.AppleDB
Jun 29 05:17:21 Tower afpd[1874]: logout nobody
Jun 29 05:17:21 Tower afpd[1874]: 0.21KB read, 0.19KB written
Jun 29 05:17:21 Tower afpd[1818]: server_child[1] 1874 done
Jun 29 05:17:21 Tower afpd[1818]: server_child[1] 1876 exited 1
Jun 29 05:17:21 Tower afpd[1877]: ASIP session:548(5) from 192.168.0.101:52445(
Jun 29 05:17:21 Tower afpd[1818]: server_child[1] 1877 done
Jun 29 05:17:24 Tower afpd[1881]: ASIP session:548(5) from 192.168.0.101:52447(
Jun 29 05:17:24 Tower afpd[1881]: DHX2 login: mark
Jun 29 05:17:28 Tower afpd[1881]: login mark (uid 1000, gid 100) AFP3.1
Jun 29 05:17:29 Tower afpd[1881]: ipc_write: command: 2, pid: 1881, msglen: 24
Jun 29 05:17:29 Tower afpd[1818]: ipc_read: command: 2, pid: 1881, len: 24
Jun 29 05:17:29 Tower afpd[1818]: Setting clientid (len 16) for 1881, boottime 4E0A3690
Jun 29 05:17:29 Tower afpd[1818]: ipc_get_session: len: 24, idlen 16, time 4e0a3690
Jun 29 05:17:29 Tower afpd[1818]: server_child[1] 1882 exited 1
Jun 29 05:17:29 Tower afpd[1883]: ASIP session:548(5) from 192.168.0.101:52449(
Jun 29 05:17:29 Tower afpd[1818]: server_child[1] 1883 done
Jun 29 05:17:29 Tower afpd[1818]: server_child[1] 1884 exited 1
Jun 29 05:17:29 Tower afpd[1885]: ASIP session:548(5) from 192.168.0.101:52451(
Jun 29 05:17:29 Tower afpd[1818]: server_child[1] 1885 done
Jun 29 05:17:42 Tower afpd[1818]: server_child[1] 1889 exited 1
Jun 29 05:17:42 Tower afpd[1890]: ASIP session:548(5) from 192.168.0.101:52454(
Jun 29 05:17:42 Tower afpd[1818]: server_child[1] 1890 done
Jun 29 05:17:44 Tower afpd[1894]: ASIP session:548(5) from 192.168.0.101:52455(
Jun 29 05:17:44 Tower afpd[1894]: DHX2 login: mark
Jun 29 05:17:47 Tower afpd[1894]: login mark (uid 1000, gid 100) AFP3.1
Jun 29 05:17:47 Tower afpd[1894]: ipc_write: command: 2, pid: 1894, msglen: 24
Jun 29 05:17:47 Tower afpd[1818]: ipc_read: command: 2, pid: 1894, len: 24
Jun 29 05:17:47 Tower afpd[1818]: Setting clientid (len 16) for 1894, boottime 4E0A3690
Jun 29 05:17:47 Tower afpd[1818]: WARNING: 2 connections (1881, 1894), boottime identical, don't know if one needs to be disconnected.
Jun 29 05:17:47 Tower afpd[1818]: ipc_get_session: len: 24, idlen 16, time 4e0a3690
Jun 29 05:17:47 Tower afpd[1818]: server_child[1] 1895 exited 1
Jun 29 05:17:47 Tower afpd[1896]: ASIP session:548(5) from 192.168.0.101:52457(
Jun 29 05:17:47 Tower afpd[1818]: server_child[1] 1896 done
Jun 29 05:17:47 Tower afpd[1818]: server_child[1] 1897 exited 1
Jun 29 05:17:47 Tower afpd[1898]: ASIP session:548(5) from 192.168.0.101:52459(
Jun 29 05:17:47 Tower afpd[1818]: server_child[1] 1898 done
Jun 29 05:17:47 Tower afpd[1894]: logout mark
Jun 29 05:17:47 Tower afpd[1894]: 1.25KB read, 1.02KB written
Jun 29 05:17:47 Tower afpd[1818]: server_child[1] 1894 done
Jun 29 05:17:47 Tower afpd[1818]: server_child[1] 1899 exited 1
Jun 29 05:17:47 Tower afpd[1900]: ASIP session:548(5) from 192.168.0.101:52461(
Jun 29 05:17:47 Tower afpd[1818]: server_child[1] 1900 done
Jun 29 05:17:47 Tower afpd[1818]: server_child[1] 1901 exited 1
Jun 29 05:17:47 Tower afpd[1902]: ASIP session:548(5) from 192.168.0.101:52463(
Jun 29 05:17:47 Tower afpd[1818]: server_child[1] 1902 done
Jun 29 05:17:51 Tower afpd[1818]: server_child[1] 1903 exited 1
Jun 29 05:17:51 Tower afpd[1904]: ASIP session:548(5) from 192.168.0.101:52465(
Jun 29 05:17:51 Tower afpd[1818]: server_child[1] 1904 done
Jun 29 05:17:51 Tower afpd[1905]: ASIP session:548(5) from 192.168.0.101:52466(
Jun 29 05:17:51 Tower afpd[1905]: DHX2 login: mark
Jun 29 05:17:55 Tower afpd[1905]: login mark (uid 1000, gid 100) AFP3.1
Jun 29 05:17:55 Tower afpd[1905]: ipc_write: command: 2, pid: 1905, msglen: 24
Jun 29 05:17:55 Tower afpd[1818]: ipc_read: command: 2, pid: 1905, len: 24
Jun 29 05:17:55 Tower afpd[1818]: Setting clientid (len 16) for 1905, boottime 4E0A3690
Jun 29 05:17:55 Tower afpd[1818]: WARNING: 2 connections (1881, 1905), boottime identical, don't know if one needs to be disconnected.
Jun 29 05:17:55 Tower afpd[1818]: ipc_get_session: len: 24, idlen 16, time 4e0a3690
Jun 29 05:17:55 Tower afpd[1818]: server_child[1] 1909 exited 1
Jun 29 05:17:55 Tower afpd[1910]: ASIP session:548(5) from 192.168.0.101:52468(
Jun 29 05:17:55 Tower afpd[1818]: server_child[1] 1910 done
Jun 29 05:17:56 Tower afpd[1818]: server_child[1] 1911 exited 1
Jun 29 05:17:56 Tower afpd[1912]: ASIP session:548(5) from 192.168.0.101:52470(
Jun 29 05:17:56 Tower afpd[1818]: server_child[1] 1912 done

My syslog looks the same but it works fine for me. Did you create a user?

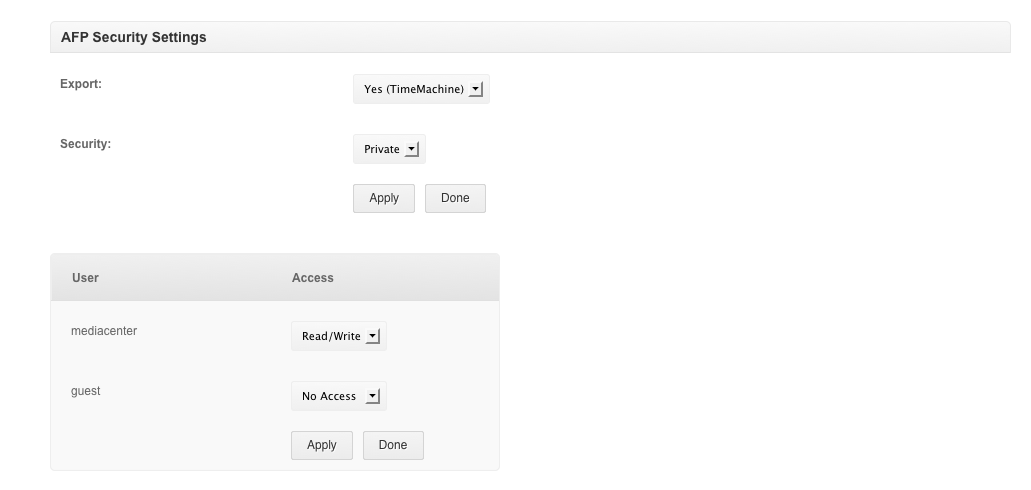

This is how I have mine setup. Apart from a few small authentication log issues, no problems with two Macs to the same share.



funny you're weub gui looks very different from mine - much cleaner.  It also has the options for quest under AFP where mine doesn't.  Other than that I'm setup the same way



the update from me is that I manually created a sparsebundle and timemachine picked it up and has started backing up.  i've left for work but will post up update when I get home.

@dgaschk



did create a user and have security set on secure / private.  I've tried both

funny you're weub gui looks very different from mine - much cleaner.  It also has the options for quest under AFP where mine doesn't.  Other than that I'm setup the same way



the update from me is that I manually created a sparsebundle and timemachine picked it up and has started backing up.  i've left for work but will post up update when I get home.



You should try my webGui, link in my signature

Make sure that you have SMB export set to NO for the TM share.
