Hi,





Since setup, I have been experiencing server outages every few days.

The outage would start becoming noticable because some docker containers would not respond anymore, the webgui would still load most of the time, but if you go to for example the docker containers page, or try to download the diagnostics, the webgui would freeze and the server would become unreachable (even pinging the server would not succeed).



included are the diagnostics files after a reboot, since downloading the diagnostics files are not possible during the issue (so I am not sure if they are helpful)



I already tried:

- disabling some docker containers I thought caused the problem, no luck



something that might be important. Some of my dockers have a folder mapping to the /mnt/cache/share instead of /mnt/user/share due to performance issues when going through /user, the shares that are mapped are configures as cache only though. I first thought maybe the mover could not deal with this, but according to unraids documentation, they wouldnt even look at those shares, and some outages start to occur at a time when the mover is not running.



Can anyone shed some light on what is going wrong here?



trantor-diagnostics-20221102-1712.zip trantor-diagnostics-20221024-0834.zip

Start here:

https://forums.unraid.net/topic/46802-faq-for-unraid-v6/?do=findComment&comment=819173



42 minutes ago, JorgeB said:

Start here:

https://forums.unraid.net/topic/46802-faq-for-unraid-v6/?do=findComment&comment=819173





thx for the response, changed the Power Supply Idle Control from auto to enabled, heres to hoping that fixes the problem

If it doesn't enable the syslog server and post that after a crash.

This might be a unrelated issue, but recently my docker containers became unresponsive again. The docker logs showed some readonly errors, so I guess this is related to problems on my cache pool? Diagnostics during issue included.



A reboot fixed the problem here.

If I am reading this right, the issue here is related to the cache pool? SMART does not report any errors on the drives though, and the drives are relatively new.



Not sure how to troubleshoot this :(

trantor-diagnostics-20221105-0238.zip

Nov  2 18:16:53 Trantor kernel: BTRFS info (device dm-4): bdev /dev/mapper/nvme0n1p1 errs: wr 0, rd 0, flush 0, corrupt 1729, gen 0
Nov  2 18:16:53 Trantor kernel: BTRFS info (device dm-4): bdev /dev/mapper/nvme1n1p1 errs: wr 0, rd 0, flush 0, corrupt 1256, gen 0



Btrfs is finding data corruption on both devices, start by running memtest.

2 hours ago, JorgeB said:

Nov  2 18:16:53 Trantor kernel: BTRFS info (device dm-4): bdev /dev/mapper/nvme0n1p1 errs: wr 0, rd 0, flush 0, corrupt 1729, gen 0
Nov  2 18:16:53 Trantor kernel: BTRFS info (device dm-4): bdev /dev/mapper/nvme1n1p1 errs: wr 0, rd 0, flush 0, corrupt 1256, gen 0



Btrfs is finding data corruption on both devices, start by running memtest.



Thx for the response,

I ran 2 passes without errors, any other causes I can look at?

Bad or failing RAM would be the main suspect, besides data corruption there's also filesystem corruption, likely caused by the same problem, best to backup and re-format the pool, then see here for better pool monitoring so you're notified if corruption continues to occur.

33 minutes ago, JorgeB said:

Bad or failing RAM would be the main suspect, besides data corruption there's also filesystem corruption, likely caused by the same problem, best to backup and re-format the pool, then see here for better pool monitoring so you're notified if corruption continues to occur.

So I should definitely replace the RAM then?



And if I do, I should still reformat the cache pool after a backup?

18 minutes ago, Abstract7227 said:

I should still reformat the cache pool after a backup?

Yes, corruption already happened, even if you now fix the cause, cannot say for sure the RAM was the problem, so monitor after formatting and if new corruption is found there's still a problem.

Noob question, but considering I pointed shares from /mnt/user/appdata to /mnt/cache/appdata on some docker containers. Can I still take the "backup" by changing the cache only shares to "yes" and activating the mover, then reformat the cache pool, setting the shares to "prefer", run the mover again, and changing it to "yes" after? Or wont that work anymore?

Yes, just need to verify if all data was moved, some might fail due to errors.

On 11/5/2022 at 5:08 PM, JorgeB said:

Yes, just need to verify if all data was moved, some might fail due to errors.

Some indeed failed, does that mean those files are lost? I assume the same error would occur when using krusader to move them

It means the files are corrupt and btrfs prevents them from copying/moving so that you don't copy corrupt files without knowing.

I moved the uncorrupted files, reformated the cache pool, moved it back and was pleasantly surprised my dockers were very much intact when I reinstalled the images.

What I am a bit worried about however is that I recently checked the logs and encountered the following entries:



Nov  8 08:54:22 Trantor kernel: nvme nvme0: I/O 64 QID 1 timeout, aborting
Nov  8 08:54:22 Trantor kernel: nvme nvme0: I/O 65 QID 1 timeout, aborting
Nov  8 08:54:22 Trantor kernel: nvme nvme0: I/O 66 QID 1 timeout, aborting
Nov  8 08:54:22 Trantor kernel: nvme nvme0: I/O 67 QID 1 timeout, aborting
Nov  8 08:54:22 Trantor kernel: nvme nvme0: I/O 68 QID 1 timeout, aborting
Nov  8 08:54:52 Trantor kernel: nvme nvme0: I/O 64 QID 1 timeout, reset controller
Nov  8 08:54:52 Trantor kernel: nvme nvme0: I/O 7 QID 0 timeout, reset controller
Nov  8 08:55:54 Trantor kernel: nvme0: Admin Cmd(0x6), I/O Error (sct 0x3 / sc 0x71)
Nov  8 08:55:54 Trantor kernel: nvme nvme0: Abort status: 0x371
Nov  8 08:55:54 Trantor kernel: nvme nvme0: Abort status: 0x371
Nov  8 08:55:54 Trantor kernel: nvme nvme0: Abort status: 0x371
Nov  8 08:55:54 Trantor kernel: nvme nvme0: Abort status: 0x371
Nov  8 08:55:54 Trantor kernel: nvme nvme0: Abort status: 0x371
Nov  8 08:55:54 Trantor kernel: nvme nvme0: 15/0/0 default/read/poll queues
Nov  8 12:08:05 Trantor nginx: 2022/11/08 12:08:05 [crit] 2930#2930: *1016094 pwritev() "/var/lib/nginx/client_body/0000147454" failed (28: No space left on device), client: unix:, server: , request: "POST /pub/devices?buffer_length=1 HTTP/1.1", host: "localhost"



Should I be worried about this?

Try this to see if helps:



Some NVMe devices have issues with power states on Linux, try this, on the main GUI page click on the flash drive, scroll down to "Syslinux Configuration", make sure it's set to "menu view" (top right) and add this to your default boot option, after "append initrd=/bzroot"

nvme_core.default_ps_max_latency_us=0 pcie_aspm=off

e.g.:

append initrd=/bzroot nvme_core.default_ps_max_latency_us=0 pcie_aspm=off

Reboot and see if it makes a difference.

24 minutes ago, JorgeB said:

Try this to see if helps:



Some NVMe devices have issues with power states on Linux, try this, on the main GUI page click on the flash drive, scroll down to "Syslinux Configuration", make sure it's set to "menu view" (top right) and add this to your default boot option, after "append initrd=/bzroot"

nvme_core.default_ps_max_latency_us=0 pcie_aspm=off

e.g.:

append initrd=/bzroot nvme_core.default_ps_max_latency_us=0 pcie_aspm=off

Reboot and see if it makes a difference.



ah kk thx



could this have caused the btrfs corruption I had, given that memtest did not find any RAM issues?

Nope

So I got the problem again.

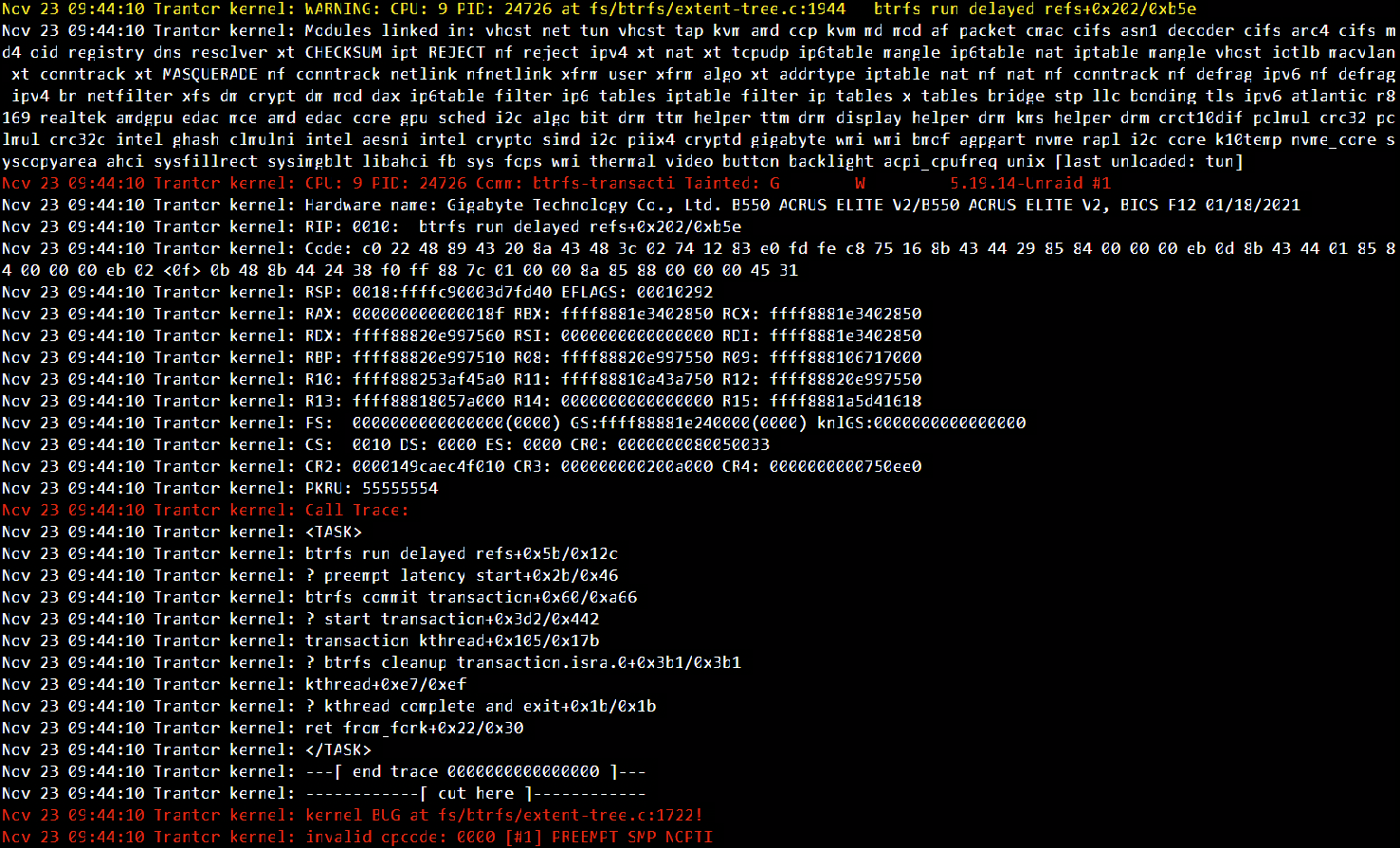

diagnostics after reboot included, as well as screenshot of some logs before reboot.



So this is after I replaced the RAM and reformated my cache pool

trantor-diagnostics-20221123-1355.zip

The screenshot doesn't show the complete call trace, if the server crashed, preventing the download of the diags before rebooting, enable the syslog server and post that if it happens again.

I got a crash again today, included the logs from the syslog server of the relevant time period



error trantor.txt

Problems with the NVMe device:



Dec  7 19:33:00 Trantor kernel: nvme nvme1: I/O 862 QID 2 timeout, aborting
Dec  7 19:33:00 Trantor kernel: nvme nvme1: I/O 0 QID 6 timeout, aborting
Dec  7 19:33:00 Trantor kernel: nvme nvme1: I/O 1 QID 6 timeout, aborting
Dec  7 19:33:00 Trantor kernel: nvme nvme1: I/O 2 QID 6 timeout, aborting
Dec  7 19:33:00 Trantor kernel: nvme nvme1: I/O 3 QID 6 timeout, aborting
Dec  7 19:33:30 Trantor kernel: nvme nvme1: I/O 862 QID 2 timeout, reset controller
Dec  7 19:34:00 Trantor kernel: nvme nvme1: I/O 0 QID 0 timeout, reset controller
Dec  7 19:34:31 Trantor kernel: nvme1n1: I/O Cmd(0x2) @ LBA 96582160, 8 blocks, I/O Error (sct 0x3 / sc 0x71)
Dec  7 19:34:31 Trantor kernel: I/O error, dev nvme1n1, sector 96582160 op 0x0:(READ) flags 0x80700 phys_seg 1 prio class 0



only the one device?

That's what I see in that log, then btrfs crashed.

So this might be a dumb question, but why would btrfs crash because of one drive acting funny? from what I understand, my cache pool is configured in RAID1
