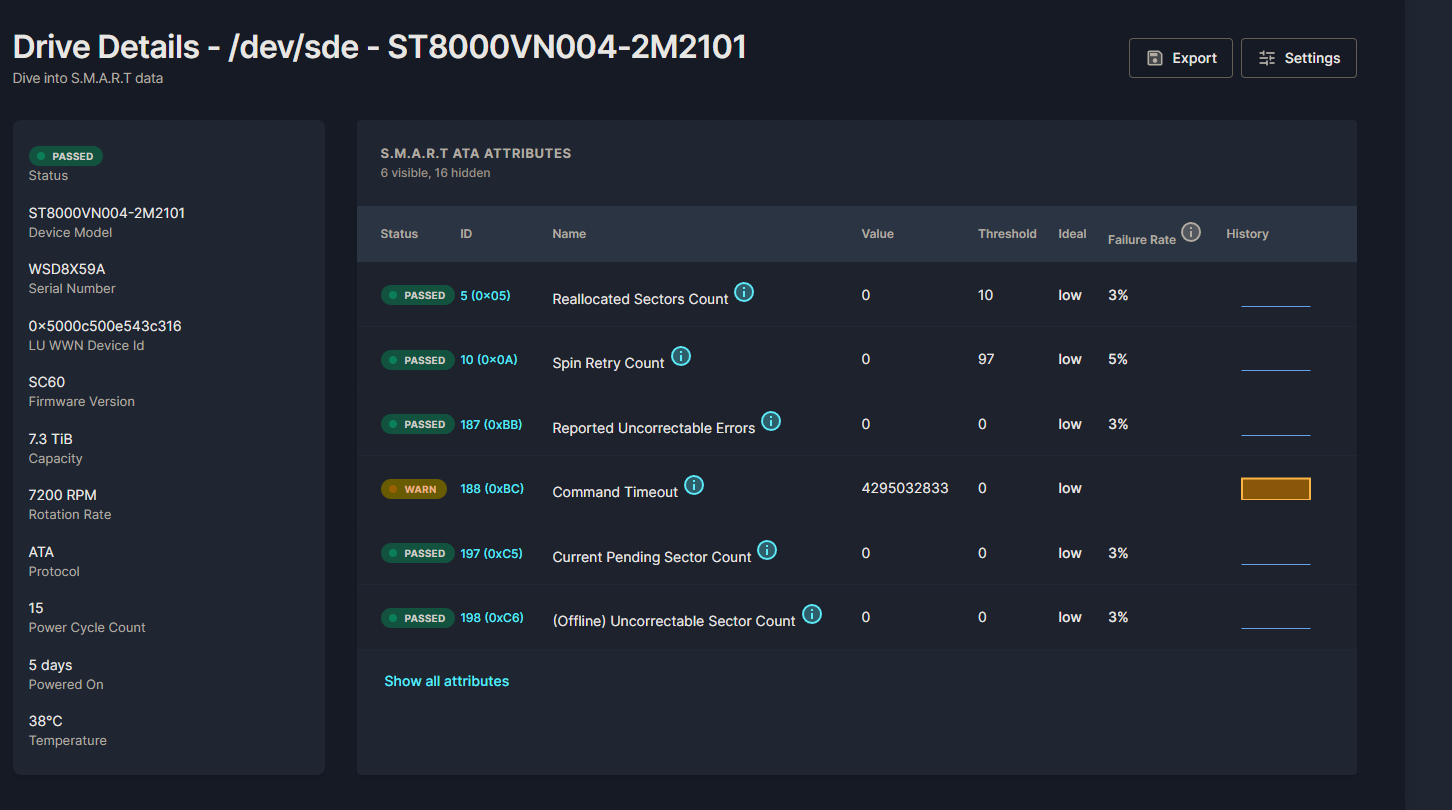

sohailoo Posted December 12, 2022 Share Posted December 12, 2022 (edited) i just installed scrutiny and noticed an insanely high value on my parity drive 188 smart value its a brand new drive and with only 5 days of time powered on  i ordered 3 of them ,the other 2 are fine should i freak out or is there a way to reset this Edited December 12, 2022 by sohailoo Quote Link to comment
JorgeB Posted December 12, 2022 Share Posted December 12, 2022 That attribute sometimes is divided in three words, convert the number to hex ( or use smartcl -a -v 188,raw16 /dev/sdX) and you'll get 1 001 001 Â 1st or last means total number, so just one timeout error, IIRC the other words have to do with time, 1 of them means >5 secs, other >7.5secs, so there was one timeout error that lasted more than 7.5s, I wouldn't worry for now. Quote Link to comment
greenflash24 Posted January 21, 2023 Share Posted January 21, 2023 (edited) My Seagate Exos X16 has also such a high Command_Timeout number, see:   Reveal hidden contents  smartctl 7.3 2022-02-28 r5338 [x86_64-linux-5.19.17-Unraid] (local build) Copyright (C) 2002-22, Bruce Allen, Christian Franke, www.smartmontools.org === START OF INFORMATION SECTION === Model Family: Seagate Exos X16 Device Model: ST14000NM001G-2KJ103 Serial Number: ------- LU WWN Device Id: 5 000c50 0d6b9c9b9 Firmware Version: SN04 User Capacity: 14,000,519,643,136 bytes [14.0 TB] Sector Sizes: 512 bytes logical, 4096 bytes physical Rotation Rate: 7200 rpm Form Factor: 3.5 inches Device is: In smartctl database 7.3/5417 ATA Version is: ACS-4 (minor revision not indicated) SATA Version is: SATA 3.3, 6.0 Gb/s (current: 6.0 Gb/s) Local Time is: Sat Jan 21 10:08:18 2023 CET SMART support is: Available - device has SMART capability. SMART support is: Enabled AAM feature is: Unavailable APM feature is: Unavailable Rd look-ahead is: Enabled Write cache is: Enabled DSN feature is: Disabled ATA Security is: Disabled, NOT FROZEN [SEC1] Write SCT (Get) Feature Control Command failed: scsi error aborted command Wt Cache Reorder: Unknown (SCT Feature Control command failed) === START OF READ SMART DATA SECTION === SMART overall-health self-assessment test result: PASSED General SMART Values: Offline data collection status: (0x82) Offline data collection activity was completed without error. Auto Offline Data Collection: Enabled. Self-test execution status: ( 249) Self-test routine in progress... 90% of test remaining. Total time to complete Offline data collection: ( 567) seconds. Offline data collection capabilities: (0x7b) SMART execute Offline immediate. Auto Offline data collection on/off support. Suspend Offline collection upon new command. Offline surface scan supported. Self-test supported. Conveyance Self-test supported. Selective Self-test supported. SMART capabilities: (0x0003) Saves SMART data before entering power-saving mode. Supports SMART auto save timer. Error logging capability: (0x01) Error logging supported. General Purpose Logging supported. Short self-test routine recommended polling time: ( 1) minutes. Extended self-test routine recommended polling time: (1252) minutes. Conveyance self-test routine recommended polling time: ( 2) minutes. SCT capabilities: (0x70bd) SCT Status supported. SCT Error Recovery Control supported. SCT Feature Control supported. SCT Data Table supported. SMART Attributes Data Structure revision number: 10 Vendor Specific SMART Attributes with Thresholds: ID# ATTRIBUTE_NAME FLAGS VALUE WORST THRESH FAIL RAW_VALUE 1 Raw_Read_Error_Rate POSR-- 080 064 044 - 108982304 3 Spin_Up_Time PO---- 091 090 000 - 0 4 Start_Stop_Count -O--CK 099 099 020 - 1602 5 Reallocated_Sector_Ct PO--CK 100 100 010 - 0 7 Seek_Error_Rate POSR-- 083 060 045 - 191146317 9 Power_On_Hours -O--CK 089 089 000 - 9959 10 Spin_Retry_Count PO--C- 100 100 097 - 0 12 Power_Cycle_Count -O--CK 100 100 020 - 30 18 Head_Health PO-R-- 100 100 050 - 0 187 Reported_Uncorrect -O--CK 100 100 000 - 0 188 Command_Timeout -O--CK 099 099 000 - 4295032833 190 Airflow_Temperature_Cel -O---K 073 048 040 - 27 (Min/Max 15/28) 192 Power-Off_Retract_Count -O--CK 100 100 000 - 18 193 Load_Cycle_Count -O--CK 100 100 000 - 1726 194 Temperature_Celsius -O---K 027 052 000 - 27 (0 10 0 0 0) 197 Current_Pending_Sector -O--C- 100 100 000 - 0 198 Offline_Uncorrectable ----C- 100 100 000 - 0 199 UDMA_CRC_Error_Count -OSRCK 200 200 000 - 0 200 Pressure_Limit PO---K 100 100 001 - 0 240 Head_Flying_Hours ------ 100 253 000 - 1883h+36m+01.045s 241 Total_LBAs_Written ------ 100 253 000 - 70618723688 242 Total_LBAs_Read ------ 100 253 000 - 517836053177 ||||||_ K auto-keep |||||__ C event count ||||___ R error rate |||____ S speed/performance ||_____ O updated online |______ P prefailure warning General Purpose Log Directory Version 1 SMART Log Directory Version 1 [multi-sector log support] Address Access R/W Size Description 0x00 GPL,SL R/O 1 Log Directory 0x01 SL R/O 1 Summary SMART error log 0x02 SL R/O 5 Comprehensive SMART error log 0x03 GPL R/O 5 Ext. Comprehensive SMART error log 0x04 GPL R/O 256 Device Statistics log 0x04 SL R/O 8 Device Statistics log 0x06 SL R/O 1 SMART self-test log 0x07 GPL R/O 1 Extended self-test log 0x08 GPL R/O 2 Power Conditions log 0x09 SL R/W 1 Selective self-test log 0x0a GPL R/W 8 Device Statistics Notification 0x0c GPL R/O 2048 Pending Defects log 0x10 GPL R/O 1 NCQ Command Error log 0x11 GPL R/O 1 SATA Phy Event Counters log 0x13 GPL R/O 1 SATA NCQ Send and Receive log 0x21 GPL R/O 1 Write stream error log 0x22 GPL R/O 1 Read stream error log 0x24 GPL R/O 768 Current Device Internal Status Data log 0x2f GPL - 1 Set Sector Configuration 0x30 GPL,SL R/O 9 IDENTIFY DEVICE data log 0x80-0x9f GPL,SL R/W 16 Host vendor specific log 0xa1 GPL,SL VS 160 Device vendor specific log 0xa2 GPL VS 16320 Device vendor specific log 0xa4 GPL,SL VS 160 Device vendor specific log 0xa6 GPL VS 192 Device vendor specific log 0xa8-0xa9 GPL,SL VS 136 Device vendor specific log 0xab GPL VS 1 Device vendor specific log 0xad GPL VS 16 Device vendor specific log 0xbe-0xbf GPL VS 65535 Device vendor specific log 0xc1 GPL,SL VS 8 Device vendor specific log 0xc3 GPL,SL VS 56 Device vendor specific log 0xc7 GPL,SL VS 8 Device vendor specific log 0xc9 GPL,SL VS 8 Device vendor specific log 0xca GPL,SL VS 16 Device vendor specific log 0xcd GPL,SL VS 1 Device vendor specific log 0xce GPL VS 1 Device vendor specific log 0xcf GPL VS 512 Device vendor specific log 0xd1 GPL VS 656 Device vendor specific log 0xd2 GPL VS 10000 Device vendor specific log 0xd4 GPL VS 2048 Device vendor specific log 0xda GPL,SL VS 1 Device vendor specific log 0xe0 GPL,SL R/W 1 SCT Command/Status 0xe1 GPL,SL R/W 1 SCT Data Transfer 0xe2 GPL,SL - 160 Reserved SMART Extended Comprehensive Error Log Version: 1 (5 sectors) No Errors Logged SMART Extended Self-test Log Version: 1 (1 sectors) Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error # 1 Extended offline Self-test routine in progress 90% 9959 - # 2 Short offline Completed without error 00% 9959 - # 3 Short offline Completed without error 00% 1412 - # 4 Short offline Completed without error 00% 1412 - # 5 Short offline Completed without error 00% 482 - # 6 Extended offline Completed without error 00% 159 - # 7 Extended offline Aborted by host 90% 45 - # 8 Short offline Completed without error 00% 3 - # 9 Short offline Aborted by host 90% 0 - SMART Selective self-test log data structure revision number 1 SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS 1 0 0 Not_testing 2 0 0 Not_testing 3 0 0 Not_testing 4 0 0 Not_testing 5 0 0 Not_testing Selective self-test flags (0x0): After scanning selected spans, do NOT read-scan remainder of disk. If Selective self-test is pending on power-up, resume after 0 minute delay. SCT Status Version: 3 SCT Version (vendor specific): 522 (0x020a) Device State: Active (0) Current Temperature: 27 Celsius Power Cycle Min/Max Temperature: 15/28 Celsius Lifetime Min/Max Temperature: 10/51 Celsius Under/Over Temperature Limit Count: 0/0 SMART Status: 0xc24f (PASSED) Vendor specific: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 02 00 00 00 00 00 00 00 00 00 00 00 SCT Temperature History Version: 2 Temperature Sampling Period: 4 minutes Temperature Logging Interval: 59 minutes Min/Max recommended Temperature: 10/40 Celsius Min/Max Temperature Limit: 5/60 Celsius Temperature History Size (Index): 128 (80) Index Estimated Time Temperature Celsius 81 2023-01-16 04:24 16 - 82 2023-01-16 05:23 16 - 83 2023-01-16 06:22 16 - 84 2023-01-16 07:21 17 - 85 2023-01-16 08:20 19 - 86 2023-01-16 09:19 17 - ... ..( 2 skipped). .. - 89 2023-01-16 12:16 17 - 90 2023-01-16 13:15 23 **** 91 2023-01-16 14:14 18 - 92 2023-01-16 15:13 17 - 93 2023-01-16 16:12 18 - 94 2023-01-16 17:11 19 - 95 2023-01-16 18:10 18 - 96 2023-01-16 19:09 17 - 97 2023-01-16 20:08 17 - 98 2023-01-16 21:07 17 - 99 2023-01-16 22:06 24 ***** 100 2023-01-16 23:05 23 **** 101 2023-01-17 00:04 19 - 102 2023-01-17 01:03 17 - 103 2023-01-17 02:02 17 - 104 2023-01-17 03:01 16 - ... ..( 2 skipped). .. - 107 2023-01-17 05:58 16 - 108 2023-01-17 06:57 17 - 109 2023-01-17 07:56 17 - 110 2023-01-17 08:55 22 *** 111 2023-01-17 09:54 18 - 112 2023-01-17 10:53 17 - ... ..( 2 skipped). .. - 115 2023-01-17 13:50 17 - 116 2023-01-17 14:49 16 - 117 2023-01-17 15:48 17 - 118 2023-01-17 16:47 17 - 119 2023-01-17 17:46 ? - 120 2023-01-17 18:45 19 - 121 2023-01-17 19:44 ? - 122 2023-01-17 20:43 21 ** 123 2023-01-17 21:42 ? - 124 2023-01-17 22:41 21 ** 125 2023-01-17 23:40 25 ****** 126 2023-01-18 00:39 23 **** 127 2023-01-18 01:38 17 - 0 2023-01-18 02:37 22 *** 1 2023-01-18 03:36 24 ***** 2 2023-01-18 04:35 18 - 3 2023-01-18 05:34 17 - 4 2023-01-18 06:33 16 - ... ..( 2 skipped). .. - 7 2023-01-18 09:30 16 - 8 2023-01-18 10:29 17 - ... ..( 8 skipped). .. - 17 2023-01-18 19:20 17 - 18 2023-01-18 20:19 18 - 19 2023-01-18 21:18 19 - 20 2023-01-18 22:17 17 - 21 2023-01-18 23:16 21 ** 22 2023-01-19 00:15 17 - 23 2023-01-19 01:14 17 - 24 2023-01-19 02:13 25 ****** 25 2023-01-19 03:12 20 * 26 2023-01-19 04:11 20 * 27 2023-01-19 05:10 17 - 28 2023-01-19 06:09 16 - 29 2023-01-19 07:08 16 - 30 2023-01-19 08:07 16 - 31 2023-01-19 09:06 15 - 32 2023-01-19 10:05 16 - 33 2023-01-19 11:04 15 - ... ..( 4 skipped). .. - 38 2023-01-19 15:59 15 - 39 2023-01-19 16:58 17 - 40 2023-01-19 17:57 16 - 41 2023-01-19 18:56 16 - 42 2023-01-19 19:55 22 *** 43 2023-01-19 20:54 20 * 44 2023-01-19 21:53 15 - 45 2023-01-19 22:52 24 ***** 46 2023-01-19 23:51 17 - 47 2023-01-20 00:50 21 ** 48 2023-01-20 01:49 25 ****** 49 2023-01-20 02:48 17 - 50 2023-01-20 03:47 18 - 51 2023-01-20 04:46 16 - 52 2023-01-20 05:45 16 - 53 2023-01-20 06:44 15 - 54 2023-01-20 07:43 15 - 55 2023-01-20 08:42 15 - 56 2023-01-20 09:41 19 - 57 2023-01-20 10:40 23 **** 58 2023-01-20 11:39 18 - 59 2023-01-20 12:38 25 ****** 60 2023-01-20 13:37 19 - 61 2023-01-20 14:36 18 - 62 2023-01-20 15:35 16 - 63 2023-01-20 16:34 20 * 64 2023-01-20 17:33 22 *** 65 2023-01-20 18:32 23 **** 66 2023-01-20 19:31 25 ****** 67 2023-01-20 20:30 27 ******** 68 2023-01-20 21:29 25 ****** 69 2023-01-20 22:28 28 ********* 70 2023-01-20 23:27 20 * 71 2023-01-21 00:26 17 - 72 2023-01-21 01:25 25 ****** 73 2023-01-21 02:24 22 *** 74 2023-01-21 03:23 19 - 75 2023-01-21 04:22 17 - 76 2023-01-21 05:21 16 - 77 2023-01-21 06:20 16 - 78 2023-01-21 07:19 22 *** 79 2023-01-21 08:18 21 ** 80 2023-01-21 09:17 24 ***** SCT Error Recovery Control: Read: 100 (10.0 seconds) Write: 100 (10.0 seconds) Device Statistics (GP Log 0x04) Page Offset Size Value Flags Description 0x01 ===== = = === == General Statistics (rev 1) == 0x01 0x008 4 30 --- Lifetime Power-On Resets 0x01 0x010 4 9959 --- Power-on Hours 0x01 0x018 6 70609910968 --- Logical Sectors Written 0x01 0x020 6 75777988 --- Number of Write Commands 0x01 0x028 6 517826243816 --- Logical Sectors Read 0x01 0x030 6 705331273 --- Number of Read Commands 0x01 0x038 6 - --- Date and Time TimeStamp 0x03 ===== = = === == Rotating Media Statistics (rev 1) == 0x03 0x008 4 1902 --- Spindle Motor Power-on Hours 0x03 0x010 4 1887 --- Head Flying Hours 0x03 0x018 4 1726 --- Head Load Events 0x03 0x020 4 0 --- Number of Reallocated Logical Sectors 0x03 0x028 4 0 --- Read Recovery Attempts 0x03 0x030 4 0 --- Number of Mechanical Start Failures 0x03 0x038 4 0 --- Number of Realloc. Candidate Logical Sectors 0x03 0x040 4 18 --- Number of High Priority Unload Events 0x04 ===== = = === == General Errors Statistics (rev 1) == 0x04 0x008 4 0 --- Number of Reported Uncorrectable Errors 0x04 0x010 4 1 --- Resets Between Cmd Acceptance and Completion 0x04 0x018 4 0 -D- Physical Element Status Changed 0x05 ===== = = === == Temperature Statistics (rev 1) == 0x05 0x008 1 27 --- Current Temperature 0x05 0x010 1 20 --- Average Short Term Temperature 0x05 0x018 1 17 --- Average Long Term Temperature 0x05 0x020 1 51 --- Highest Temperature 0x05 0x028 1 10 --- Lowest Temperature 0x05 0x030 1 43 --- Highest Average Short Term Temperature 0x05 0x038 1 12 --- Lowest Average Short Term Temperature 0x05 0x040 1 30 --- Highest Average Long Term Temperature 0x05 0x048 1 16 --- Lowest Average Long Term Temperature 0x05 0x050 4 0 --- Time in Over-Temperature 0x05 0x058 1 60 --- Specified Maximum Operating Temperature 0x05 0x060 4 0 --- Time in Under-Temperature 0x05 0x068 1 5 --- Specified Minimum Operating Temperature 0x06 ===== = = === == Transport Statistics (rev 1) == 0x06 0x008 4 63 --- Number of Hardware Resets 0x06 0x010 4 18 --- Number of ASR Events 0x06 0x018 4 0 --- Number of Interface CRC Errors 0xff ===== = = === == Vendor Specific Statistics (rev 1) == 0xff 0x008 7 0 --- Vendor Specific 0xff 0x010 7 0 --- Vendor Specific 0xff 0x018 7 0 --- Vendor Specific |||_ C monitored condition met ||__ D supports DSN |___ N normalized value Pending Defects log (GP Log 0x0c) No Defects Logged SATA Phy Event Counters (GP Log 0x11) ID Size Value Description 0x000a 2 3 Device-to-host register FISes sent due to a COMRESET 0x0001 2 0 Command failed due to ICRC error 0x0003 2 0 R_ERR response for device-to-host data FIS 0x0004 2 0 R_ERR response for host-to-device data FIS 0x0006 2 0 R_ERR response for device-to-host non-data FIS 0x0007 2 0 R_ERR response for host-to-device non-data FIS    The Unraid Dashboard shows this as an Error:  I am not sure how I have to interpret this data?  Should I replace this drive, or is this an false error message? Edited January 21, 2023 by greenflash24 Quote Link to comment
JorgeB Posted January 22, 2023 Share Posted January 22, 2023 Did you read the post above yours? Quote Link to comment
