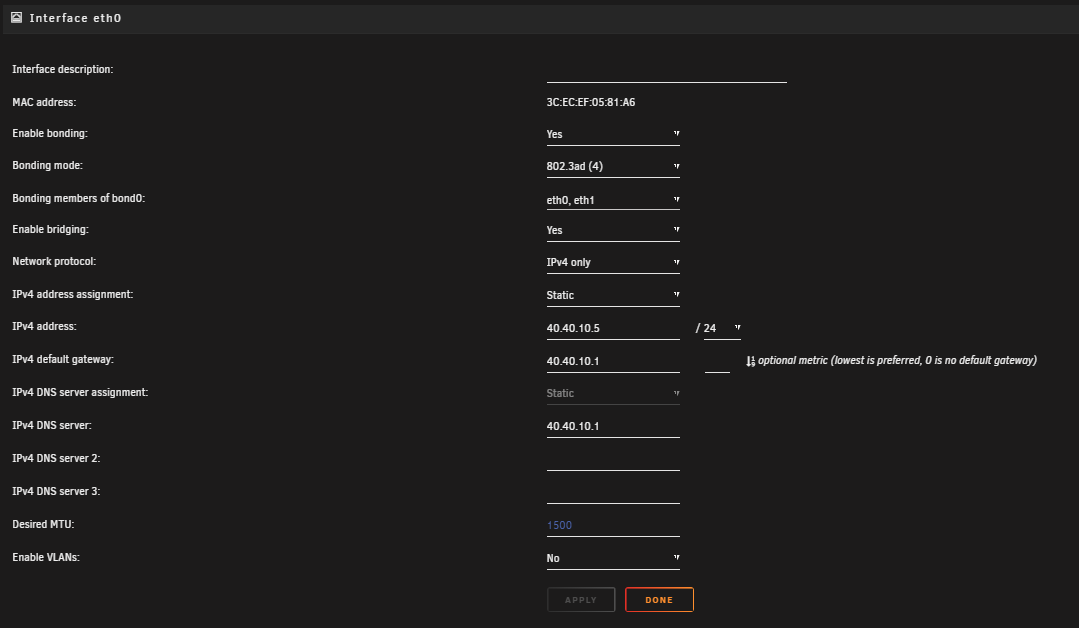

December 26, 20223 yr if you have multiple ports on your server and have a switch that supports NIC teaming/LACP you can put them to work. The environment/equipment will vary. I use Cisco, but if you have a switch the supports NIC teaming/LACP the concept should be the similar. -environment diagram - - router = pfsense switch = Cisco server = Unraid 1. switch configuration - - -configure interfaces you want to use on your switch with LACP. MAINSWITCH#en MAINSWITCH#enable MAINSWITCH#conf t Enter configuration commands, one per line. End with CNTL/Z. MAINSWITCH(config)# MAINSWITCH(config)# MAINSWITCH(config)#inter MAINSWITCH(config)#interface ra MAINSWITCH(config)#interface range gig MAINSWITCH(config)#interface range gigabitEthernet 0/37-38 MAINSWITCH(config-if-range)#cha MAINSWITCH(config-if-range)#channel-g MAINSWITCH(config-if-range)#channel-group 2 mode MAINSWITCH(config-if-range)#channel-group 2 mode acc MAINSWITCH(config-if-range)#channel-group 2 mode ac MAINSWITCH(config-if-range)#channel-group 2 mode active Creating a port-channel interface Port-channel 2 MAINSWITCH(config-if-range)#shu MAINSWITCH(config-if-range)#shutdown MAINSWITCH(config-if-range)# -This also creates the logical interface on the switch as a 'port-channel #' and shuts it down. 2. Next, configure the newly created logical interface 'port-channel #' to mode access -Also what VLAN the interface has access to (optional). MAINSWITCH# MAINSWITCH#en MAINSWITCH#enable MAINSWITCH#conf t Enter configuration commands, one per line. End with CNTL/Z. MAINSWITCH(config)#inter MAINSWITCH(config)#interface port MAINSWITCH(config)#interface port-c MAINSWITCH(config)#interface port-channel 2 MAINSWITCH(config-if)#swi MAINSWITCH(config-if)#switchport mode acc MAINSWITCH(config-if)#switchport mode access MAINSWITCH(config-if)#swi MAINSWITCH(config-if)#switchport acc MAINSWITCH(config-if)#switchport access vl MAINSWITCH(config-if)#switchport access vlan 40 MAINSWITCH(config-if)# 3. Next, bring all interfaces back online. MAINSWITCH#en MAINSWITCH#enable MAINSWITCH#conf t Enter configuration commands, one per line. End with CNTL/Z. MAINSWITCH(config)#inter MAINSWITCH(config)#interface ra MAINSWITCH(config)#interface range gig MAINSWITCH(config)#interface range gigabitEthernet 0/37-38 MAINSWITCH(config-if-range)#no shut MAINSWITCH(config-if-range)#no shutdown MAINSWITCH(config-if-range)# 4. check running configuration MAINSWITCH#show running-config ! interface Port-channel2 switchport access vlan 40 switchport mode access ! interface GigabitEthernet0/37 switchport access vlan 40 switchport mode access channel-group 2 mode active ! interface GigabitEthernet0/38 switchport access vlan 40 switchport mode access channel-group 2 mode active ! once your switch is configured, over on your server. Stop the Docker service. Head over to Settings > Network Settings. Configure the interfaces on your server you would like to bond together. -if you are not able to select the interface under 'bonding members' ensure they are disabled. -mode, should be 4 Apply/Done. over on terminal you can and get some information on link status, protocol and bandwidth. cat /proc/net/bonding/bond0 /sbin/ip link ethtool bond0 🖖 Edited November 19, 20232 yr by Tolete
September 29, 20232 yr On 12/26/2022 at 2:36 PM, Tolete said: if you have multiple ports on your server and have a switch that supports NIC teaming/LACP you can put them to work. The environment/equipment will vary. I use Cisco, but if you have a switch the supports NIC teaming/LACP the concept should be the similar. -environment diagram - - router = pfsense switch = Cisco server = Unraid 1. switch configuration - - -configure interfaces you want to use on your switch with LACP. MAINSWITCH#en MAINSWITCH#enable MAINSWITCH#conf t Enter configuration commands, one per line. End with CNTL/Z. MAINSWITCH(config)# MAINSWITCH(config)# MAINSWITCH(config)#inter MAINSWITCH(config)#interface ra MAINSWITCH(config)#interface range gig MAINSWITCH(config)#interface range gigabitEthernet 0/37-38 MAINSWITCH(config-if-range)#cha MAINSWITCH(config-if-range)#channel-g MAINSWITCH(config-if-range)#channel-group 2 mode MAINSWITCH(config-if-range)#channel-group 2 mode acc MAINSWITCH(config-if-range)#channel-group 2 mode ac MAINSWITCH(config-if-range)#channel-group 2 mode active Creating a port-channel interface Port-channel 2 MAINSWITCH(config-if-range)#shu MAINSWITCH(config-if-range)#shutdown MAINSWITCH(config-if-range)# -This also creates the logical interface on the switch as a 'port-channel #' and shuts it down. 2. Next, configure the newly created logical interface 'port-channel #' to mode access -Also what VLAN the interface has access to (optional). MAINSWITCH# MAINSWITCH#en MAINSWITCH#enable MAINSWITCH#conf t Enter configuration commands, one per line. End with CNTL/Z. MAINSWITCH(config)#inter MAINSWITCH(config)#interface port MAINSWITCH(config)#interface port-c MAINSWITCH(config)#interface port-channel 2 MAINSWITCH(config-if)#swi MAINSWITCH(config-if)#switchport mode acc MAINSWITCH(config-if)#switchport mode access MAINSWITCH(config-if)#swi MAINSWITCH(config-if)#switchport acc MAINSWITCH(config-if)#switchport access vl MAINSWITCH(config-if)#switchport access vlan 40 MAINSWITCH(config-if)# 3. Next, bring all interfaces back online. MAINSWITCH#en MAINSWITCH#enable MAINSWITCH#conf t Enter configuration commands, one per line. End with CNTL/Z. MAINSWITCH(config)#inter MAINSWITCH(config)#interface ra MAINSWITCH(config)#interface range gig MAINSWITCH(config)#interface range gigabitEthernet 0/37-38 MAINSWITCH(config-if-range)#no shut MAINSWITCH(config-if-range)#no shutdown MAINSWITCH(config-if-range)# 4. check running configuration MAINSWITCH#show running-config ! interface Port-channel2 switchport access vlan 40 switchport mode access ! interface GigabitEthernet0/37 switchport access vlan 40 switchport mode access channel-group 2 mode active ! interface GigabitEthernet0/38 switchport access vlan 40 switchport mode access channel-group 2 mode active ! once your switch is configured, over on your server. Stop the Docker service. Head over to Settings > Network Settings. Configure the interfaces on your server you would like to bond together. -if you are not able to select the interface under 'bonding members' ensure they are disabled. -mode, should be 4 Apply/Done. over on terminal you can and get some information on link status, protocol and bandwidth. cat /proc/net/bonding/bond0 /sbin/ip link ethtool bond0 🖖 This was an incredible help. I couldn't figure out why I was having intermittent issues with Unraid seeming to be unavailable for periods of time (no pattern)... As it turns out, I had my switch port-channel interfaces set to mode auto (should have been active).
October 2, 20232 yr Author On 9/29/2023 at 9:27 AM, droidlev said: This was an incredible help. I couldn't figure out why I was having intermittent issues with Unraid seeming to be unavailable for periods of time (no pattern)... As it turns out, I had my switch port-channel interfaces set to mode auto (should have been active). Glad it was helpful.
November 18, 20232 yr Thank you sharing this guide and example. I found it very helpful. However, for one of my lab Cisco switches (SG300-10), channel-group modes were only Auto (w/LACP) or On without LACP. So far it has been stable in Auto mode. Edited November 18, 20232 yr by guruleenyc
November 18, 20232 yr Author 4 hours ago, guruleenyc said: Thank you sharing this guide and example. I found it very helpful. You're welcome.
January 1, 20242 yr Thank you for this awesome guide! I ended up here even though I have an older HP 1810 Procurve switch. I first tried without any switch configuration and Mode 0 (balance-rr) in UNRAID but my write-speed in Windows would drop from 112MB/s to about 33MB/s. I have 2 nics in my box so wanted to give UNRAID some more speed lanes in case multiple clients write at the same time to my cache-ssd There is probably no need for a complete guide but for unraid and an older HP switch with LACP you need to configure it like so: The trick is to modify and disable the Static Capability setting, then go to Trunk Membership and you should be able to select LACP for the ports you want: The rest of the guide for the UNRAID side is the same as written in the startpost. After my LACP came up, I was unable to connect to the webgui. (ssh worked fine) 2 tips that helped: 1) I set BIND_MGT="yes" in /boot/config/ident.cfg 2) I disabled USE_SSL="no" in /boot/config/ident.cfg /etc/rc.d/rc.nginx restart After that I was able to connect to the webgui using the UNRAID ip. Then I changed Local TLD from local to my domain (local.domain.tld) after that the webgui was accessible again. (no idea why this happend) Edited January 1, 20242 yr by ___niko___
