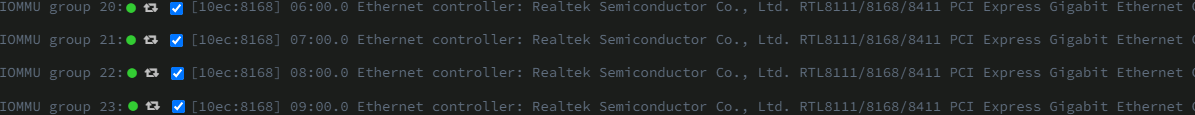

January 8, 20233 yr Hi... i have to installed pfsense and opnsense, I only start one system at a time. pfsense hang the system: WAN is down (no take modem dhcp address anymore) and LAN no access to the pfsense gateway 192.168.1.1 (chrome and firefox) interfaces assign in pfsense and opnsense re0: WAN re1: LAN re2: OPT1 re3: OPT2 opnsense: restart wan each 2 seconds (link state up and link state down) no access to 192.168.1.1 ------ PCIe ACS override: tested with downstream, Multi-Function and both (in each selected method the system has been restarted) VFIO allow unsafe interrupts: YES and NO selected for each PCIe ACS override selected method ------ Syslinux configuration: label Unraid OS menu default kernel /bzimage append pcie_acs_override=downstream initrd=/bzroot ---------- also a tested with the next line, but not appear network adapters listed "Other PCI Devices" in the VM configuration. append vfio-pci.ids=10ec:8168 pcie_acs_override=downstream initrd=/bzroot the networks adapters appear listed with "Bind Selected to VFIO at boot" checkbox blue selection. pfsense configuration testing: System / Advanced / Networking (blue checkbox selected) Disable hardware checksum offload Disable hardware TCP segmentation offload Disable hardware large receive offload Enable the ALTQ support for hn NICs. somebody can help ?
