Proxmox cannot use SMB share with caching

[WarlockSyno]

Hello,

I'm trying to use an Unraid SMB share as a storage for ISOs, backups, etc. The issue is I cannot set a cache drive to the share. It will immediately kick an error out in Proxmox saying it cannot find the SMB share, even though it can list it.

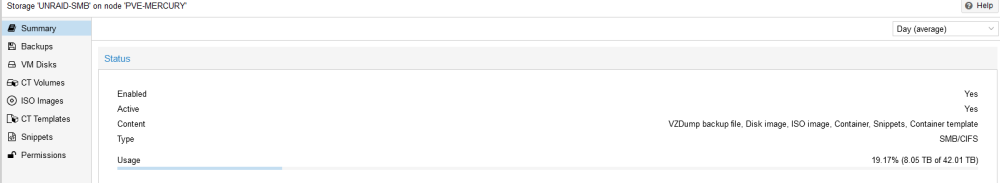

Here is a view of Proxmox showing details about the SMB share but unable to write to it



INFO: starting new backup job: vzdump 100 --prune-backups 'keep-last=2,keep-weekly=1' --all 0 --node PVE-SOL --storage UNRAID-SMB --mailnotification always --notes-template '{{guestname}}' --mode snapshot --compress zstd
ERROR: Backup of VM 100 failed - unable to create temporary directory '/mnt/pve/UNRAID-SMB/dump/vzdump-qemu-100-2023_01_16-18_19_28.tmp' at /usr/share/perl5/PVE/VZDump.pm line 930.
INFO: Failed at 2023-01-16 18:19:28
INFO: Backup job finished with errors
TASK ERROR: job errors



If I remove the cache drive from the share it works perfectly fine.





This may be related, but I tried to use NFS instead and ran into similar results, I didn't try it without the cache drive though.

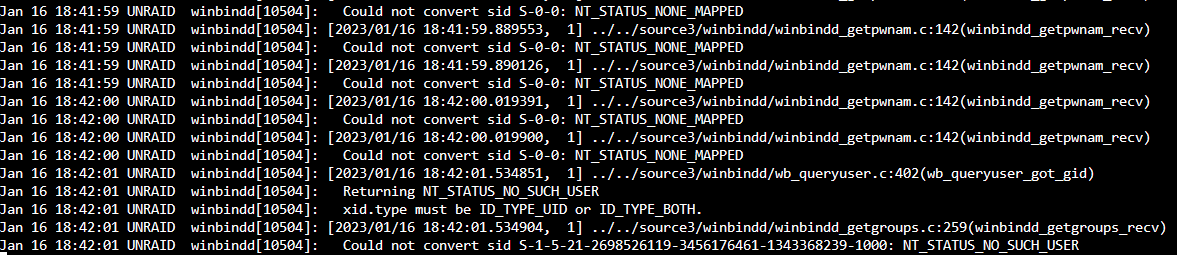

This may also not be related, but I turned on SMB log level to 1 and the console is being spammed with this error:

[jtp755]

I am having this issue with NFS and digging in to it as well. Ill give the no cache drive a try and see if anything changes.

What I find odd in my case is that I can add the NFS share to my cluster, see it on both nodes, set up a backup job, run said backup job and everything works great. Leave it for a bit and come back and the storage on both nodes has a question mark and inaccessible. I have another NFS share mounted from another NAS and that has been solid.

Edited January 17 by jtp755

[WarlockSyno]

17 minutes ago, jtp755 said:

I am having this issue with NFS and digging in to it as well. Ill give the no cache drive a try and see if anything changes.

What I find odd in my case is that I can add the NFS share to my cluster, see it on both nodes, set up a backup job, run said backup job and everything works great. Leave it for a bit and come back and the storage on both nodes has a question mark and inaccessible. I have another NFS share mounted from another NAS and that has been solid.

That is the exact issue I'm having with NFS. Like I said, I haven't tried it since then without the cache.



I am using another SMB share with a cached drive no problem mounted in an Ubuntu VM. So not sure what the hang up is with Proxmox.

[jtp755]

21 hours ago, WarlockSyno said:

That is the exact issue I'm having with NFS. Like I said, I haven't tried it since then without the cache.



I am using another SMB share with a cached drive no problem mounted in an Ubuntu VM. So not sure what the hang up is with Proxmox.

I have been running for 24hrs with cache turned off on my backup share in Unraid and it has not even blipped in Proxmox. All snapshots have written fine and I can still browse the attached storage from Proxmox. Seems to definitely be something with cache-enabled.



I did see quite a few posts yesterday when I was looking in to it add the NFS share in /etc/fstab for automount and then in Proxmox use local filesystem to add the storage. I have not tried this yet though.

[WarlockSyno]

I also checked and my backups/snapshots haven't had an issue with cache turned off.



As stated before, I have another share with cache enabled that is working fine. In fact, I moved 500GB to it yesterday without an issue.

[jtp755]

12 hours ago, WarlockSyno said:

I also checked and my backups/snapshots haven't had an issue with cache turned off.



As stated before, I have another share with cache enabled that is working fine. In fact, I moved 500GB to it yesterday without an issue.

So the other share you have mounted in the Ubuntu VM - the VM is running on Proxmox? Im betting that would work as its using the OS which is good news.



I am going to change mine tomorrow to have cache enabled but mount the NFS via /etc/fstab and see how that goes. Didnt get to it today.

[WarlockSyno]

Yeah I have the other share mounted in a VM on Proxmox, that one has had 0 issues.

[jtp755]

I have not found a solution other than disabling cache on the pool in order to get the storage stable and usable in Proxmox host (not specific VMs or LXCs) - just adding it as storage.

Edited January 20 by jtp755
