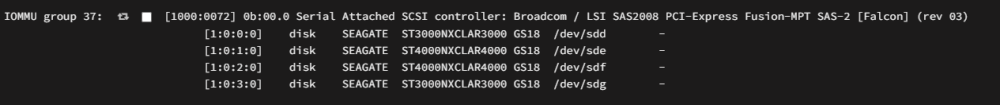

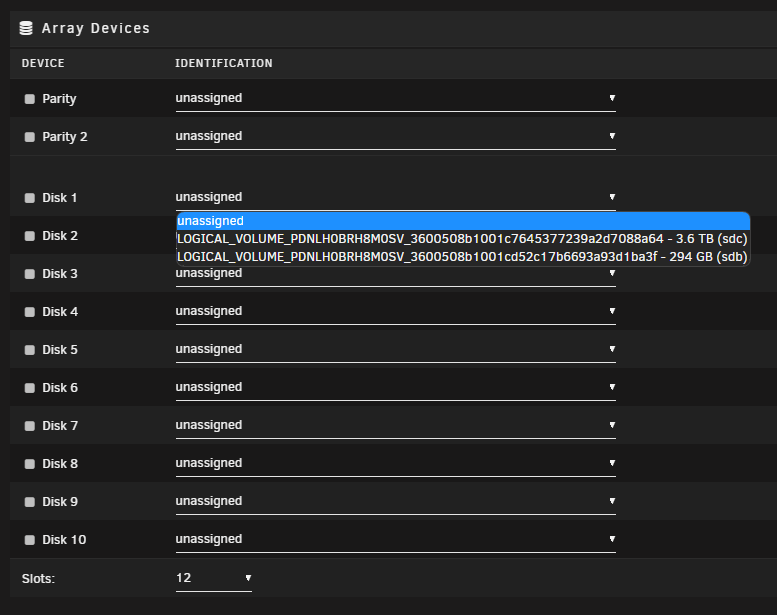

Stuart Greig Posted March 10 Share Posted March 10 HI All, New to Unraid and new to servers so apologies if I miss anything in this post. I have the setup in title. I have installed the latest version of UNRAID on USB key and everything runs ok....to a point. I have 2x 148GB SAS and x2 1.8TB SAS drives in my HP DL380 Gen9 server. In the backup storage I have 4x4TB SAS drives and soon a 1TB SSD cache drive connected to the server via a PERC H200e HBA (flashed to IT mode). The card is enabled in the BIOS, the card is seen in UNRAID "System Information" and so are the 4x4TB drives. Problem I have is I don't have the option to mount any of these drives into my array. All I see in the dropdown is the 4 SAS drives I have installed in the server itself. Any help would be much appreciated. I'm pulling my hair out here! Thanks, Stuart juno-diagnostics-20230310-1644.zip Quote Link to comment
apandey Posted March 10 Share Posted March 10 see this thread, you may need to set something in BIOS. Your drives are showing masked in syslog Also, seems your drives attached to server which are visible are in RAID mode, which is not recommended Quote Link to comment
Solution JorgeB Posted March 10 Solution Share Posted March 10 Logical block size: 520 bytes This is not supported, you'll need to re-format them with 512B sector size. Quote Link to comment
Stuart Greig Posted March 11 Author Share Posted March 11 HI Both, thank you I've learned something new already. So reading the other guys post you linked to I have to unmask the drives using the HP ssacli and using this command to clear previous configs "ssacli controller slot=3 physicaldrive 2I:1:1 modify clearconfigdata" Thanks Quote Link to comment
Stuart Greig Posted March 11 Author Share Posted March 11 And i'll not setup the drives in the server itself in RAID. Thanks Quote Link to comment
Stuart Greig Posted March 11 Author Share Posted March 11 I tried the solution in the link you suggested but I think because its a non HP card the system cant see it. I still only had the option for the SAS drives in the server. Quote Link to comment
JorgeB Posted March 12 Share Posted March 12 Did you format the drives to 512B sector size? Quote Link to comment
Stuart Greig Posted March 12 Author Share Posted March 12 I have tried every programe under the sun to format these 4 undetected drives and everytime I try format them I get an error regarding i/o. Can I format them within the UNRAID console as that is the only place I can see them? Logical block size: 520 bytes still as before. Quote Link to comment
Stuart Greig Posted March 12 Author Share Posted March 12 I'ce actually found a post you commented on a long time ago. I'm running this command just now on one of the drives but it's painfully slow. sg_format -v --format --size=512 /dev/sdb 1 hour ago, JorgeB said: Did you format the drives to 512B sector size? Quote Link to comment
Stuart Greig Posted March 12 Author Share Posted March 12 I'm also running this in UNRAID console. WIll this work? 21 hours ago, Stuart Greig said: I tried the solution in the link you suggested but I think because its a non HP card the system cant see it. I still only had the option for the SAS drives in the server. Quote Link to comment
JorgeB Posted March 12 Share Posted March 12 Yes, as long and you don't close it if using the terminal windows or SSH. Quote Link to comment
Stuart Greig Posted March 12 Author Share Posted March 12 Thanks, formatting all 4 now. Fingers crossed! 7 minutes ago, JorgeB said: Yes, as long and you don't close it if using the terminal windows or SSH. Quote Link to comment
Stuart Greig Posted March 13 Author Share Posted March 13 19 hours ago, JorgeB said: Did you format the drives to 512B sector size? Just want to say thank you. That did the trick. About 4 days of back and forward and your suggestion worked and all drives now accessible in UNRAID. Thanks again 🙂 1 Quote Link to comment
