Hi,



I have currently lost access to parts of my data and hope you guys can help me save my data.



TLDR: Disk should be healthy but parity might have some slight errors resulting in emulated content being unmountable



Scenario:

• I run 2 Unraid Servers via my ESXI Server
• This morning I wanted to finally add a new 18TB Drive to my Unraid server. For that I added the sata cable to a new PCIE card I inserted together with some other disks to switch from a different PCIE to Sata card that had caused problems in the past when trying to add this 18TB Drive. (Full on Crash of the Host Server)
• I passed the disk through to my Secondary Test Unraid Server for pre clearing
• Disk available. To test all is working well I mount it with unassigned devices with a filesystem and copy ~50GB of stuff onto it to be sure its working just fine. All goes well
• I start the Preclear. All seems well.
• Suddenly my main Unraid Server is reporting problems and get the following 2 Mails:

  • Event: Unraid Disk 7 SMART health [85]

    Subject: Warning [TOWER] - unknown attribute (failing now) is 93824992236885

    Description: WDC_WD140EDGZ-11B1PA0_Y6GVG5JC (sdg)

  • Event: Unraid array errors

    Subject: Warning [TOWER] - array has errors

    Description: Array has 1 disk with read errors

    Importance: warning

    Disk 1 - WDC_WD120EDAZ-11F3RA0_8CK6E17F (sdd) (errors 397)

• While checking Unraid I notice 100% CPU usage.

• Disk 1 gets disabled. Has around ~800 Errors in Unraid UI, Disk 7 has around 600 Errors

• I shut the Unraid Server + whole ESXI server down shortly after and do some experimenting while booting my ESXI a few times and decide to go back to my old PCIE Card

• I disconnect the 18TB fully. I put in the old PCIE to Sata card and connect the drives again.

• I boot all up again and don't notice that at this moment already the emulated disk was probably not readable

• I remove the disabled disk, start array, stop it immediately, add it again

• Now I start the array to start the rebuild on the same disk.

• After around 1TB of the 12TB rebuild that was happening on the side without any Read or Write Errors I notice the "Unmountable" Error. After reading up on it I verify that this is not good . I also notice all files on the drive are not available due to this..

• I stop the array. Restart the Unraid server. Remove the Disk again and just start it with a missing disk to see if it still shows Unmountable.

• As it still shows unmountable I left it there while making sure no Processes or Dockers were running to further damage anything and wrote this post.



My personal interpretation:

• Both Disk 7 and 1 are totally fine phyiscally and any small smart value change will have been caused by the PCIE to Sata Controller Error
• As Both Disk 7 and 1 had errors I assume the file system of the emulated disk is getting jumbled.
• I think 99.9% of Parity and 99.9% of the Disks content should be fine.
• I want to be sure that anything I do does not make the situation worse so I am waiting on messages here before trying anything further.
• I have a backup of the most critical data. But there is still a good chunk of data on that drive that would be very bad to loose.



I hope I can still get some support on this topic even if I am using a ESXI. I do not expect any help on the problems relating to the ESXI itself but just wanted to be transparent about what happened. Basically just a isolated view on data recovery in this scenario with me figuring out by myself why this was caused in the first place.





tower-diagnostics-20230322-1902.zip

Edited March 22, 20233 yr by Anon

Ideally you do this before rebuilding on top, but check filesystem on disk1.

@JorgeBThanks so much for your quick response.

I read through the link you sent and due to my File System being XFS I ran the check with the parameters -nv.

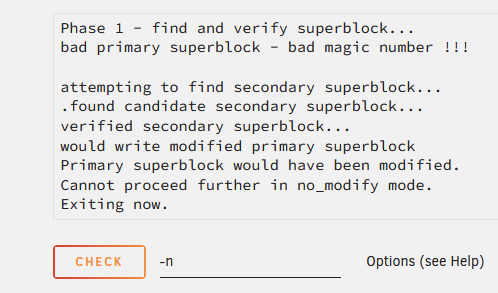

I got the following output:



If I understand this correctly the command says it would write a modified primary superblock.

Is it correct that the way to move forward from here is to execute the Check again with the "-v" parameter alone?

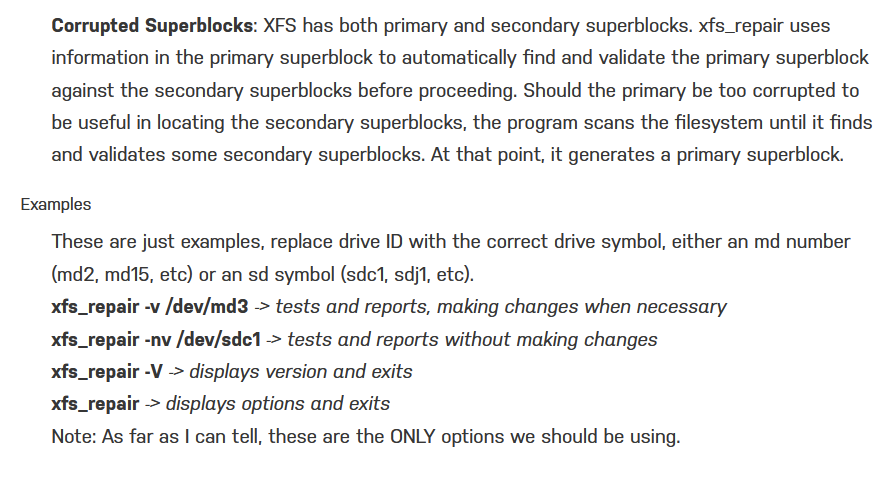

Information that are linked to the shown error:



I apologize in advance for asking any small step but I just want to be absolutely certain I do not damage the files that might still be on the disk.



5 minutes ago, Anon said:

Is it correct that the way to move forward from here is to execute the Check again with the "-v" parameter alone?

Correct, and if it asks for -L use it.

Thanks once again you are awesome.

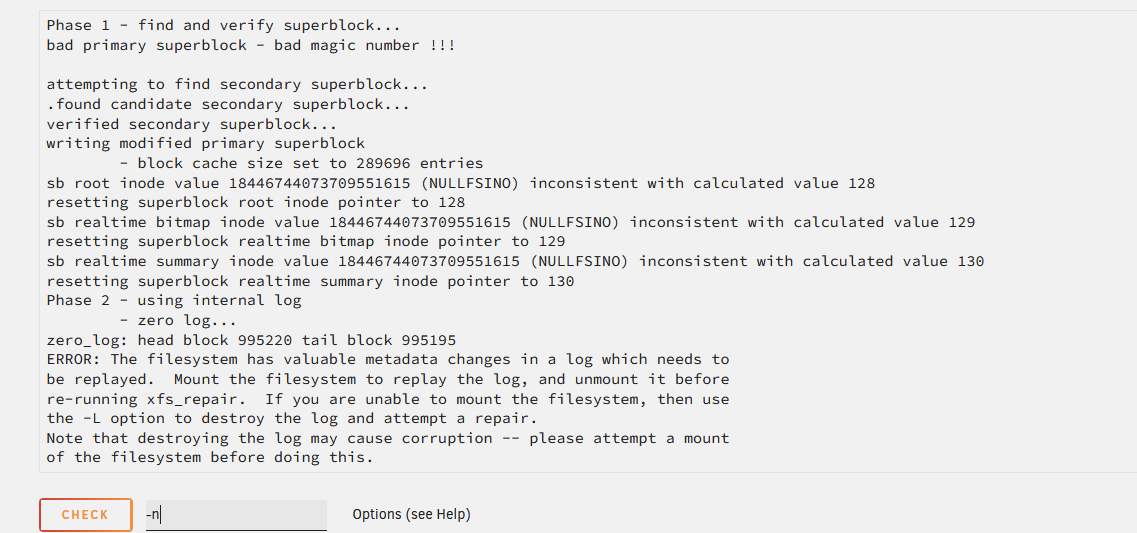

I ran the -v and got this:



As you already correctly predicted this message I am now to not follow the advice of the "mount, replay the log, unmount it" but rather run it directly with "-vL"

For other people in the future link to a different topic that explains why its okay to run "-L" to delete the log:



I am gonna run that now and report back afterwards

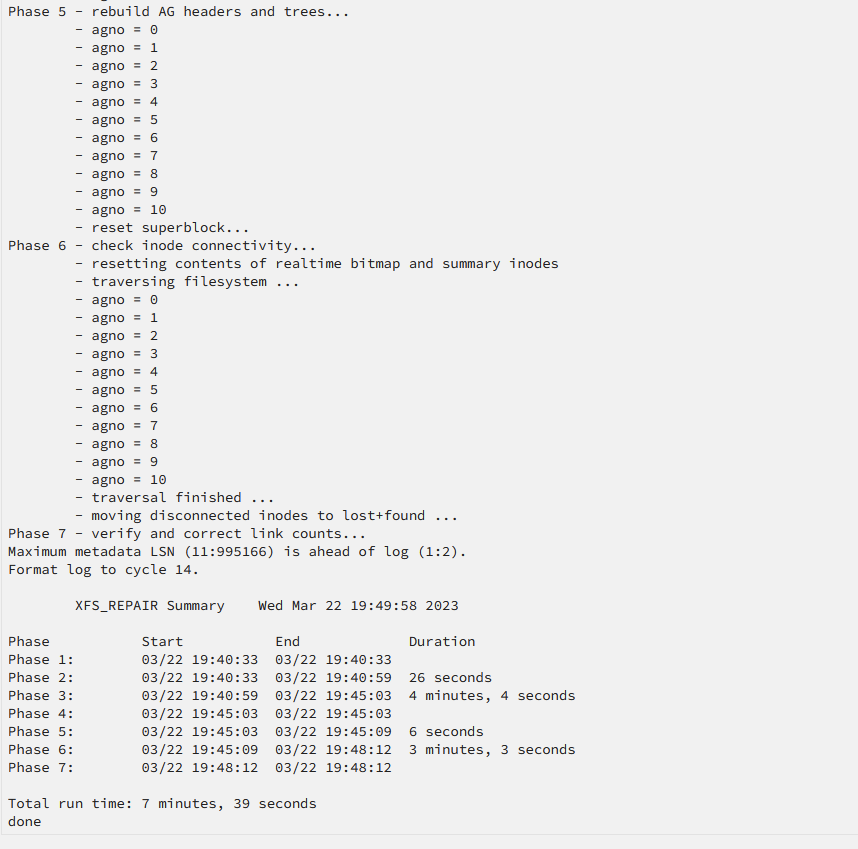

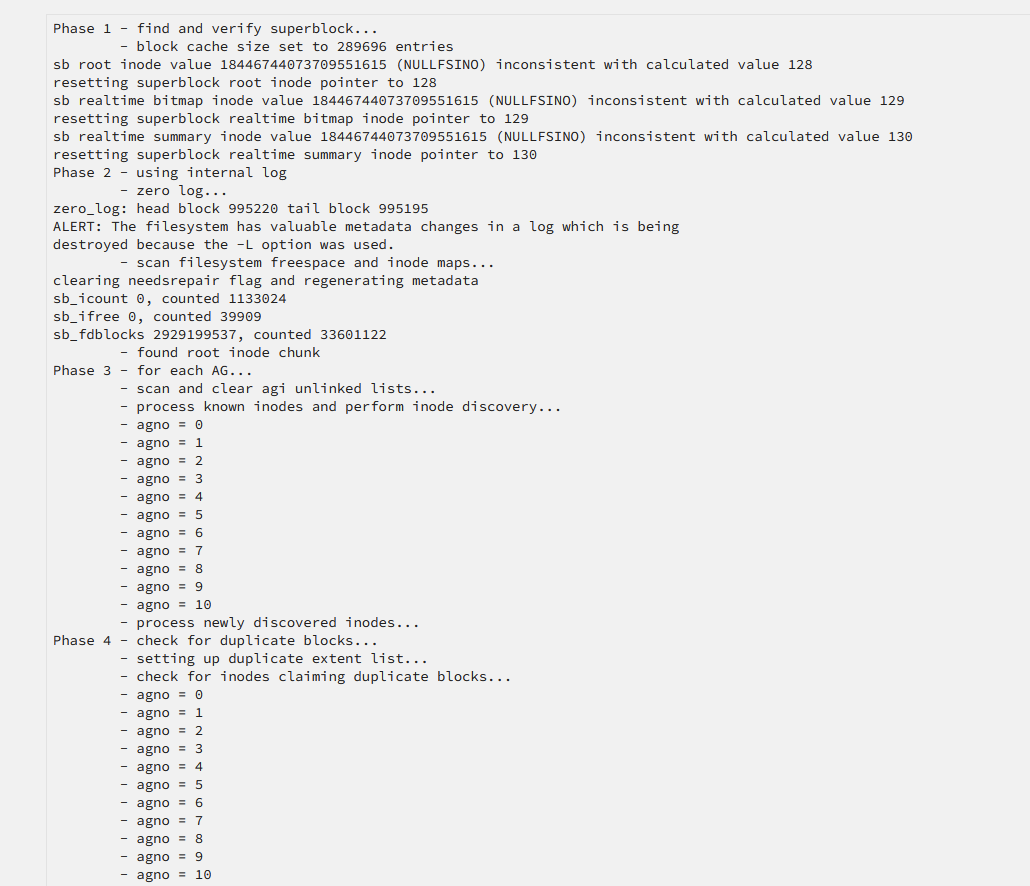

Ran the command sucessfully. For documentation if other users ever need it:





However the disk still shows like this:





@JorgeBIs this expected? Can i just follow the Guide you sent me and stop the array and start without maintenance?



You have to restart the array in normal mode.

You are a absolute Hero. THANKS! Files seem to be there on first glance. I will go check it a bit more to be sure.

Next step would be to stop array again and then rebuild onto my disk.
