Remote Gaming On Unraid - Editing XML Assistance Requested

Featured Replies

This is really, really niche so I completely understand if no one can help. This is my side project with my spare PLUS license:



https://forums.serverbuilds.net/t/guide-remote-gaming-on-unraid/4248/2

I'm stuck on Section 8, part 11:

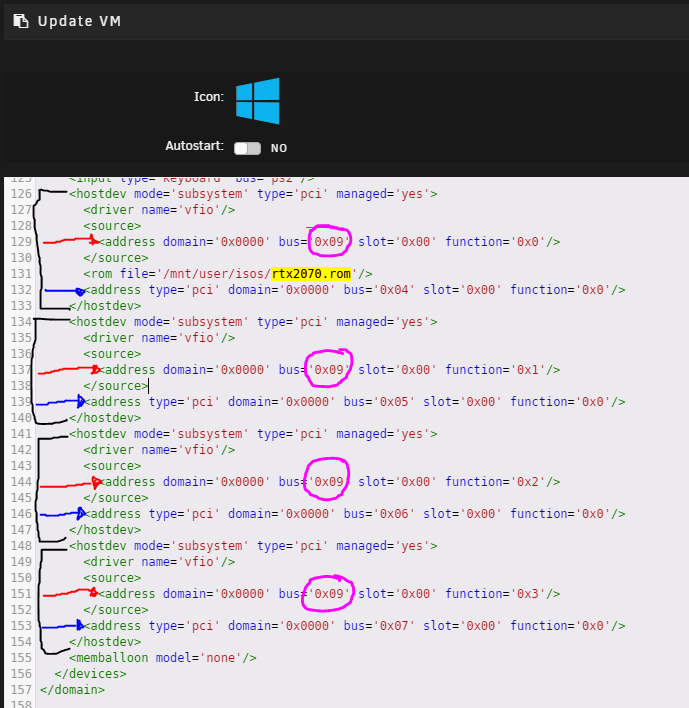

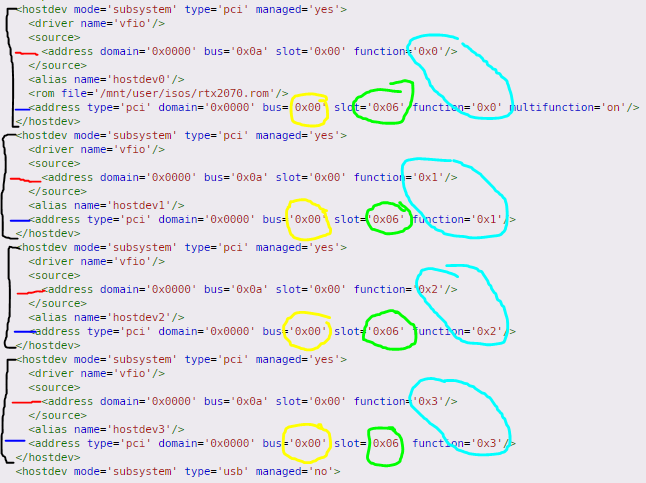

Each device starts with <hostdev mode=...
and ends with </hostdev>
The black brackets are host devices. There should be one host device for each device we passed through earlier.
The red line is the physical bus, slot, and function the device is assigned.
The blue line is the virtual bus, slot, and function the device is assigned.
Note they are all on the same physical bus (magenta circle)
---
Coding is NOT my strong suit. Here's my XML file / output and I'm really confused...lost at what parts to edit. I have an AMD 6900XT:

<?xml version='1.0' encoding='UTF-8'?>

<domain type='kvm'>

<name>Windows 10 - Gaming Streaming</name>

<uuid>766e0ccd-d5a3-a8af-d88b-1217f02f6f36</uuid>

<description>Windows 10 VM For Gaming Streaming Test</description>

<metadata>

<vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/>

</metadata>

<memory unit='KiB'>16777216</memory>

<currentMemory unit='KiB'>16777216</currentMemory>

<memoryBacking>

<nosharepages/>

</memoryBacking>

<vcpu placement='static'>11</vcpu>

<cputune>

<vcpupin vcpu='0' cpuset='6'/>

<vcpupin vcpu='1' cpuset='1'/>

<vcpupin vcpu='2' cpuset='7'/>

<vcpupin vcpu='3' cpuset='2'/>

<vcpupin vcpu='4' cpuset='8'/>

<vcpupin vcpu='5' cpuset='3'/>

<vcpupin vcpu='6' cpuset='9'/>

<vcpupin vcpu='7' cpuset='4'/>

<vcpupin vcpu='8' cpuset='10'/>

<vcpupin vcpu='9' cpuset='5'/>

<vcpupin vcpu='10' cpuset='11'/>

<emulatorpin cpuset='4'/>

</cputune>

<os>

<type arch='x86_64' machine='pc-i440fx-7.1'>hvm</type>

<loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader>

<nvram>/etc/libvirt/qemu/nvram/766e0ccd-d5a3-a8af-d88b-1217f02f6f36_VARS-pure-efi.fd</nvram>

</os>

<features>

<acpi/>

<apic/>

</features>

<cpu mode='host-passthrough' check='none' migratable='on'>

<topology sockets='1' dies='1' cores='11' threads='1'/>

<cache mode='passthrough'/>

</cpu>

<clock offset='localtime'>

<timer name='rtc' tickpolicy='catchup'/>

<timer name='pit' tickpolicy='delay'/>

<timer name='hpet' present='no'/>

</clock>

<on_poweroff>destroy</on_poweroff>

<on_reboot>restart</on_reboot>

<on_crash>restart</on_crash>

<devices>

<emulator>/usr/local/sbin/qemu</emulator>

<disk type='file' device='disk'>

<driver name='qemu' type='raw' cache='writeback'/>

<source file='/mnt/user/domains/Windows 10 - Gaming Streaming/vdisk1.img'/>

<target dev='hdc' bus='virtio'/>

<boot order='1'/>

<address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/>

</disk>

<disk type='file' device='cdrom'>

<driver name='qemu' type='raw'/>

<source file='/mnt/user/isos/virtio-win-0.1.229-1.iso'/>

<target dev='hdb' bus='sata'/>

<readonly/>

<address type='drive' controller='0' bus='0' target='0' unit='1'/>

</disk>

<controller type='pci' index='0' model='pci-root'/>

<controller type='sata' index='0'>

<address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/>

</controller>

<controller type='virtio-serial' index='0'>

<address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/>

</controller>

<controller type='usb' index='0' model='qemu-xhci' ports='15'>

<address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0'/>

</controller>

<interface type='bridge'>

<mac address='52:54:00:6f:f8:5c'/>

<source bridge='br0'/>

<model type='virtio-net'/>

<address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/>

</interface>

<serial type='pty'>

<target type='isa-serial' port='0'>

<model name='isa-serial'/>

</target>

</serial>

<console type='pty'>

<target type='serial' port='0'/>

</console>

<channel type='unix'>

<target type='virtio' name='org.qemu.guest_agent.0'/>

<address type='virtio-serial' controller='0' bus='0' port='1'/>

</channel>

<input type='tablet' bus='usb'>

<address type='usb' bus='0' port='1'/>

</input>

<input type='mouse' bus='ps2'/>

<input type='keyboard' bus='ps2'/>

<audio id='1' type='none'/>

<hostdev mode='subsystem' type='pci' managed='yes'>

<driver name='vfio'/>

<source>

<address domain='0x0000' bus='0x03' slot='0x00' function='0x0'/>

</source>

<rom file='/mnt/wd500gbnvme/Navi 21.rom'/>

<address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0' multifunction='on'/>

</hostdev>

<hostdev mode='subsystem' type='pci' managed='yes'>

<driver name='vfio'/>

<source>

<address domain='0x0000' bus='0x00' slot='0x06' function='0x1'/>

</source>

<address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/>

</hostdev>

<memballoon model='none'/>

</devices>

</domain>
