Unraid and Intel E5-2698 V4 Engineering Sample (ES) QHUZ

joedr
in General Support

Featured Replies

Dear Forum Members,



I have a setup using https://www.asrock.com/mb/intel/x99e-itxac/ motherboard and purchased an E5-2698 V4 QHUZ from ebay (link below).  The system boots and it recognizes all 20 cores.  But when I look at Unraid, it will show only one Core.  Any idea on to where to start to diagnose?



So far, the Bios recognizes all settings and it seems that vt-d is enabled as well as I can start a VM with the solo core.  Any help is greatly appreciated.





https://www.ebay.com/itm/225331570730?hash=item3476cee82a:g:2tkAAOSwZgljtYpW&amdata=enc%3AAQAHAAAA4JvlVoxsZ%2FI08ERqM%2FtxU4rebC84RkbcvdTUwZ10O%2BkRbaMTRhUAsbjyYJKet%2FVYGVLtdtSKWHL36VaJqW6pt8bvZ3cS8YLR48fS33dPbIOgpSr2pSI3T00sQwkRxDZphVo5zmCjMUniT4JCzLn3K5%2FzXk3DEKe9yfAQBkdeuOpriGBGW2v%2BStTmjj%2FVsm4DZiNQ6quovfIi1yKNcaTOCDJNyjis1odFEzcsrpHFY%2FlHqR8D5RlqSD42kAqQJaQa2suU6%2ByDOF6Xg0VN75kAcmKqM5BIej4ZIHqIGUM0jlLE|tkp%3ABFBMju6Cp-Nh

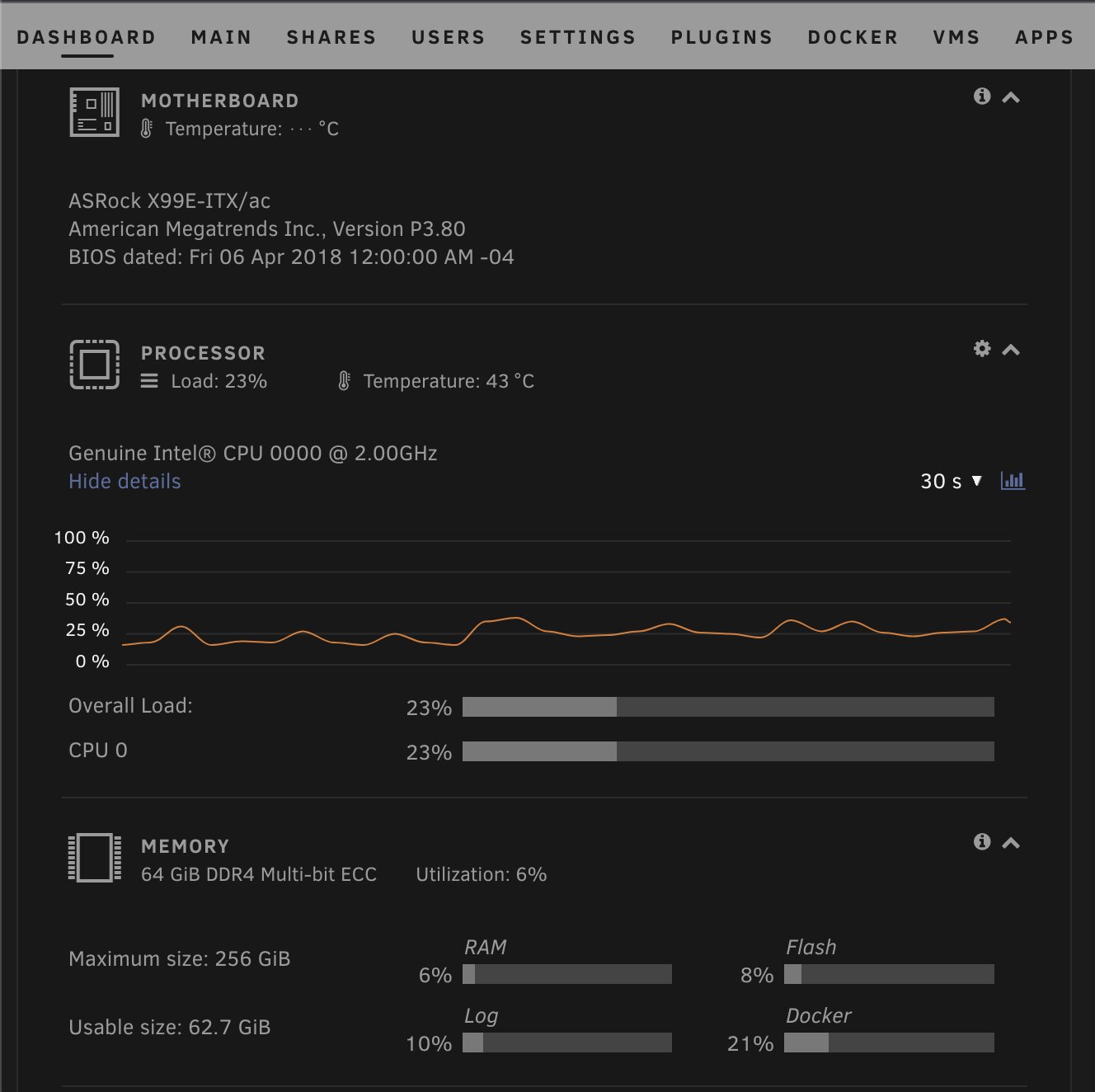

Screenshot 2023-03-25 at 4.51.37 PM.png

  • Quote
    • Community Expert

    Looks like the CPU is not being correctly identified, if it's an option suggest sending that one back and getting a non engineering sample instead.

  • Quote
