Not able to connect VM to internet.

[chil7]

Hey there,



I made a VM on a shared server. The default OS from the boot device on the Unraid account is Ubuntu 20.04 LTS. I received an IP address, gateway and subnet mask from my IT department. I changed the netplan file to set the IP address for the VM, but I am not able to connect to internet. I checked my firewall and it is inactive. Maybe the network settings are not set up correctly. Any feedback would be appreciated, thanks.





Edited March 28, 2023 by chil7

[JorgeB]

If I understand correctly you are virtualizing Unraid? Going to move this to the correct place to see if someone can help you.

[chil7]





It seems like I was posting it in the correct place. That forum is for configuring VMs. Which is what I am trying to do. Is there something I am misunderstanding?

[JorgeB]

Maybe I misunderstood, what does this mean?

19 hours ago, chil7 said:

The default OS from the boot device on the Unraid account is Ubuntu 20.04 LTS

Are you trying to install Unraid as a VM running on Ubuntu or the other way around?

[chil7]

I installed Ubuntu on a VM I made on my Unraid account.



To be more specific: When I made a new VM in the Unraid OS, I chose to boot from a shared iso which had the Ubuntu OS.

Edited March 30, 2023 by chil7

[JorgeB]

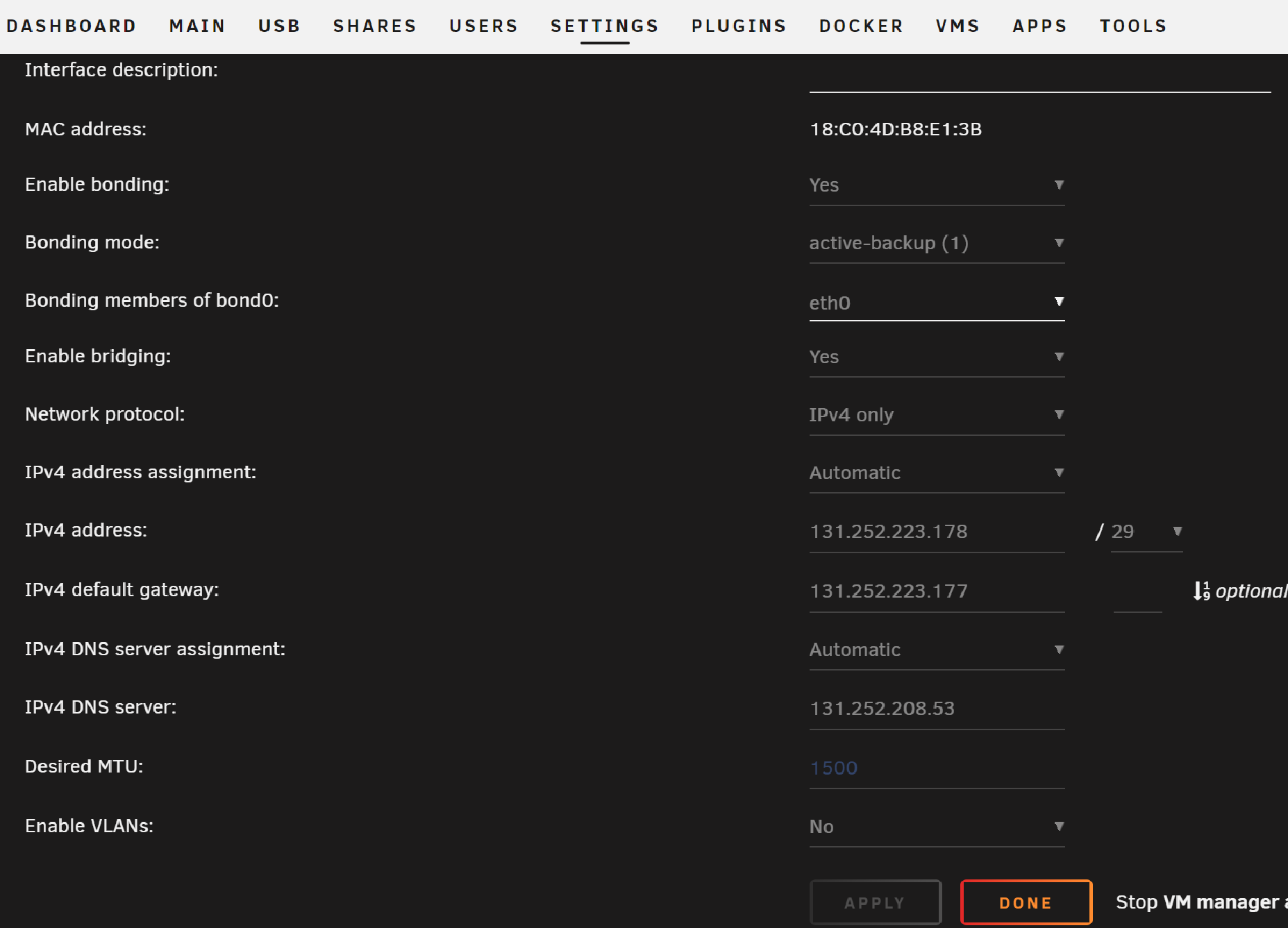

Ok, I'll move it back, the network settings you show are for Unraid, I assume Unraid has network access, just not the Ubuntu VM?

[JonathanM]

14 hours ago, chil7 said:

When I made a new VM in the Unraid OS

Post a screenshot of that specific VM's config, or paste the xml code.

[chil7]

16 hours ago, JorgeB said:

Ok, I'll move it back, the network settings you show are for Unraid, I assume Unraid has network access, just not the Ubuntu VM?

Ok sounds good.



Yes, Unraid has network access, but the Ubuntu VM does not have internet access.

[chil7]

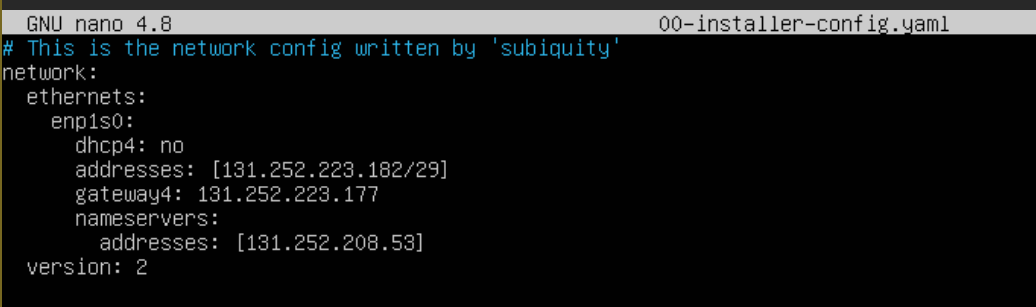

Here is the netplan config file that I altered in the Ubuntu VM. I added my IP address, gateway and DNS server.

[chil7]

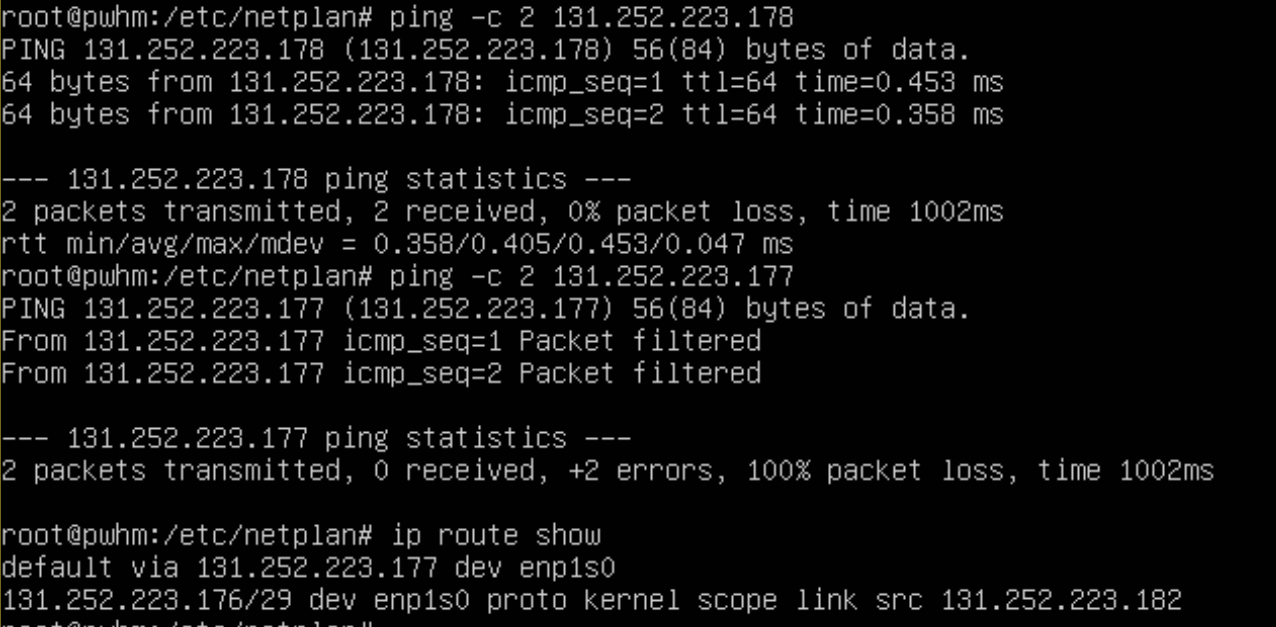

I can ping to the Unraid server at 131.252.223.178. But I cannot ping the gateway (131.252.223.177).



Looking at the routing, it shows it goes from my IP (131.252.223.182) to the bridge (br0) at 131.252.223.176/29



Am I supposed to configure br0 in my VM?

[JorgeB]

17 hours ago, JonathanM said:

Post a screenshot of that specific VM's config, or paste the xml code.



[chil7]

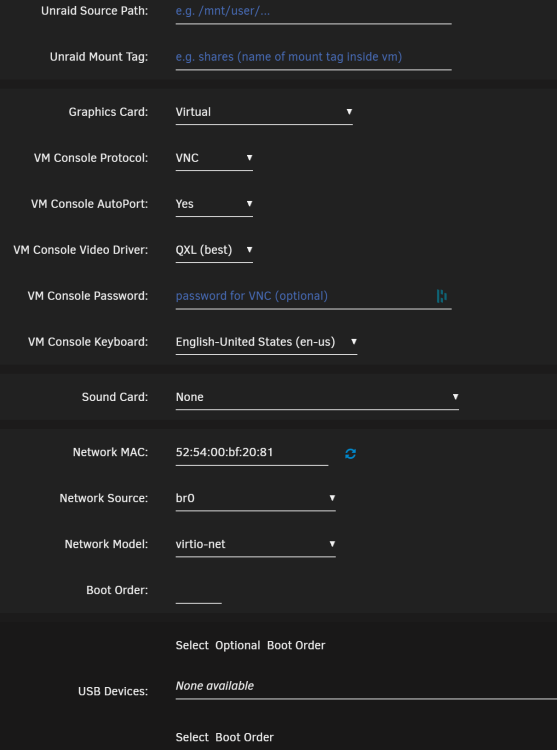

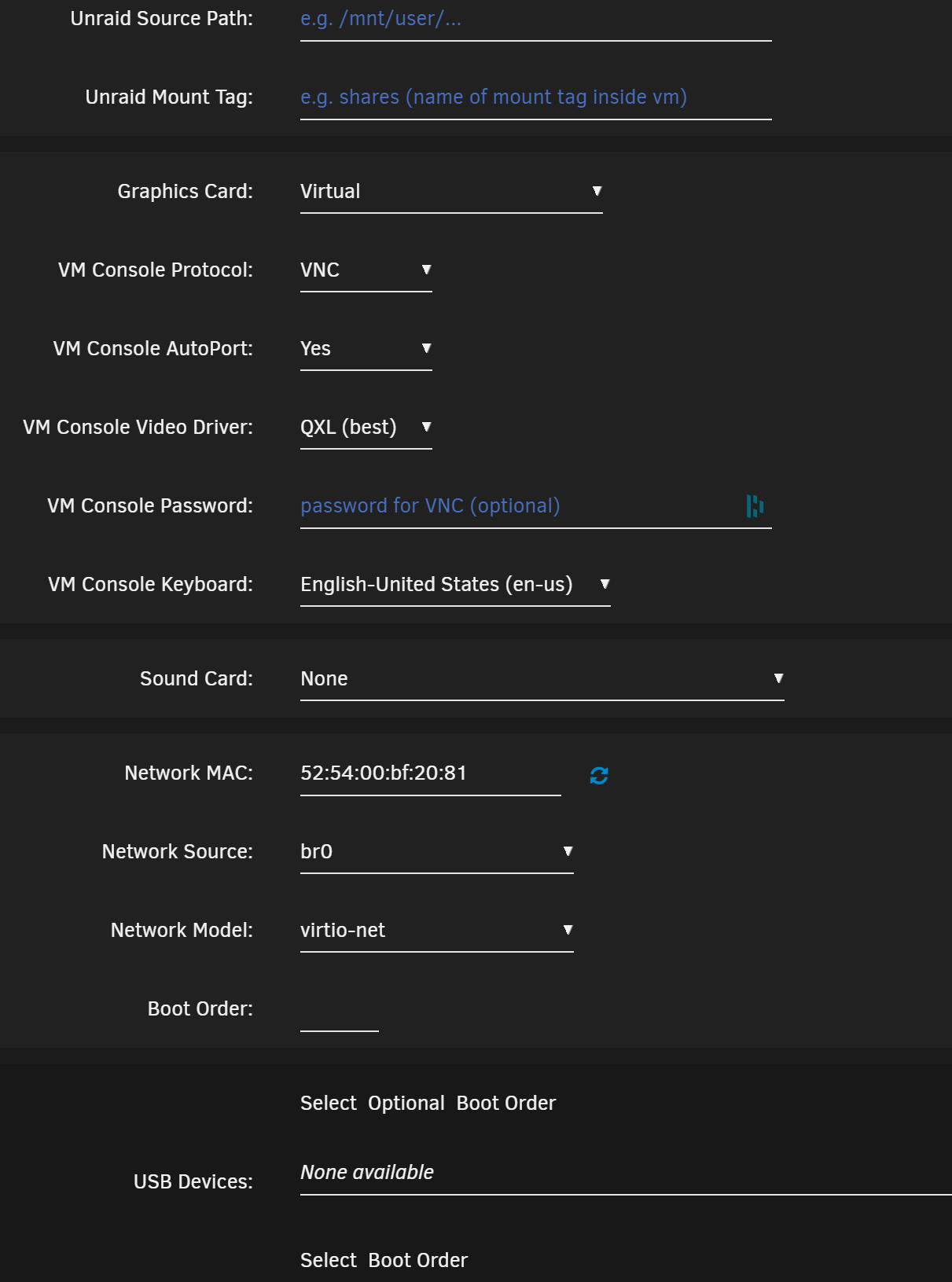

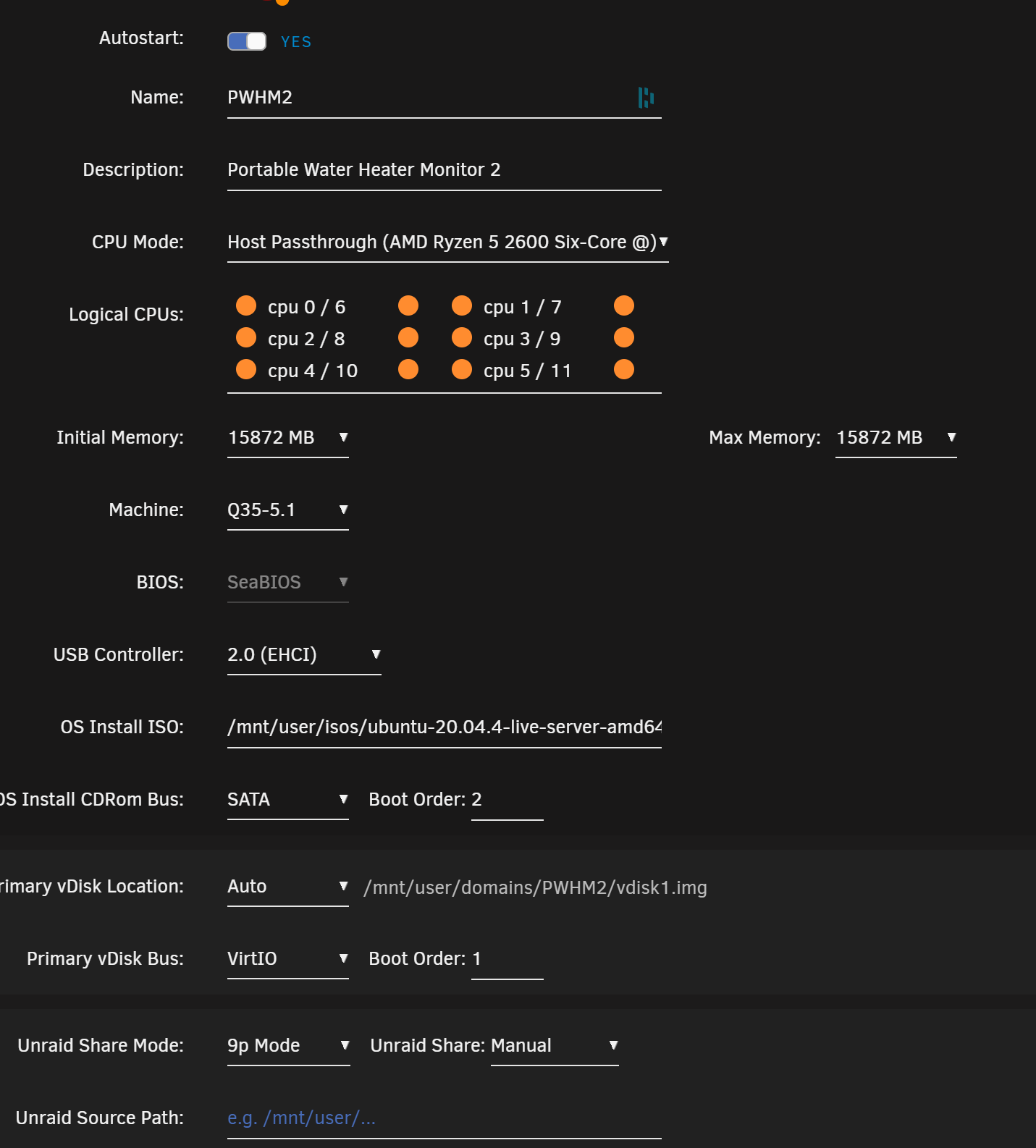

Here you go, sorry about that.

[JonathanM]

Are you sure the version of Ubuntu you are using includes the virtio-net driver? Have you tried other network model options?

[chil7]

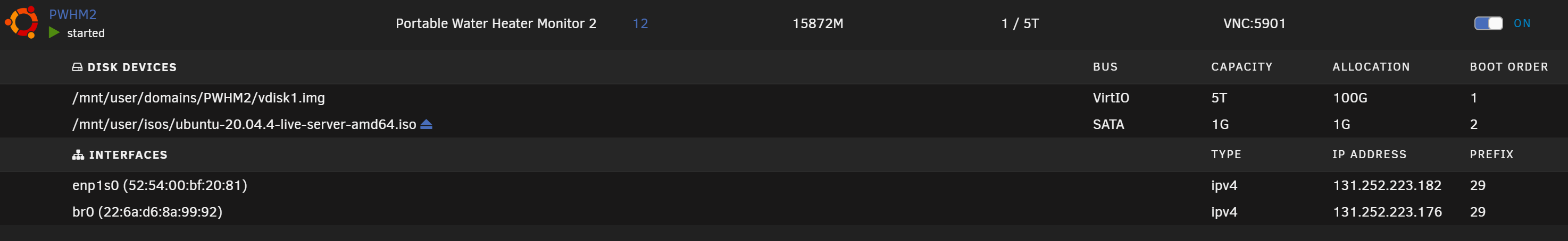

I think the main problem was that I did not install the qemu guest agent. So I ran the command to install it on my VM and now my VM shows the interfaces, where it said "Guest agent not installed" before.





So now I can download packages but I still cannot ping out to my gateway or anywhere else. I am confused as to why I cannot ping out but can download files.

Edited April 1, 2023 by chil7
mistake

[chil7]

1 hour ago, JonathanM said:

Are you sure the version of Ubuntu you are using includes the virtio-net driver? Have you tried other network model options?

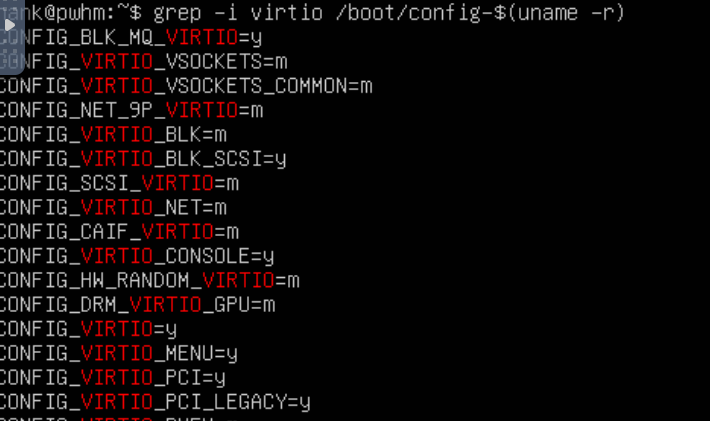

I checked my virtio drivers and this was the output





[chil7]

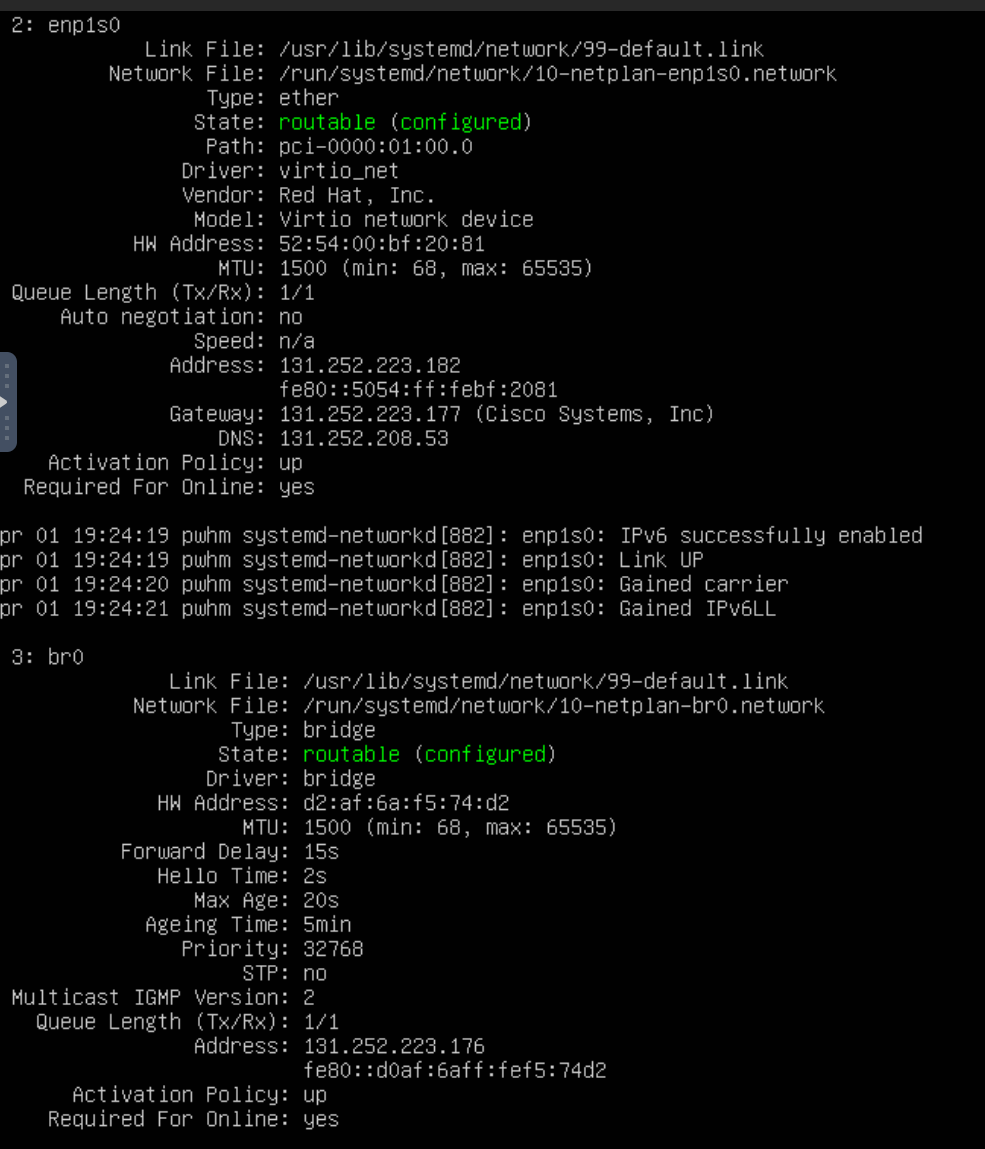

Further investigation of my network drivers:



[chil7]

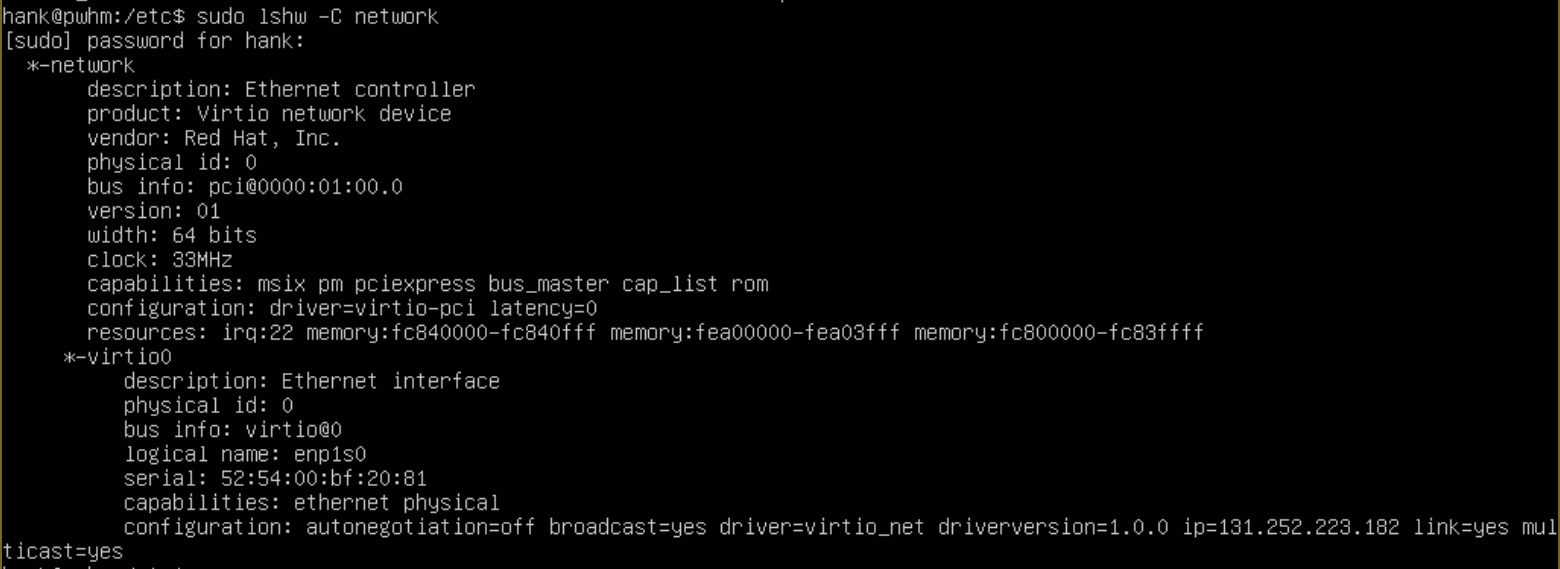

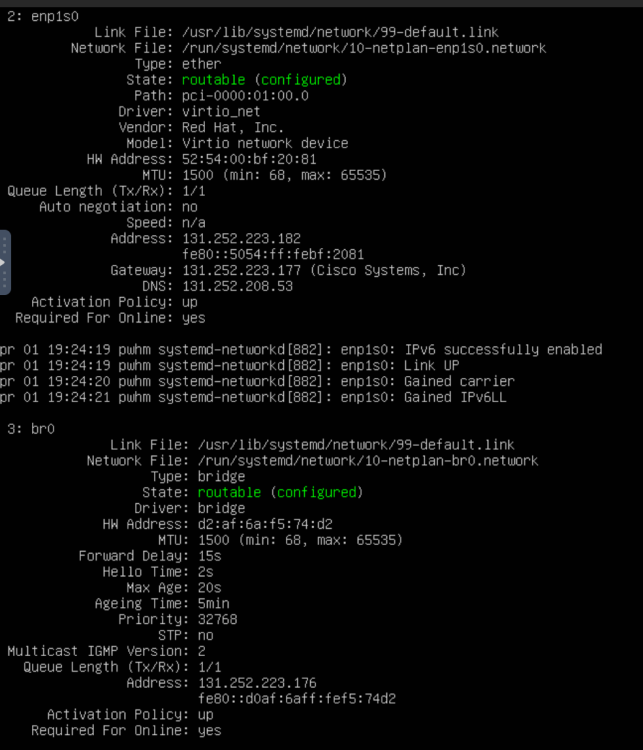

Also found this, which shows driver is virtio_net:
