Device is Disabled Contents Emulated - what to do


Go to solution Solved by JorgeB,

Recommended Posts

Hi



after nearly finishing the transfer from one to another server (truenas > unraid) i got some squeeking noise out of one of drives.

I spun all drives down and did a reboot.

Now one of discs says "Device is Disabled Contents Emulated".



What are my options?

Does a simple parity-check do the trick or do i have to rebuild the one drive (unassign > erase > preclear > re-assign > reconstruct)

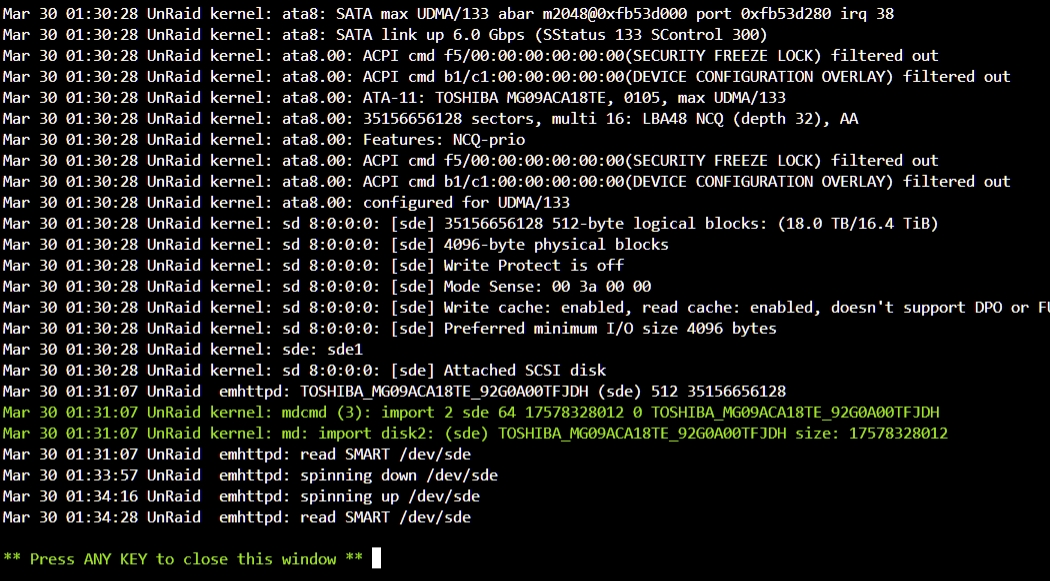

TOSHIBA_MG09ACA18TE-20230330-0205.txt

Link to comment
  • 11 months later...

I woke up this morning to a similar issue.

12TB Ironwolf Parity

5x8TB Ironwolf data



/dev/sdc is disabled contents emulated.

Server is in a 42u cabinet and hasn't moved or otherwise jostled so while I presently have not checked SATA and Power to the disk, I don't suspect that being an issue, but will be happy to. I just don't want to power down the server unless I know it's safe to do so.



The disks aren't 2 years old, and were all pre-cleared prior to adding to the server.








I started in Maintenance and did an fs check and repair, and SMART shows no errors.

Extended SMART has been running for about 6 hours and is currently at 80%, but was hoping I could seek some expert assistance in the meantime.

Diagnostic from yesterday is attached, running another for today also.







This is the Disk Log for /dev/sdc

Mar 17 00:25:44 unraid emhttpd: spinning down /dev/sdc
Mar 17 01:36:25 unraid emhttpd: read SMART /dev/sdc
Mar 17 02:37:08 unraid emhttpd: spinning down /dev/sdc
Mar 17 04:00:01 unraid emhttpd: read SMART /dev/sdc
Mar 17 05:41:54 unraid emhttpd: spinning down /dev/sdc
Mar 17 09:16:33 unraid emhttpd: read SMART /dev/sdc
Mar 17 10:20:19 unraid emhttpd: spinning down /dev/sdc
Mar 17 13:36:33 unraid emhttpd: read SMART /dev/sdc
Mar 17 14:36:54 unraid emhttpd: spinning down /dev/sdc
Mar 17 21:21:35 unraid emhttpd: read SMART /dev/sdc
Mar 17 22:23:48 unraid emhttpd: spinning down /dev/sdc
Mar 17 23:26:36 unraid emhttpd: read SMART /dev/sdc
Mar 18 00:28:39 unraid emhttpd: spinning down /dev/sdc
Mar 18 01:36:51 unraid kernel: sd 11:0:1:0: [sdc] tag#737 CDB: opcode=0x85 85 06 20 00 00 00 00 00 00 00 00 00 00 40 e5 00
Mar 18 01:36:55 unraid kernel: sd 11:0:1:0: [sdc] tag#752 UNKNOWN(0x2003) Result: hostbyte=0x00 driverbyte=DRIVER_OK cmd_age=7s
Mar 18 01:36:55 unraid kernel: sd 11:0:1:0: [sdc] tag#752 Sense Key : 0x2 [current]
Mar 18 01:36:55 unraid kernel: sd 11:0:1:0: [sdc] tag#752 ASC=0x4 ASCQ=0x0
Mar 18 01:36:55 unraid kernel: sd 11:0:1:0: [sdc] tag#752 CDB: opcode=0x88 88 00 00 00 00 00 c6 4e 37 48 00 00 00 08 00 00
Mar 18 01:36:55 unraid kernel: I/O error, dev sdc, sector 3327014728 op 0x0:(READ) flags 0x0 phys_seg 1 prio class 2
Mar 18 01:36:55 unraid kernel: sd 11:0:1:0: [sdc] tag#753 UNKNOWN(0x2003) Result: hostbyte=0x00 driverbyte=DRIVER_OK cmd_age=18s
Mar 18 01:36:55 unraid kernel: sd 11:0:1:0: [sdc] tag#753 Sense Key : 0x2 [current]
Mar 18 01:36:55 unraid kernel: sd 11:0:1:0: [sdc] tag#753 ASC=0x4 ASCQ=0x0
Mar 18 01:36:55 unraid kernel: sd 11:0:1:0: [sdc] tag#753 CDB: opcode=0x88 88 00 00 00 00 00 c6 4d 6d 30 00 00 00 08 00 00
Mar 18 01:36:55 unraid kernel: I/O error, dev sdc, sector 3326962992 op 0x0:(READ) flags 0x0 phys_seg 1 prio class 2
Mar 18 01:36:55 unraid kernel: sd 11:0:1:0: [sdc] tag#754 UNKNOWN(0x2003) Result: hostbyte=0x00 driverbyte=DRIVER_OK cmd_age=0s
Mar 18 01:36:55 unraid kernel: sd 11:0:1:0: [sdc] tag#754 Sense Key : 0x2 [current]
Mar 18 01:36:55 unraid kernel: sd 11:0:1:0: [sdc] tag#754 ASC=0x4 ASCQ=0x0
Mar 18 01:36:55 unraid kernel: sd 11:0:1:0: [sdc] tag#754 CDB: opcode=0x88 88 00 00 00 00 00 c5 97 90 d8 00 00 00 20 00 00
Mar 18 01:36:55 unraid kernel: I/O error, dev sdc, sector 3315044568 op 0x0:(READ) flags 0x0 phys_seg 4 prio class 2
Mar 18 01:36:55 unraid kernel: sd 11:0:1:0: [sdc] tag#757 UNKNOWN(0x2003) Result: hostbyte=0x00 driverbyte=DRIVER_OK cmd_age=0s
Mar 18 01:36:55 unraid kernel: sd 11:0:1:0: [sdc] tag#757 Sense Key : 0x2 [current]
Mar 18 01:36:55 unraid kernel: sd 11:0:1:0: [sdc] tag#757 ASC=0x4 ASCQ=0x0
Mar 18 01:36:55 unraid kernel: sd 11:0:1:0: [sdc] tag#757 CDB: opcode=0x88 88 00 00 00 00 00 c6 13 63 b8 00 00 00 20 00 00
Mar 18 01:36:55 unraid kernel: I/O error, dev sdc, sector 3323159480 op 0x0:(READ) flags 0x0 phys_seg 4 prio class 2
Mar 18 01:36:55 unraid kernel: sd 11:0:1:0: [sdc] tag#758 UNKNOWN(0x2003) Result: hostbyte=0x00 driverbyte=DRIVER_OK cmd_age=0s
Mar 18 01:36:55 unraid kernel: sd 11:0:1:0: [sdc] tag#758 Sense Key : 0x2 [current]
Mar 18 01:36:55 unraid kernel: sd 11:0:1:0: [sdc] tag#758 ASC=0x4 ASCQ=0x0
Mar 18 01:36:55 unraid kernel: sd 11:0:1:0: [sdc] tag#758 CDB: opcode=0x88 88 00 00 00 00 02 00 05 a0 60 00 00 00 10 00 00
Mar 18 01:36:55 unraid kernel: I/O error, dev sdc, sector 8590303328 op 0x0:(READ) flags 0x0 phys_seg 2 prio class 2
Mar 18 01:36:55 unraid emhttpd: read SMART /dev/sdc
Mar 18 01:36:55 unraid kernel: sd 11:0:1:0: [sdc] tag#761 UNKNOWN(0x2003) Result: hostbyte=0x00 driverbyte=DRIVER_OK cmd_age=0s
Mar 18 01:36:55 unraid kernel: sd 11:0:1:0: [sdc] tag#761 Sense Key : 0x2 [current]
Mar 18 01:36:55 unraid kernel: sd 11:0:1:0: [sdc] tag#761 ASC=0x4 ASCQ=0x0
Mar 18 01:36:55 unraid kernel: sd 11:0:1:0: [sdc] tag#761 CDB: opcode=0x8a 8a 00 00 00 00 00 c6 4e 37 48 00 00 00 08 00 00
Mar 18 01:36:55 unraid kernel: I/O error, dev sdc, sector 3327014728 op 0x1:(WRITE) flags 0x0 phys_seg 1 prio class 2
Mar 18 01:36:55 unraid kernel: sd 11:0:1:0: [sdc] tag#763 UNKNOWN(0x2003) Result: hostbyte=0x00 driverbyte=DRIVER_OK cmd_age=0s
Mar 18 01:36:55 unraid kernel: sd 11:0:1:0: [sdc] tag#763 Sense Key : 0x2 [current]
Mar 18 01:36:55 unraid kernel: sd 11:0:1:0: [sdc] tag#763 ASC=0x4 ASCQ=0x0
Mar 18 01:36:55 unraid kernel: sd 11:0:1:0: [sdc] tag#763 CDB: opcode=0x8a 8a 00 00 00 00 00 c5 97 90 d8 00 00 00 20 00 00
Mar 18 01:36:55 unraid kernel: I/O error, dev sdc, sector 3315044568 op 0x1:(WRITE) flags 0x0 phys_seg 4 prio class 2
Mar 18 02:36:58 unraid emhttpd: spinning down /dev/sdc
Mar 21 21:07:43 unraid emhttpd: spinning up /dev/sdc
Mar 21 21:07:58 unraid kernel: sd 11:0:1:0: [sdc] tag#1285 CDB: opcode=0x85 85 06 20 00 00 00 00 00 00 00 00 00 00 40 e3 00
Mar 21 21:08:02 unraid emhttpd: sdspin /dev/sdc up: 22
Mar 21 21:08:02 unraid emhttpd: read SMART /dev/sdc
Mar 22 14:20:14 unraid emhttpd: read SMART /dev/sdc
Mar 22 14:23:10 unraid emhttpd: ST8000VN004-2M2101_WSD2XVZ0 (sdc) 512 15628053168
Mar 22 14:23:10 unraid kernel: mdcmd (5): import 4 sdc 64 7814026532 0 ST8000VN004-2M2101_WSD2XVZ0
Mar 22 14:23:10 unraid kernel: md: import disk4: (sdc) ST8000VN004-2M2101_WSD2XVZ0 size: 7814026532
Mar 22 14:23:10 unraid emhttpd: read SMART /dev/sdc
Mar 22 14:47:04 unraid emhttpd: read SMART /dev/sdc
Mar 22 14:47:07 unraid emhttpd: ST8000VN004-2M2101_WSD2XVZ0 (sdc) 512 15628053168
Mar 22 14:47:07 unraid kernel: mdcmd (5): import 4 sdc 64 7814026532 0 ST8000VN004-2M2101_WSD2XVZ0
Mar 22 14:47:07 unraid kernel: md: import disk4: (sdc) ST8000VN004-2M2101_WSD2XVZ0 size: 7814026532
Mar 22 14:47:07 unraid emhttpd: read SMART /dev/sdc











unraid-diagnostics-20240321-2118.zip

Link to comment

For anyone just coming across this issue, this is what I did to fix it.



Array was started in Maintenance Mode

I ran the following commands outlined below taken from this post  linked below relating to Seagate Ironwolf disks and LSI HBA cards due to a drive showing disabled contents emulated






These are my mappings only related to Seagate Ironwolf Drives Only

I pasted the output from sg_map into notepad, and made notes as to what the sg_map output relates to which drive in my array and it's use (Parity and Data) just for my own record keeping

root@unraid:/tmp/SeaChest# sg_map
/dev/sg7  /dev/sdh Parity
/dev/sg2  /dev/sdc Data Array (drive that was disabled)
/dev/sg3  /dev/sdd Data Array
/dev/sg4  /dev/sde Data Array
/dev/sg1  /dev/sdb Data Array
/dev/sg9  /dev/sdj Data Array





The SeaChest folder structure is different than noted in the link above, Seagate seems to change this more often that I think they should (IMO)

This is the folder structure as of 2024-03-23



C:\USERS\JAY\DOWNLOADS\
└───SeaChestUtilities
    ├───doc
    ├───Linux
    │   ├───Non-RAID
    │   │   ├───aarch64
    │   │   └───x86_64
    │   └───RAID
    │       ├───aarch64-RAID
    │       └───x86_64-RAID
    ├───parallel_testing
    ├───USB boot maker
    └───Windows
        ├───Win64-Non-RAID
        └───Win64-RAID



These are files I will be working with. They reference alpine linux in the name, but when made executable they worked perfectly on unraid.

C:\USERS\JAY\DOWNLOADS\SeaChestUtilities\Linux\Non-RAID\x86_64\

Mode                 LastWriteTime         Length Name
----                 -------------         ------ ----
-a---l        2024-03-19   3:33 PM         657216 SeaChest_Basics_x86_64-alpine-linux-musl_static
-a---l        2024-03-19   3:33 PM         616256 SeaChest_Configure_x86_64-alpine-linux-musl_static
-a---l        2024-03-19   3:33 PM         706432 SeaChest_Erase_x86_64-alpine-linux-musl_static
-a---l        2024-03-19   3:33 PM         600168 SeaChest_Firmware_x86_64-alpine-linux-musl_static
-a---l        2024-03-19   3:33 PM         628544 SeaChest_Format_x86_64-alpine-linux-musl_static
-a---l        2024-03-19   3:33 PM         595808 SeaChest_GenericTests_x86_64-alpine-linux-musl_static
-a---l        2024-03-19   3:33 PM         712896 SeaChest_Info_x86_64-alpine-linux-musl_static
-a---l        2024-03-19   3:33 PM         583488 SeaChest_Lite_x86_64-alpine-linux-musl_static
-a---l        2024-03-19   3:33 PM         612160 SeaChest_NVMe_x86_64-alpine-linux-musl_static
-a---l        2024-03-19   3:33 PM         608064 SeaChest_PowerControl_x86_64-alpine-linux-musl_static
-a---l        2024-03-19   3:33 PM         554816 SeaChest_Reservations_x86_64-alpine-linux-musl_static
-a---l        2024-03-19   3:33 PM         653184 SeaChest_Security_x86_64-alpine-linux-musl_static
-a---l        2024-03-19   3:33 PM         853856 SeaChest_SMART_x86_64-alpine-linux-musl_static





From Windows 11 Terminal I opened 2 terminal tabs (I use ssh keys for access to all my Linux servers)

TAB1: (Keep tab open after running these commands)

ssh into unraid server and create a folder in /tmp called SeaChest

ssh unraid
mkdir /tmp/SeaChest



TAB2: Copy all the SeaChest utilities over to unraid in /tmp/SeaChest from the download location using scp command

scp C:\Users\jay\OneDrive\Downloads\SeaChestUtilities\Linux\Non-RAID\x86_64\* unraid:/tmp/SeaChest



TAB1: mark the files copied to unraid as executable

chmod +x /tmp/SeaChest/*



I disabled EPC as well as the lowCurrentSpinup (just to be safe but as noted in the link, not confirmed if necessary)


go to /tmp/SeaChest folder and run the 3 utilities below

  • The first command will verify on /dev/sg2 (my problem disk) that epc is enabled
  • Second command will disable EPC on /dev/sg2
  • Third command will disable lowCurrentSpinup (not sure if this is actually needed but ran it regardless)
./SeaChest_Info_x86_64-alpine-linux-musl_static -d /dev/sg2 -i |grep -i epc
./SeaChest_PowerControl_x86_64-alpine-linux-musl_static -d /dev/sg2 --EPCfeature disable
./SeaChest_Configure_x86_64-alpine-linux-musl_static -d /dev/sg2 --lowCurrentSpinup disable





I ran those commands above for all of the /dev/sgX disks that were Seagate Ironwolf connected to my LSI card.





---



Once that portion was completed, I followed the guide below to rebuild the drive from parity

There was one caveat, for some reason I could not stop the array while it was is maintenance mode.

It kept saying Retry Unmounting Shares (for about 40 minutes) so I did a powerdown from terminal

powerdown



Once the server came back up I did the following procedure outlined in the guide linked below (TL;DR)

  1. Stop array

  2. Unassign disabled disk

  3. Start array so the missing disk is registered

  4. Stop array

  5. Reassign disabled Disk (the symbol turned to a blue square)

  6. Start array in maintenance mode

  7. Clicked Sync button to rebuild the disk from parity








https://docs.unraid.net/unraid-os/manual/storage-management/#rebuilding-a-drive-onto-itself

Edited by 905jay
added further details on rebuilding disk onto itself
Link to comment
  • 6 months later...

For me this results eveytime. I believe is because UDMA CRC error count this happens because SATA connection or power supply to disk is lost.



Maybe a better power supply is an option.



Do a NAS power off and power on again



First of all, guarantee Parity is OK.



1. Stop Array

2. Remove disk from array

3. Mount disk in Unassigned Devices and check if all data is ok



If OK proceed



1. Next goto Tools -> New Config

2. Preserve current assignments: ALL

3. Apply



Next Start Array with parity is Valid checked.











Edited by pho3nix
Link to comment
