Wrong empty space annouce on the dashboard

[H3ms]

Hi,



I change my brtfs cache pool from Raid 1 to Raid5 and the size on the Dashboard didn't change.

The real use is about 400 go.

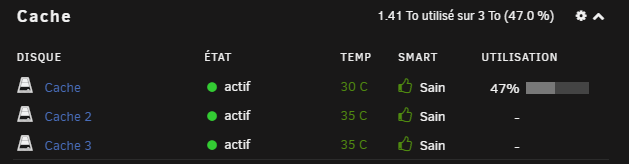

Look at the first capture. The dashboars says that i'm at 47% of use, about 1400gb.

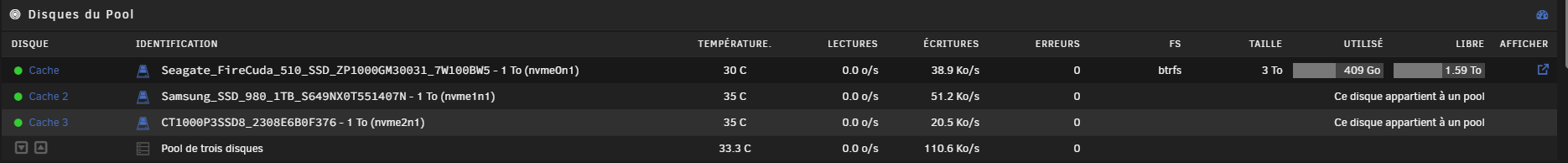

But when i go to the array setup, see the second capture, I'm at 409 gb used and 1590 go free. (this seems to me more legit, on a 3 to "raid 5" with 2 To available).



Can someone explain that?



Thx



Edited April 17, 2023 by H3ms

[JorgeB]

The GUI is correct, the dashboard will report wrong used space, it doesn't account for parity, free will be correct.

[H3ms]

To me, it should show 410/2 TO on the dashboard, like the array.

I have an array of 8 x 8 To, so 64 off raw space, but the dashboard only show xx To used over 56 to available.



[JorgeB]

Like mentioned used space on the dashboard will be wrong, it counts the 1TB used for parity plus the actual 410GB used.
