Graphics Card not Showing in VM Setup menu or anywhere in Unraid

[Rkpaxam]

Hi



I cant get my Graphics card to Show on the list when trying to set up my Vms.

Bios is set up to integrated Graphics (IGD) , fast boot disabled, and UEFI turned off (Cant boot with it on)

i do get display though the card some sort of terminal type screen on HDMI 1 and the main IGD DVI port is working on HDMI 2 so they are not showing the same thing.



Virtualisation for Intel is enabled also





GPU is not showing up in unraid anywhere either which is odd as it worked on my old setup fine before i changed MB - but again the card is being read in bios so im very confused so it must work for the fact i have some sort of video output and the bios is reading it... so why isnt unraid



GPU - AMD Radeon HD 6770



Manufacturer:Intel Corporation

Product Name:DQ67SW

Version:AAG12527-310

Serial Number:BQSW145000A8

Asset Tag:To be filled by O.E.M.

Features:Board is a hosting board

Board is replaceable

Location In Chassis:To be filled by O.E.M.

Type:Motherboard



Socket Designation:SKTH

Type:Central

Family:Core i7

Manufacturer:Intel® Corp.

Signature:Type 0, Family 6, Model 42, Stepping 7

Flags:FPU (Floating-point unit on-chip)

VME (Virtual mode extension)

DE (Debugging extension)

PSE (Page size extension)

TSC (Time stamp counter)

MSR (Model specific registers)

PAE (Physical address extension)

MCE (Machine check exception)

CX8 (CMPXCHG8 instruction supported)

APIC (On-chip APIC hardware supported)

SEP (Fast system call)

MTRR (Memory type range registers)

PGE (Page global enable)

MCA (Machine check architecture)

CMOV (Conditional move instruction supported)

PAT (Page attribute table)

PSE-36 (36-bit page size extension)

CLFSH (CLFLUSH instruction supported)

DS (Debug store)

ACPI (ACPI supported)

MMX (MMX technology supported)

FXSR (FXSAVE and FXSTOR instructions supported)

SSE (Streaming SIMD extensions)

SSE2 (Streaming SIMD extensions 2)

SS (Self-snoop)

HTT (Multi-threading)

TM (Thermal monitor supported)

PBE (Pending break enabled)

Version:Intel® Core™ i7-2600K CPU @ 3.40GHz

Voltage:1.1 V

External Clock:100 MHz

Max Speed:3800 MHz

Current Speed:3400 MHz

Status:Populated, Enabled

Upgrade:Socket BGA1155

Serial Number:To Be Filled By O.E.M.

Asset Tag:To Be Filled By O.E.M.

Part Number:To Be Filled By O.E.M.

Core Count:4

Core Enabled:4

Thread Count:8

Characteristics:64-bit capable







Edited April 23, 2023 by Rkpaxam

[apandey]

Seems you have shared your wireguard details, which exposes your server to external attacks. So as a first step, you should rotate your keys so that no one is able to access your server from outside

If you need help, you should share diagnostics which is a safe way to share details on your server setup

[Rkpaxam]

that was the diagnostics? unless there is so,this specific in there... i also used the anonymous tick so it shouldn't really put wireguard details in there .... thats a bit of a bad design.

[apandey]

What i saw was not diagnostics. It just had your wireguard config in a zip. Diagnostics will never put that stuff there and all the stuff that is supposed to be in diagnostics zip wasn't there at all. Also the file wasn't named correctly to be a diagnostics file. How did you generate it?

[Rkpaxam]

maybe it was me being think i just resetup my laptop ive attached the correct ones and regened my keys ... fml

tower-diagnostics-20230423-0007.zip

[apandey]

13 hours ago, Rkpaxam said:

GPU is not showing up in unraid anywhere either which is odd as it worked on my old setup fine before i changed MB - but again the card is being read in bios so im very confused so it must work for the fact i have some sort of video output and the bios is reading it... so why isnt unraid

From your diagnostics, I can see it listed in lspci output. I can also see it being initialized in syslog



When you go to Tools tab, system devices, does it show up under PCI device listing. How are you trying to give it to the VM?

[Rkpaxam]

HI Andy



doesnt appear to be showing up  - but again its being read in the bios fine





8086:0100]00:00.0 Host bridge: Intel Corporation 2nd Generation Core Processor Family DRAM Controller (rev 09)

[8086:0101]00:01.0 PCI bridge: Intel Corporation Xeon E3-1200/2nd Generation Core Processor Family PCI Express Root Port (rev 09)

[8086:0122]00:02.0 VGA compatible controller: Intel Corporation 2nd Generation Core Processor Family Integrated Graphics Controller (rev 09)

[8086:1c3a]00:16.0 Communication controller: Intel Corporation 6 Series/C200 Series Chipset Family MEI Controller #1 (rev 04)

[8086:1c3c]00:16.2 IDE interface: Intel Corporation 6 Series/C200 Series Chipset Family IDE-r Controller (rev 04)

[8086:1c3d]00:16.3 Serial controller: Intel Corporation 6 Series/C200 Series Chipset Family KT Controller (rev 04)

[8086:1502]00:19.0 Ethernet controller: Intel Corporation 82579LM Gigabit Network Connection (Lewisville) (rev 04)

[8086:1c2d]00:1a.0 USB controller: Intel Corporation 6 Series/C200 Series Chipset Family USB Enhanced Host Controller #2 (rev 04)

[8086:1c20]00:1b.0 Audio device: Intel Corporation 6 Series/C200 Series Chipset Family High Definition Audio Controller (rev 04)

[8086:1c10]00:1c.0 PCI bridge: Intel Corporation 6 Series/C200 Series Chipset Family PCI Express Root Port 1 (rev b4)

[8086:1c1c]00:1c.6 PCI bridge: Intel Corporation 6 Series/C200 Series Chipset Family PCI Express Root Port 7 (rev b4)

[8086:1c26]00:1d.0 USB controller: Intel Corporation 6 Series/C200 Series Chipset Family USB Enhanced Host Controller #1 (rev 04)

[8086:244e]00:1e.0 PCI bridge: Intel Corporation 82801 PCI Bridge (rev a4)

[8086:1c4e]00:1f.0 ISA bridge: Intel Corporation Q67 Express Chipset LPC Controller (rev 04)

[8086:1c02]00:1f.2 SATA controller: Intel Corporation 6 Series/C200 Series Chipset Family 6 port Desktop SATA AHCI Controller (rev 04)

[8086:1c22]00:1f.3 SMBus: Intel Corporation 6 Series/C200 Series Chipset Family SMBus Controller (rev 04)

[1002:68bf]01:00.0 VGA compatible controller: Advanced Micro Devices, Inc. [AMD/ATI] Juniper PRO [Radeon HD 6750]

[1002:aa58]01:00.1 Audio device: Advanced Micro Devices, Inc. [AMD/ATI] Juniper HDMI Audio [Radeon HD 5700 Series]

[1b21:1064]02:00.0 SATA controller: ASMedia Technology Inc. Device 1064 (rev 02)

[1033:0194]03:00.0 USB controller: NEC Corporation uPD720200 USB 3.0 Host Controller (rev 04)

[11c1:5811]04:03.0 FireWire (IEEE 1394): LSI Corporation FW322/323 [TrueFire] 1394a Controller (rev 70)

[Rkpaxam]

Hi Andy



i found i had PCIE ACS Override i unset this from "both" to Disabled but this hasnt helped either.

[SimonF]

41 minutes ago, Rkpaxam said:

Hi Andy



i found i had PCIE ACS Override i unset this from "both" to Disabled but this hasnt helped either.

There are no IOMMU groups in the diags, do you have VT-d enabled in the bios?

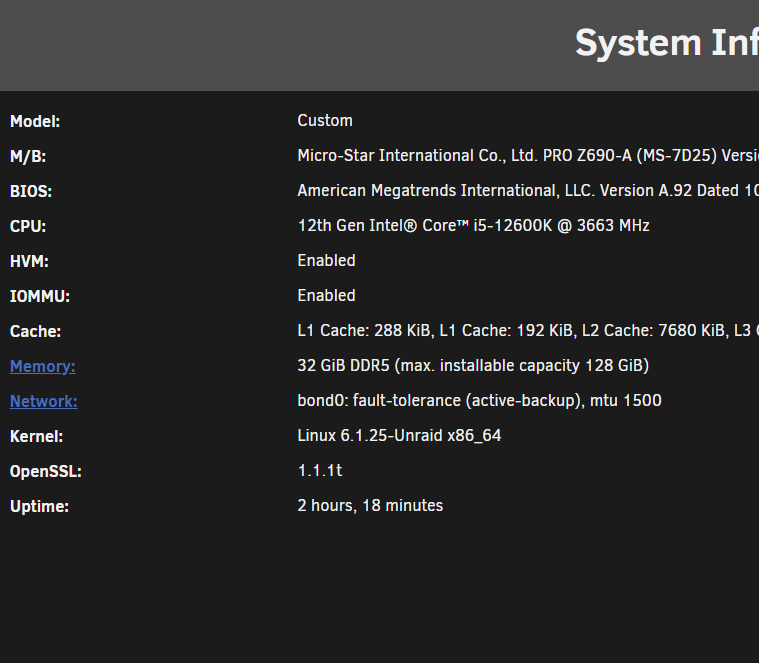

If you click on sys info  in the menu bar does it show IOMMU enabled?



[Rkpaxam]

Its showing as disabled in there but its showing as active in the bios.



6 hours ago, apandey said:

What i saw was not diagnostics. It just had your wireguard config in a zip. Diagnostics will never put that stuff there and all the stuff that is supposed to be in diagnostics zip wasn't there at all. Also the file wasn't named correctly to be a diagnostics file. How did you generate it?

Created from the download diagnostics in tools, could be I attached the wrong file lol

[Rkpaxam]

I think I found it my i7-2600k doesn't appear to support immou

[SimonF]

7 minutes ago, Rkpaxam said:

I think I found it my i7-2600k doesn't appear to support immou

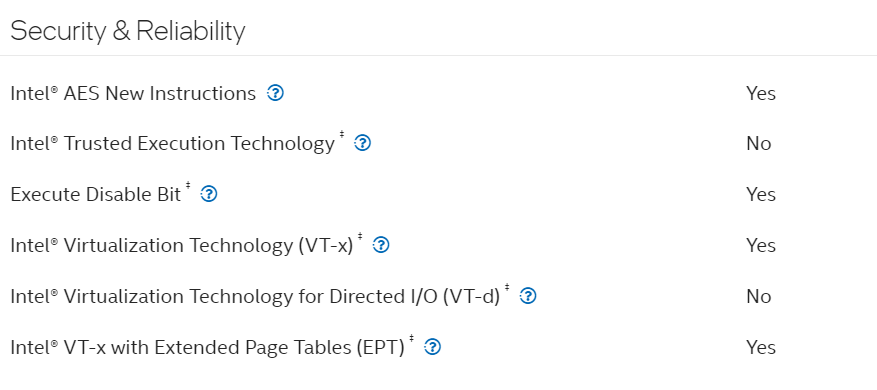

Yes that is the case on Intel ARK, Normally there are two BIOS options one for VT-x and one for VT-d the later is sometimes in different places if the CPU supports.



[Rkpaxam]

Where did you find that I'm going to look for an alternative..... all this for lugies mansion lol

[apandey]

42 minutes ago, Rkpaxam said:

Where did you find that

Intel site has comprehensive listing of specs, even for very old EOL products

https://www.intel.com/content/www/us/en/products/sku/52214/intel-core-i72600k-processor-8m-cache-up-to-3-80-ghz/specifications.html

[shpitz461]

For Intel, you just go to ark.intel.com and type the cpu name in the 'search specifications' box (e.g. 'i7-8700T').

It will show you the capabilities at the bottom of the page of each cpu.

You can also add cpu's to the comparison list and compare them, pretty neat.

[Rkpaxam]

On 4/27/2023 at 1:52 AM, shpitz461 said:

For Intel, you just go to ark.intel.com and type the cpu name in the 'search specifications' box (e.g. 'i7-8700T').

It will show you the capabilities at the bottom of the page of each cpu.

You can also add cpu's to the comparison list and compare them, pretty neat.

was the cpu fixed that but still cant get passthrough working

[Rkpaxam]

Hi All sorry for the (very) late response, turned out whilst it was the better CPU it didnt allow passthrough so i had to downgrade.
