I have a Gigabyte B660M Elite with an i5 12600 16Gx4 RAM LSI card in main PCIe slot and a P600 in second PCIe slot as well as a NVMe as cache drive.

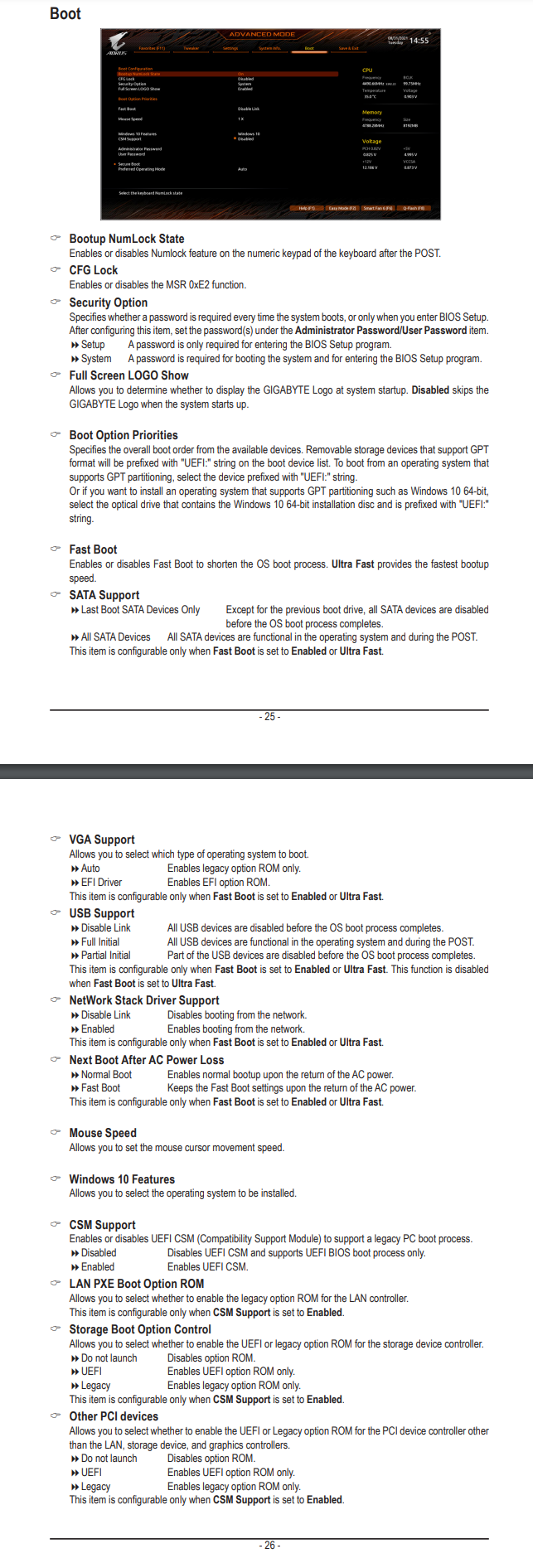

I’ve tried all the settings I can from the advanced BIOS settings guide and I’m still not able to get unraid to boot.
I’ve rolled back BIOS to an older version as I was having invalid secure boot popping up with the newest BIOS version.

1 hour ago, nikaiwolf said:

I have a Gigabyte B660M Elite with an i5 12600 16Gx4 RAM LSI card in main PCIe slot and a P600 in second PCIe slot as well as a NVMe as cache drive.
I’ve tried all the settings I can from the advanced BIOS settings guide and I’m still not able to get unraid to boot.
I’ve rolled back BIOS to an older version as I was having invalid secure boot popping up with the newest BIOS version.

have you renamed efi- on flash to remove the -

I tried that and it still wouldn’t boot. I did the make bootable as well after I removed the -

8 minutes ago, nikaiwolf said:

I tried that and it still wouldn’t boot. I did the make bootable as well after I removed the -

Do you see the USB in the bios? Disable fastboot



USB support enable Full and select USB falsh in boot option priority.



Yep tried all that too. I’ll try again in a little while. Going on a short hike.

On 4/23/2023 at 8:34 AM, SimonF said:

Do you see the USB in the bios? Disable fastboot



USB support enable Full and select USB falsh in boot option priority.



The usb full is actually under fast boot

I’ve tried a lot. I am trying to get the Intel PTT to disable but it won’t.
So I tried to change to CSM mode. And its

hung up on the bios screen.

CSM mode kind of worked. Set Boot Storage Option to UEFI.
Was able to get into Unraid GUI but nothings working.

SOLUTION

BIOS into CSM mode

Enable Storage Boot Option to UEFI

PCI option to UEFI

Disable Trusted Platform & Intel PPT (if possible)

Disable Secure Boot

Edited April 25, 20233 yr by nikaiwolf
