Network Speeds: VM, DOCKER, AND HOST

Arbadacarba
in General Support

Featured Replies

  • Community Expert

So I have an Unraid server serving several VMs including my pfsense router...



The pfsense box has a pair of nics, one of which on the Lan side is connected to a 1G router...



My Unraid Server has a single 2.5G card connected to the same 1G router...



My VM's are running e1000 1G nics



What is the potential connection speed between my VM and the Shares on the Unraid server?



Would that change if I were using a different vitual nic?



How would I best test this?



Thanks

  • Quote
    • Author
    • Community Expert

    OpenSpeedTest installed on the Unraid Server at 10.40.70.11:3000

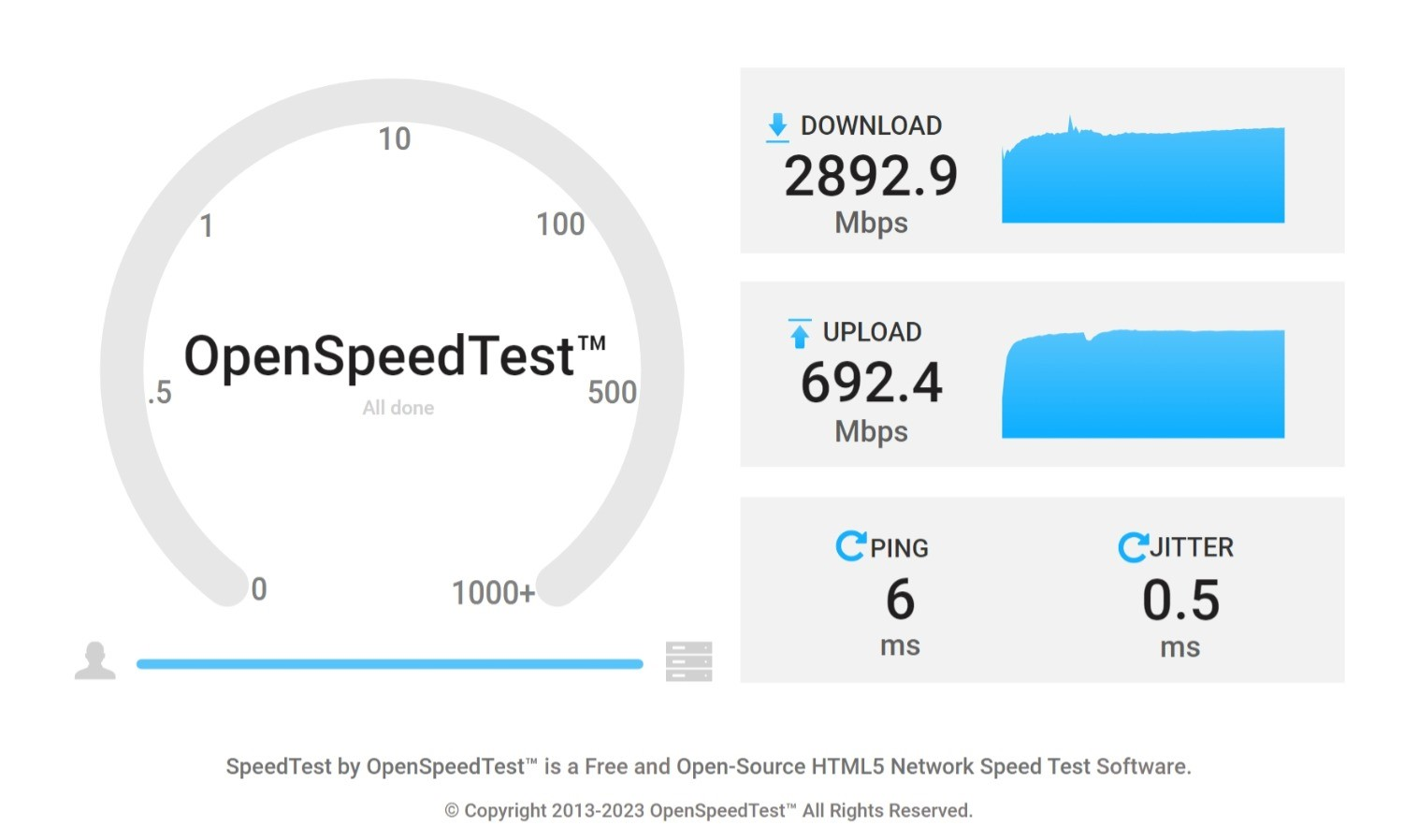

    Connection from Laptop:



    Wifi at my Desk: (My AP's are NOT nearby)




    SSID:        Paradise

    Protocol:        Wi-Fi 6 (802.11ax)

    Security type:        WPA2-Personal

    Network band:        2.4 GHz

    Network channel:        11

    Link speed (Receive/Transmit):        86/155 (Mbps)

    IPv4 address:        10.40.70.192

    IPv4 DNS servers:        10.40.70.1

    Manufacturer:        Intel Corporation

    Description:        Intel(R) Wi-Fi 6 AX200 160MHz

    Driver version:        22.200.0.6

    Physical address (MAC):        78-2B-46-C7-0D-21

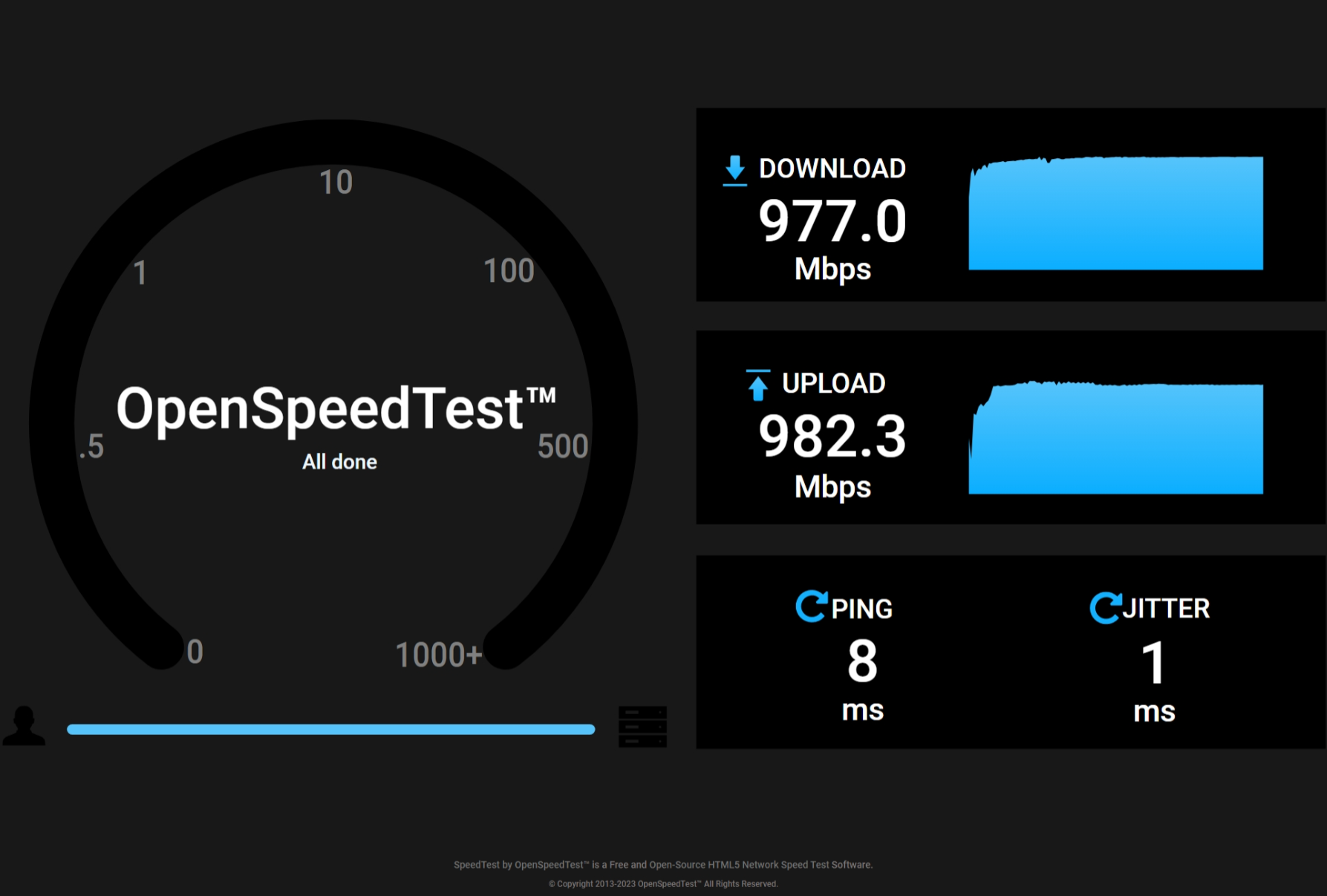

    Cabled at my Desk:

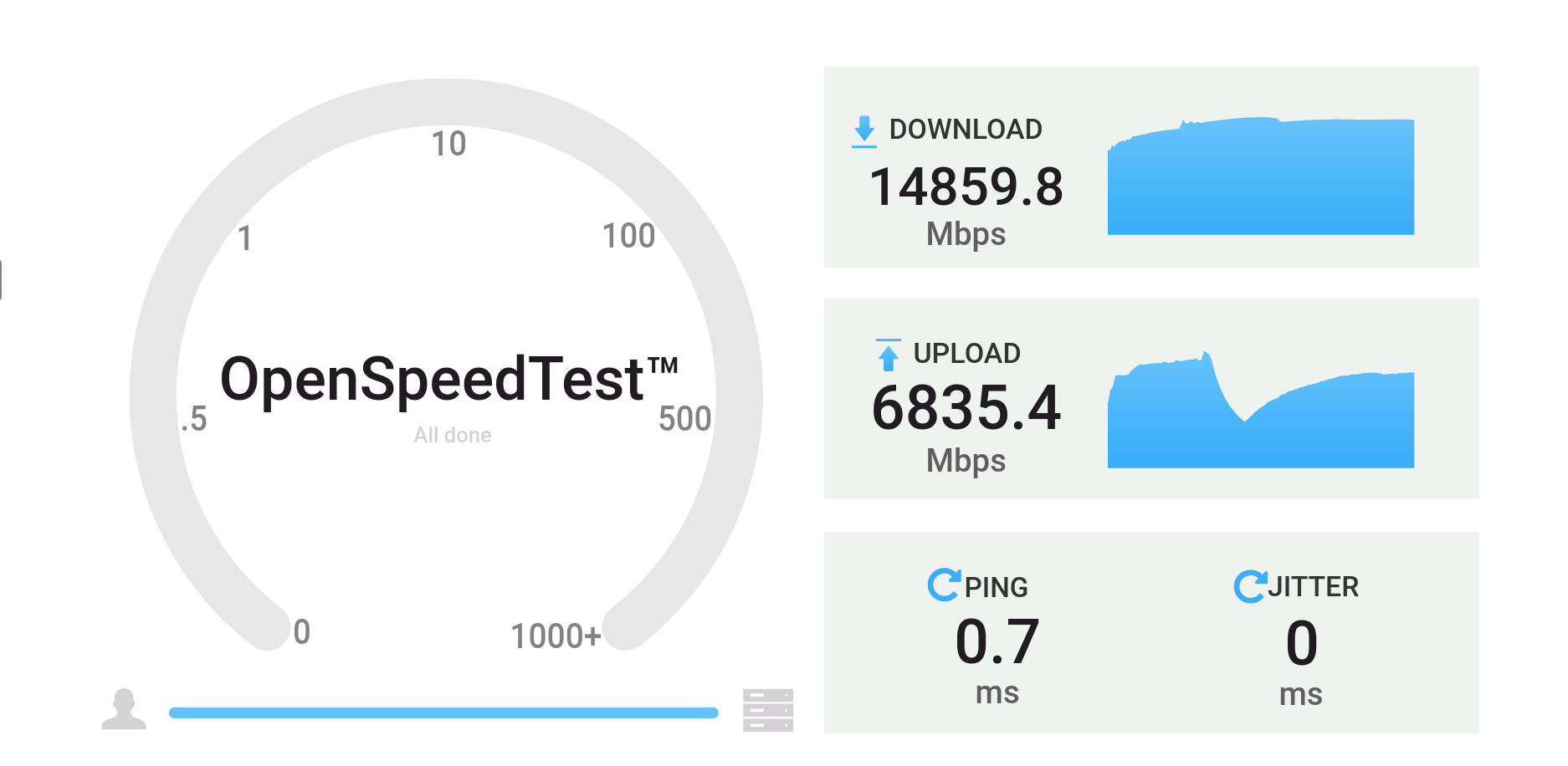

    Connection from Chrome Docker:


    What the Hell?

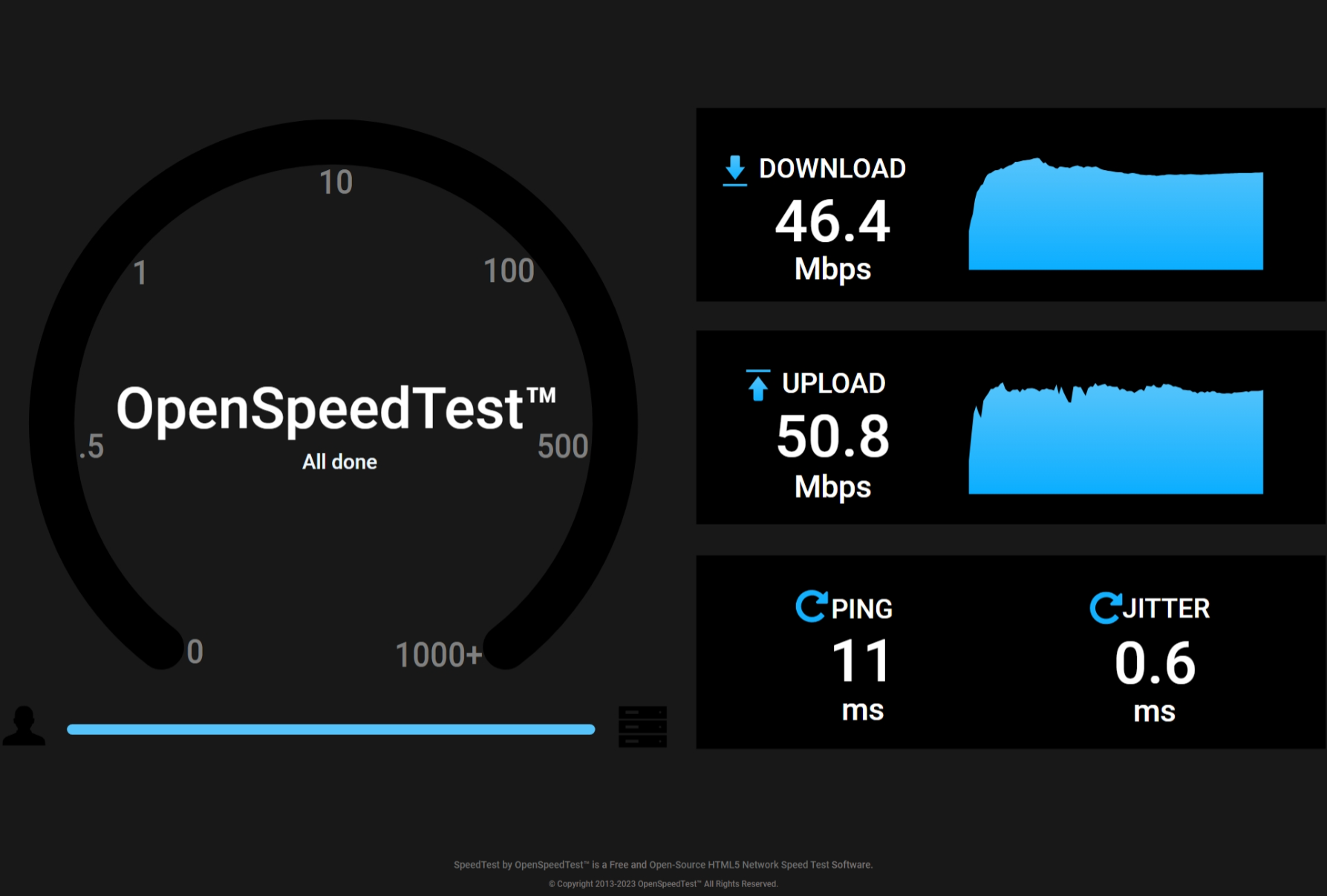

    Connection from VM (Goat):

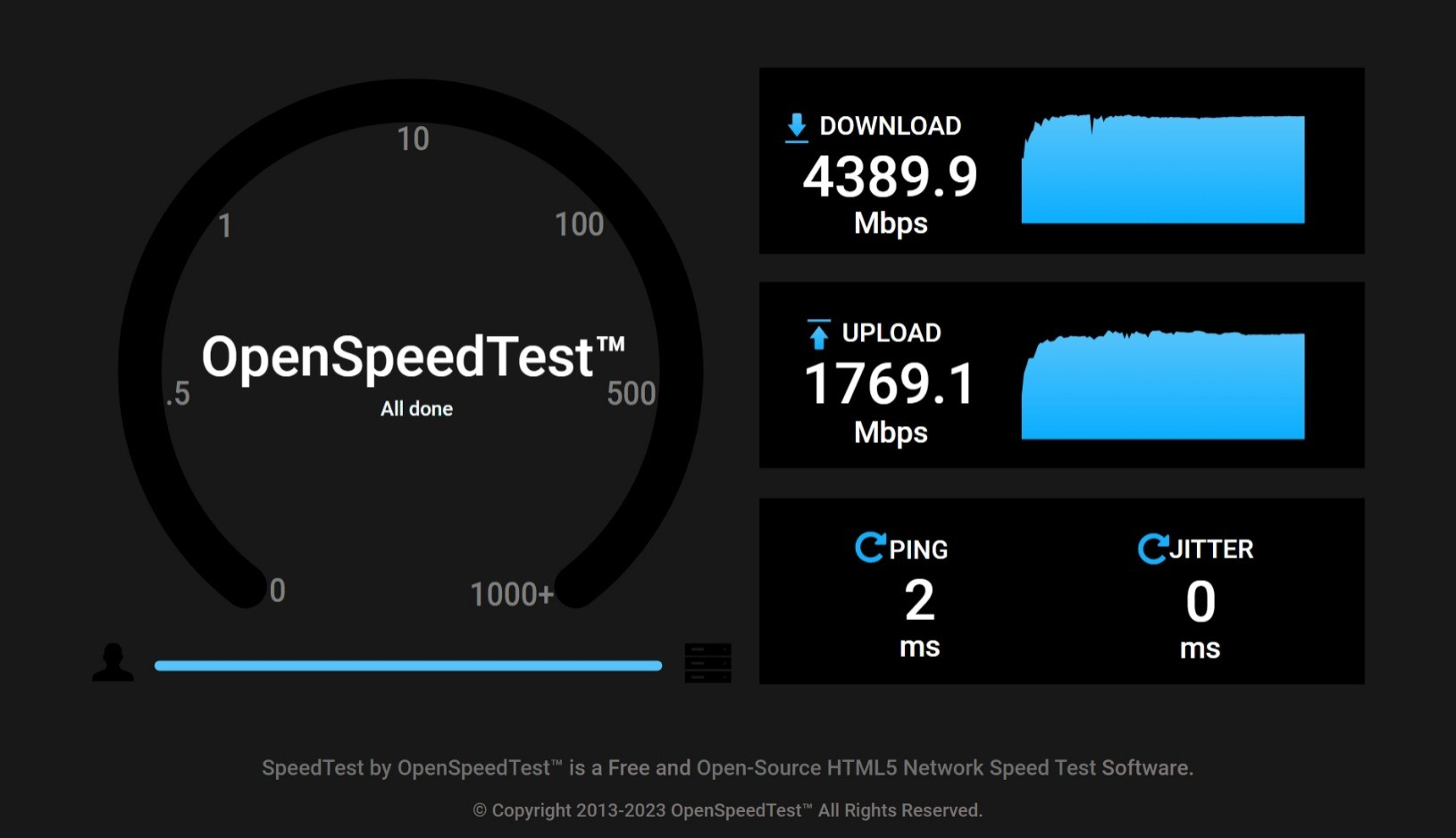

    Connection from Gaming VM:


  • Quote
