error using intel_gpu_top

[bubbadk]

hi gang.



Nevermind. made a complete reinstall



Im on a intel nuc generation 11 i7



the first time i installed intel gpu top everything worked fine. Then i rebooted and i get ithis error.



as you can see i have /dev/dri and everything is thee. but i can't seem to getting it work





root@Tower:~# intel_gpu_top
Failed to detect engines! (No such file or directory)
(Kernel 4.16 or newer is required for i915 PMU support.)
Segmentation fault
root@Tower:~# cd /dev/dri
root@Tower:/dev/dri# ls
by-path/  card0  card1  card2  renderD128  renderD129  renderD130
root@Tower:/dev/dri#

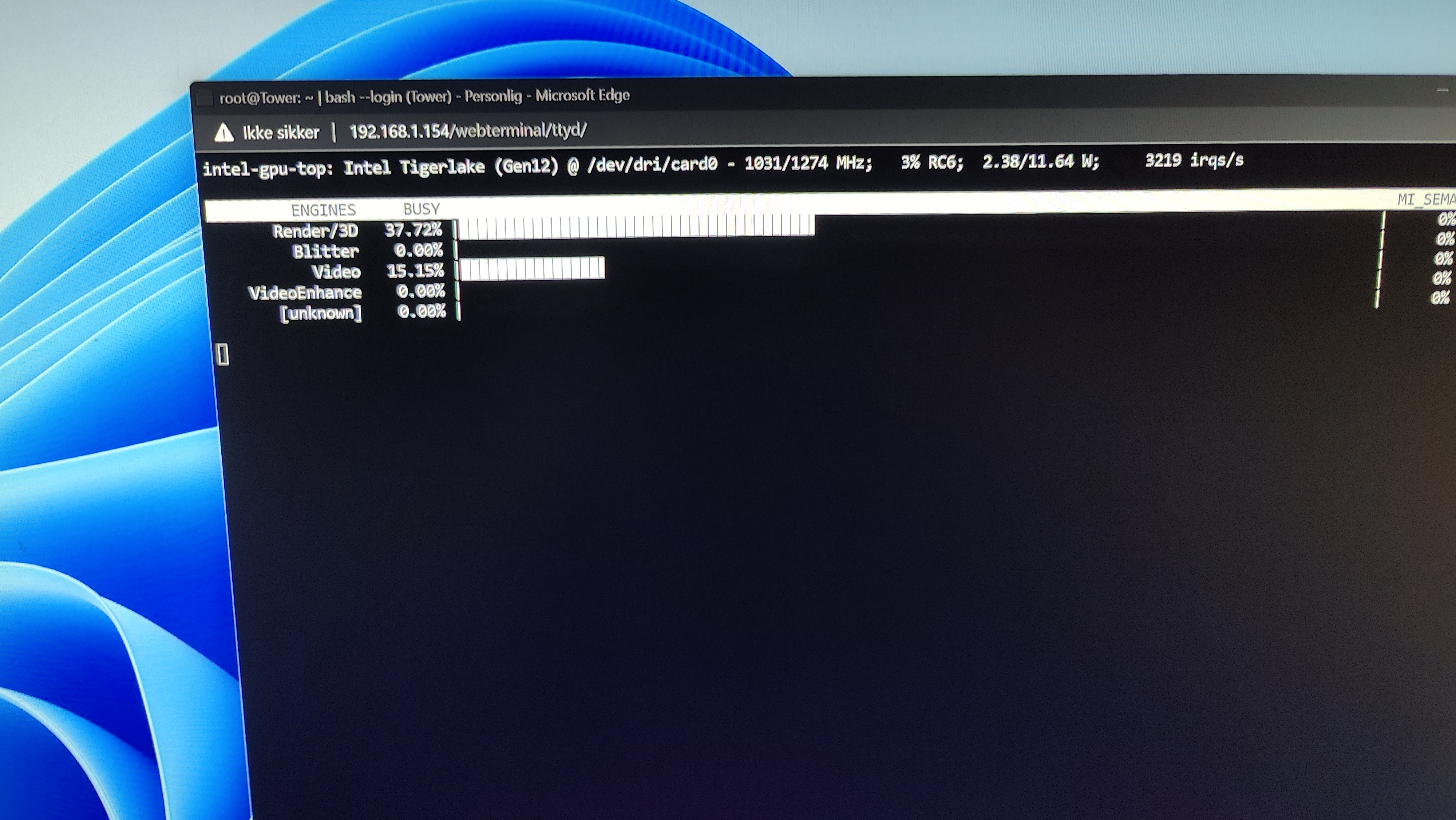

the picture is from fresh install without the first boot

Edited April 27, 2023 by bubbadk
Complete reinstall

[riduxd]

On 4/26/2023 at 9:46 PM, bubbadk said:

hi gang.



Nevermind. made a complete reinstall



Im on a intel nuc generation 11 i7



the first time i installed intel gpu top everything worked fine. Then i rebooted and i get ithis error.



as you can see i have /dev/dri and everything is thee. but i can't seem to getting it work





root@Tower:~# intel_gpu_top
Failed to detect engines! (No such file or directory)
(Kernel 4.16 or newer is required for i915 PMU support.)
Segmentation fault
root@Tower:~# cd /dev/dri
root@Tower:/dev/dri# ls
by-path/  card0  card1  card2  renderD128  renderD129  renderD130
root@Tower:/dev/dri#





the picture is from fresh install without the first boot

reinstalled unRAID or intel_gpu_top?

[bubbadk]

1 hour ago, riduxd said:

reinstalled unRAID or intel_gpu_top?

I reinstalled unraid because I thought it was a one time incident. But yesterday I rebooted unraid, and the error was there again. Segment fault.



Hw transcode still works though.. But not Intel_gpu_top

Edited May 2, 2023 by bubbadk
Typo

[riduxd]

37 minutes ago, bubbadk said:

I reinstalled unraid because I thought it was a one time incident. But yesterday I rebooted unraid, and the error was there again. Segment fault.



Hw transcode still works though.. But not Intel_gpu_top

Yeah I am facing this issue as well. HW transcode wasn't working for me because I had my 1050ti on it. I removed it, and now HW transcode works again.. I am on RC5 btw.

[bubbadk]

1 hour ago, riduxd said:

Yeah I am facing this issue as well. HW transcode wasn't working for me because I had my 1050ti on it. I removed it, and now HW transcode works again.. I am on RC5 btw.

Wonder if the programmers of unraid knows about this. I dread everytime I need to reboot on what had been broken.. I'm on 6.11 and don't have the nerves to upgrade.

[riduxd]

8 hours ago, bubbadk said:

Wonder if the programmers of unraid knows about this. I dread everytime I need to reboot on what had been broken.. I'm on 6.11 and don't have the nerves to upgrade.

I had intel_gpu_top running fine for awhile, but I was doing a lot of hardware and software all at once and I'm not sure which one broke it. I did took of the GPU though and intel_gpu_top is still not working. @ich777 may be able to point us to the right direction.

[ich777]

11 hours ago, bubbadk said:

Segment fault.

Are you using the SRIOV plugin?



Someone reported this over on GitHub: Click



25 minutes ago, riduxd said:

may be able to point us to the right direction

The Diagnostics from your systems would be really helpful and what is not working exactly.

[bubbadk]

17 minutes ago, ich777 said:

Are you using the SRIOV plugin?



Someone reported this over on GitHub: Click



The Diagnostics from your systems would be really helpful and what is not working exactly.





well these worked fine : intel_gpu_top drm:/dev/dri/card0 intel_gpu_top drm:/dev/dri/renderD128



just not single output : intel_gpu_top



attached diagnostics

tower-diagnostics-20230503-0706.zip

[ich777]

25 minutes ago, bubbadk said:

well these worked fine : intel_gpu_top drm:/dev/dri/card0 intel_gpu_top drm:/dev/dri/renderD128

Please uninstall the SRIOV plugin, reboot and it will work.



SRIOV is in a experimental state and not officially supported by the Kernel:

Quote

This package is highly experimental, you should only use it when you know what you are doing.

Source: https://github.com/strongtz/i915-sriov-dkms/blob/master/README.md

[bubbadk]

16 minutes ago, ich777 said:

Please uninstall the SRIOV plugin, reboot and it will work.



SRIOV is in a experimental state and not officially supported by the Kernel:

Source: https://github.com/strongtz/i915-sriov-dkms/blob/master/README.md



uninstalled and it worked.



installed rc5 and my disks said it was incompatible. went back to 6.11 and everything works again. using btrfs. don't know if that's the problem

[ich777]

14 minutes ago, bubbadk said:

installed rc5 and my disks said it was incompatible. went back to 6.11 and everything works again. using btrfs. don't know if that's the problem

I would recommend that you create a bug report for that over here, I don't have any issues on RC5.



Also attach the Diagnostics from RC5 where you have the issue.

[riduxd]

10 hours ago, ich777 said:

Please uninstall the SRIOV plugin, reboot and it will work.



SRIOV is in a experimental state and not officially supported by the Kernel:

Source: https://github.com/strongtz/i915-sriov-dkms/blob/master/README.md

Can confirm it worked after uninstalling SRIOV plugin
