One of my disks consistently getting disabled. SMART data looks good

dglb99
in General Support

Featured Replies

Posted

I have been having this issue where my Disk 3 will error out and gets disabled.  SMART data all looks good.  I usually just restart the server, wipe the disk, and rebuild the array and it is fine, but it is starting to happen with greater frequency.  Last time I pulled the disk and re-seated it in case there is a connection issue.  Here is a copy of the unraid logs when the disk gets disabled.



May 17 17:46:58 NASDex kernel: scsi target1:0:3: handle(0x000c), sas_address(0x4433221103000000), phy(3)
May 17 17:46:58 NASDex kernel: scsi target1:0:3: enclosure logical id(0x500605b006287f10), slot(4)
May 17 17:46:58 NASDex kernel: sd 1:0:3:0: task abort: SUCCESS scmd(0x00000000e7172b62)
May 17 17:46:59 NASDex kernel: sd 1:0:3:0: Power-on or device reset occurred
May 17 17:46:59 NASDex kernel: sd 1:0:3:0: Power-on or device reset occurred
May 17 17:47:06 NASDex kernel: sd 1:0:3:0: attempting task abort!scmd(0x000000008f76039a), outstanding for 7395 ms & timeout 7000 ms
May 17 17:47:06 NASDex kernel: sd 1:0:3:0: [sde] tag#3095 CDB: opcode=0x12 12 00 00 00 fe 00
May 17 17:47:06 NASDex kernel: scsi target1:0:3: handle(0x000c), sas_address(0x4433221103000000), phy(3)
May 17 17:47:06 NASDex kernel: scsi target1:0:3: enclosure logical id(0x500605b006287f10), slot(4)
May 17 17:47:06 NASDex kernel: sd 1:0:3:0: task abort: SUCCESS scmd(0x000000008f76039a)
May 17 17:47:06 NASDex kernel: sd 1:0:3:0: Power-on or device reset occurred
May 17 17:47:07 NASDex kernel: sd 1:0:3:0: Power-on or device reset occurred
May 17 17:47:37 NASDex kernel: sd 1:0:3:0: attempting task abort!scmd(0x000000007841706f), outstanding for 30035 ms & timeout 30000 ms
May 17 17:47:37 NASDex kernel: sd 1:0:3:0: [sde] tag#3110 CDB: opcode=0x88 88 00 00 00 00 05 8b 1a d3 40 00 00 00 08 00 00
May 17 17:47:37 NASDex kernel: scsi target1:0:3: handle(0x000c), sas_address(0x4433221103000000), phy(3)
May 17 17:47:37 NASDex kernel: scsi target1:0:3: enclosure logical id(0x500605b006287f10), slot(4)
May 17 17:47:37 NASDex kernel: sd 1:0:3:0: task abort: SUCCESS scmd(0x000000007841706f)
May 17 17:47:37 NASDex kernel: sd 1:0:3:0: Power-on or device reset occurred
May 17 17:47:38 NASDex kernel: sd 1:0:3:0: Power-on or device reset occurred
May 17 17:47:44 NASDex kernel: sd 1:0:3:0: attempting task abort!scmd(0x0000000057f00eb9), outstanding for 7522 ms & timeout 7000 ms
May 17 17:47:44 NASDex kernel: sd 1:0:3:0: [sde] tag#3073 CDB: opcode=0x12 12 00 00 00 fe 00
May 17 17:47:44 NASDex kernel: scsi target1:0:3: handle(0x000c), sas_address(0x4433221103000000), phy(3)
May 17 17:47:44 NASDex kernel: scsi target1:0:3: enclosure logical id(0x500605b006287f10), slot(4)
May 17 17:47:45 NASDex kernel: sd 1:0:3:0: task abort: SUCCESS scmd(0x0000000057f00eb9)
May 17 17:47:45 NASDex kernel: sd 1:0:3:0: Power-on or device reset occurred
May 17 17:47:45 NASDex kernel: sd 1:0:3:0: Power-on or device reset occurred
May 17 17:48:16 NASDex kernel: sd 1:0:3:0: attempting task abort!scmd(0x000000007bcdd088), outstanding for 30438 ms & timeout 30000 ms
May 17 17:48:16 NASDex kernel: sd 1:0:3:0: [sde] tag#3090 CDB: opcode=0x12 12 00 00 00 24 00
May 17 17:48:16 NASDex kernel: scsi target1:0:3: handle(0x000c), sas_address(0x4433221103000000), phy(3)
May 17 17:48:16 NASDex kernel: scsi target1:0:3: enclosure logical id(0x500605b006287f10), slot(4)
May 17 17:48:16 NASDex kernel: sd 1:0:3:0: task abort: SUCCESS scmd(0x000000007bcdd088)
May 17 17:48:16 NASDex kernel: sd 1:0:3:0: attempting task abort!scmd(0x00000000f1a23639), outstanding for 30593 ms & timeout 30000 ms
May 17 17:48:16 NASDex kernel: sd 1:0:3:0: [sde] tag#3089 CDB: opcode=0x88 88 00 00 00 00 05 57 5b 2f a8 00 00 00 90 00 00
May 17 17:48:16 NASDex kernel: scsi target1:0:3: handle(0x000c), sas_address(0x4433221103000000), phy(3)
May 17 17:48:16 NASDex kernel: scsi target1:0:3: enclosure logical id(0x500605b006287f10), slot(4)
May 17 17:48:16 NASDex kernel: sd 1:0:3:0: No reference found at driver, assuming scmd(0x00000000f1a23639) might have completed
May 17 17:48:16 NASDex kernel: sd 1:0:3:0: task abort: SUCCESS scmd(0x00000000f1a23639)
May 17 17:48:16 NASDex kernel: sd 1:0:3:0: Power-on or device reset occurred
May 17 17:48:17 NASDex kernel: sd 1:0:3:0: Power-on or device reset occurred
May 17 17:48:23 NASDex kernel: sd 1:0:3:0: attempting task abort!scmd(0x00000000cb2e9456), outstanding for 7333 ms & timeout 7000 ms
May 17 17:48:23 NASDex kernel: sd 1:0:3:0: [sde] tag#3082 CDB: opcode=0x12 12 00 00 00 fe 00
May 17 17:48:23 NASDex kernel: scsi target1:0:3: handle(0x000c), sas_address(0x4433221103000000), phy(3)
May 17 17:48:23 NASDex kernel: scsi target1:0:3: enclosure logical id(0x500605b006287f10), slot(4)
May 17 17:48:23 NASDex kernel: sd 1:0:3:0: [sde] tag#3093 UNKNOWN(0x2003) Result: hostbyte=0x0b driverbyte=DRIVER_OK cmd_age=115s
May 17 17:48:23 NASDex kernel: sd 1:0:3:0: [sde] tag#3093 CDB: opcode=0x35 35 00 00 00 00 00 00 00 00 00
May 17 17:48:23 NASDex kernel: I/O error, dev sde, sector 0 op 0x1:(WRITE) flags 0x800 phys_seg 0 prio class 0
May 17 17:48:23 NASDex kernel: I/O error, dev sde, sector 2932785624 op 0x1:(WRITE) flags 0x800 phys_seg 1 prio class 0
May 17 17:48:23 NASDex kernel: md: disk3 write error, sector=2932785560
May 17 17:48:23 NASDex kernel: I/O error, dev sde, sector 2932785632 op 0x1:(WRITE) flags 0x800 phys_seg 1 prio class 0
May 17 17:48:23 NASDex kernel: md: disk3 write error, sector=2932785568
May 17 17:48:23 NASDex kernel: I/O error, dev sde, sector 2932785640 op 0x1:(WRITE) flags 0x800 phys_seg 1 prio class 0
May 17 17:48:23 NASDex kernel: md: disk3 write error, sector=2932785576
May 17 17:48:23 NASDex kernel: I/O error, dev sde, sector 2932785648 op 0x1:(WRITE) flags 0x800 phys_seg 1 prio class 0
May 17 17:48:23 NASDex kernel: md: disk3 write error, sector=2932785584
May 17 17:48:23 NASDex kernel: I/O error, dev sde, sector 2932785656 op 0x1:(WRITE) flags 0x800 phys_seg 1 prio class 0
May 17 17:48:23 NASDex kernel: md: disk3 write error, sector=2932785592
May 17 17:48:23 NASDex kernel: I/O error, dev sde, sector 2932785664 op 0x1:(WRITE) flags 0x800 phys_seg 1 prio class 0
May 17 17:48:23 NASDex kernel: md: disk3 write error, sector=2932785600
May 17 17:48:23 NASDex kernel: I/O error, dev sde, sector 2932785672 op 0x1:(WRITE) flags 0x800 phys_seg 1 prio class 0
May 17 17:48:23 NASDex kernel: md: disk3 write error, sector=2932785608
May 17 17:48:23 NASDex kernel: I/O error, dev sde, sector 2932785688 op 0x1:(WRITE) flags 0x800 phys_seg 1 prio class 0
May 17 17:48:23 NASDex kernel: md: disk3 write error, sector=2932785624
May 17 17:48:23 NASDex kernel: sd 1:0:3:0: task abort: SUCCESS scmd(0x00000000cb2e9456)
May 17 17:48:24 NASDex kernel: sd 1:0:3:0: Power-on or device reset occurred
May 17 17:48:24 NASDex kernel: sd 1:0:3:0: Power-on or device reset occurred
May 17 17:48:26 NASDex kernel: br-9ca54f048d75: port 8(veth0bbba04) entered disabled state
May 17 17:48:26 NASDex kernel: vethb049206: renamed from eth0
May 17 17:48:26 NASDex  avahi-daemon[13085]: Interface veth0bbba04.IPv6 no longer relevant for mDNS.
May 17 17:48:26 NASDex  avahi-daemon[13085]: Leaving mDNS multicast group on interface veth0bbba04.IPv6 with address fe80::c441:89ff:fe63:c4c9.
May 17 17:48:26 NASDex kernel: br-9ca54f048d75: port 8(veth0bbba04) entered disabled state
May 17 17:48:26 NASDex kernel: device veth0bbba04 left promiscuous mode
May 17 17:48:26 NASDex kernel: br-9ca54f048d75: port 8(veth0bbba04) entered disabled state
May 17 17:48:26 NASDex  avahi-daemon[13085]: Withdrawing address record for fe80::c441:89ff:fe63:c4c9 on veth0bbba04.
May 17 17:48:26 NASDex kernel: br-9ca54f048d75: port 8(veth5568b3c) entered blocking state
May 17 17:48:26 NASDex kernel: br-9ca54f048d75: port 8(veth5568b3c) entered disabled state
May 17 17:48:26 NASDex kernel: device veth5568b3c entered promiscuous mode
May 17 17:48:26 NASDex kernel: br-9ca54f048d75: port 8(veth5568b3c) entered blocking state
May 17 17:48:26 NASDex kernel: br-9ca54f048d75: port 8(veth5568b3c) entered forwarding state
May 17 17:48:26 NASDex kernel: eth0: renamed from veth0e987c1
May 17 17:48:26 NASDex kernel: IPv6: ADDRCONF(NETDEV_CHANGE): veth5568b3c: link becomes ready
May 17 17:48:28 NASDex  avahi-daemon[13085]: Joining mDNS multicast group on interface veth5568b3c.IPv6 with address fe80::40e6:aeff:fe78:8bac.
May 17 17:48:28 NASDex  avahi-daemon[13085]: New relevant interface veth5568b3c.IPv6 for mDNS.
May 17 17:48:28 NASDex  avahi-daemon[13085]: Registering new address record for fe80::40e6:aeff:fe78:8bac on veth5568b3c.*.
May 17 17:49:01 NASDex  sSMTP[17889]: Creating SSL connection to host
May 17 17:49:01 NASDex  sSMTP[17889]: SSL connection using TLS_AES_128_GCM_SHA256
May 17 17:49:02 NASDex  sSMTP[17889]: Authorization failed (535 Authentication failed)
May 17 17:49:02 NASDex  sSMTP[17934]: Creating SSL connection to host
May 17 17:49:02 NASDex  sSMTP[17934]: SSL connection using TLS_AES_128_GCM_SHA256
May 17 17:49:03 NASDex  sSMTP[17934]: Authorization failed (535 Authentication failed)



It looks like the disk simply just stops responding for some reason, I am unsure what to make of this.

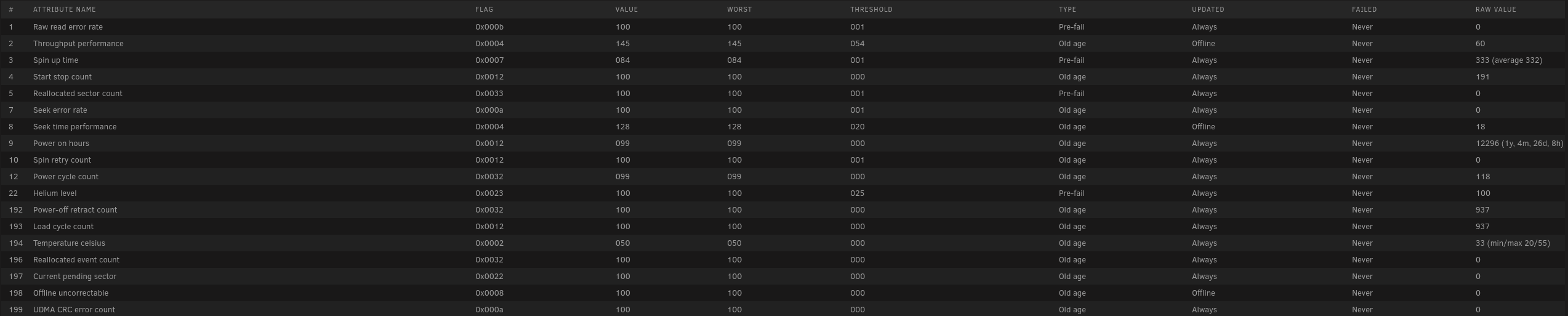

SMART data

708261699_Screenshotfrom2023-05-1721-46-00.thumb.png.3b2b1c26fa116ecb9ab628fe0bacea6e.png

  • Quote
    • Community Expert

    Looks more like a power/connection issue, replace cables (both power and SATA) and try again, you should also update the firmware for the 1st HBA:




    LSISAS2008: FWVersion(10.00.08.00)
LSISAS2008: FWVersion(20.00.07.00)



    2nd on is using the latest.

  • Quote
    • Author

    The drive is in a Rosewill hotswappable cage and none of the other drives are having issues.  Is it possible the hotswap cage is at fault you think?
