22 hours ago, Fletcher569 said:

Hi,



I changed the hardware from Dell Wyse 5070 to Thinkcentre M715q 2Gen without any problems, Array, Docker & VM comes up as with the Dell HW.

After that, I have the problem that my network connection (WebGUI not reachable) will be lost after several time server is up.

Now I found this topic and Im not sure if I have to install the plugin to solve the problem.

System Devices shows:

IOMMU group 6:

[10ec:8168] 01:00.0 Ethernet controller: Realtek Semiconductor Co., Ltd. RTL8111/8168/8211/8411 PCI Express Gigabit Ethernet Controller (rev 0e)

[10ec:816a] 01:00.1 Serial controller: Realtek Semiconductor Co., Ltd. RTL8111xP UART #1 (rev 0e)

[10ec:816b] 01:00.2 Serial controller: Realtek Semiconductor Co., Ltd. RTL8111xP UART #2 (rev 0e)

[10ec:816c] 01:00.3 IPMI Interface: Realtek Semiconductor Co., Ltd. RTL8111xP IPMI interface (rev 0e)

[10ec:816d] 01:00.4 USB controller: Realtek Semiconductor Co., Ltd. RTL811x EHCI host controller (rev 0e)

Bus 001 Device 001 Port 1-0 ID 1d6b:0002 Linux Foundation 2.0 root hub



MTU on Network Settings is set 1500.



Can I install RTL8168(B)/RTL8111(B) PCI Drivers plugin to solve the problem?



Thanks in Advance

blackhole-drei-diagnostics-20241116-1807.zip 96.81 kB · 0 downloads

Ah sorry, my mistake.

In syslog I found following entry -> Nov 16 17:23:32 blackhole-drei kernel: r8169 0000:01:00.0 eth0: RTL8168ep/8111ep



Does the RTL8168(B)/RTL8111(B) PCI Drivers plugin work for RTL8168ep/8111ep?



Thanks

getting call traces for the first time ever. and i've got ipvlan with bridging. I never had call traces with macvlan and bridging. I don't know what i'm reading in the logs.



NETDEV WATCHDOG: eth0 (r8125): transmit queue 1 timed out

tower-diagnostics-20241128-1847.zip

Edited November 29, 20241 yr by letrain

I did an upgrade to 6.12.14 and had no network connection, I got the same timed out messages as the post above. I downgraded to 6.12.13 and network came back. I've now removed this driver and upgraded without any issues so there may be a compatibillity issue with 6.12.14. I have another thread on it here with diag and stuff

I've also upgraded without loosing the network (R8125)...

Hi,



Please help me, because I am already tired how to make it work...



I have network 2.5 gb/s -> all devices including NAS.

Without this driver my 8125 realtek nic works as 1 gb/s and I have around 130 mb/s download and upload speed.



After installing driver and reboot I can see some improvement but only when downloading things from NAS to my PC/Mac. I can see speeds around 200 mb/s (probably due to HDD max speeds).



But... when I am trying to copy to NAS I still seeing 130 mb/s max speed... I don't know how to fix this. I have cache with nvme so it should use full 2.5 gb/s speed...



What am I doing wrong?



I have unraid ver. 7.0.0-rc.1. I don't know if this works fine in ver. 6.12.14 or something, because I bought and install this NIC today at the morning.



Help me



Regards

2 minutes ago, borcio02 said:

130 mb/s max speed... I don't know how to fix this. I have cache

Are you sure the share you are writing to has been configured to use cache?

Of course.

1st is Cache, and 2nd is Array.

is there any way to make unraid gracefully reconnect with a usb adapter?  i know usb adapters are not at all recommended for use but i figured i'd ask.



for example:



Dec  6 21:17:20 nas kernel: r8152-cfgselector 2-4: USB disconnect, device number 2
Dec  6 21:17:20 nas kernel: xhci_hcd 0000:00:14.0: WARN Set TR Deq Ptr cmd failed due to incorrect slot or ep state.
Dec  6 21:17:20 nas kernel: r8152 2-4:1.0 eth2: Tx status -108
Dec  6 21:17:20 nas kernel: r8152 2-4:1.0 eth2: Tx status -108
Dec  6 21:17:20 nas kernel: xhci_hcd 0000:00:14.0: WARN Set TR Deq Ptr cmd failed due to incorrect slot or ep state.
Dec  6 21:17:20 nas kernel: bond0: (slave eth2): Releasing backup interface
Dec  6 21:17:20 nas kernel: device eth2 left promiscuous mode
Dec  6 21:17:20 nas kernel: br0: port 1(bond0) entered disabled state
Dec  6 21:17:20 nas kernel: usb 2-4: new SuperSpeed USB device number 4 using xhci_hcd
Dec  6 21:17:20 nas kernel: r8152-cfgselector 2-4: reset SuperSpeed USB device number 4 using xhci_hcd
Dec  6 21:17:21 nas kernel: r8152 2-4:1.0 eth2: v2.17.1 (2023/06/13)
Dec  6 21:17:21 nas kernel: r8152 2-4:1.0 eth2: This product is covered by one or more of the following patents:
Dec  6 21:17:21 nas kernel:             US6,570,884, US6,115,776, and US6,327,625.
Dec  6 21:17:21 nas kernel:



i don't know what causes this sporadic error but once this happens, the usb network adapter will not work until the entire server is restarted, even though it still is correctly listed in network settings and device list.





i am running on unraid 6.12.8 (i cannot update because i get kernel panics).



Edited December 7, 20241 yr by oliver

Is this driver still available?  It is not showing up in the list of apps shown through the CA plugin.

Try again.  There was a glitch in Apps

Same issue as @BurningSky -- updated to 6.12.14 and my WebGUI stopped showing up. Had to use KVM to remove the plugin from the plugins directory and reboot. Now the WebGUI comes up, but it is still pretty unstable. I still get the `NETDEV WATCHDOG: eth0 (r8168): transmit queue 1 timed out` messages in dmesg, and the server acts like it can't connect to the Internet -- can't curl github.com, UnRAID Connect plugin says it's offline, etc.

3 minutes ago, ericswpark said:

plugin from the plugins directory and reboot

Did you only delete the plugin file (.plg) or did you also remove the directory for the plugin?

Please note that you have to remove both otherwise the driver will be still installed.



Best way to remove the plugin is to do the following form a Unraid terminal (if you have no WebGUI access anymore, otherwise use the remove plugin button in the WebGUI) :

rm -rf /boot/config/modprobe.d/r8169.conf
rm -rf /boot/config/plugins/r8168-driver
rm -rf /boot/config/plugins/unraid-r8168.plg

(copy paste will do the job just fine)

I see, I thought the `unraid-r8168.plg` file was the loader for all the files within the `r8168-driver` folder. Just removed all the files you mentioned and now the server is back up fine and I can curl sites through the terminal. Thank you!

@ich777
Can you please update the packages with the updated Realtek drivers?

11 minutes ago, bluebean said:

Can you please update the packages with the updated Realtek drivers?

I don't understand, what packages?

Nothing changes AFAIK and @jinlife also doesn't said that he changed anything in the drivers.



All drivers are up to date and the packages are available for all current Unraid version.



For what Unraid version should I rebuild the drivers?

On 12/14/2024 at 8:51 AM, ich777 said:

All drivers are up to date and the packages are available for all current Unraid version.



For what Unraid version should I rebuild the drivers?

I use your driver-plugin (that's what i mean with package) with my latest 6.12.14 unraid and a Realtek 8125 interface.
Your plugin version 2024.04.04 based on driver version 9.013.02.
On the linked website there is mentioned a new driver version  9.014.01 (2024/11/06). That's the reason i asked for an update of the plugin.

Edited December 16, 20241 yr by bluebean

14 minutes ago, bluebean said:

Your plugin version 2024.04.04 based on driver version 9.013.02.

The plugin version is not bound to the driver version, even if the plugin version is behind years the packages will be up to date.

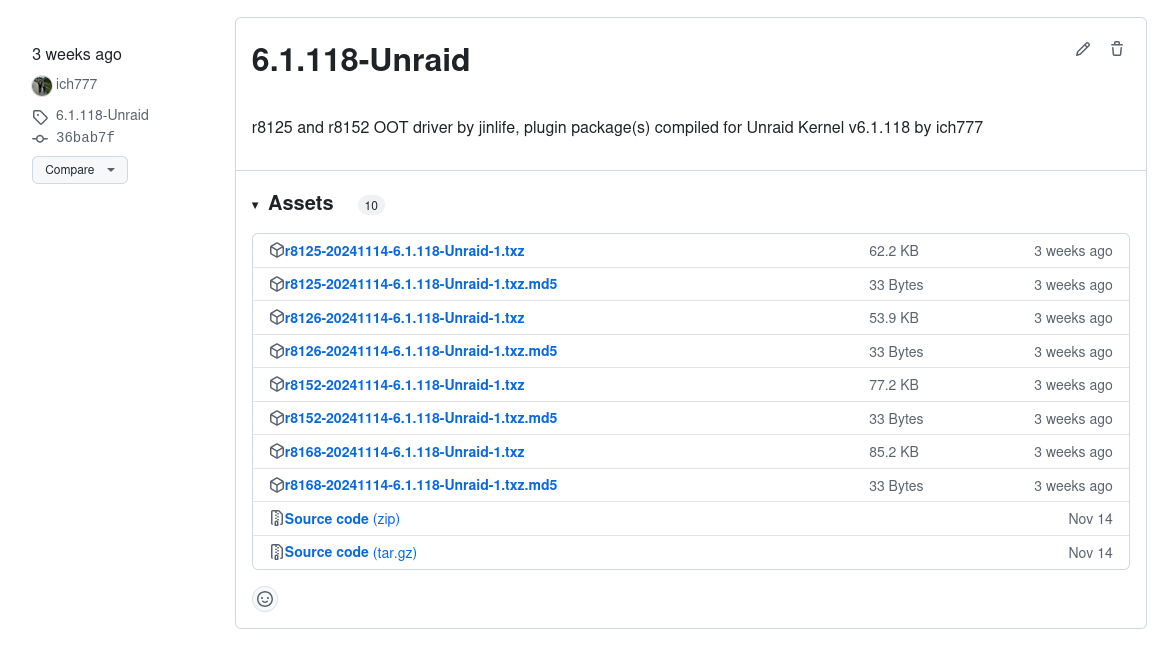

However what I can see is that I compiled the packages for 6.12.14 about 3 weeks ago:

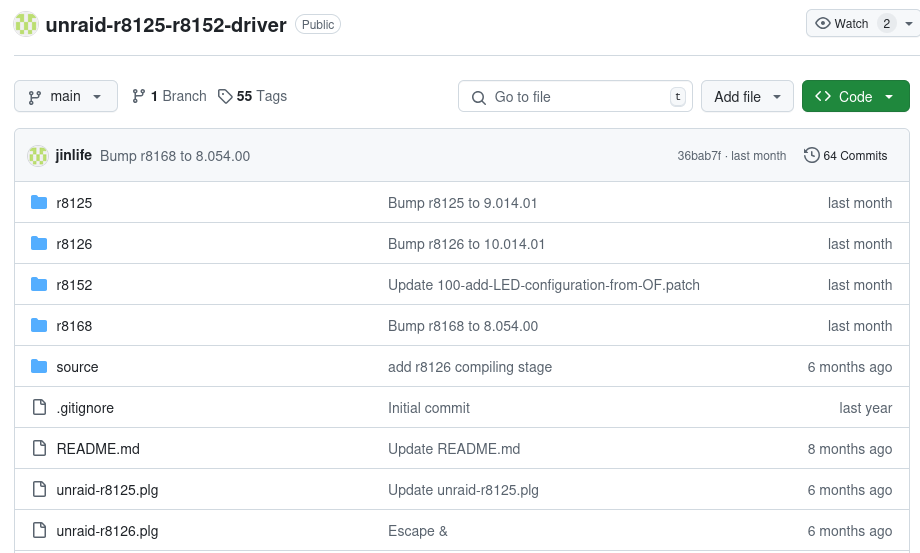

...and @jinlife updated the repo about 4 weeks ago, so the packages should be up to date as you can see in the date from the assets, so to speak 2024-11-14, therefore all packages/drivers are up to date and in sync with @jinlife's repo:

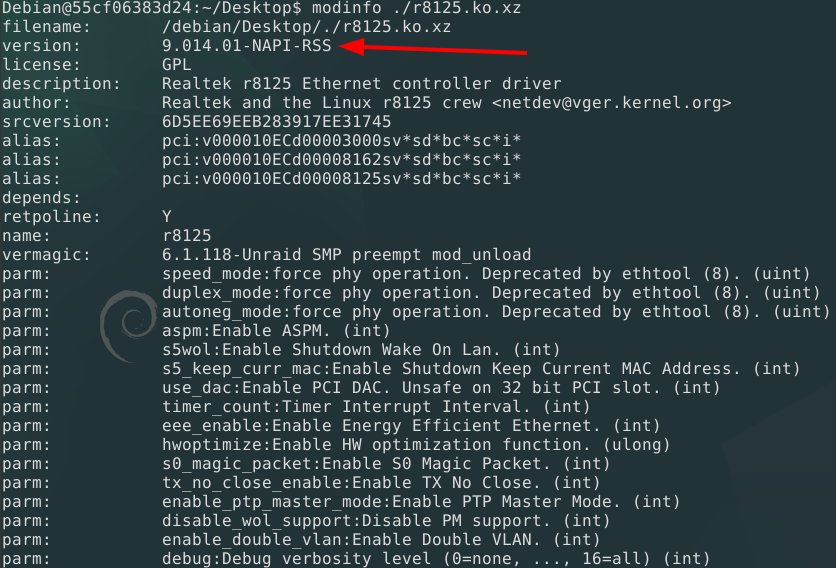

EDIT: If I download the package and run a modinfo on that module (I have to do this because I don't have the plugin installed) then I get of course version 9.014.01:

Ok, thanks for your explanation

I wonder why in my unraid the version 2024.04.04 is shown as "latest".



Edited December 16, 20241 yr by bluebean

8 minutes ago, bluebean said:

I wonder why in my unraid the version 2024.04.04 is shown as "latest".

As said above the plugin version is not the driver package version.



The plugin version is indeed 2024.04.04 however the plugin just pulls the driver packages from the releases section from GitHub and installs the drivers on boot for your current running Unraid version.

If you upgrade your Unraid version the plugin (or the Plugin Update Helper) will pull the new driver package from GitHub, the plugin version stays untouched.



You can browser all releases from the driver packages here:
https://github.com/jinlife/unraid-r8125-r8152-driver/releases



6.12.14 is based on Kernel 6.1.118 so to speak this exact release:
https://github.com/jinlife/unraid-r8125-r8152-driver/releases/tag/6.1.118-Unraid



You can also do this from a Unraid terminal and you will see the driver version:

modinfo r8125



Ah, cool - thank you again. In my case there is shown 9.014.01, indeed

I bought a new Motherboard (Asus Z890 w/ Ultra 7).  It comes with an unknown Realtek 2.5G NIC.  I am trying to start from fresh install.   When I boot up, I get the "Device "eth0" does not exist" error.  So I cannot proceed to web app.

Any suggestions on how to load the plugin via USB on another computer(windows)?


My goal is a run this in high c-state (low power) most of the time.  Should I buy a PCI-E intel nic or something else?   Or should I just return the MB and CPU and go a different direction?

Edited December 19, 20241 yr by Hubs99
Add more context

I just removed this Realtek R8125 Plugin in preparation for Unraid OS version 6.12.14. My transfer speeds did take a 10% hit after removing the plugin. But, the update to the new unRAID OS went fine. So far, I've done this on one of my nine unRAIDs. Now I just need to do the same thing for the other systems.

I have been using your rtl8168 driver for ages , including with unraid 7 beta until beta4.
Since upgrading to 7rc2, i have unstable network. "timeout" message showing in the console.

Is there something i could do except downgrading unraid ?

46 minutes ago, sorg said:

I have been using your rtl8168 driver for ages , including with unraid 7 beta until beta4.
Since upgrading to 7rc2, i have unstable network. "timeout" message showing in the console.

Is there something i could do except downgrading unraid ?

Have you tried removing the plugin to see if the built-in driveer now works better for you.

On 12/19/2024 at 9:41 PM, Hubs99 said:

c-state (low power)

Lower C-States doesn't always mean lower power, this is a common misconception.

Just because a software value is not showing the number that you want to see doesn't mean it draws automatically more power.



On 12/19/2024 at 9:41 PM, Hubs99 said:

Should I buy a PCI-E intel nic or something else?

I would recommend that you buy something with a Intel based LAN chip which fully supports ASPM but if you buy a addon PCIe card you most likely won't be able to reach C10 <- just as a warning.



The best way would be to buy a Motherboard with a Intel NIC, but they are most of the times more expensive.
